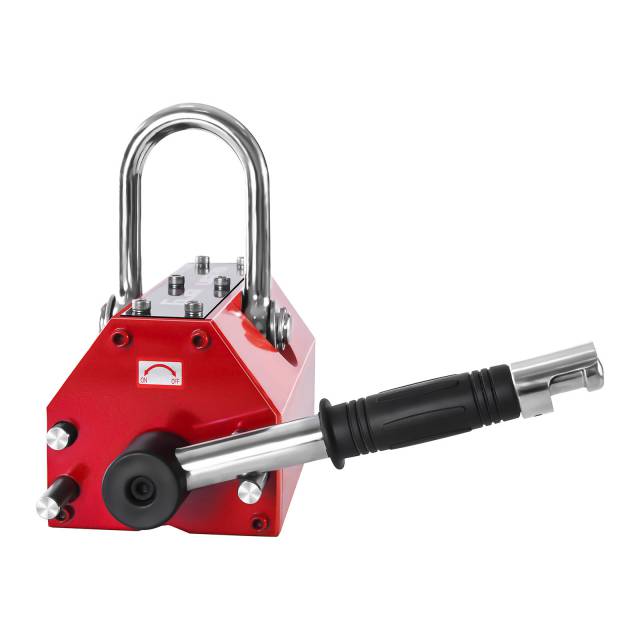

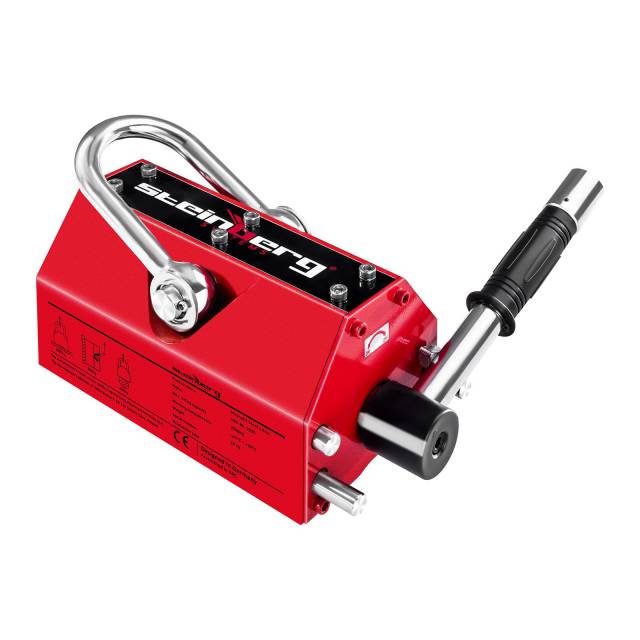

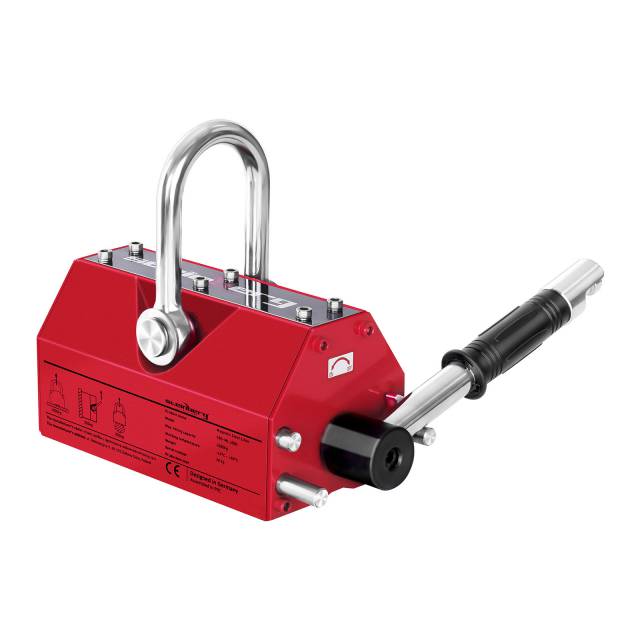

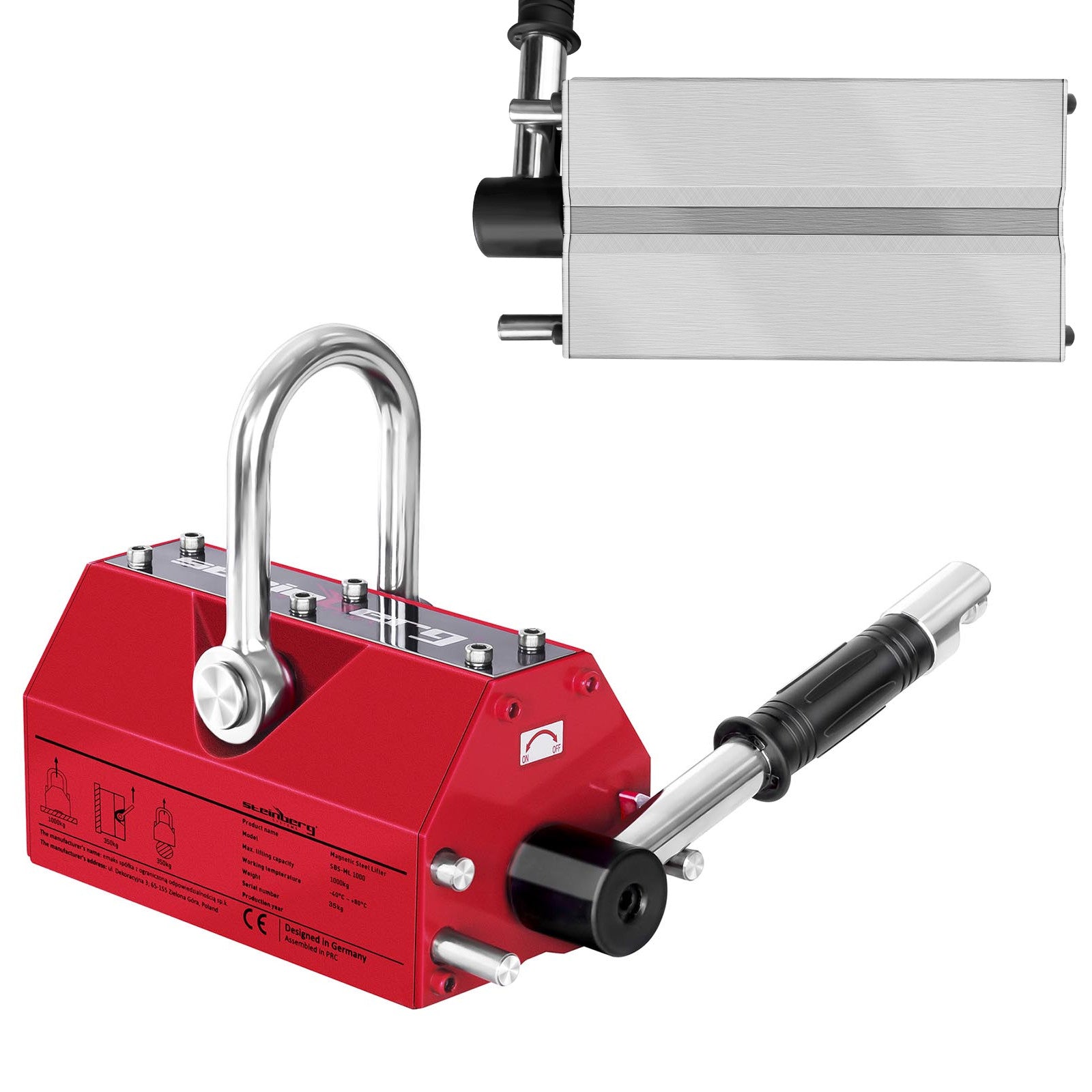

The SBS-ML 1000 Steinberg Systems magnetic lift is used to lift iron and steel objects with a maximum mass of 1000 kg. It is ideal for the machine, metallurgical and shipbuilding industries, as well as car workshops and construction companies.

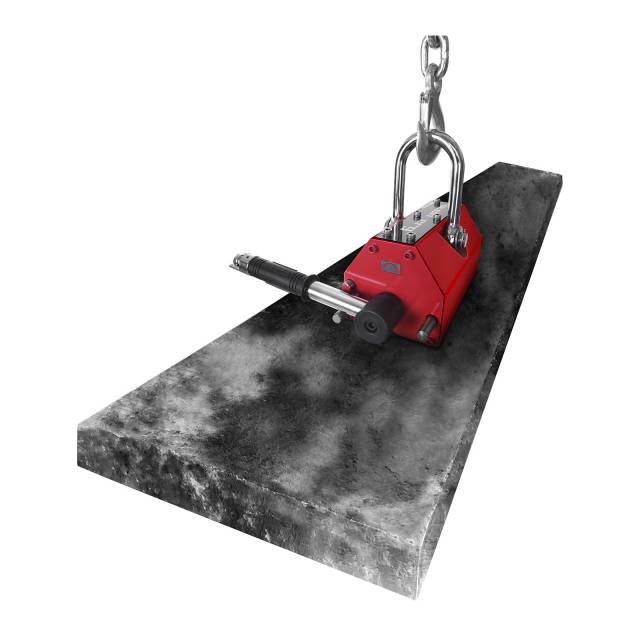

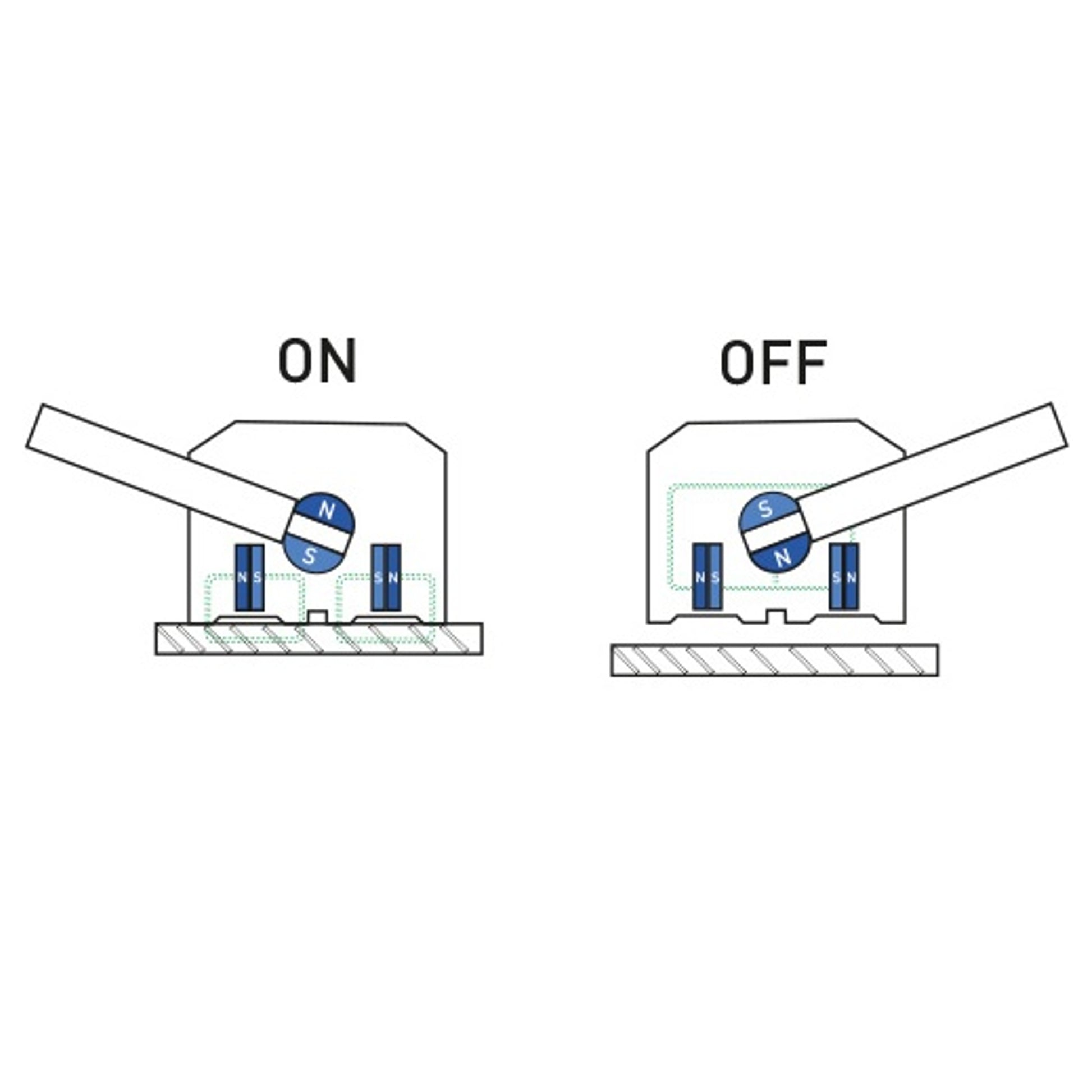

Magnetic gripper allows to lift sheet metal and profiled elements. The equipment uses neodymium magnets (sintered), making it very easy to operate. In the middle of the lift there is a fixed and movable magnet, which properly positioned introduces a magnetic field into the lifted structure. The SBS-ML 1000 magnetic gripper is characterized by operational safety. It does not need any power sources, so it does not generate costs. It is equipped with a harness for hanging equipment, e.g. on a crane.
Features and functions: - neodymium magnets - maximum load 1000kg - breaking load 3000kg - safe and simple operation - manual lever - zero cost of ownership
Technical parameters:
- Model - SBS-ML 1000
- Catalog number - 3200
- Article Status - New
- Permissible load - 1000 kg
- Breaking load - 3000 kg
- Max. load for vertical lifting and rounded surfaces - 350 kg
- Operating temperature range - from -40 to 80 °C
- Color - Red
- Switching mechanism - Mechanical lever
- Dimensions (WxH) - 32,2 x 13,8 x 14 cm
- Weight - 33,5 kg
- Shipping dimensions (WxH) - 37,5 x 26,5 x 27,5 cm
- Shipping weight - 34,3 kg
Included: - magnetic lift SBS-ML 100 - PL manual
Our devices have a CE declaration of conformity necessary for Sanepid.
