Description
Manufacturer name SBS-ML 600

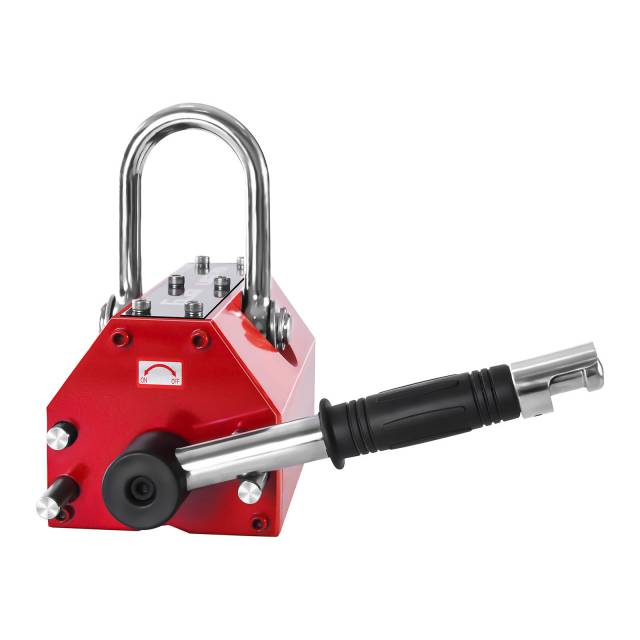

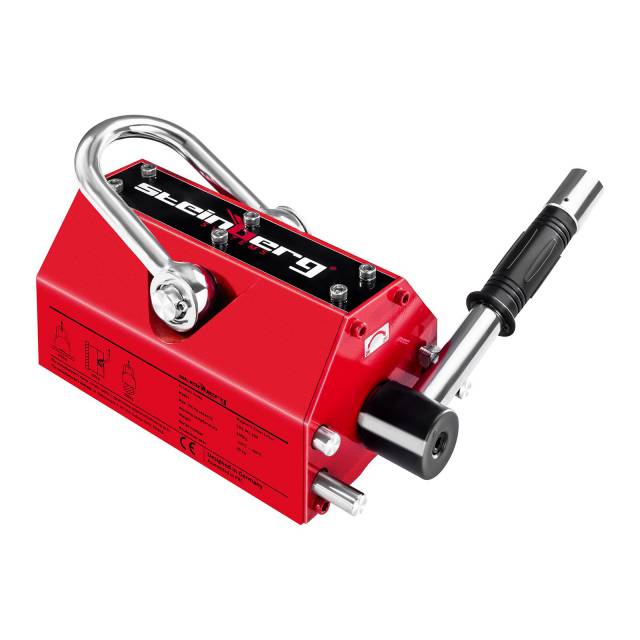

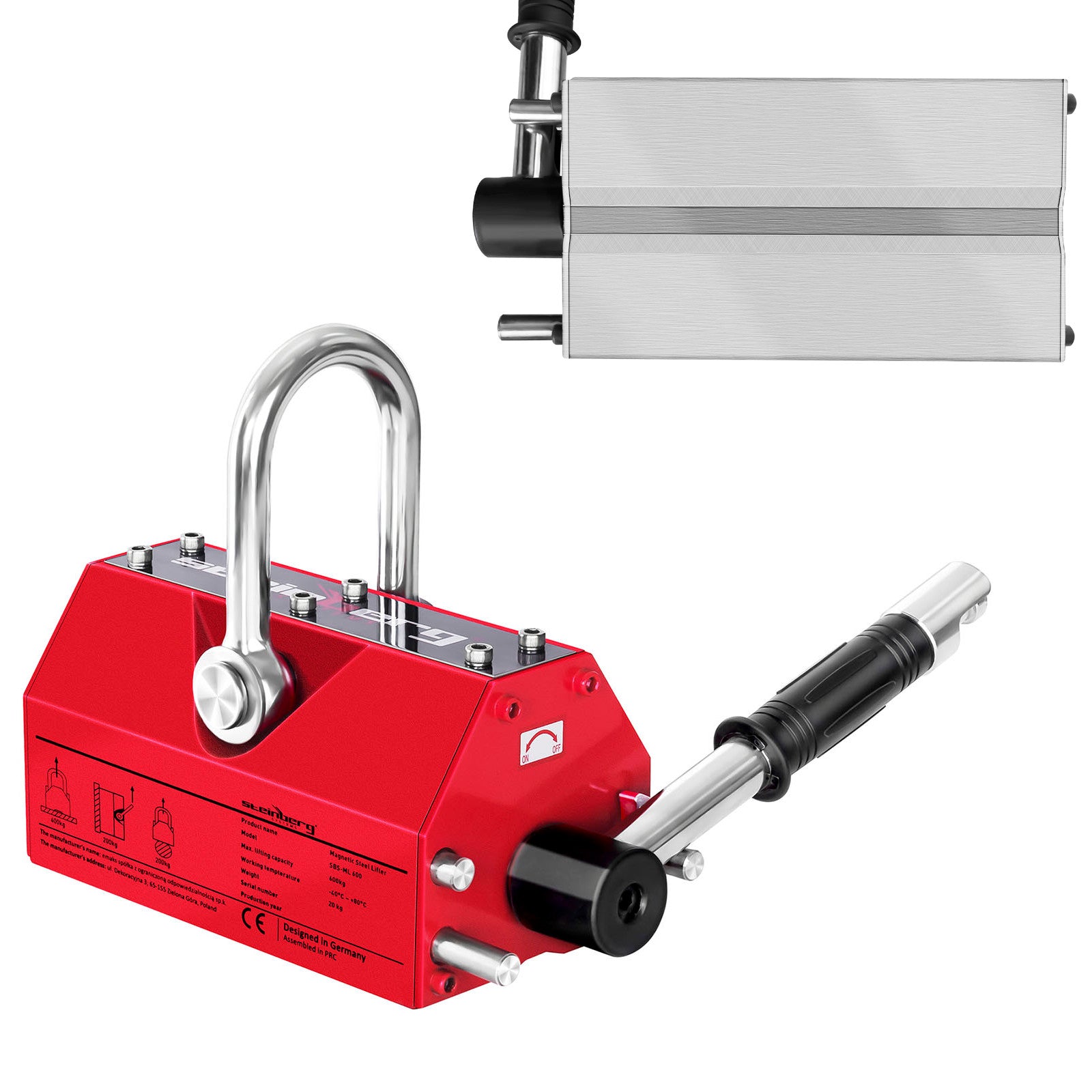

The SBS-ML 600 Steinberg Systems Magnetic Lift is used for lifting iron and steel objects. It is ideal for the machine, metallurgical and shipbuilding industries, as well as car workshops and construction companies.

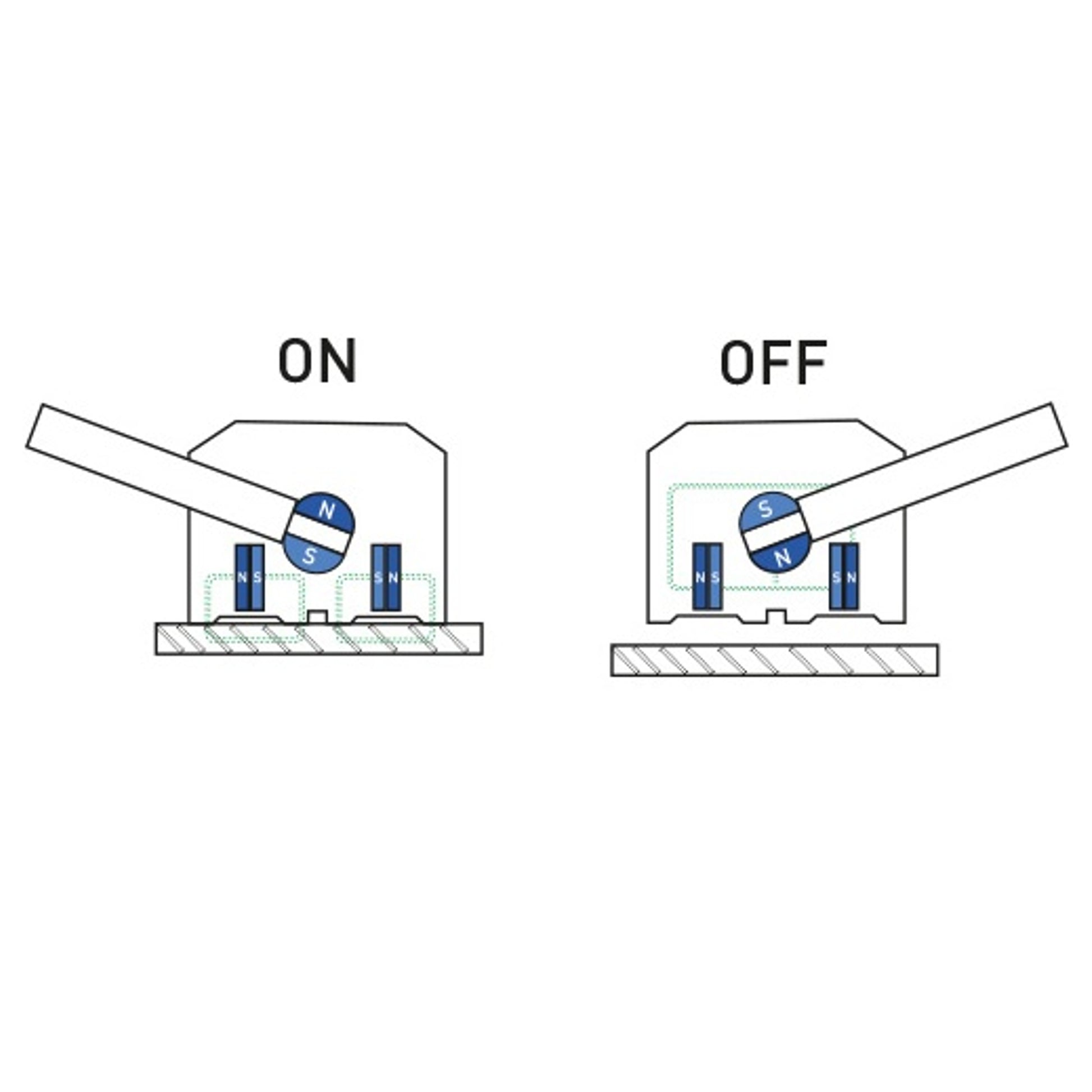

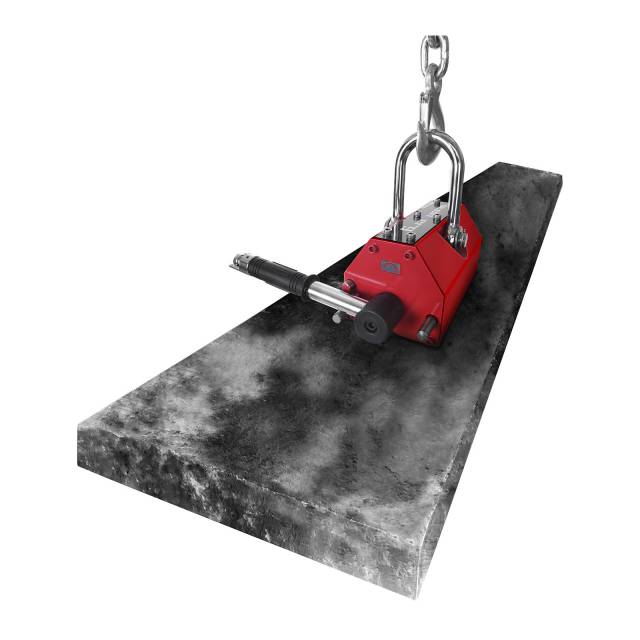

Magnetic gripper allows to lift sheet metal and profiled elements. The equipment uses neodymium magnets (sintered), making it very easy to operate. In the middle of the lift there is a fixed and movable magnet, which properly positioned introduces a magnetic field into the lifted structure. The SBS-ML 600 magnetic gripper is characterized by operational safety. It does not need any power sources, so it does not generate costs. It is equipped with a harness for hanging equipment, e.g. on a crane.
Features and functions:
- neodymium magnets
- maximum load 600kg
- breaking load 1800kg
- safe and simple operation

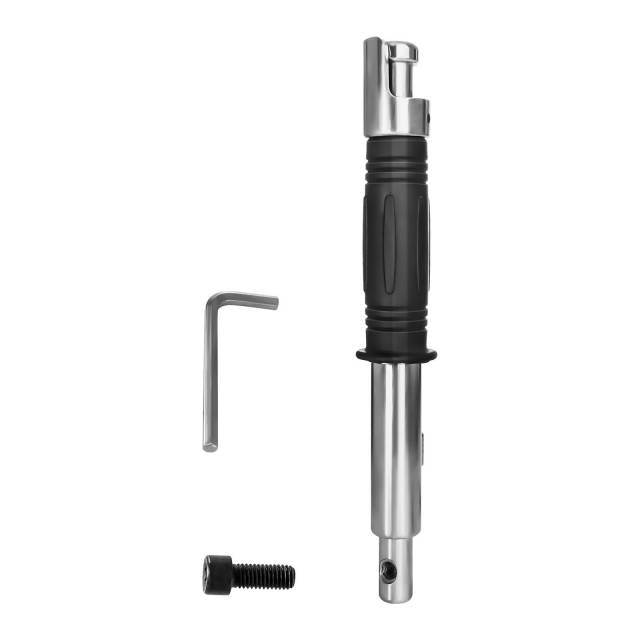

- manual lever
- zero cost of ownership
Technical parameters:
- - Model - SBS-ML 600
- - Catalog number - 3204
- - Article Status - New
- - Load rating - 600 kg
- - Breaking load - 1800 kg
- - Max. load for vertical lifting and rounded surfaces - 200 kg
- - Operating temperature range - from -40 to 80 °C
- - Color - Red
- - Switching mechanism - Mechanical lever
- - Dimensions (WxH) - 27 x 12 x 11,5 cm
- - Weight - 19,5 kg
- - Shipping dimensions (LxWxH) - 32 x 23 x 22 cm
- - Shipping weight - 20,8 kg
Included:- magnetic lift SBS-ML 600
- PL manual
Our devices have a CE declaration of conformity necessary for Sanepid.
