Description
Manufacturer name: S-LS-12 Basic

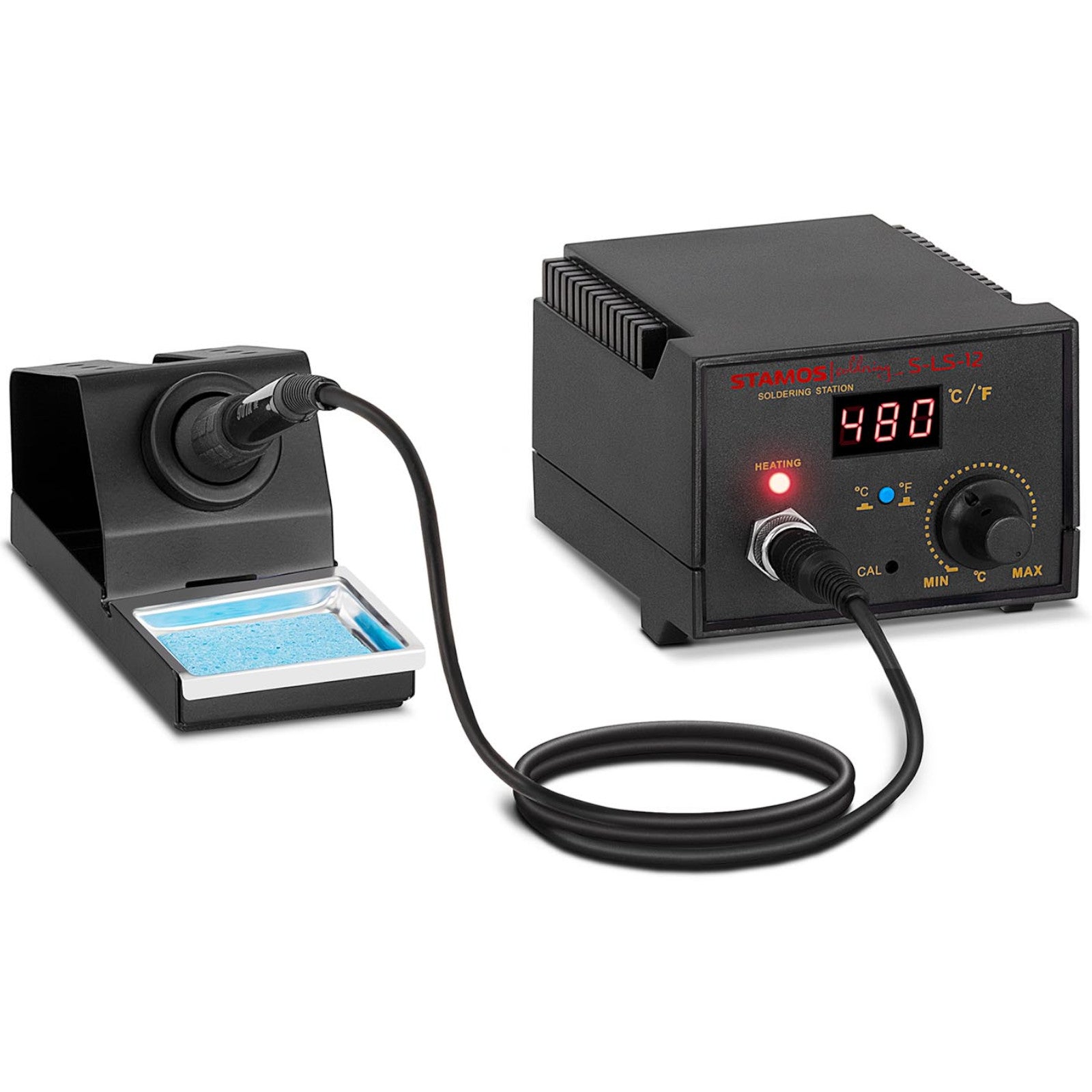

Professional soldering station of the German manufacturer STAMOS SOLDERING made of high quality, original components.
The device combines several functions necessary for professional soldering work with electronic systems such as SOIC, QFP, PLCC, BGA, SMD etc. The device is fully digitally controlled and controlled by an advanced PID system providing very precise temperature control.
The integrated soldering station consists of devices:
-
ACCURATE CONTROL UNIT enables precise determination of the parameters of the tip flask. It has a large, legible LED display indicating the temperature. Temperature units can be set to °C or °F.
-
SOLDERING IRON - 60W power SHOVEL with protection for ESD Safe electronic systems.
Technical parameters: - - Model - S-LS-12 Basic
- - Catalog number - 6127
- - Article Status - New
- - Voltage - 230 V / 50 Hz
- - Power - 65 W
- - Rated current - 6 A
- - Display - LED
Solder flask - - Output power - 60 W
- - Temperature control range - from 200 to 480 °C
- - Soldering flask cave resistance - < 2="">
- - Solder flask cave voltage - < 2="" m="" V="">
General dimensions - - Dimensions (WxH) - 16 x 11 x 9 cm
- - Weight - 1,15 kg
- - Shipping dimensions (WxH) - 31 x 18 x 12 cm
- - Shipping weight - 1,8 kg
The set includes a rich set of accessories: - - integrated soldering station - tip flask
- - sponge carrier for a solder flask
- - PL manual
In the DOWNLOAD tab there is a user manual, which describes in detail all elements of the device.
