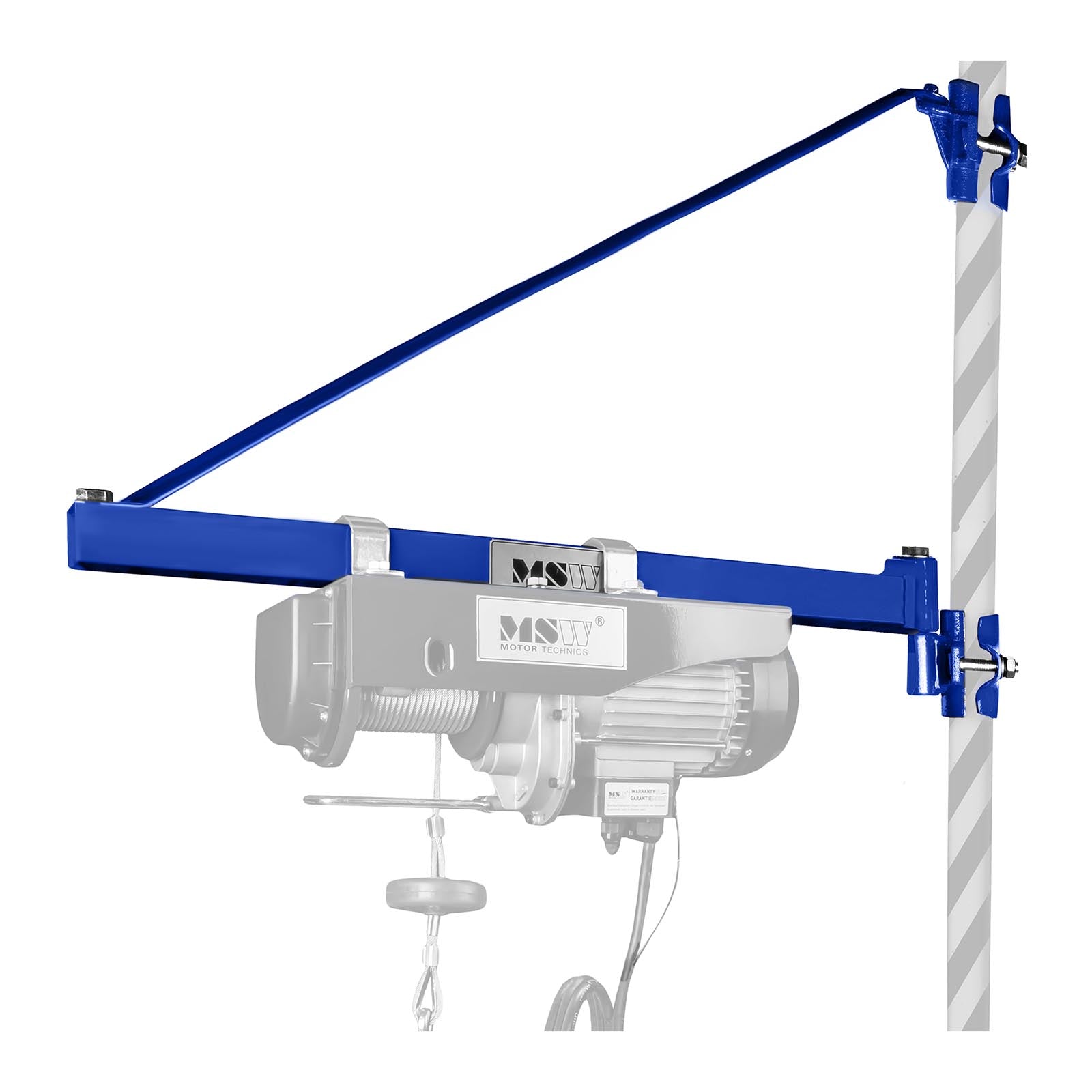

Swing arm for winch up to 600kg

Manufacturer name: PROFRAME 600

Professional swing arm for cable winches, German manufacturer MSW.
Made of steel painted with durable powder paint, it is very durable and resistant to corrosion. The arm is very easy to install on fixed elements of the building structure or in vehicles where it can serve as a base for a loading winch.

We recommend professional winches and rope winches series PROLIFTOR German manufacturer MSW. Winches with various lifts are available in our store.

Technical parameters:

• - Model - PROFRAME 600
• - Catalog number - 6011
• - Condition - New
• - Maximum load - 600 kg
• - Boom length - 750 mm
• - Fastening - Fastening bands fitted to steel pipes 40-50 mm
• - Spacing of fixing clips - Upper edge to lower 520 mm
• - Boom dimensions - 47 x 47 mm
• - Spare parts list - T bolt type M12 x 60 - 4 pcs. / M12 x 70 hex bolt - 1 pc. / Flat gasket ø 12 - 5 pcs. / Spring washer ø 12 - 4 pcs. / Nut M12 - 5 pcs. / Pin - 2 pcs.
• - Dimensions (WxH) - 75 x 4,7 x 4,7 cm
• - Weight - 5,4 kg
• - Shipping dimensions (DxWxD) - 89 x 10 x 9 cm
• - Shipping weight - 5,9 kg

Included:
- PL manual
- arm with bracket
- steel clamps for mounting on a pipe
- a set of screws and nuts for clamps
- THERE IS NO winch - to buy separately in our store
- THERE IS NO vertical pipe visible on the photo, to which the arm is attached
