Description
Manufacturer name: S-AQUACOOL 1000

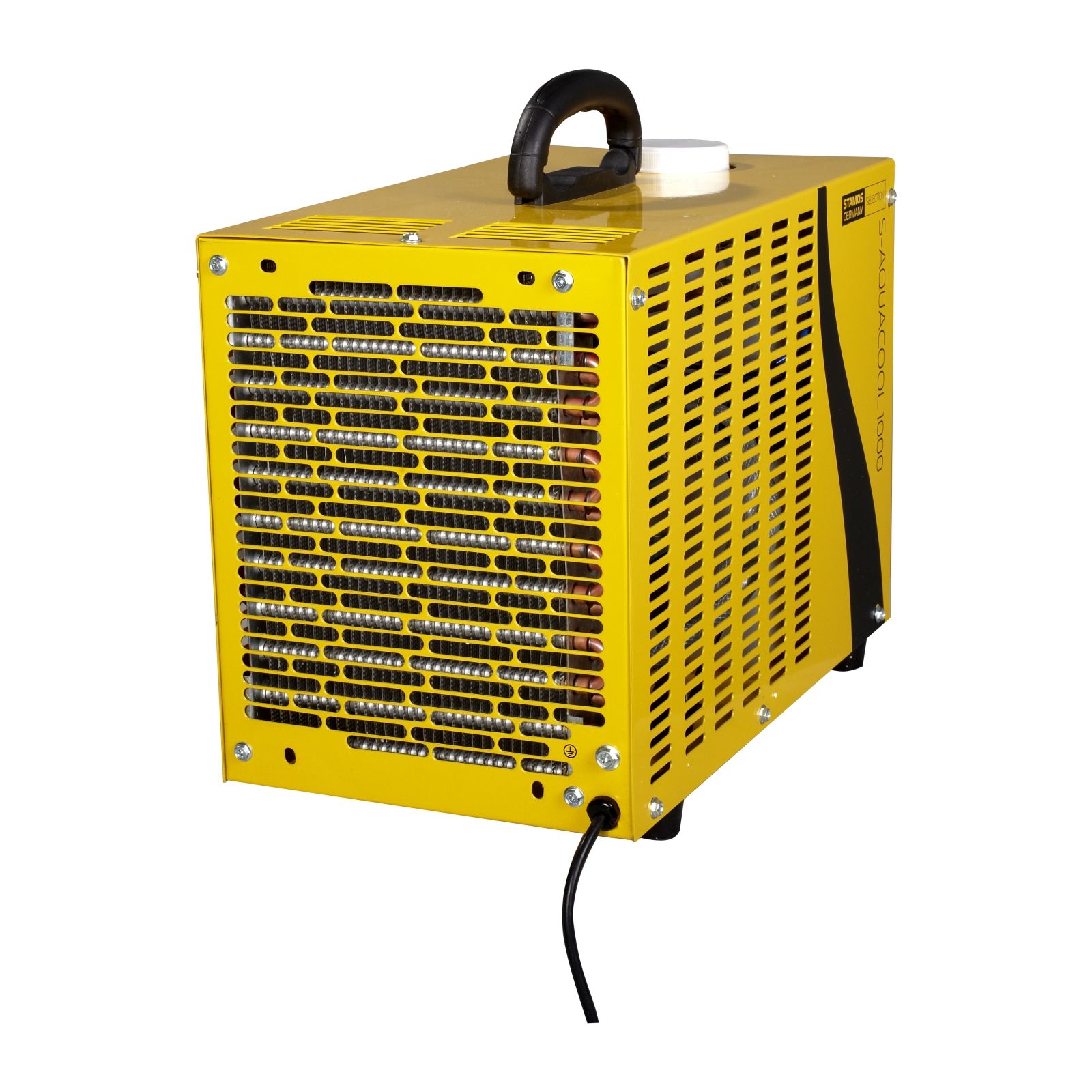

Welding above 150 A, especially for longer operating cycles, requires proper cooling of the handle. Many welding machines, although equipped with a suitable connection, do not have a suitable radiator in the set, which means that the user cannot use the full potential of the device. The water cooler of the German brand Stamos Selection not only allows to achieve full performance of the welder, but also extends its life. Efficient water circulation and efficient heat dissipation from the holder is achieved by the use of an efficient pump, fan, copper coil and aluminum heat sink in the device.
Features and functions:
- - Efficiency - liquid cooling system, aluminum heat sink and fan,
- - Mobility - compact size, light weight and comfortable handle make it easier to move the device,
- - Strength - the device was created for work in factories or smelters, so its design is very resistant to mechanical damage,

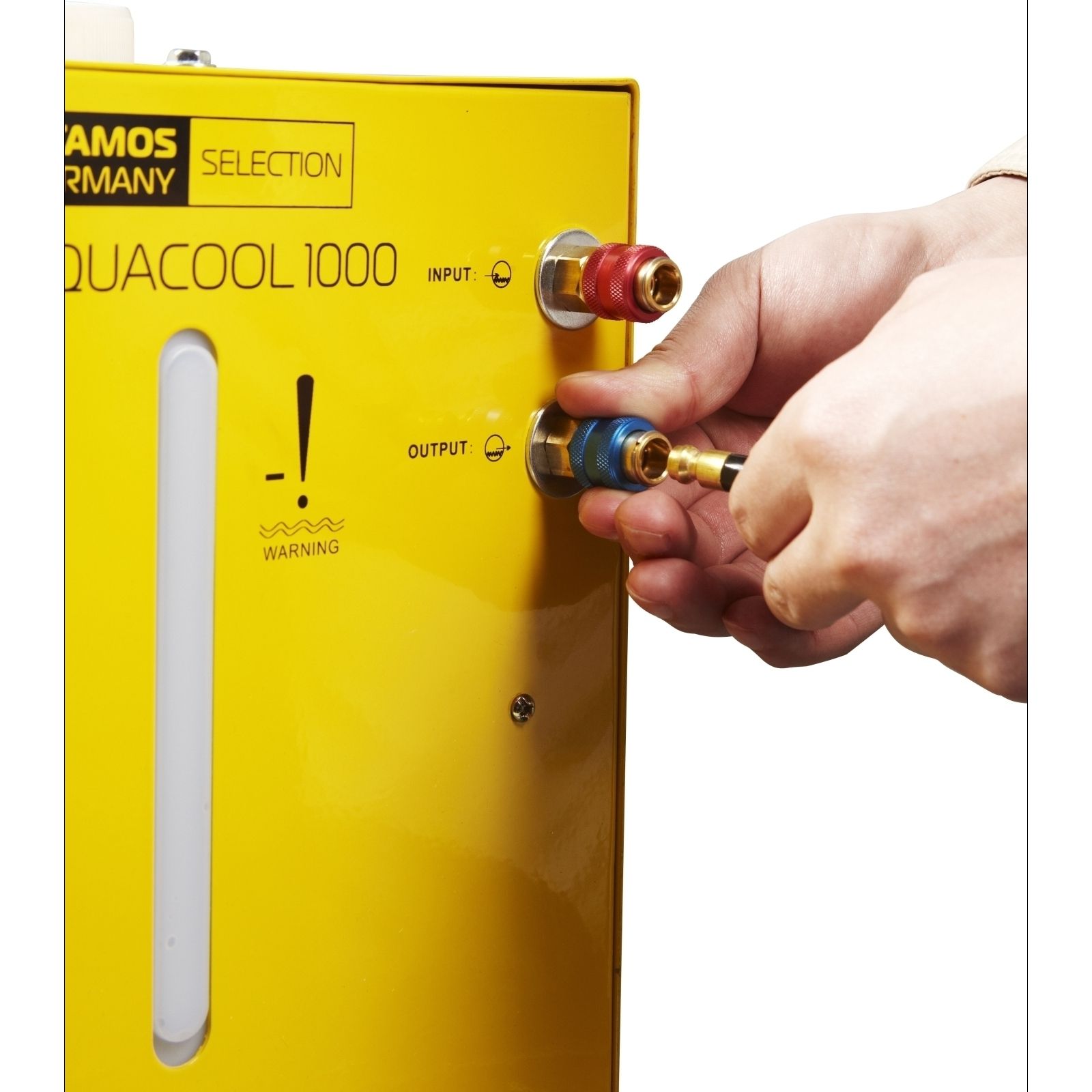

- - Convenience - large liquid tank (9 L) made of plastic, transparent pitch and two-color quick couplers increase the comfort of work,
- - Versatility - can work with MIG MAG (migmata) and TIG welders.
To protect the appliance from rust, it is recommended to use distilled water or coolant for cooling.
Technical parameters: - - Model - S-AQUACOOL 1000
- - Catalog number - 2714
- - Article Status - New
- - Power - 260 W
- - Voltage - 230 V
- - Tank capacity - 9 l
- - Flow - 8,5 l / min
- - Operating temperature range - from 20 to 60 °C
- - Cooling capacity - 1600 W (1 l / min)
- - Max. pressure - 3 bar
- - Protection class - IP21
- - Dimensions (WxH) - 49 x 25 x 40 cm
- - Weight - 13,5 kg
- - Shipping dimensions (DxWxD) - 60 x 38 x 44 cm
- - Shipping weight - 15,2 kg
Included:
- - Quick couplers for cooling system cables (2 pcs.),
- - Stainless steel clamps (2 pcs.),
- - User manual in Polish.
