Converters – 77-117# Inverto Monoblock Single Satellite Converter

Converters – 77-117# Inverto Monoblock Single Satellite Converter

Noliktavā: atlikuši 2

€21,91 EUR
€21,91 EUR
Izpārdošana Izpārdots
Cenā iekļauti nodokļi. Piegāde tiks aprēķināta, veicot pasūtījumu.
Skatīt visu informāciju

Overview

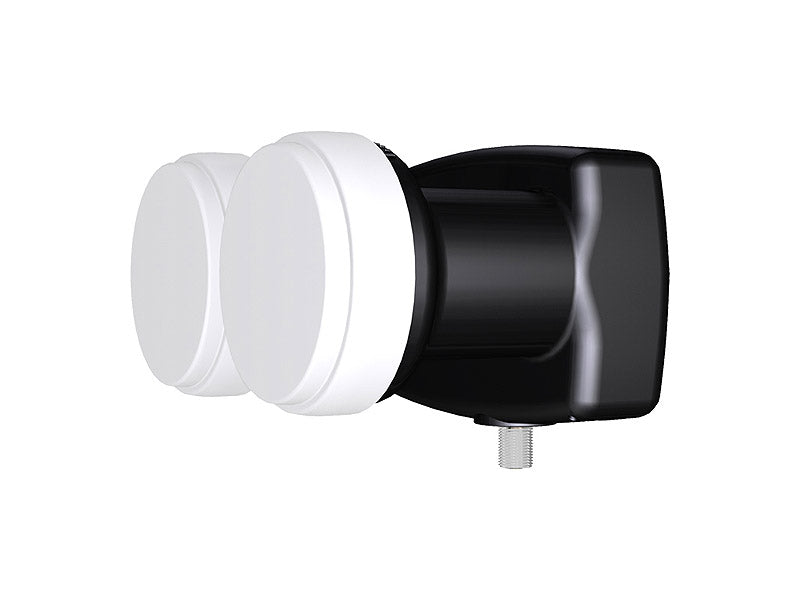

77-117# Inverto Monoblock Single SAT Converter

Key Features:

The Monoblock was designed for dual satellite reception. It can be used to receive signals from two satellites spaced 6° apart (e.g., Astra and Hotbird) and distribute them to a single set-top box tuner. Designed for installation on an 80-cm dish. The converter is compatible with High Definition transmission and guarantees an excellent signal-to-noise ratio. Manufactured to the highest industry quality standards and meeting all requirements, these converters are the ideal solution for satellite reception in Europe.

Specifications:

Key features

Low phase noise, DVB-S2 (HDTV) compliant
Low noise figure of 0.2 dB
Low current consumption
High cross-polarization
High frequency stability
Technical specification
SpecificationDetail
Lower band frequency range – input10.7–11.7 GHz
Lower band frequency range – output950–1950 MHz
Lower-band oscillator frequency9.75 GHz
Upper band frequency range – input11.7–12.75 GHz
Upper band frequency range – output1100–2150 MHz
Upper-band oscillator frequency10.6 GHz
Intrinsic noise0.2 dB typ. (0.7 dB max)
Initial accuracy+/-1.0 MHz
Oscillator temperature drift±3.0 MHz
Phase noise-90 dBc/Hz
Gain50–62 dB
Gain variation±0.75 dB/27 MHz
Polarization separation25 dB
VSWR2.5:1
Current consumption120 mA (typ.) 150 mA (max.)
Operating temperature-30°–+60°C
Weight270 g
