UnitedSeats Rancher Pro: Comfort and Ergonomics for Tractors and Construction Machinery
Anyone who spends many hours a day in a tractor or construction machine knows how important a high-quality driver’s seat is. Uneven terrain, vibrations, and long work shifts place special demands on comfort, suspension, and ergonomics.

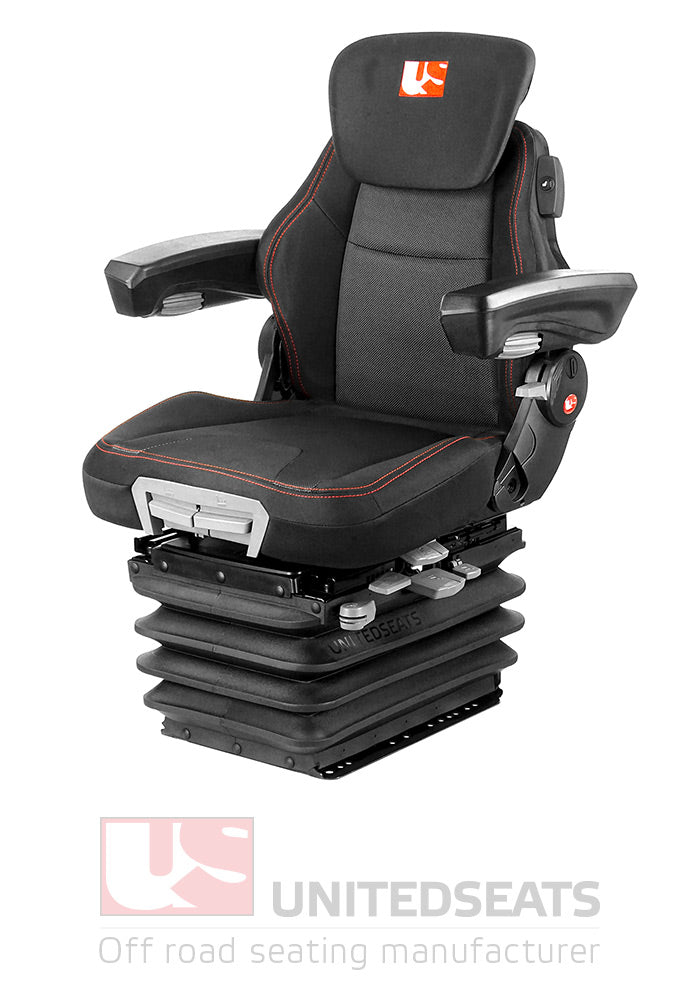

The UnitedSeats Rancher Pro Fabric US.200025 was developed specifically to meet these requirements. The air-suspension driver’s seat is particularly well-suited for medium- and large-sized tractors and can also be used in construction machinery and various earthmoving machines.
Air Suspension for Demanding Applications
One of the Rancher Pro’s most important features is its air suspension. The system offers 100 to 120 mm of travel and is powered by a 12-volt compressor.
The seat is designed for rider weights ranging from 50 to 135 kg. Weight adjustment is manual, while the seat height can be adjusted pneumatically. In addition, the Rancher Pro features an adjustable shock absorber, allowing the suspension to be adapted to specific operating conditions.
Properly functioning seat suspension plays a particularly important role on machines that are regularly used on uneven terrain. It helps isolate the driver’s seat from the vehicle’s movements and vibrations, thereby improving seating comfort during operation.
Focus on Ergonomics
A modern driver's seat must do more than just absorb shocks. Since drivers and machines have different requirements, the Rancher Pro offers various options for customization.
Features include, among others:
− pneumatic height adjustment
− seat tilt and depth adjustment
− adjustable backrest
− mechanically adjustable lumbar support
− horizontal suspension
− adjustable shock absorber
− armrests on both sides
− 21 cm rail travel
− swivel seat
− heated seat
These various adjustment options allow the seating position to be adapted to different drivers and working conditions.
Designed for Tractors and Construction Machinery
The Rancher Pro was primarily developed for medium- and large-sized tractors. According to the manufacturer, the model is also suitable for use in construction machinery and various earthmoving machines.
This makes the seat suitable for a wide range of applications, from agriculture to demanding tasks in the construction and machinery sectors.
Its robust construction is complemented by practical dimensions. The seat has a seat width of 52 cm, a seat height of 33 cm, and a specified mounting width at the base of 260 mm. The rail travel is 21 cm.
Practical Features and Expansion Options
In addition to comfort and suspension, the UnitedSeats Rancher Pro offers various options for customization to suit the specific machine.
The seat is equipped with black fabric upholstery and features a seat heater. The controls are located on the left side. In addition, the model can be upgraded with optional features. These include, for example, a mounting point for a joystick console as well as an operator-presence switch or contact switch.
These upgrade options are particularly useful when the seat is to be used in machines with specialized control systems. This allows the seat configuration to be adapted to the specific requirements of the machine manufacturer or operator.
A Seat for Long Workdays
Choosing a driver’s seat isn’t just about individual technical features. What really matters is the interplay between suspension, adjustment options, and an ergonomic seating position.
The Rancher Pro combines an air-suspension design with pneumatic height adjustment, adjustable damping, and numerous options for individual customization. It thus provides a versatile foundation for work machines that require operator comfort and a flexible seat configuration.
Conclusion
The UnitedSeats Rancher Pro Fabric US.200025 is a versatile air-suspension driver's seat for tractors, construction machinery, and earthmoving equipment.
With a suspension travel of up to 120 mm, pneumatic height adjustment, adjustable damping, seat heating, and numerous ergonomic adjustment options, the seat is designed to accommodate different drivers and operating conditions.
The Rancher Pro is particularly well-suited for machines that are regularly operated under demanding conditions and where a comfortable and customizable driver position is required.
