Overview

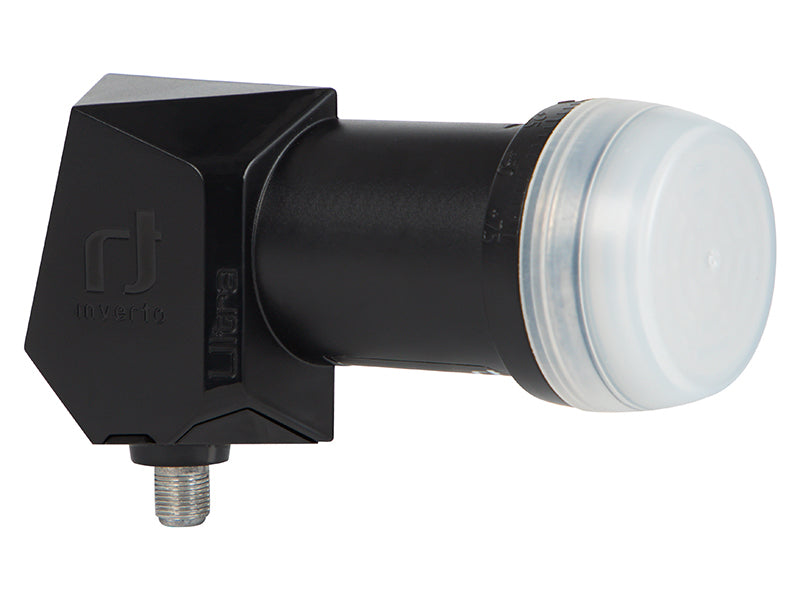

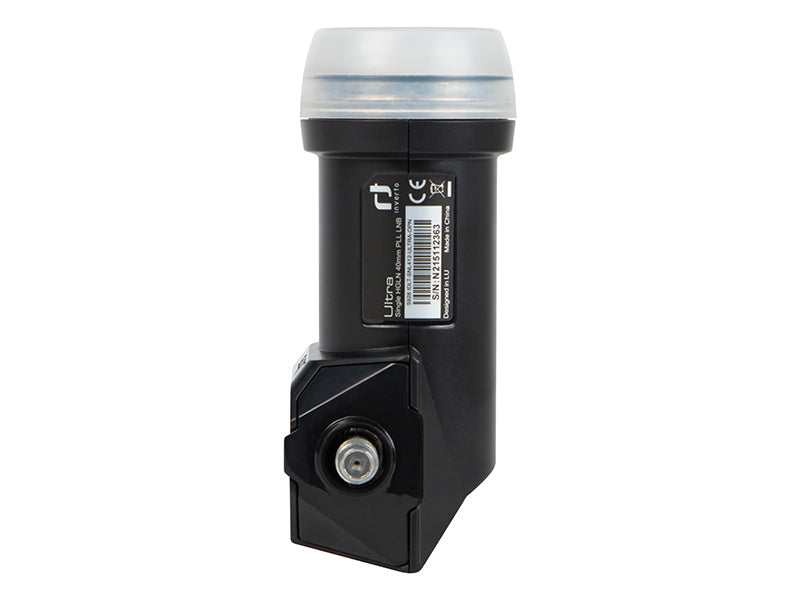

77-174# INVERTO Single Black Ultra Satellite Converter
The INVERTO satellite converter is a high-quality device designed for full-range reception of satellite programs broadcast in both vertical and horizontal polarization. Manufactured to the highest industrial quality standards and meeting all requirements, these converters are the ideal solution for satellite reception in Europe.
Key features:
Satellite TV in Full HD and 4K quality Exceptionally low noise levels guarantee TV and radio signal reception in all conditions. The device ensures reception of virtually any channel in 4K and Full HD quality. Regardless of outdoor conditions, the picture will always be smooth and free of any interference.
4G/LTE Filter Allows for the reception of satellite TV from a single satellite and its distribution to a single tuner. The LNB supports HD and UHD transmissions, delivers excellent radio performance, has very low power consumption, and is designed to minimize 4G/LTE interference
Specifications:
Key features
| Specification | Detail |
|---|---|
| Lower band – input | 10.7 GHz ~ 11.7 GHz |
| Lower band - output | 950 MHz ~ 1950 MHz |
| Lower oscillator | 9.75 GHz |
| Upper band - input | 11.7–12.75 GHz |
| Upper band – output | 1,100 – 2,150 MHz |
| Upper oscillator | 10.6 GHz |
| Intrinsic noise | 0.2 dB (max. 0.7 dB) |
| Oscillator temperature drift | ±3 MHz max |
| Phase noise | -90 dBc/Hz max |
| VSWR | 2.0:1 |
| Current consumption | 120 mA max. @ 11 V DC – 20 V DC |
| Operating temperature | -30° to +60°C |
| Weight | 151 g |
