Switching, industrial, antenna – Antenna Power Supply for ZZA-7 Telmor Antennas

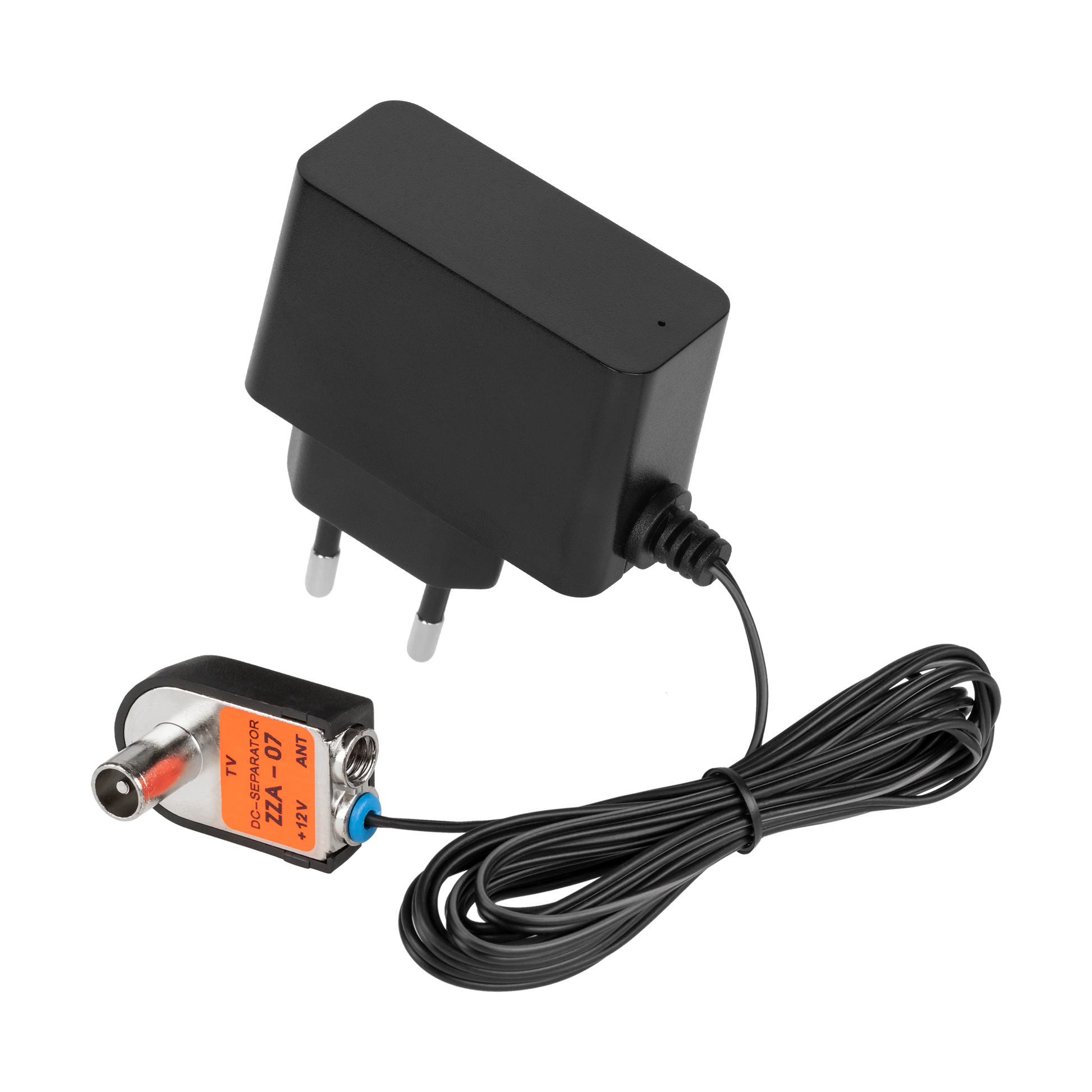

Telmor ZZA-7 Universal Antenna Power Supply

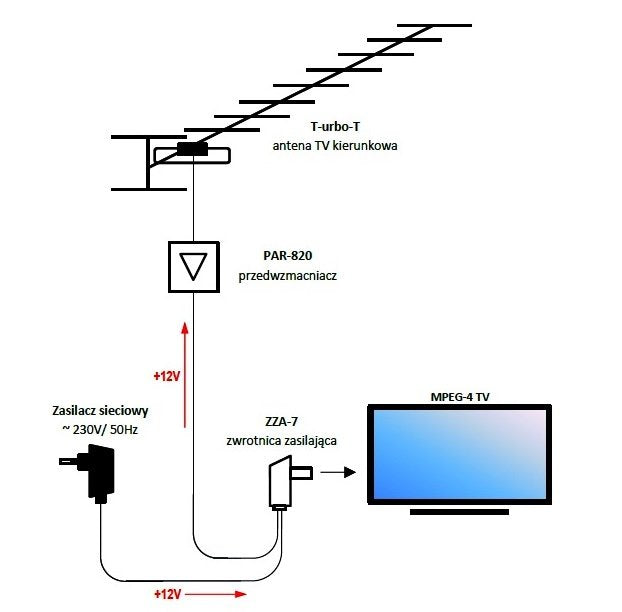

The ZZA-7 is an advanced antenna power supply with a splitter (separator), ideal for remotely supplying DC power to antenna preamplifiers or subscriber micropreamplifiers. This power supply enables DC power delivery via a coaxial cable, transmitting the signal from the TV antenna to the TV receiver.

Features: - Operates in the 47.5–862 MHz frequency range, ensuring versatility in use. - Low through-attenuation of less than 1.0 dB to ensure high signal quality. - AC power supply integrated with a crossover, enabling easy connection and installation. - LED indicator so you always know if the power supply is working properly.

Technical Specifications: - Operating frequency range: (FM/VHF, UHF) 47.5–862 MHz - Through-attenuation: <1>20 dB - Input/output impedance: 75 / 75 ohms - Power supply: ~230 V / 50 Hz - Power supply output voltage: +12 V - Maximum power supply load current: 100 mA - Power supply integrated with the crossover: yes - Net weight: 0.1 kg with power supply - Packaging: blister pack

Ensure a perfect power supply for your antenna preamplifier or subscriber microamplifier with the Telmor ZZA-7 universal antenna power supply. Reliable operation, easy installation, and high signal quality—that’s all you need. Order now and enjoy trouble-free TV reception.

Product code: URZ3350

Features

Technical Specifications
