• 5G FAR 48 LTE SAW LPF 686 MHz Filter, Telkom Telmor - Carlat
1 1

TELKOM TELMOR

EAN: 5903953006387

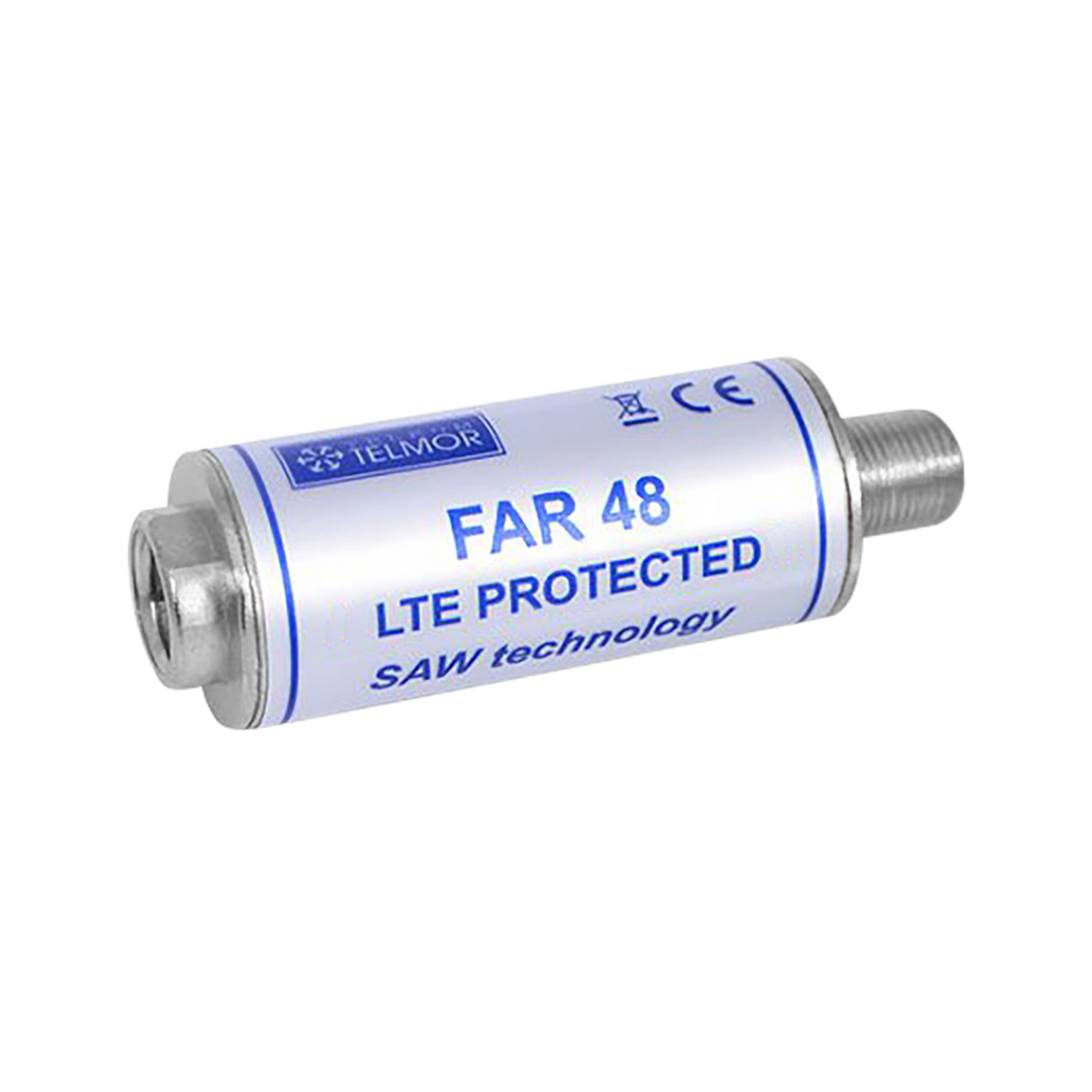

5G FAR 48 LTE SAW LPF 686 MHz Filter, Telkom Telmor

5G FAR 48 LTE SAW LPF 686 MHz Filter, Telkom Telmor

Atsargos senka: liko 1 vnt.

€18,90 EUR
€18,90 EUR
Išpardavimas Išparduota
Mokesčiai įtraukti. Siuntimo išlaidos apskaičiuojamos atsiskaitant.
Žiūrėti visą informaciją

Overview

Technical Specifications----------Passband frequency range: 47–694 MHzPassband attenuation: 4 dBPassband attenuation: >18 dB / 698–718 MHz; >26 dB / 718–725 MHz; >30 dB / 725–2600 MHz DC pass: no Input impedance: 75 ohms Output impedance: 75 ohms Input connector type: F

Key features

pass filter designed to block interfering signals in the frequency range above 694 MHz, including LTE 700 and 5G signals. The filter passes signals in the 47–694 MHz frequency range, which corresponds to television and radio channels in the FM, VHF, and UHF bands. The filter is designed for indoor use
Technical specification
Specification Detail
type femaleOutlet connector type F
type maleOperating temperature -20–50 degrees CelsiusDimensions: 64 mm (length) x 20 mm (diameter)Weight: 0.045 kg-----------General-----------The FAR 48 is an LTE low
