Blow

EAN:5900804081739

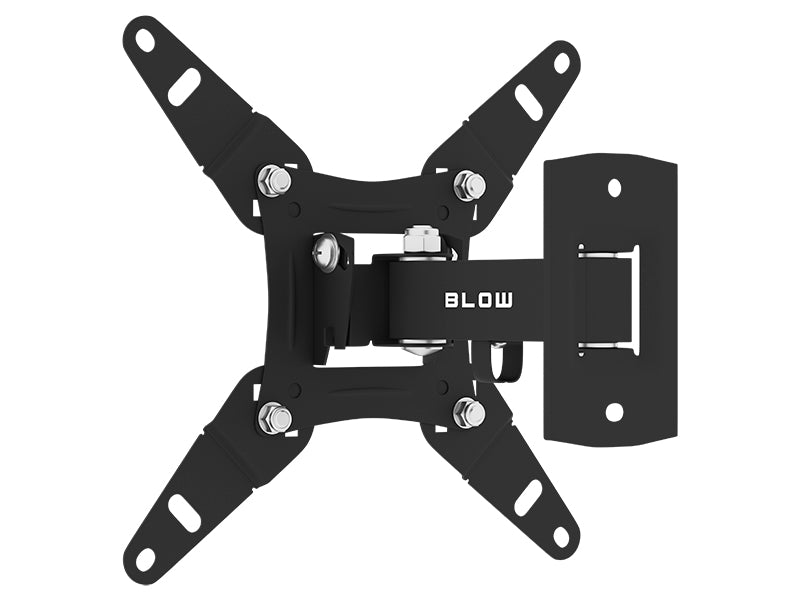

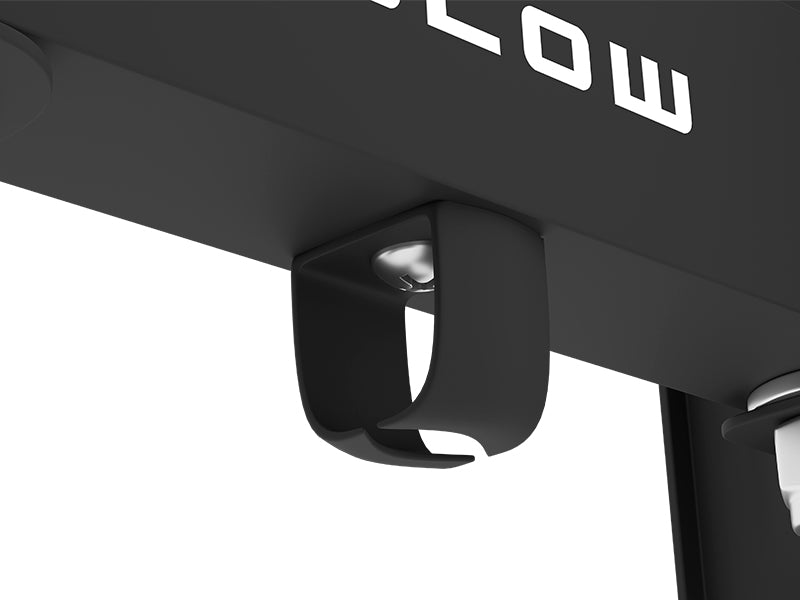

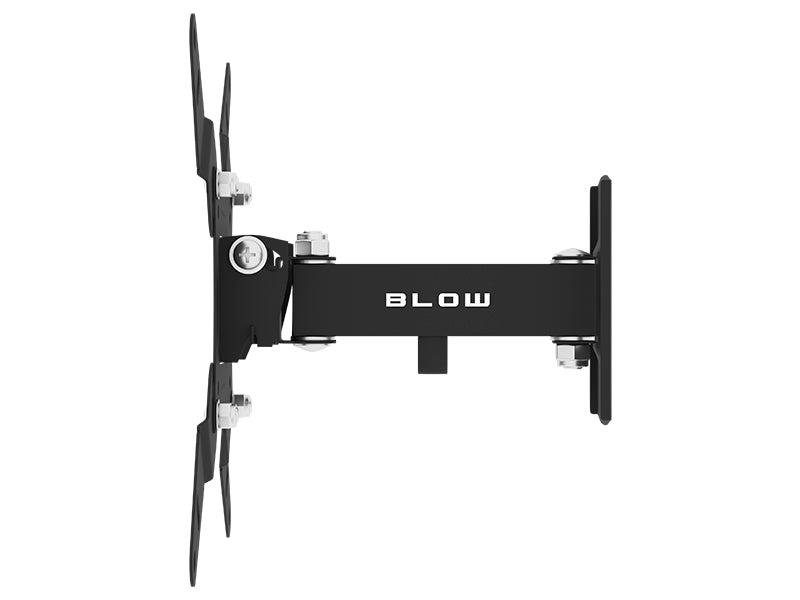

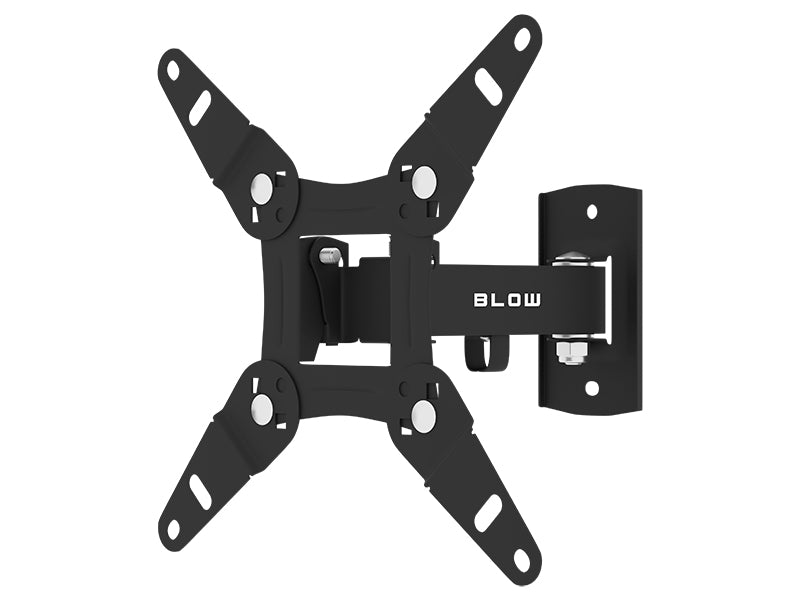

76-853# HQ LCD TV Mount, 13"-42", Type X, with Articulated Arm

76-853# HQ LCD TV Mount, 13"-42", Type X, with Articulated Arm

429 vnt. sandėlyje

€9,91 EUR
€9,91 EUR
Išpardavimas Išparduota
Mokesčiai įtraukti. Siuntimo išlaidos apskaičiuojamos atsiskaitant.
Žiūrėti visą informaciją

Overview

76-853# HQ LCD TV Mount, 13"-42", Type X, with Articulated Joint

This universal mount is designed to allow you to mount a slim TV or monitor on the wall. The mount’s maximum weight capacity is approximately 20 kg. The mounted screen size ranges from 13" to 42". The mount allows for easy adjustment of the panel’s tilt within a range of -5 to +15 degrees.

Key specifications:

Specifications:

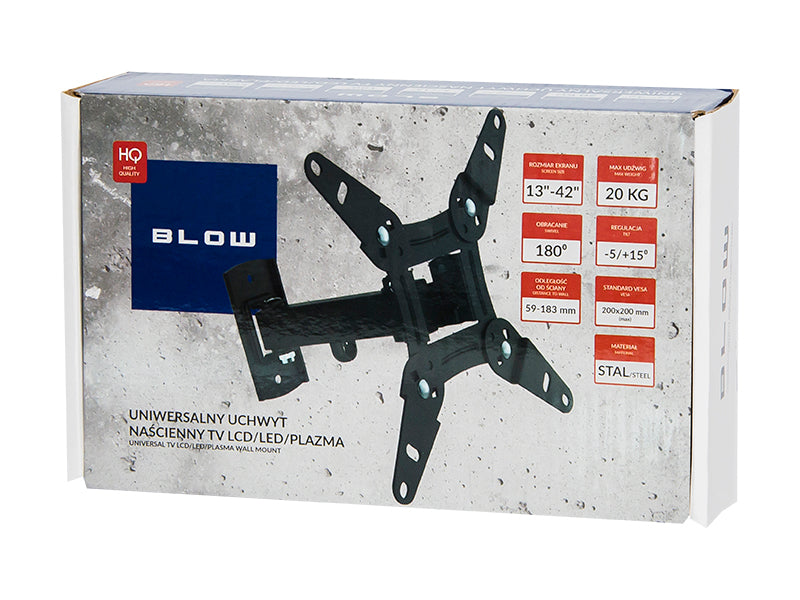

PACKAGE CONTENTS

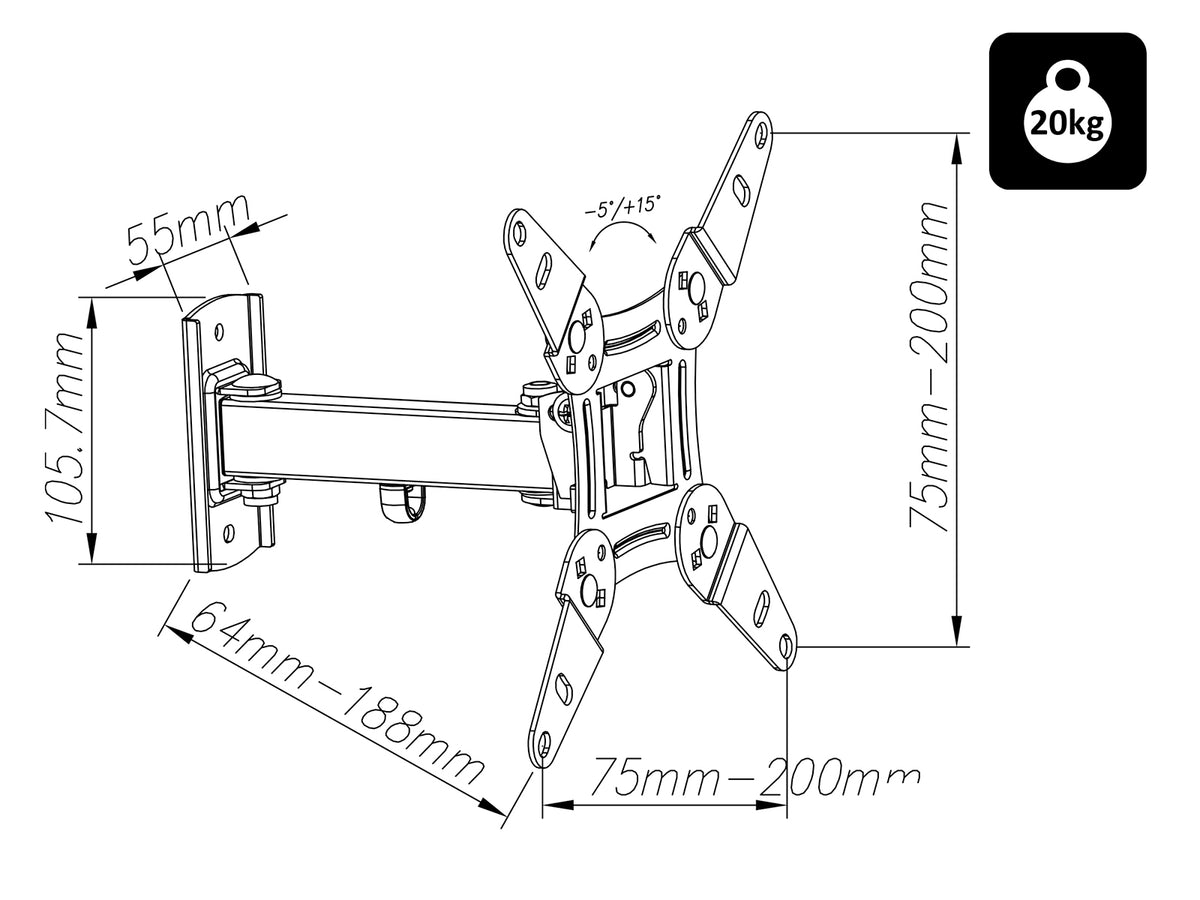

See the gallery for bracket dimensions.

Key features

VESA standard
Steel construction
Horizontal, vertical, and tilt adjustment
Modern, stylish design that fits any interior
Simple and intuitive installation
Steel construction
13"–42" BLOW Wall Mount
Installation instructions
Set of accessories required for installation anchors
screws
washers
nuts
Technical specification
SpecificationDetail
Rotation180 degrees
Maximum screen size13"–42"
Maximum load capacity20 kg
Distance from the wall59–183 mm
Tilt+5°/-15°
VESA standardup to 200 mm x 200 mm (max)
Rotation angle180 degrees
