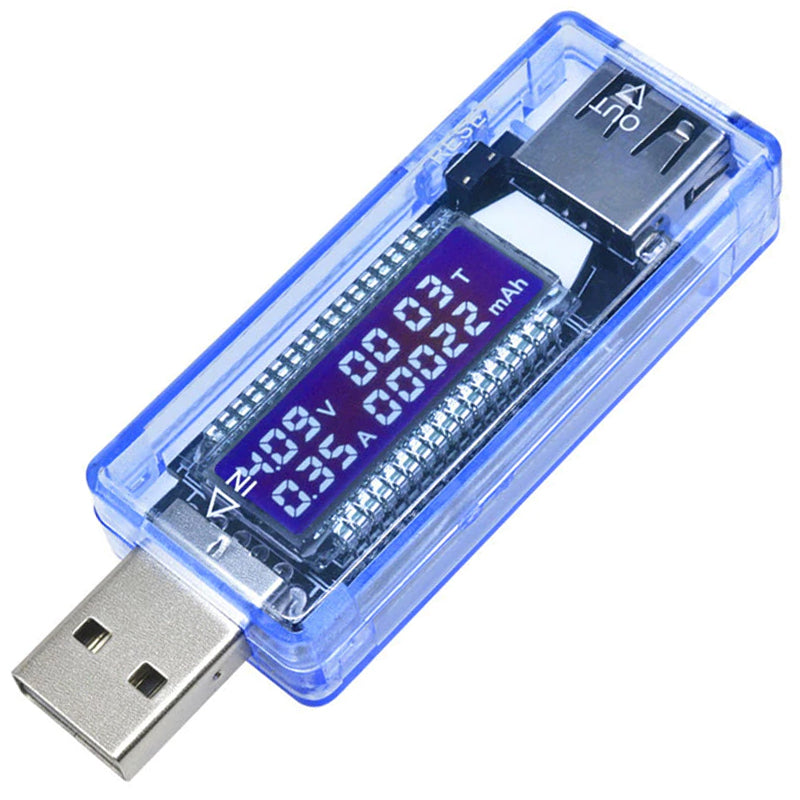

The remaining – USB Voltmeter, Ammeter, Voltage and Current Tester

USB Voltmeter, Ammeter, Voltage and Current Tester

PRODUCT DESCRIPTION The USB V20 meter is a device for measuring the voltage and current consumption of connected devices. The LCD screen simultaneously displays four values: voltage, current consumption, measurement time, and charge capacity. It features a RESET button to clear measurements and a memory that stores results until reset. It operates in Plug&Play mode without requiring driver installation and is compatible with USB 2.0.

TECHNICAL SPECIFICATIONS Voltage measurement: DC 4 V – 20 V Voltage and current measurement tolerance: 1% Measurement rate: 2 measurements/s Current measurement: DC 0 A – 3 A Current consumption: approximately 10 mA Capacity: 0 – 99,999 mAh Time measurement: 0 - 99 h RESET button to clear measurements LCD display Compatible ports: USB 2.0 Dimensions: 72 x 13.5 x 23 mm (with USB connector) Color: blue

PACKAGE INCLUDES 1 USB meter User manual
