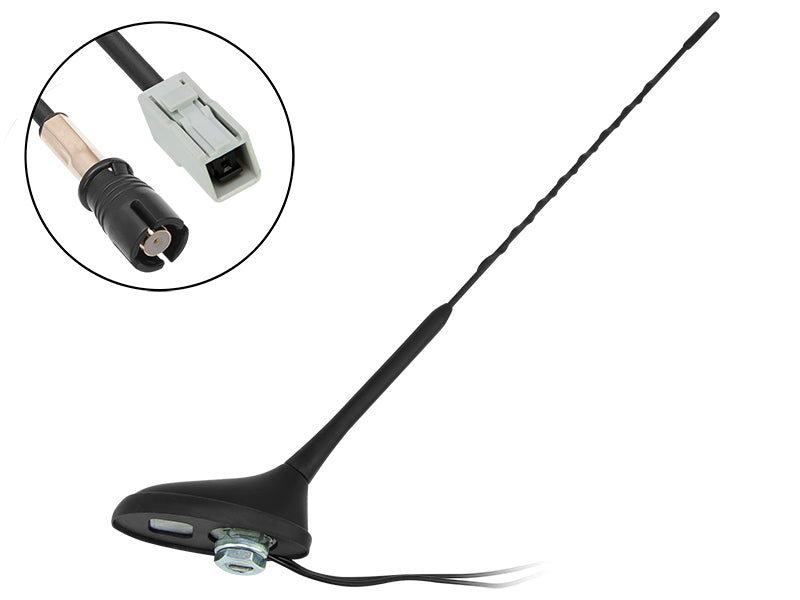

22-695# Peugeot, Citroën, and Toy Phantom FM/GPS Car Antenna with Amplifier

22-695# Peugeot, Citroën, and Toy Phantom FM/GPS Car Antenna with Amplifier

Specifications:

- Mast tilt angle: 72 degrees

- Mast length: 40 cm

- FM gain: +24 dB

- AM gain: +20 dB

- Cable length: 120 cm

- AM/FM wave impedance: 75Ω

- Compatibility: with Citroën models (C2, C3, C4II, C4 PICASSO, C5, DS3, DS4 II), Peugeot (207, 207 SW, 307, 308, 407, 508, RCZ 3008, RCZ 5008), and Toyota.

GPS band parameters:

- Frequency range: 1575.42 MHz ± 1.02 MHz

- V.S.W.R. 1.5:1

- Bandwidth > 10 MHz

- Impedance: 50 ohms

- Gain: 5 dBic

- Polarization: RHCP

Low-noise amplifier:

- Frequency range: 1575.42 MHz ± 1.02 MHz

- DC voltage: 3–5 V

- Gain: 28 ± 3 dB

- Cutoff ranges >= 25 dB (frequency range +100 MHz)

- >= 40 dB (frequency range - 100 MHz)

- Output VSWR 1.5

- NSR 1.2

- DC current: 10.5 mA

Summary specifications for the GPS antenna and amplifier:

- Frequency range: 1575.42 MHz ± 1.02 MHz

- Output VSWR 1.5

- Gain: 28 ± 3 dBic

- Impedance: 50 ohms

- Operating temperature: -25 degrees C ~ +65 degrees C
