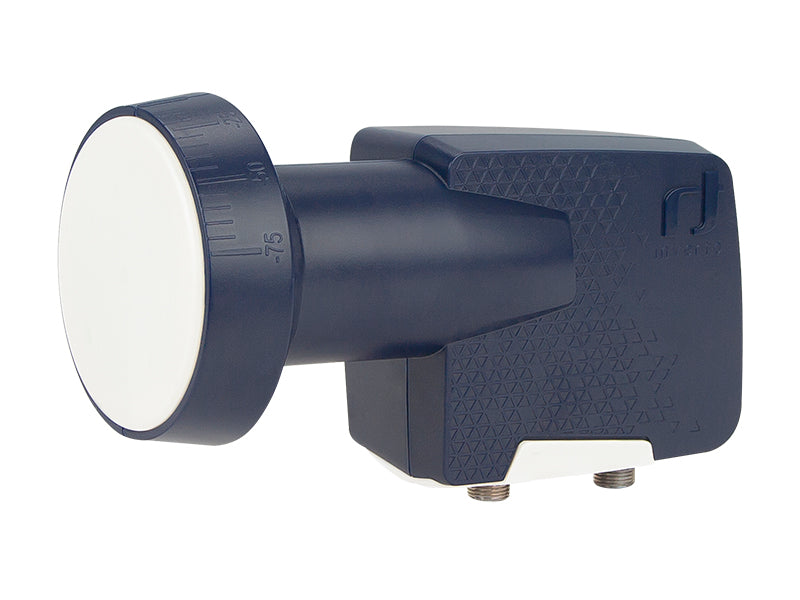

77-189# Inverto Twin Premium Satellite Converter
The INVERTO TWIN PREMIUM SAT Converter allows you to receive satellite TV and radio from a single satellite and distribute the signal to two single-tuner set-top boxes (or one dual-tuner PVR). The converter supports HD and UHD broadcasts, delivers unparalleled RF performance, features very low power consumption, and minimizes interference from 4G/LTE transmissions. Manufactured to the highest quality standards. It is the ideal solution for discerning customers seeking satellite TV reception worldwide.
Features:
Key features
| Specification | Detail |
|---|---|
| Input frequency range | 10.7 GHz ~ 12.75 GHz |
| Output frequency range | 950 MHz ~ 2150 MHz |
| Low-frequency band | 9.75 GHz |
| High-frequency band | 10.6 GHz |
| Intrinsic noise | 0.2 dB typ. (max. 0.7 dB) |
| Frequency accuracy | ±500 kHz max |
| Conversion gain | 55 dB min |
| Gain variation (across the entire band) | ±3 dB |
| Image rejection | 40 dB min |
| Ca control signal (V) | 11.0 V ~ 14.0 V |
| Cb control signal (H) | 16.0 V ~ 20.0 V |
| Cc control signal (band switching) | 22 kHz ±4 kHz, 0.4 V ~ 0.8 V pp |
| Output VSWR | 2 .5 : 1 |
| Power consumption | max. 120 mA @ 11 V DC to 20 V DC |
| Operating temperature | -35°C ~ +60°C |
| Output impedance | 75 Ω |
| Output connector type | Type F |
| Weight | 218 grams |
