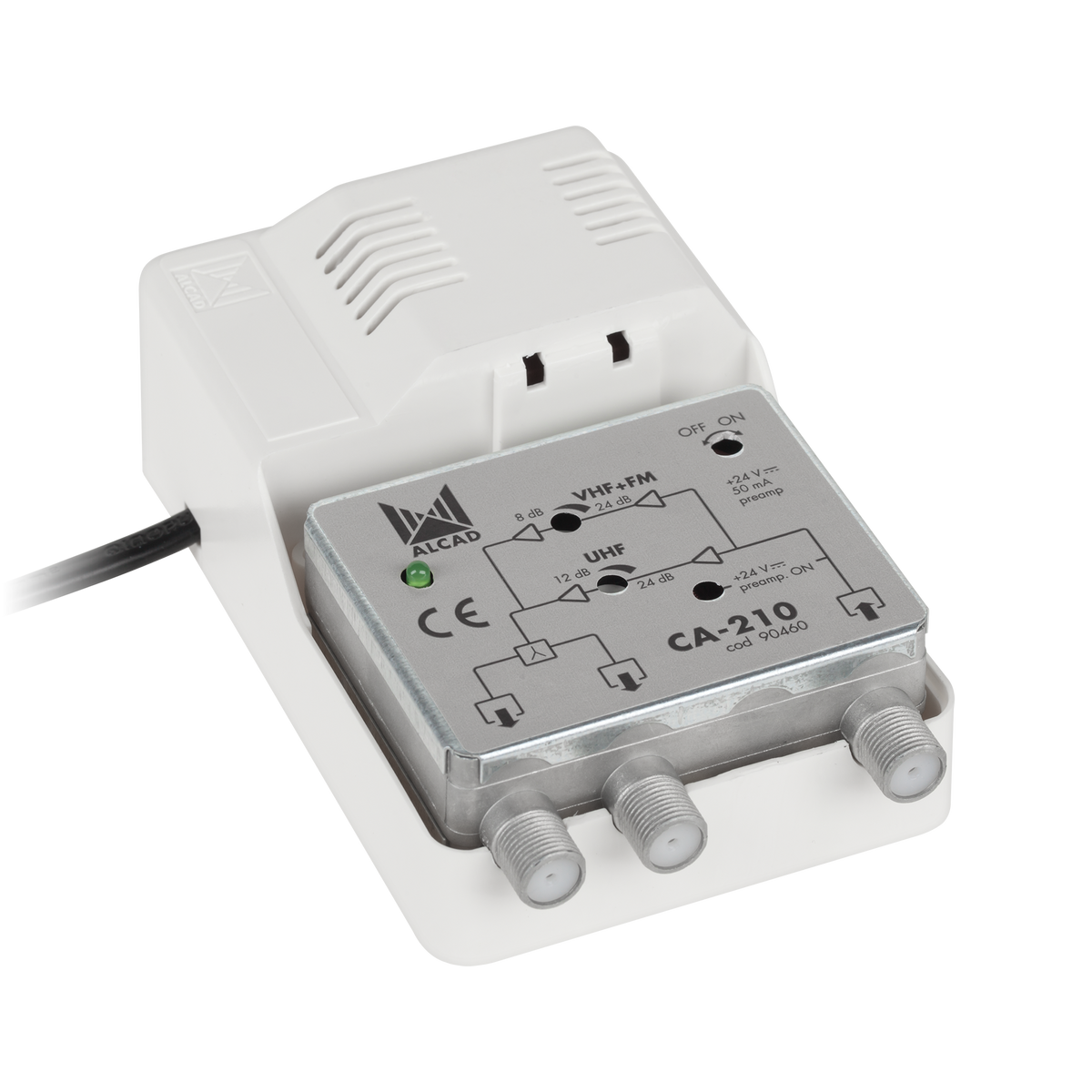

Filters, amplifiers, separators, crossovers – CA-210 ALCAD 24V Broadband Antenna Amplifier

Number of outputs: 2 VHF----------Frequency range: 40–400 MHzGain: 24 dB ±2 dBGain control: 16 dB Noise figure: < 4.5 dBRegrowth attenuation: >= 10 dBUHF----------Frequency range: 470–862 MHzGain: 25 dB ±2 dBGain adjustment: 12 dB Noise figure: < 3 dBReflection attenuation: ≥ 10 dB----------Power supply: 230 V ±10% AC, 50/60 Hz Output voltage: 24 V Operating temperature: -5 ~ 60 degrees C Protection rating: IP20
