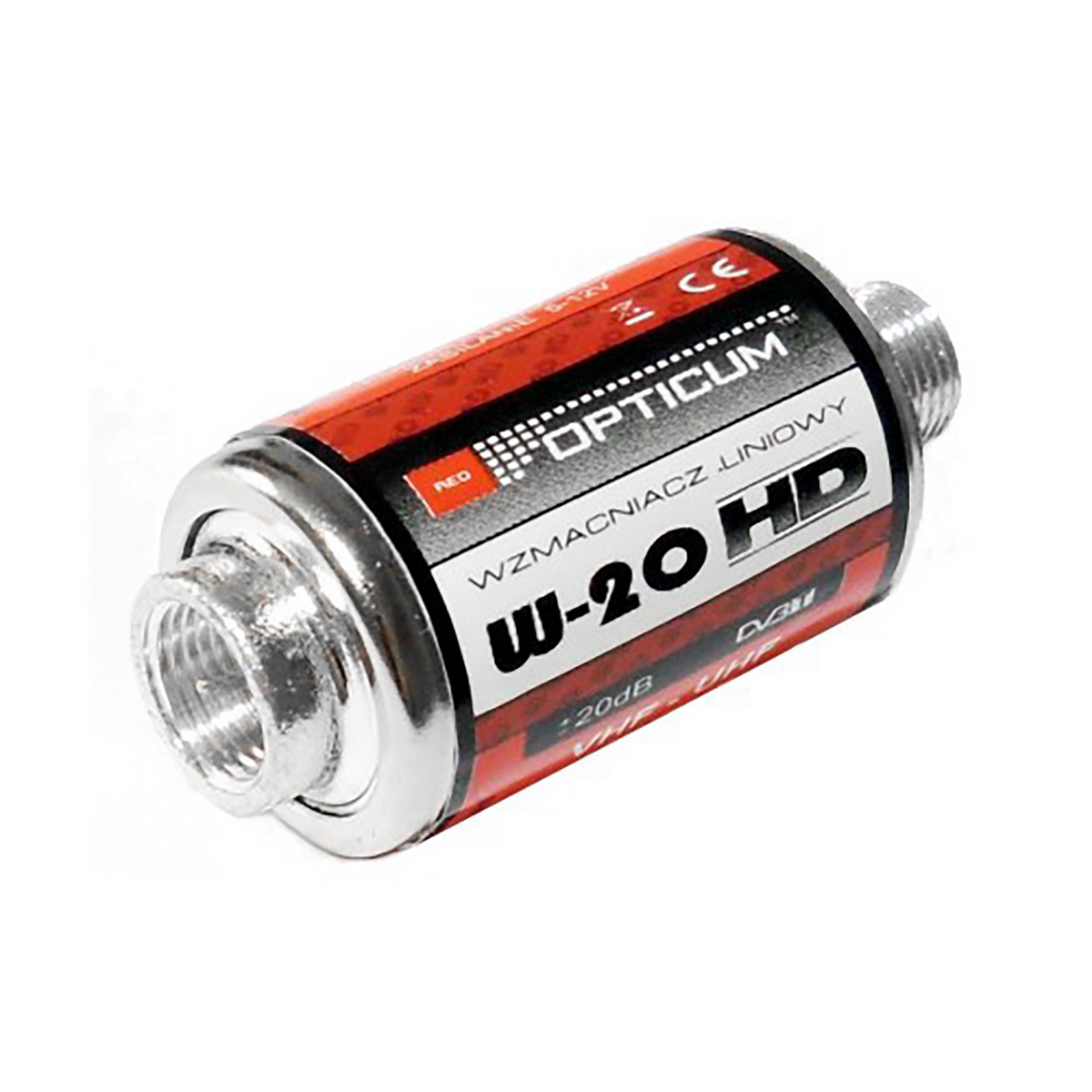

Filters, amplifiers, separators, crossovers – OPTICUM AX W-20 20dB 5V-12V Amplifier

The OPTICUM W-20 amplifier is used whenever the signal from an outdoor antenna (not equipped with an amplifier) reaching the receiver is too weak, resulting in a choppy or fading picture.These symptoms are usually caused by: the antenna being too far from the transmitter, natural obstacles (hills, trees), tall buildings between the transmitter and the antenna, or splitting the antenna signal among multiple TV sets. The amplifier is designed for use with external directional antennas equipped with a balun terminated with an F-type connector.The amplifier should be screwed directly into the balun connector on the antenna and powered with 5–12 V from the receiver or a power supply.Technical Specifications: Input/Output Impedance: 75 Ohms Gain: 20 dB Power Supply: 5–12 V Frequency Band: VHF–UHF
