20-515# GPS Antenna - Fakra 90

Specifications:

Antenna:

- Frequency range: 1575.42 MHz ± 1.02 MHz

- VSWR: 1.5:1

- Bandwidth: >10 MHz

- Impedance: 50 Ohms

- Gain: 5 dBic

- Polarization: RHCP

Low-noise amplifier:

- Frequency range: 1575.42 MHz ± 1.02 nHz

- DC voltage: 3–5 V

- Gain: 28 ± 3 dB

- Cutoff ranges: >=25 dB (frequency range +100 MHz), >=40 dB (frequency range -100 MHz)

- Output VSWR: 1.5

- NSR: 1.2

- DC current: 10.5 mA

Materials:

- Antenna: dielectric ceramic element

- PCB: FR4

- Shielding element: galvanized steel

- Cable: RG174, attenuation 1.3 dB/m, length: 500 ± 5 cm

- Connector: 90-degree FAKRA

- Dimensions: 49.5 x 40.2 x 15.5 mm ±0.5 mm

Environmental conditions:

- Operating temperature: -25°C to +65°C

- Storage temperature: -45°C to +86°C

- Protection rating: IP67

COMPATIBILITY:

- VW MFD2, RNS2 in Golf 5, Golf Plus, Passat, Jetta, Touran, Touareg, T5, T5 MULTIVAN

- AUDI RNS-E 16:9 in A3, A4, A6

- MERCEDES Comand APS W211 (E-Class) and APS 50 CLK W209

- Blaupunkt Travel Pilot EX

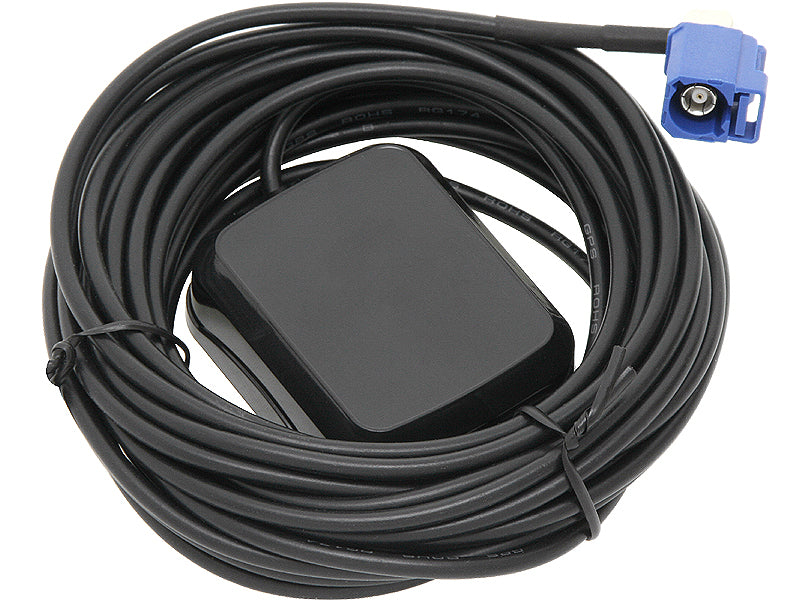

GPS antenna with a 90-degree FAKRA angled antenna connector and a 5-meter cable that can be mounted either inside the vehicle (e.g., on the headliner) or on the exterior of the car body using a very strong magnet located in the housing. Mounting the antenna on the outside improves reception of the signal transmitted from the satellite.
