Overview

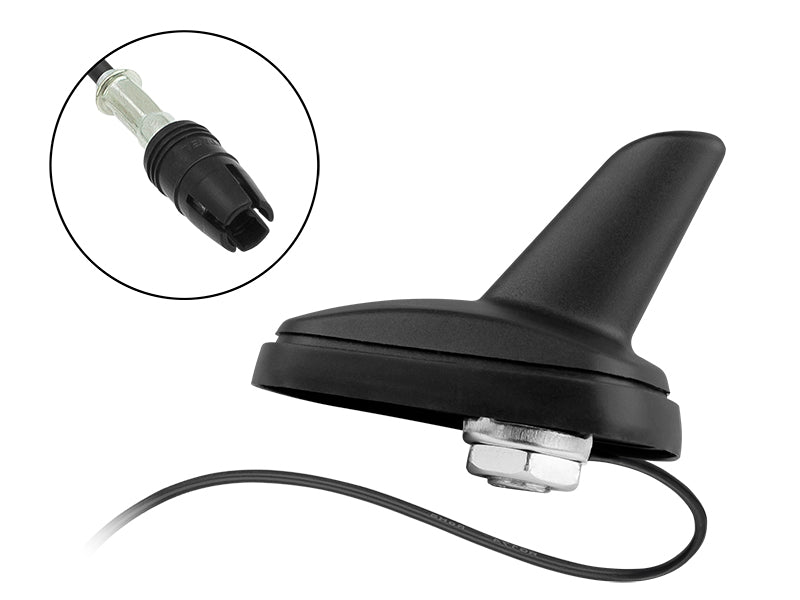

22-686# Fiat RAW 1m AM/FM Shark Car Antenna
This antenna is designed to receive AM/FM radio signals and is compatible with standard car radios featuring a RAW (Raku I) antenna connector. Equipped with a signal reception amplifier—Phantom amplifier—the antenna is powered via the antenna cable. Designed for Fiat models.
Technical Specifications:
| Specification | Detail |
|---|---|
| Operating frequency | 520–1,710 KHz, 87–108 MHz |
| Amplifier gain | AM 15 ± 1 dB, FM 12 ± 1 dB |
| Output impedance | 75 Ohms |
| Cable length | 100 cm |
| Mounting hole diameter | 15 mm |
| Fin height | 45 mm |
