RDZ-211 Dual Outdoor RF Splitter, 5–862 MHz, 4.0 dB F, Outdoor Level, TELKOM TELMOR
RDZ-211 Dual Outdoor RF Splitter, 5–862 MHz, 4.0 dB F, Outdoor Level, TELKOM TELMOR
57 w magazynie
Ilość
Cena regularna
€9,32 EUR
Cena regularna
Cena promocyjna
€9,32 EUR
Z wliczonymi podatkami.
Koszt wysyłki obliczony przy realizacji zakupu.
Nie można załadować gotowości do odbioru
Overview
TECHNICAL SPECIFICATIONS----------Type: RDZ-211Operating frequency range: 5–862 MHzMax. IN-OUT / IN-OUT through
Key features
type socket / F
cast metal housing Includes a splash
proof ABS housing Easy installation and connection RDZ-211 is a splitter/combiner designed for use in communal and individual RTV antenna installations. Its function is to split or combine two antenna signals. The RDZ-211 can be mounted in a splash

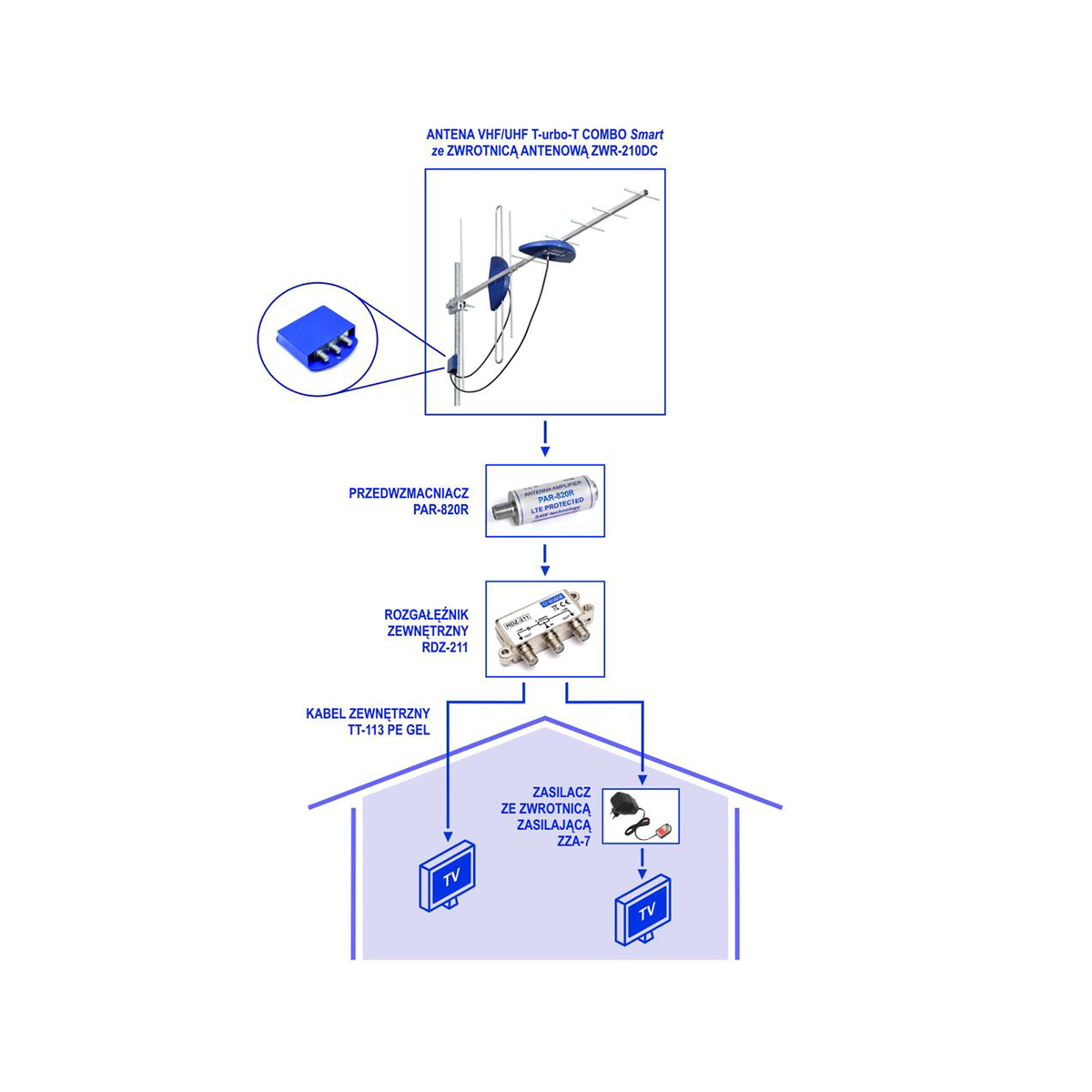

proof ABS enclosure, allowing it to be installed outdoors, e.g., on an antenna mast. To ensure proper operation of the equipment, special attention must be paid to its correct installation and connection. The device may be used in situations where the signal level is high enough that splitting it—and consequently reducing the level by 4 dB— will not cause the final level at the subscriber outlet to fall below 51 dBuV (the minimum required by the PN-EN 60728-1 standard).The device is especially recommended for situations where a “star” configuration—with cables from all outlets routed to a single apartment distribution box—is not feasible; that is, when antenna cables must be routed directly from the mast “on the building’s facade.”
Technical specification
| Specification | Detail |
|---|---|
| attenuation | 4.0 dB / 4.0 dBOutput/output impedance: 75 ohms / 75 Ohms Input/output connector type: F |
| type socket DC voltage transfer IN-OUT | Yes, +12 V (circuit without capacitor) Max. current transfer IN-OUT: 250 mA----------FEATURES----------RTV Splitter/Combinator DC Voltage Transfer: +12 V/250 mA Sturdy, die |
