Description
Manufacturer code: 10062367
Professional and compact MSW car rectifier allows you to recharge the vehicle battery when it starts to lose power. It will work well in passenger cars, vans, trucks and other high-power vehicles. The rectifier enables reliable charging of batteries with a capacity of 20 - 48 Ah (12 V) 28 - 85 Ah (24 V). At the same time, with a current of 27 A, it provides extremely fast charging times. With an output voltage of 12 V or 24 V, the device can be used with larger vehicles such as trucks. After a quick charge, the battery is ready for use again. Before connecting the rectifier, check that the battery has the recommended capacity. The charging power is easily controlled by a switch: MIN for normally discharged batteries, MAX for deeply discharged batteries. Depending on whether the battery is weak only on many short journeys or almost discharged by energy-intensive additives such as heated windows or seats, with MIN or MAX levels you can prepare for any situation. Thanks to the built-in fuse, the device is protected against a short-circuit in the event of connection with a wire with an incorrect polarity.
Product features:
- - High current up to 27 A for fast charging,
- - For batteries with a capacity of 20 - 48 Ah (12 V) 28 - 85 Ah (24 V),
- - Wires are permanently fixed in the device,
- - MIN/MAX switch for different charge levels,
- - Compact dimensions and handle for easy transport.
Technical parameters: - - Catalog number - 10062367
- - Article Status - New
- - Model - S-CHARGER-30A.5
- - Fastening type - -
- - Cooling - -
- - Battery supply - No
- - Charging current [A] - 27
- - Display size [mm] - -
- - Ambient temperature [ °C] - - - -
- - Battery type - AGM, EFB, gel
- - Insulation class - F
- - IP rating - IP20
- - IEC protection class - -
- - Input voltage [V] - 12/24
- - Output current [A] - 15 - 20
- - Rated power [W] - -
- - Maximum energy consumption [W] - 480
- - Power cable [m] - 1,8
- - Output voltage [V] - 12 / 24
- - Voltage [V] - 230
- - Recommended battery capacity [Ah] - 20 - 48 Ah (12 V) 28 - 85 Ah (24 V)
- - Terminal cable length (+) [m] - 1.7
- - Terminal cable length (-) [m] - 1.7
- - Display type - -
- - Dimensions (WxH) - 26 x 20 x 18 cm
- - Weight - 6.9 kg
- - Shipping dimensions (WxH) - 33 x 25 x 25 cm
- - Shipping weight - 7.5 kg
Included: - - Car rectifier

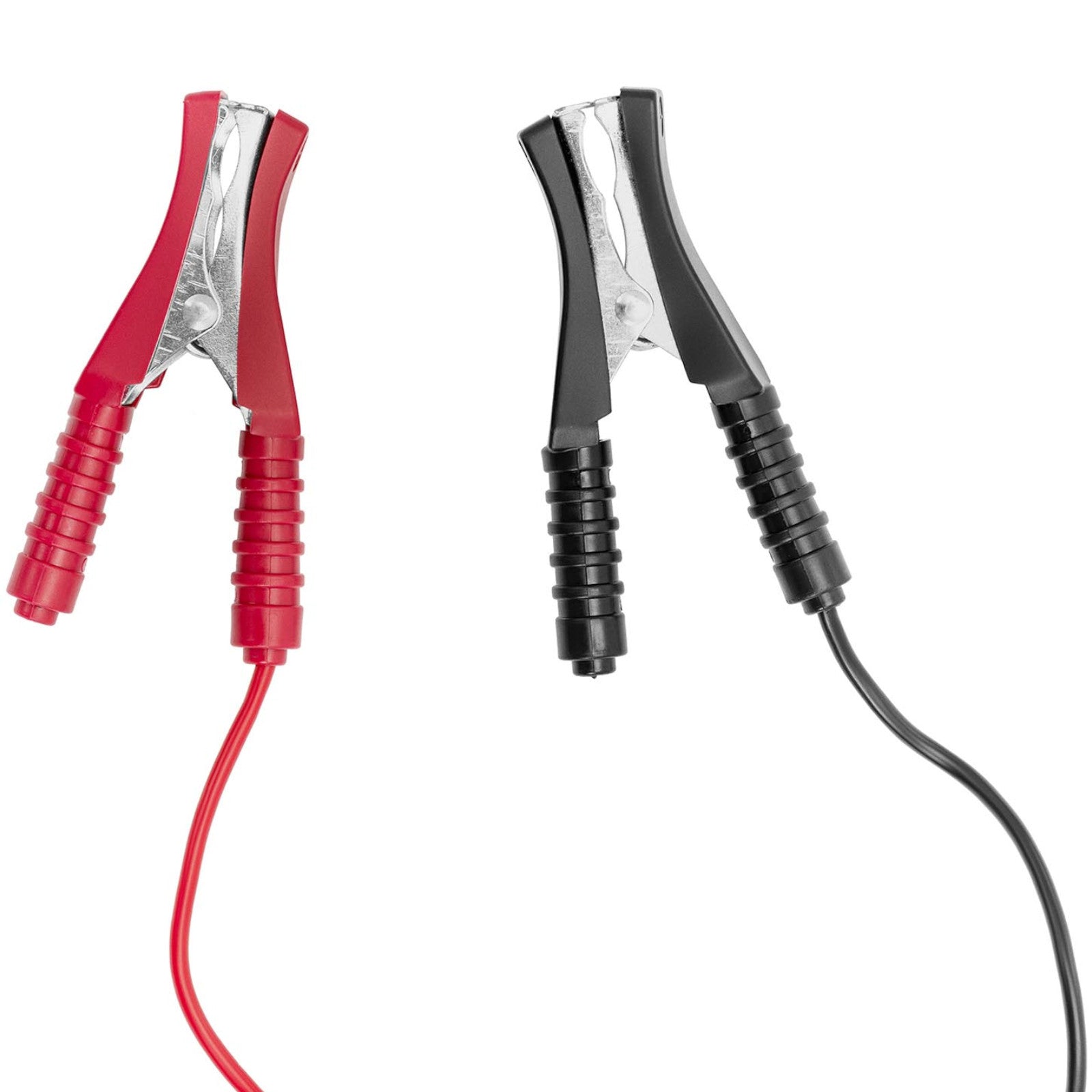

- - Black wire (1,7 m)
- - Red cable (1,7 m)
- - Power cable (1,8 m)
