Overview

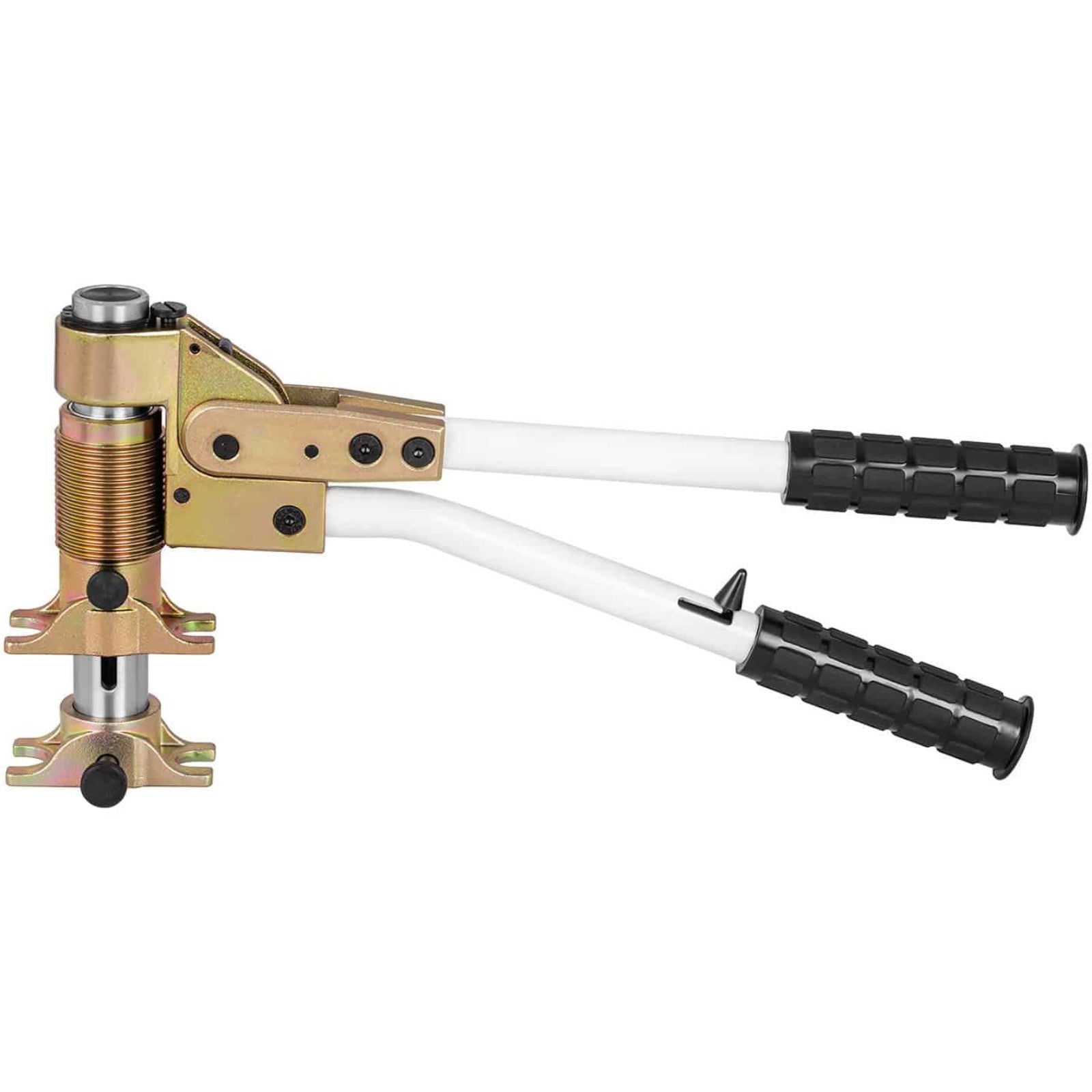

The Axial press crimping machine for connectors and pipes. 16-32mm from MSW brings hydraulic hammers you can rely on, made for your workshop & garage needs. A popular choice in Workshop garage, Workshop equipment.
Manufacturer's code: 10061098

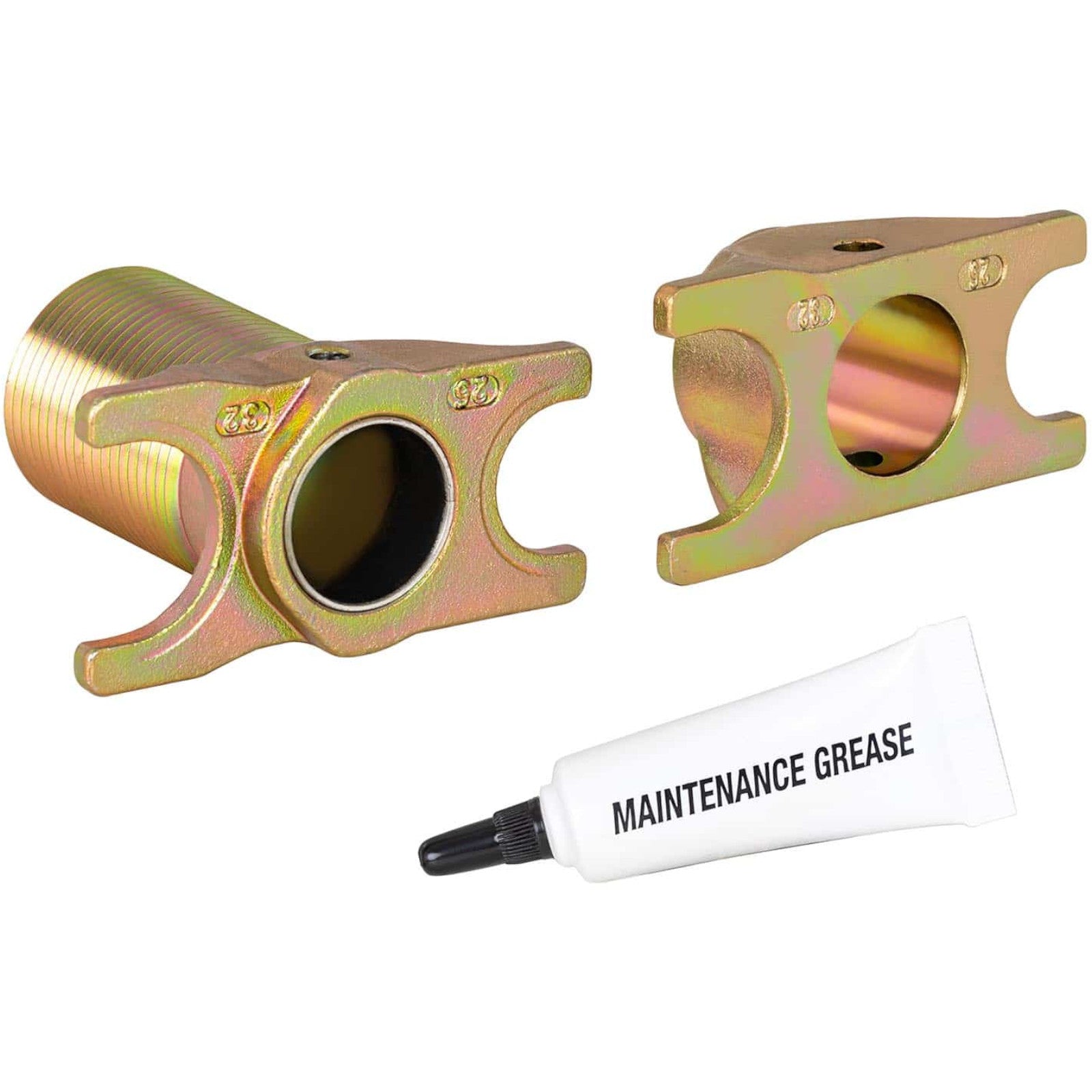

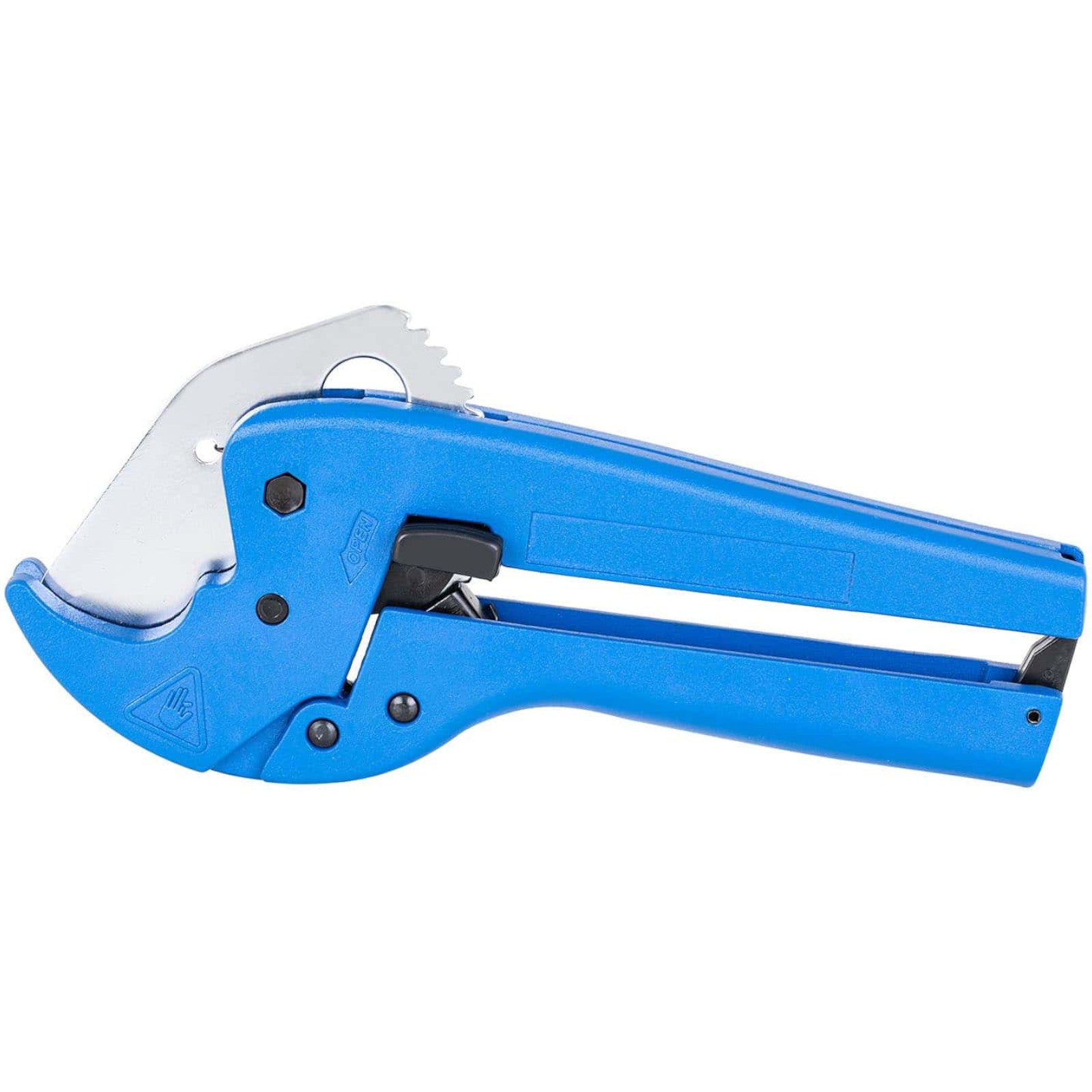

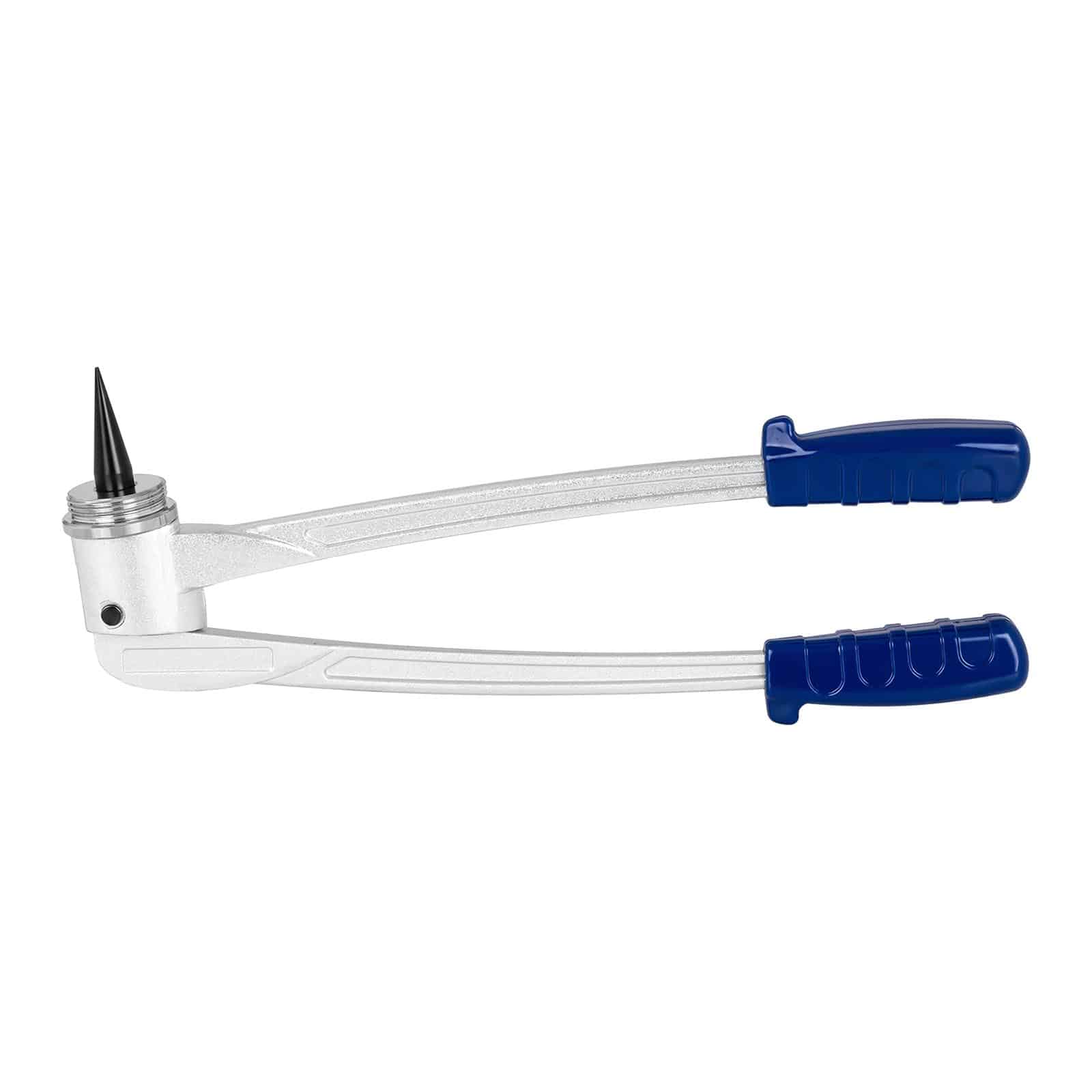

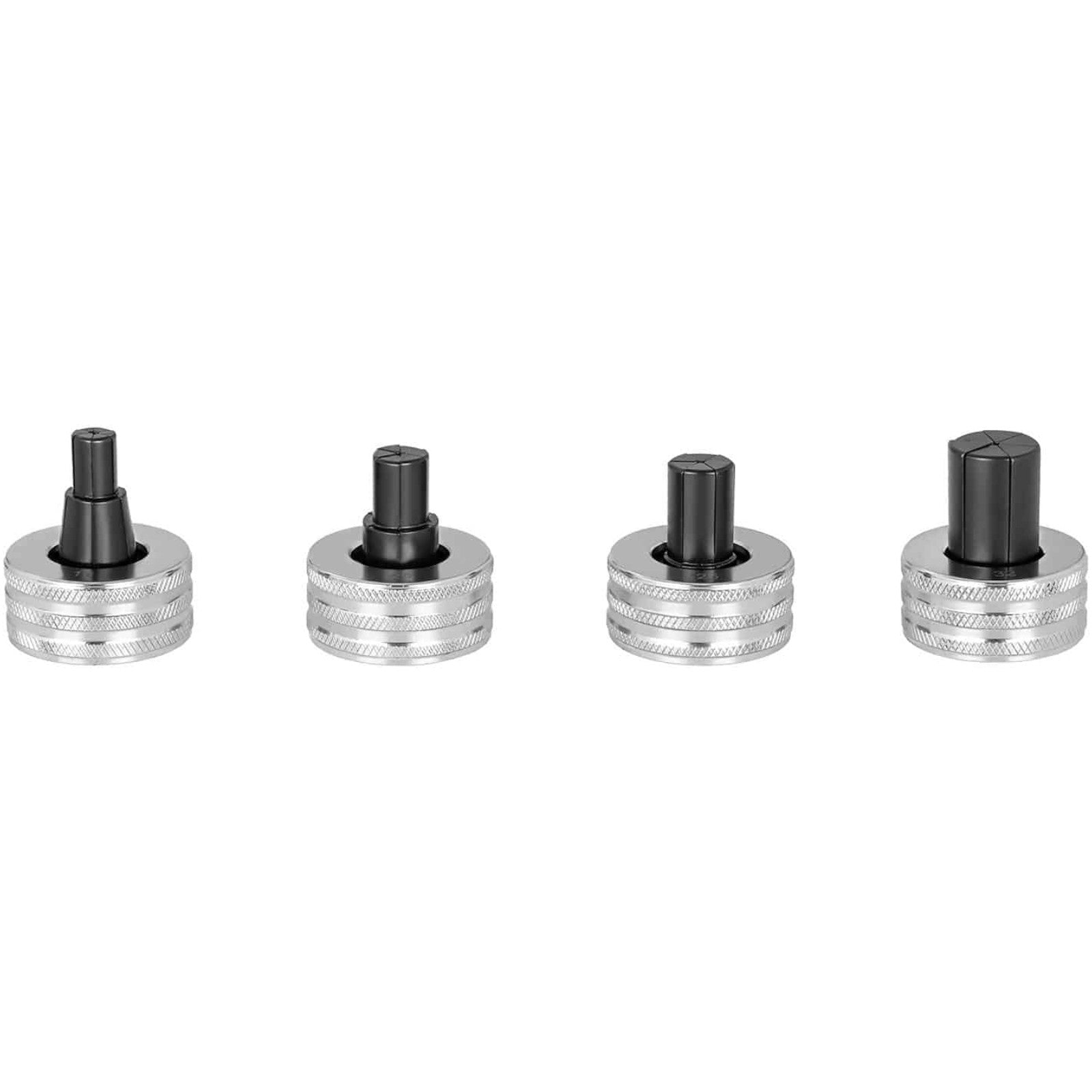

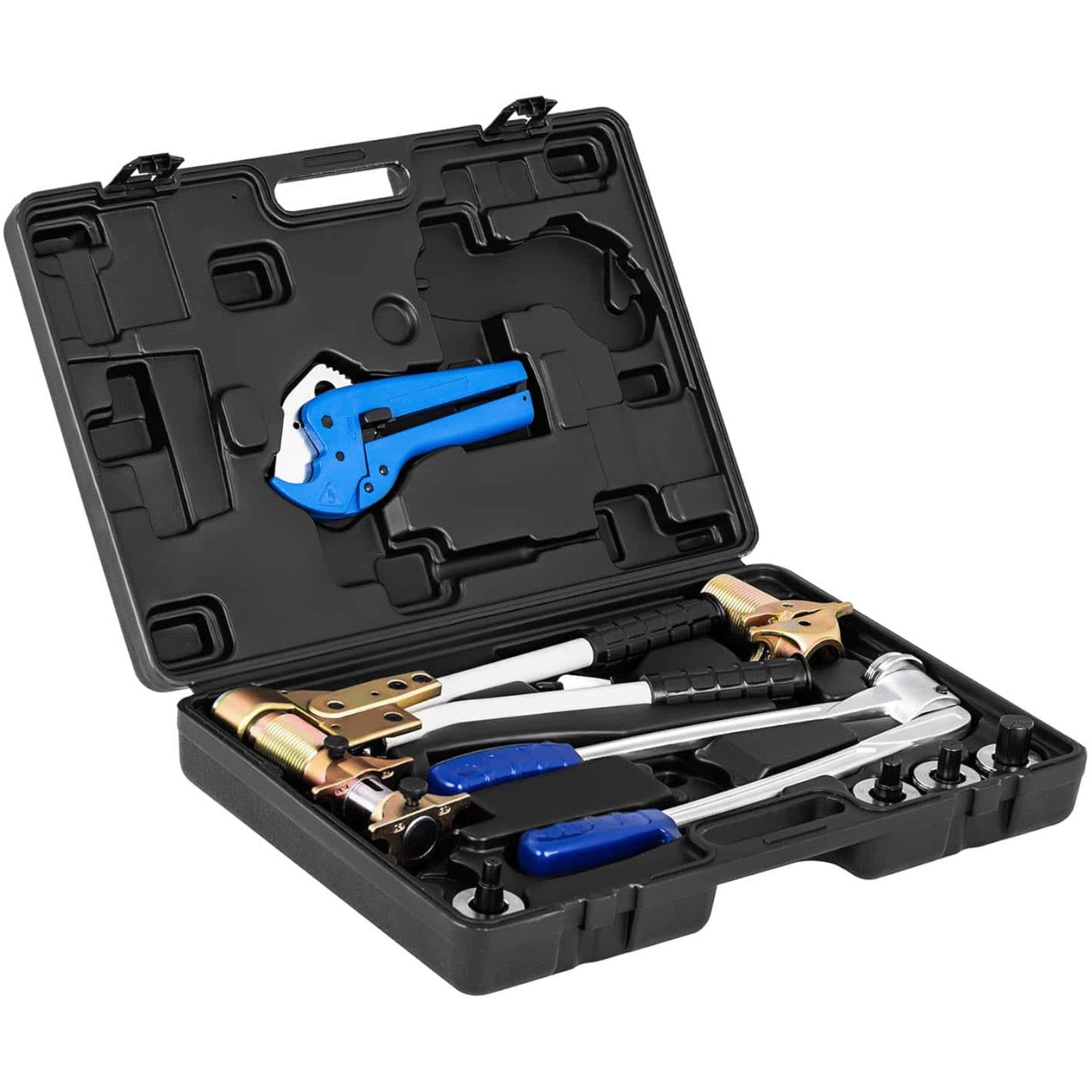

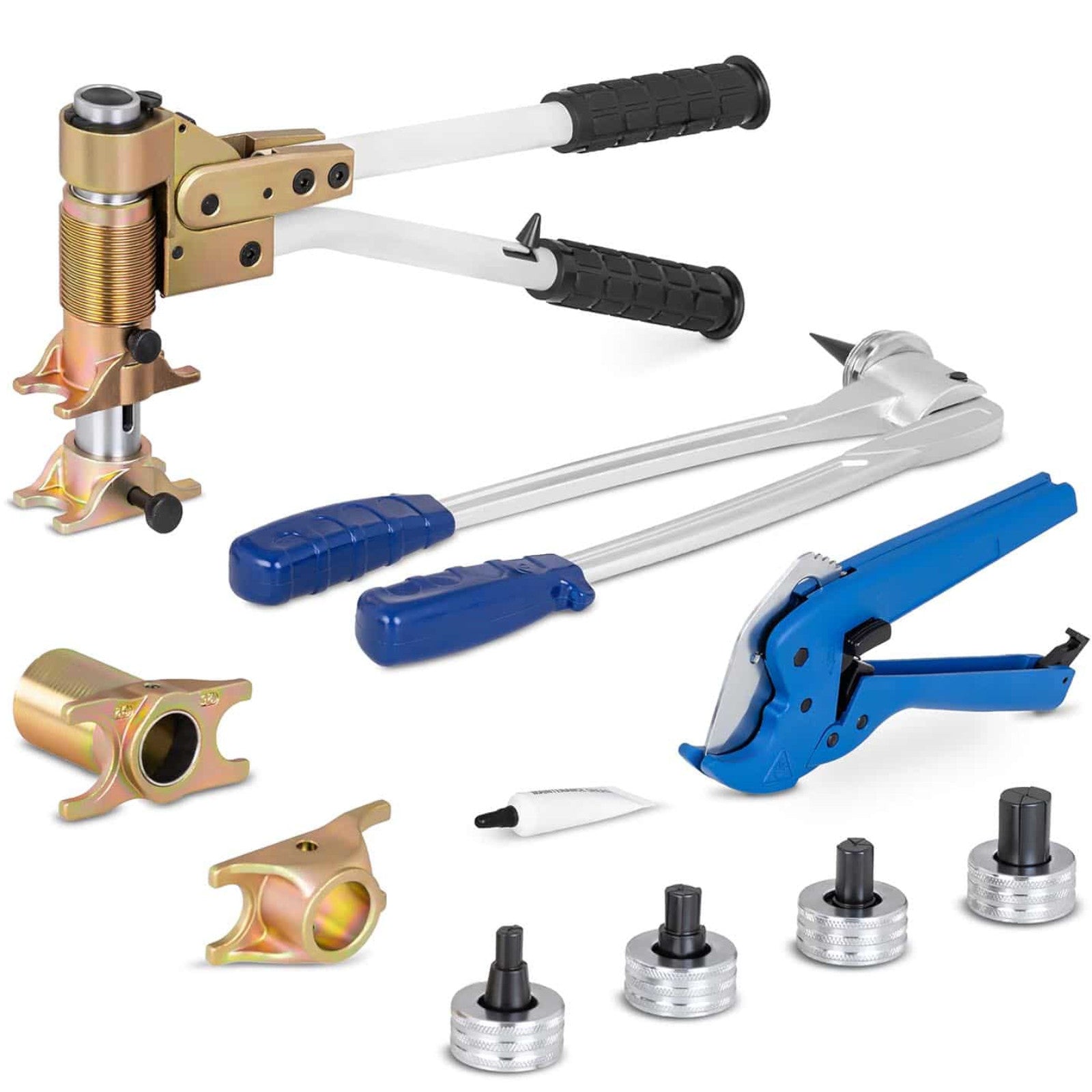

The MSW hand tool set is suitable for all applications in pipe systems. It will be used to clamp connectors and pipes (including in underfloor heating installations) and to widen their ends. The tools are made of high-quality aluminum alloy. Handles made of non-slip material make the equipment fit securely in your hand and easy to operate. The axial clamping range is approx. 16-32mm. The diameters of the pipe ends can be widened in the range of 16-32 mm. You can also cut an element with a diameter of up to 40 mm. The full set of accessories includes clamping pliers (16 x 2.2 mm, 20 x 2.8 mm, 25 x 3.5 mm, 32 x 4.4 mm) andpipe expanders (16 x 2.2 mm, 20 x 2.8 mm, 25 x 3.5 mm, 32 x 4.4 mm). All elements are placed in a plastic case.
Product features:
Technical parameters:
Included:
Key features
| Specification | Detail |
|---|---|
| Catalog number | 10061098 |
| Article condition | New |
| Model | MSW-PTM-02 |
| Material | Aluminum alloy, Plastic |
| Additional accessories | Clamp jaws 16 x 2.2, 20 x 2.8, 25 x 3.5, 32 x 4.4 mm, expanding matrix 16 x 2.2, 20 x 2.8, 25 x 3.5, 32 x 4.4 mm |
| Cutting range [mm] | Max. 40 mm |
| Clamping force | 40 kN |
| Suitcase included | Yes |
| Expansion range | 16-32 mm |
| Pressing range | 16-20, 25-32 mm |
| Dimensions (LxWxH) | 51 x 9.5 x 36 cm |
| Weight | 5.5 kg |
| Shipping dimensions (LxWxH) | 52 x 10.5 x 37 cm |
| Shipping weight | 7.8 kg |
