Description
Manufacturer code: 10030412

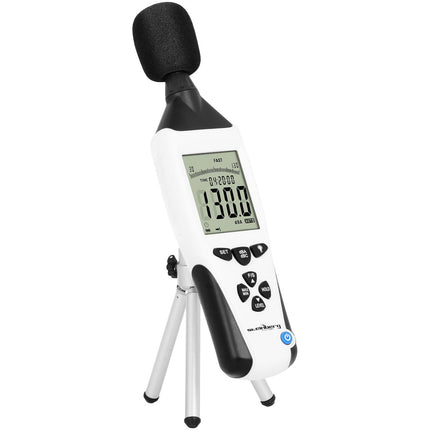

The decibelometer is a digital meter that allows you to check whether it is not too loud in your immediate surroundings, in the office or on the street. The device is aimed at people conducting various types of evidence-based noise tests. The accuracy of the device is due to 4 measurement ranges from 30 to 130 dB with an accuracy of 1,4 dB (Lo: 30 dB~80 dB Med: 50 dB~100 dB Hi: 80 dB~130 dB Auto: 30 dB~130 dB). You can also choose from 2 measurement times: fast (125 ms) and slow (1 s). The SBS-SM-130C meter meets the full requirements of EC61672 Class 2 Standard, allows for maximum and minimum sound level readings and stores up to 262 100 measurements in memory.
LCD display with analog bar chart for easy viewing of fast-changing sound levels. Quick and simple analysis and checking the noise level is essential when working with the decibelometer. You can easily install the device on a tripod and take it with you in the field. USB cable allows you to export readings to your computer for archiving and reporting, and headphone jack 3.5mm connect meter to frequency analyzer, FFT analyzer or other measuring equipment.
The cover mounted in the sound meter reduces the impact of wind and air movement on the microphone, protects it from damage and prevents the ingress of pollen and other impurities. The Steinberg Systems product has a built-in sound level alarm, a screw battery compartment cover and an automatic shutdown option that saves battery life. The sonometer allows for noise testing both in rooms and offices (A-filter), as well as in the case of sound produced by machines (C-filter).
Product features:
- - The electroacoustic properties of the device meet the required EC61672 type 2 standards,
- - Accurate measurement is possible thanks to the accuracy of 1,4 dB,
- - The frequency range of 31,5-8 kHz allows you to study sounds inaudible to the human ear,
- - 4 measurement ranges,
- - Frequency evaluation according to curves A and C,
- - LCD display, USB port.
Technical parameters: - - Model - SBS-SM-130C
- - Catalog number - 10030412
- - Article Status - New
- - Range - 30-130 dB
- - Accuracy - ±1,4 dB according to EC61672 type 2 standard
- - Frequency - 31,5-8 kHz
- - Measurement taking into account filter characteristics - A, C
- - Response time - fast (125 ms) / slow (1 s)
- - PC - USB interface
- - Memory - 262 100 readings
- - Display - 4-digit LCD (backlit)
- - Battery type - 9 V
- - Battery life - at least 30 hours
- - MIN/MAX function - Yes
- - Pause - Yes
- - Automatic shutdown - Yes
- - Dimensions (WxH) - 35,5 x 28,5 x 8,5 cm
- - Weight - 1,2 kg
- - Shipping dimensions (DxWxD) - 36 x 29 x 9 cm
- - Shipping weight - 1,5 kg
Included: - - Decibelometer,
- - Microphone cover,
- - 9 V battery,
- - Tripod,
- - Headphone jack 3,5 mm,
- - USB cable,
- - Power adapter,
- - Windows compatible software (CD),
- - Calibration screwdriver,
- - Case,
- - User manual.
