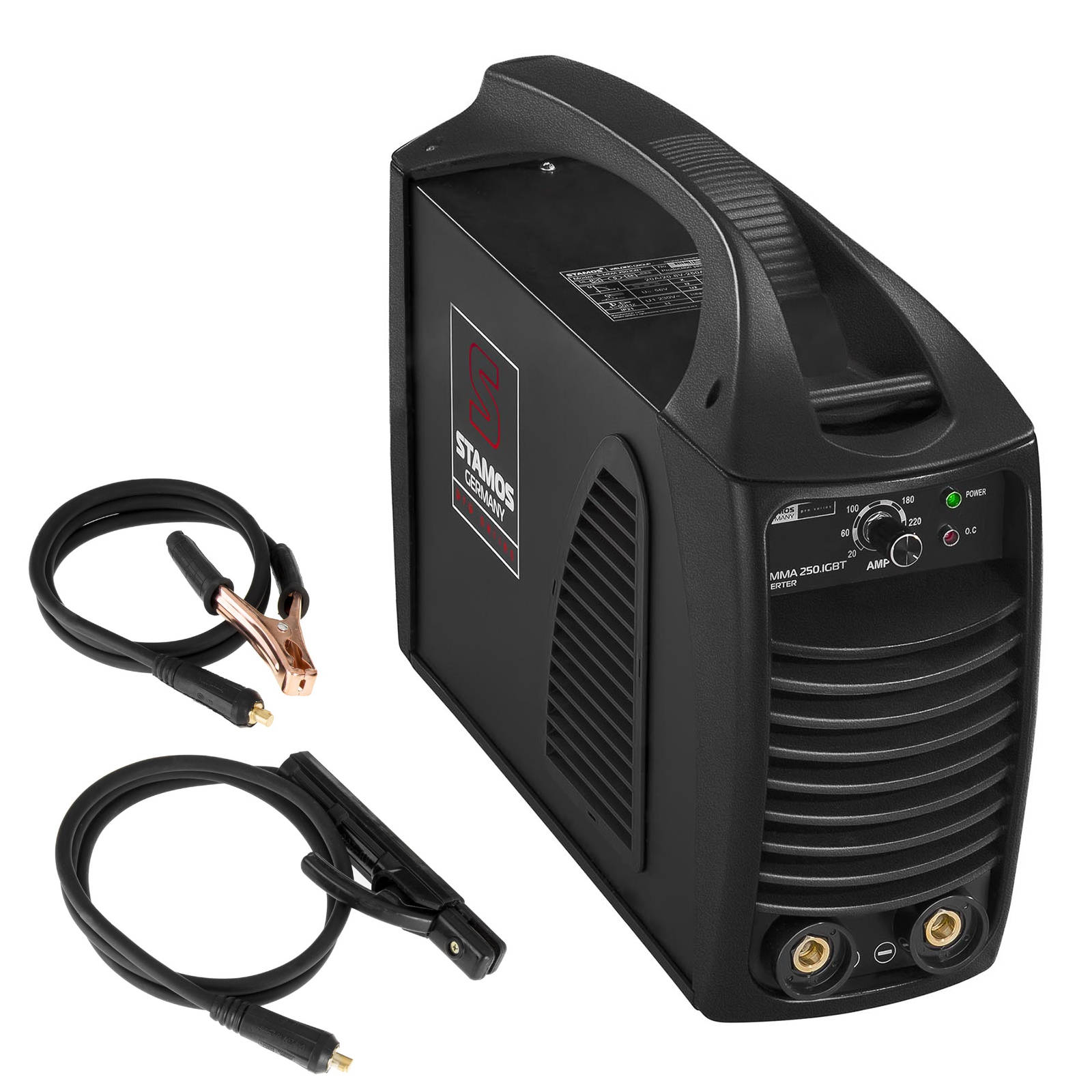

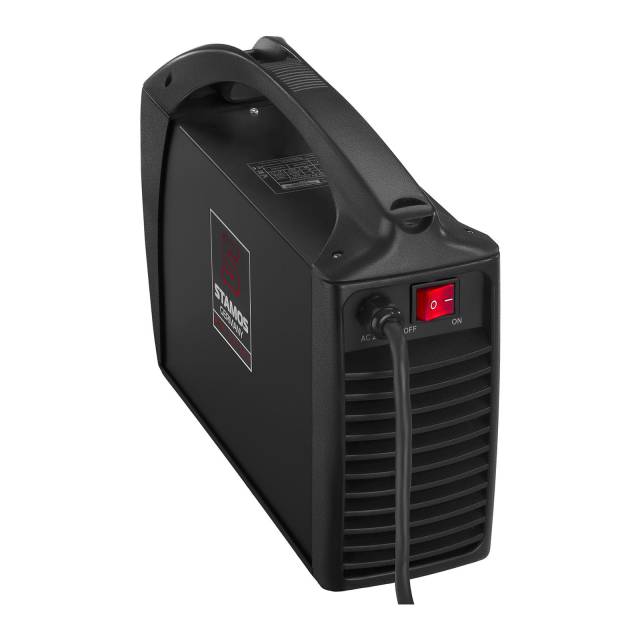

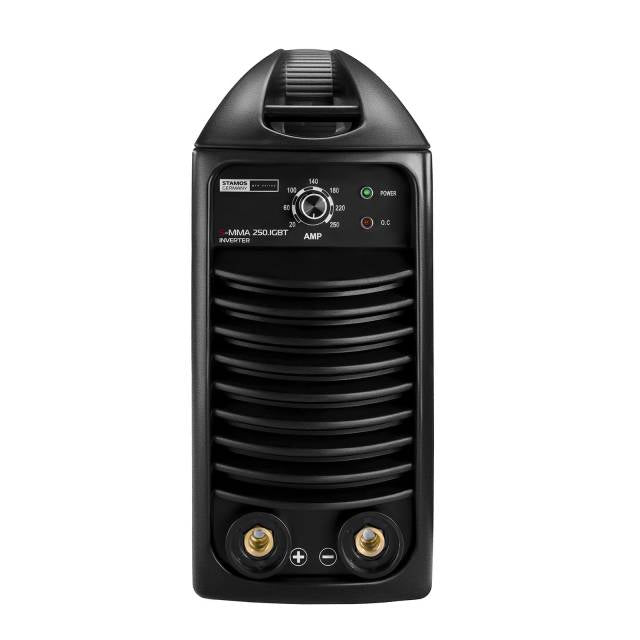

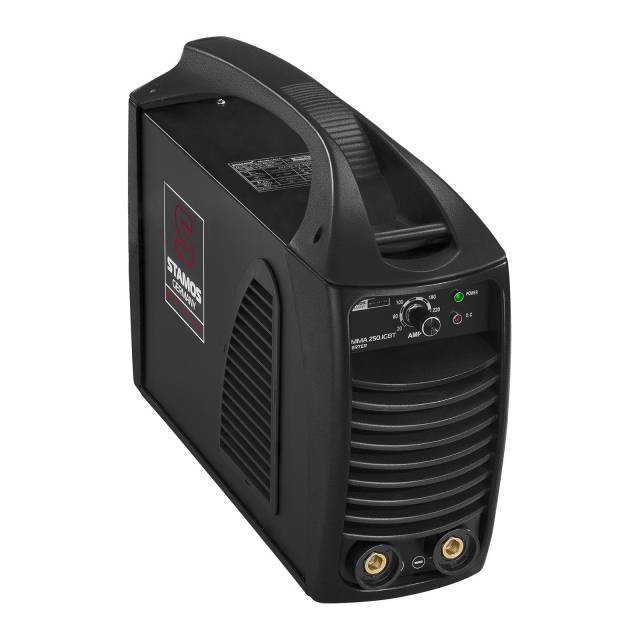

Inverter welding machine IGBT Stamos Germany MMA 250A

Description

Manufacturer Name: S-MMA 250.IGBT

Inverter welder S-MMA 250.IGBT is designed for welding metal materials both inside and outside the rooms. This is possible due to the MMA method, which does not need shielding gas. It uses coated electrodes suitable for welding steel, iron, aluminum, copper or nickel with a thickness of up to 10 mm.

Modern IGBT inverter technology guarantees stable and precise operation. It also contributes to the high failure rate of the device by using three-contact semiconductor components that prevent short circuits.

Product features:

  • - Practicality - suitable for machining elements made of steel, iron, aluminum or copper,
  • - Efficiency - the use of modern IGBT technology guarantees precise operation and short-circuit safety,
  • - Intuitive - easy to operate control panel and stepless knob enable precise setting of welding current values,
  • - Mobility - comfortable handle and small dimensions make it easier to move the welder,
  • - Safety - overheating protection system and hot air discharge fan protect the device,

STAMOS devices were manufactured according to stringent European standards and passed the tests for CE and RoHS compliance. This guarantees a long service life and high quality of the device.

Technical parameters:
  • - Model - S-MMA 250.IGBT
  • - Catalog number - 2203
  • - Article Status - New
  • - Power supply - 230 V / 50 Hz
  • - Rated input current - 34 A
  • - Max. input current - 43 A
  • - Rated input power - 7,8 kVA
  • - Max. input power - 9,9 kVA
  • - Idle voltage - 56 V
  • - Welding current MMA - 20 - 250 A
  • - Working cycle - 60%
  • - Welding current in working cycle 60% - 250 A
  • - Welding current in working cycle 100% - 193 A
  • - Electrode diameter - 1,6 - 5 mm
  • - Welding thickness - 1,5 -10 mm
  • - Hot Start - Yes
  • - Cable with MMA handle - 8 m
  • - Mass conductor with clamp - 8 m
  • - Cooling - Fan
  • - Insulation class - F
  • - Protection class - IP21
  • - Dimensions (WxH) - 38 x 12 x 28 cm
  • - Weight - 7,2 kg
  • - Shipping dimensions (LxWxH) - 47 x 25,5 x 31 cm
  • - Shipping weight - 8,6 kg

Features:
  • - Hot Start consists in a temporary increase of welding current during arc ignition,

Included:
  • - MMA welder

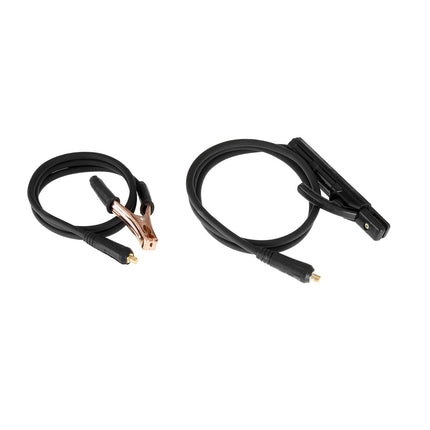

  • - Cable with MMA handle - 8 m
  • - Mass cable with clamp - 8 m
  • - Instructions

Inverter welding machine IGBT Stamos Germany MMA 250A

Product form

Manufacturer Name: S-MMA 250.IGBTInverter welder S-MMA 250.IGBT is designed for welding metal materials both inside and outside the rooms. This... Read more

SKU: 10020203
Barcode: 4250928637550

€186,00 €173,00 Incl. VAT

      Description

      Manufacturer Name: S-MMA 250.IGBT

      Inverter welder S-MMA 250.IGBT is designed for welding metal materials both inside and outside the rooms. This is possible due to the MMA method, which does not need shielding gas. It uses coated electrodes suitable for welding steel, iron, aluminum, copper or nickel with a thickness of up to 10 mm.

      Modern IGBT inverter technology guarantees stable and precise operation. It also contributes to the high failure rate of the device by using three-contact semiconductor components that prevent short circuits.

      Product features:

      • - Practicality - suitable for machining elements made of steel, iron, aluminum or copper,
      • - Efficiency - the use of modern IGBT technology guarantees precise operation and short-circuit safety,
      • - Intuitive - easy to operate control panel and stepless knob enable precise setting of welding current values,
      • - Mobility - comfortable handle and small dimensions make it easier to move the welder,
      • - Safety - overheating protection system and hot air discharge fan protect the device,

      STAMOS devices were manufactured according to stringent European standards and passed the tests for CE and RoHS compliance. This guarantees a long service life and high quality of the device.

      Technical parameters:
      • - Model - S-MMA 250.IGBT
      • - Catalog number - 2203
      • - Article Status - New
      • - Power supply - 230 V / 50 Hz
      • - Rated input current - 34 A
      • - Max. input current - 43 A
      • - Rated input power - 7,8 kVA
      • - Max. input power - 9,9 kVA
      • - Idle voltage - 56 V
      • - Welding current MMA - 20 - 250 A
      • - Working cycle - 60%
      • - Welding current in working cycle 60% - 250 A
      • - Welding current in working cycle 100% - 193 A
      • - Electrode diameter - 1,6 - 5 mm
      • - Welding thickness - 1,5 -10 mm
      • - Hot Start - Yes
      • - Cable with MMA handle - 8 m
      • - Mass conductor with clamp - 8 m
      • - Cooling - Fan
      • - Insulation class - F
      • - Protection class - IP21
      • - Dimensions (WxH) - 38 x 12 x 28 cm
      • - Weight - 7,2 kg
      • - Shipping dimensions (LxWxH) - 47 x 25,5 x 31 cm
      • - Shipping weight - 8,6 kg

      Features:
      • - Hot Start consists in a temporary increase of welding current during arc ignition,

      Included:
      • - MMA welder
      • - Cable with MMA handle - 8 m
      • - Mass cable with clamp - 8 m
      • - Instructions
