Power Supply Enclosures – Laboratory service power supply 0-30 V

The Laboratory service power supply 0-30 V 0-5 A DC 205 W from Stamos Soldering brings power supply enclosures you can rely on, made for your power tools needs. A popular choice in Electro-tools, Tools for electronics.

Manufacturer's code: 10021064

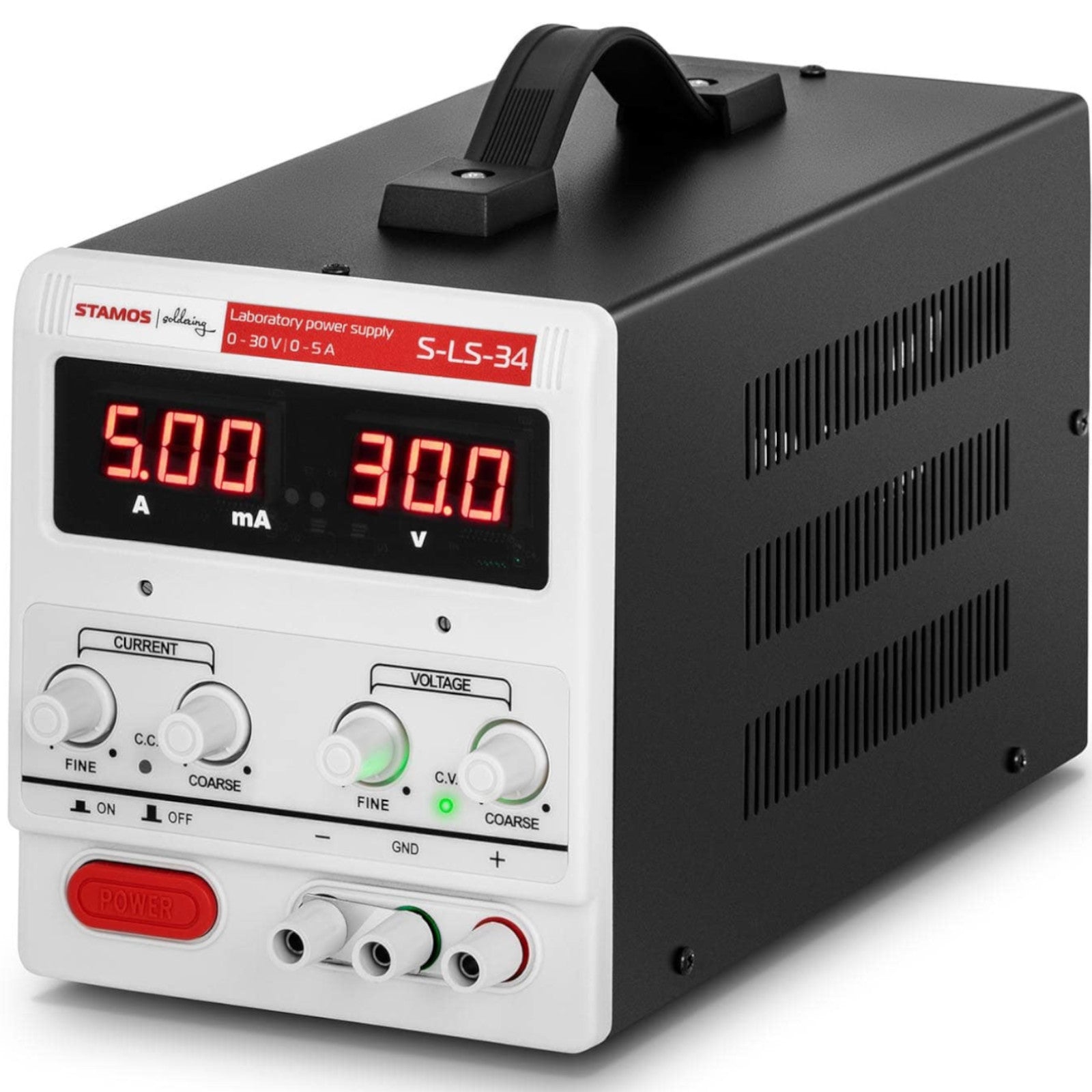

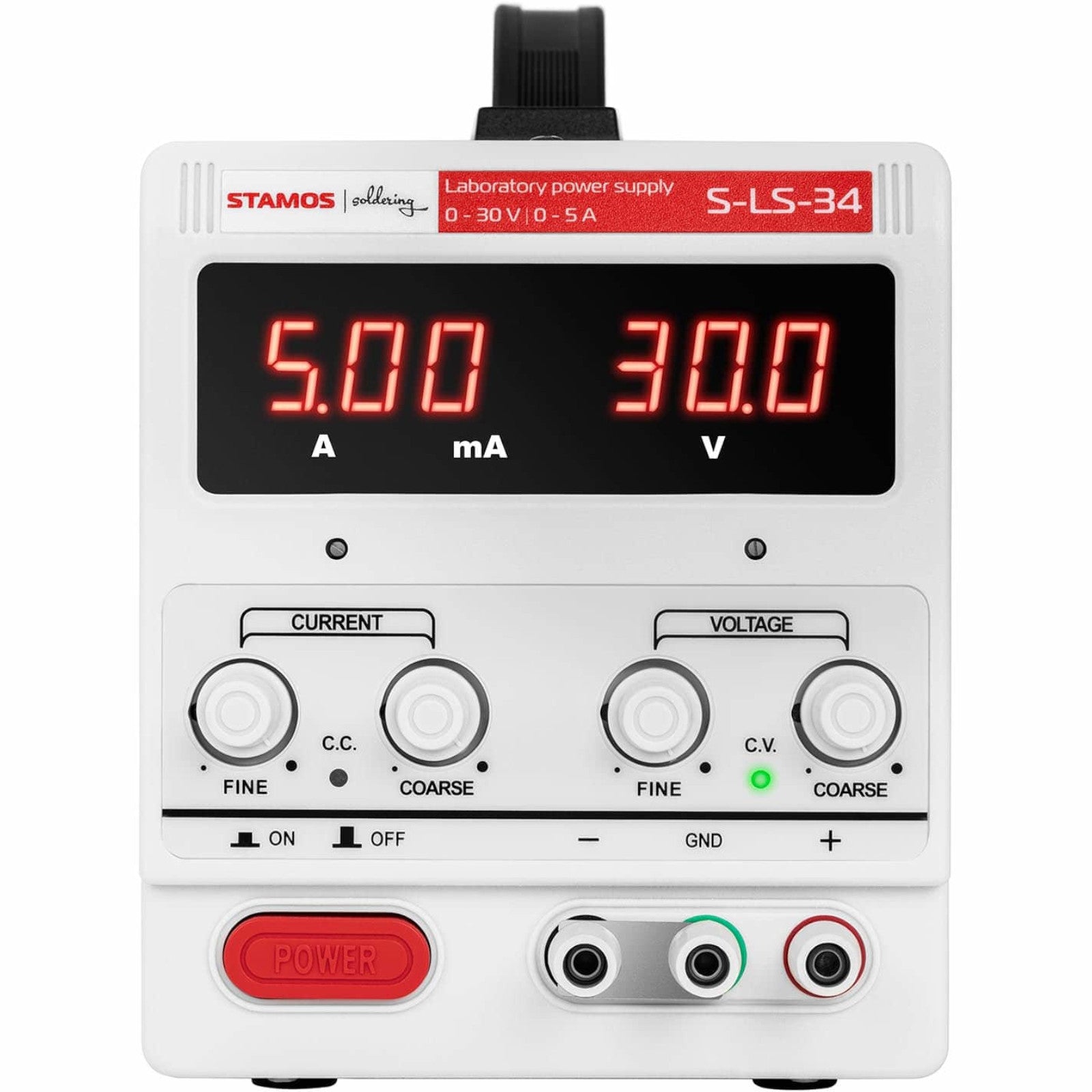

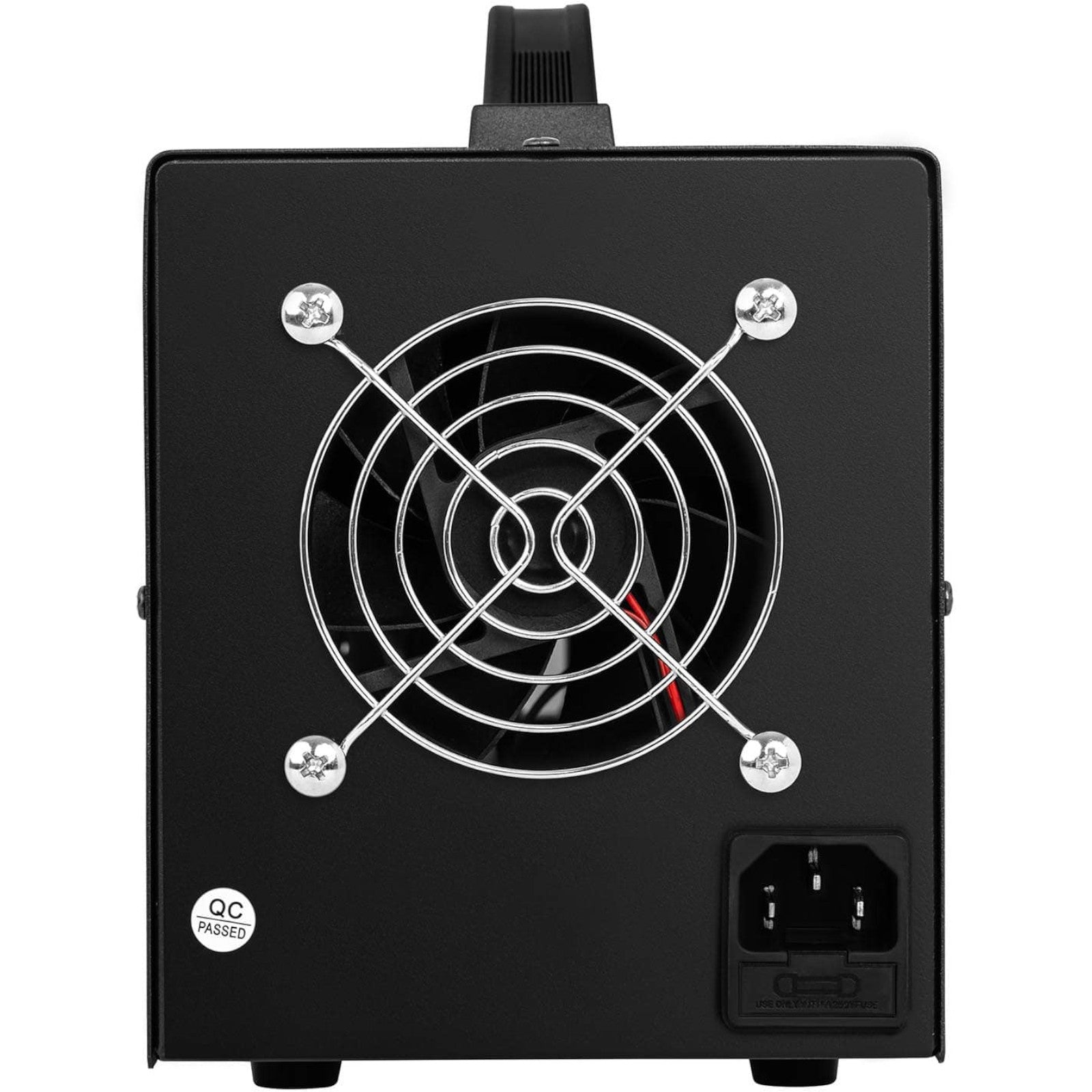

The laboratory power supply by Stamos Soldering will work well in production plants, services, laboratories, workshops and in the telecommunications industry. The device is used to convertalternating current into direct current electricitywith a specific voltage and supply it to electronic external devices. The power supply has a channel with a positive and negative output. The equipment precisely generates current with low ripple≤10% RMSand low noise, which prevents damage to the circuit. It has a voltage of up to 30 V and an output current of up to 5 A. The clearLEDdisplay allows you to check the current and voltage values. Parameters are adjusted using knobs. The equipment allows you to work in two C.V. modes. (constant output voltage) and C.C. (constant load current). For safety, it has an overheating protection function. The fan turns on automatically when the power supply temperature exceeds 40 degrees Celsius and turns off itself when it drops to 35 degrees Celsius. Protection systems against too high voltage and current reduce the risk of failure. The low weight and compact size allow the device to be easily transported. Rubber feet prevent slipping and do not scratch the work surface.

Product features:

Technical parameters: - Catalog number - 10021064 - Article condition - New - Model - S-LS-34 - Connector [mm] - Output sockets, mains power socket, output terminal grounding - Cooling - Fan, temperature control - Current adjustment range [A] - N/A - Current indication [mA] - 000-999 - Color - Black - Current - N/A - DC voltage regulation range [V] - N/A - Fuse [A] - 5 - Load stabilization factor - N/A - Voltage stabilization factor - Cv≤0.05%+1Mv Cc≤0.05%+10Ma - Current stabilization factor - Cv≤0.1%+5Mv Cc≤0.1%+10Ma - Operation stabilization factor - N/A - Operating humidity [%] - - Type - Pulse - Output current [A] - 0 - 5 - Protections - OVP, OCP, OTP - Power cable [m] - 1.2 - Output voltage [V] - 0 - 30 - Resolution - 100 mV / 10 mA - Protection against exceeding the maximum current - Yes - Display - LED - Voltage [V] - 230 - Power [W] - 205 - Protection against overvoltage - Yes - Connection method to computer - N/A - Ripple - Cv≤10 mV (RMS) / Cc≤20 mA (RMS) - Storage temperature [deg C] - -10 - 70 - Range operating temperature [deg C] - 0-40 - Storage humidity -
