Description

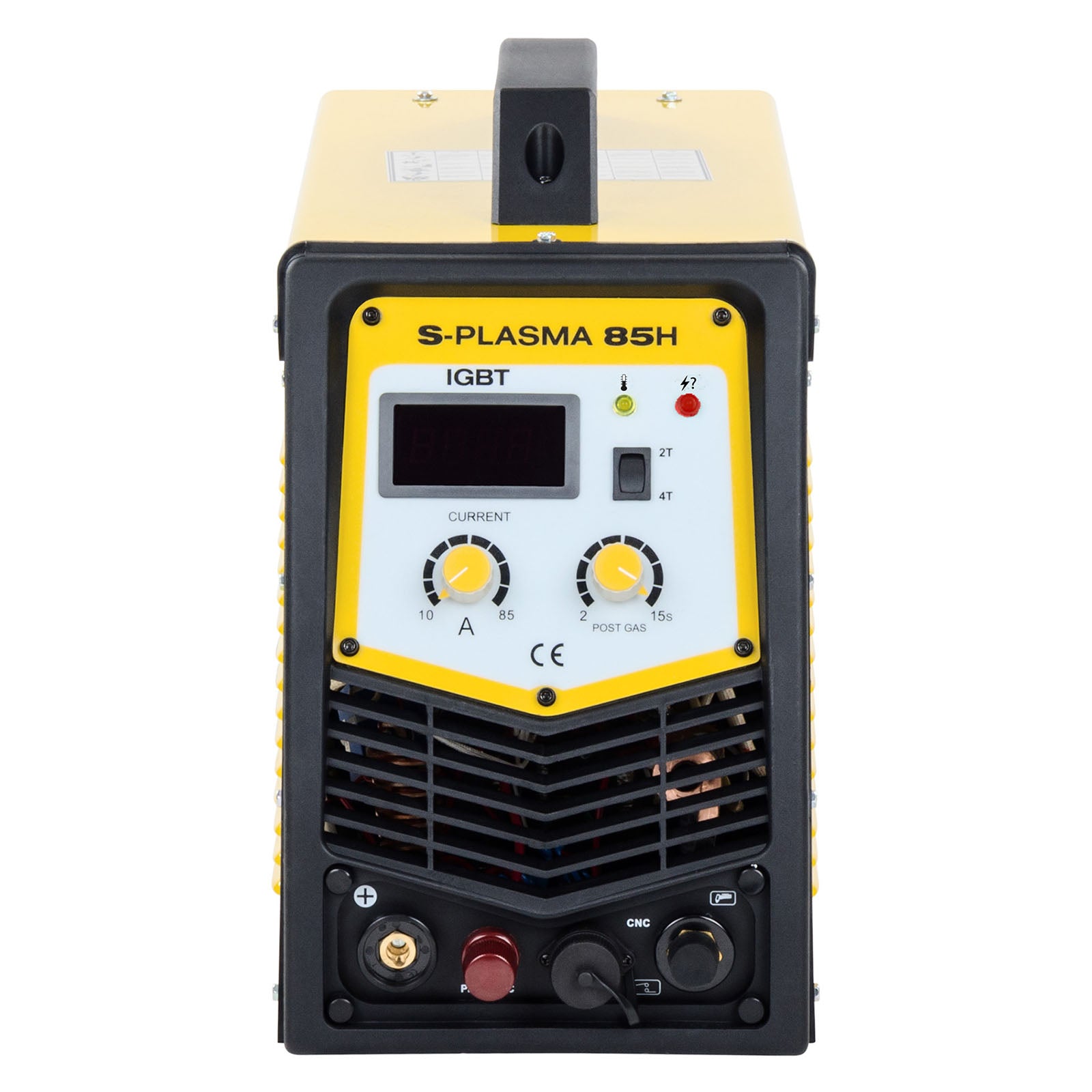

Manufacturer name: S-PLASMA 85H
The plasma cutting machine of the German welding market leader STAMOS GERMANY is able to achieve a maximum cutting current of 85 A. This will enable efficient processing of materials such as steel, nickel, aluminum, copper and other electrically conductive metals. As a result, the equipment will be used in many industries that require precision cut metal parts.
The device uses advanced IGBT technology. It uses special bipolar transistors with an isolated gate, which ensure reliability. Fast switching of parameters and a low risk of short circuit occurrence is guaranteed by a three-phase semiconductor element. IGBT also affects the small size of the device, while maintaining high parameters.
Product features:
-
- Functionality - for cutting steel and other electrically conductive metals (titanium, copper, brass, etc.)
- - Efficiency - modern IGBT technology and contactless arc ignition ensure smooth and stable operation,
- - Simple operation - large knobs allow for precise cutting current, without the need to remove gloves,
- - Legibility - LED display presents current even in dark rooms,
- - Easy transport - comfortable handle, small size and weight enable trouble-free handling of the cutter according to your needs,
- - Convenience - long 5 and 4 meter wires guarantee freedom of movement during cutting and facilitate work in hard to reach places,
- - Safety - special overheating protection system and built-in fan guaranteeing heat dissipation,
STAMOS devices were manufactured according to stringent European standards and passed the tests for CE and RoHS compliance. This guarantees a long service life and high quality of the device.Technical parameters: - - Model - S-PLASMA 85H
- - Catalog number - 2044
- - Article Status - New
- - Rated input voltage - 400 V, 3-Phase
- - Network frequency - 50 Hz
- - Rated input current - 13,2 A
- - Maximum input current - 18,6 A
- - Rated input power - 8,6 kVA
- - Maximum input power - 13,2 kVA
- - Idle voltage - 280 V
- - Cutting current - 20 - 85 A
- - Rated operating cycle - 60%
- - Cutting current in working cycle 100% - 65,8 A
- - Cutting current in working cycle 60% - 85 A
- - Gas flow time - 2 - 15 s
- - Maximum cut thickness - 27 mm
- - Cutting width - 1,2 mm
- - Required airflow - 175 l/min
- - Working air pressure - 5,5 bar
- - Plasma grip - 5 m
- - Mass conductor with clamp - 4 m
- - Air nozzle - 4 m
- - Power cable - 3,8 m
- - Chassis cooling - Fan
- - Method of cooling the handle - Air
- - Power factor - 0,93
- - Efficiency (at rated conditions) - ≥ 0,85
- - Insulation class - F
- - Structure according to EN 60974-1 / EN 60974-10
- - EG - CE compliance
- - Degree of protection - IP20 s
- - Dimensions (WxH) - 55 x 37 x 21 cm
- - Weight - 20,1 kg
- - Shipping dimensions (WxH) - 65 x 36,5 x 44 cm
- - Shipping weight - 27,6 kg
Working methods: -
Plasma cutting - thanks to the current up to 85 A, the device will seamlessly cut metals such as iron, stainless steel, cast iron, copper or aluminum. The air pressure is steplessly controlled, allowing precise control of the plasma flow. Non-burning, little distortion and a smooth cutting gap are some of the advantages of using the Stamos Germany multifunctional machine.
Device Features:
-
- 2T/4T, i.e. two-act and four-act. When you use the first button, pressing the button will initiate the cut, and releasing it interrupts the process. In the case of four-way communication, the user does not have to hold the buttons constantly, because pressing and releasing the button starts or ends work,
-
- Non-contact plasma arc ignition enables the start of cutting without contact with the processed material, which reduces the consumption of operating parts and improves work efficiency,
-
- Gas Post-Flow Time, or regulation of gas outflow. Counteracts weld oxidation,
Included: - - S-PLASMA 85H cutting machine

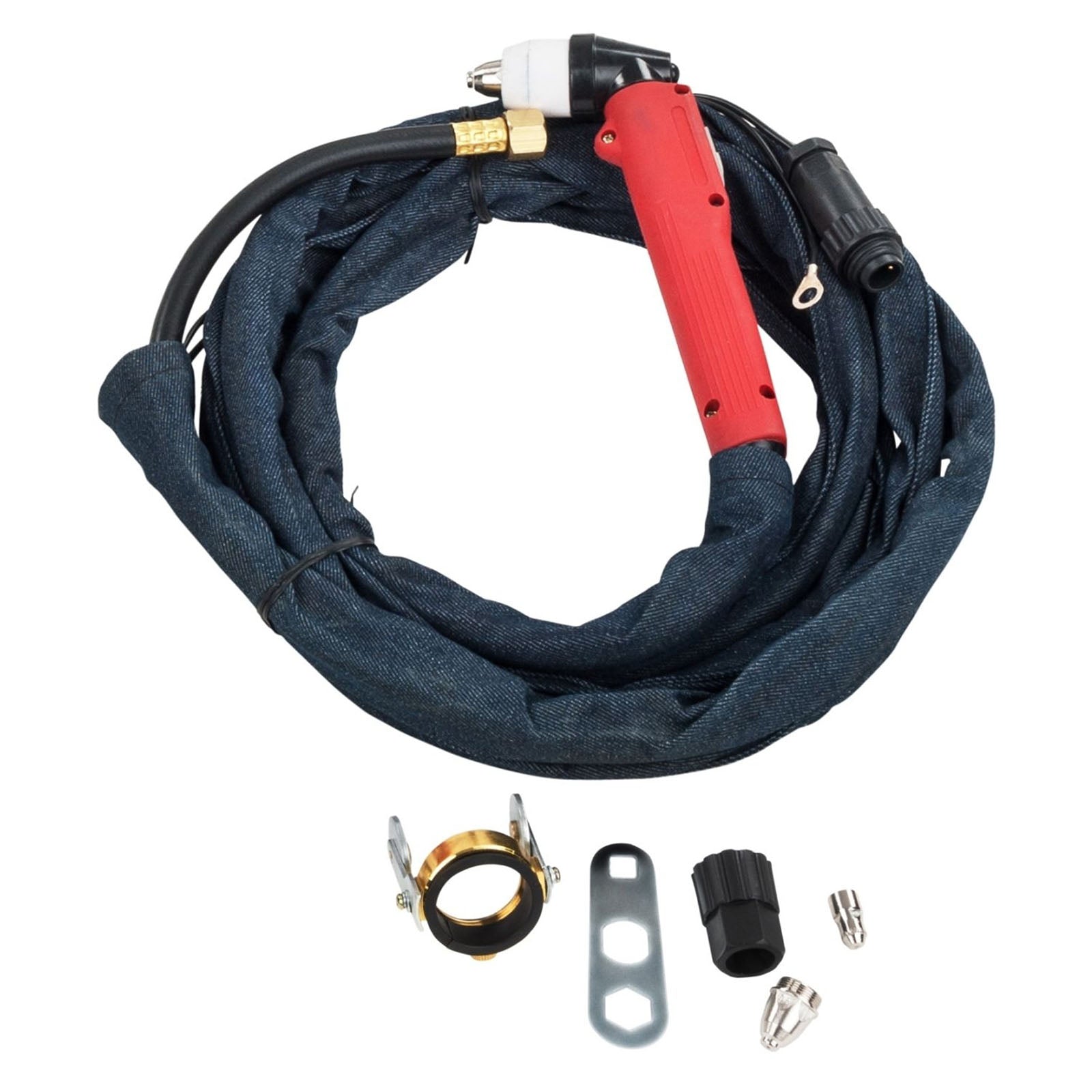

- - Cutting handle with cable - 5 m

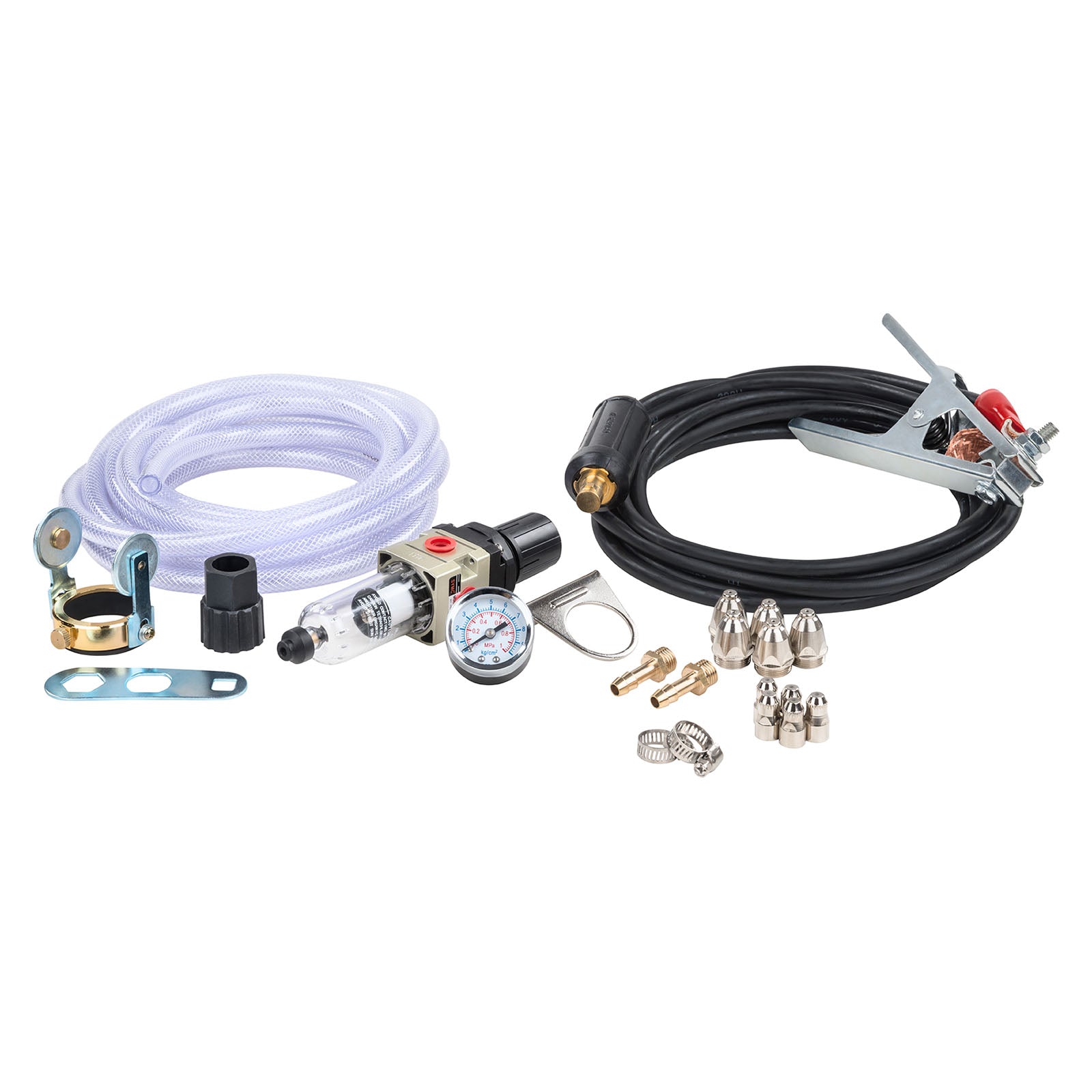

- - Bulk cable with clamp - 4 m
- - Air nozzle - 4 m
- - Pressure regulator
- - Pressure gage
- - Components for plasma grip
- - PL manual
