Description
Manufacturer code: 10062335

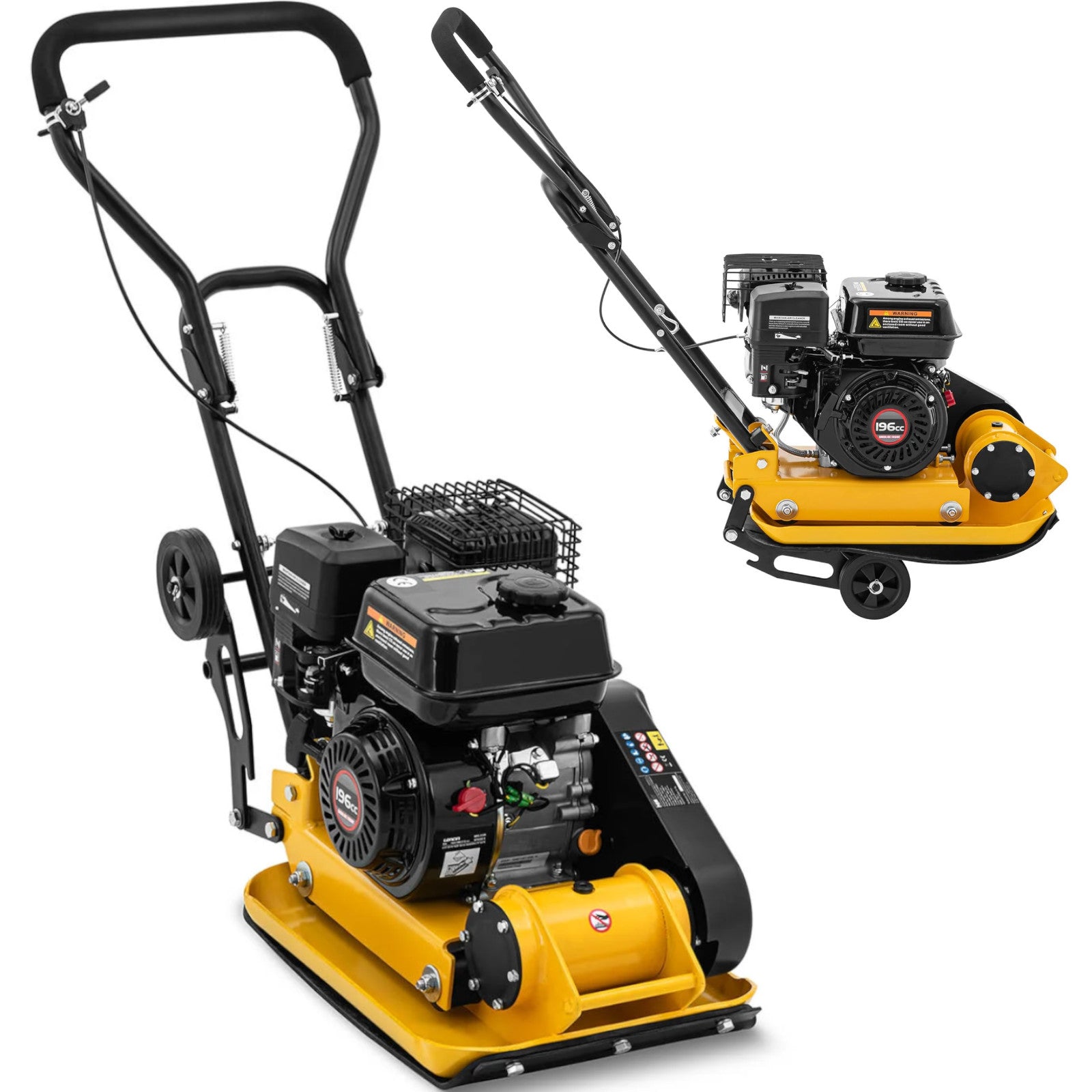

The MSW compactor allows you to easily compact loose soil. It will be ideal for use in gardening and landscaping on a small scale. Simple operation takes place intuitively using stepless control. The vibrating plate with a four-stroke 6.5 hp motor works with a centrifugal force of 11 kN and 5500 vibrations/min. Not only does it reliably thicken the substrate to a depth of 25 cm, but it also does it extremely quickly. At speeds of up to 25 m/min, the whole operation is extremely efficient. The soil compactor plate has the dimensions of 53 x 37 cm, thanks to which it is particularly maneuverable and copes even with difficult to access or particularly narrow areas. The compactor is very convenient to control and easy to use. Reinforced, self-cleaning and well-balanced plate, oil discharge hose, closed V-belt cover, self-aligning centrifugal clutch and stepless adjustment ensure efficient operation. The strong frame minimizes vibrations transmitted to the handle and together with two wheels ensures comfortable and controlled guiding of the thickener.
Product features:
- - 6.5 hp motor moves the compactor at a speed of up to 25 m/min
- - Construction machine can be led forward and backward
- - With a centrifugal force of 11 kN, the compactor transfers up to 5500 vibrations/min to the plate of 53 x 37 cm
- - Compacts most of the soil to a depth of 25 cm
- - Professionalism thanks to reinforced self-cleaning plate, oil discharge hose, closed V-belt cover, self-adjusting centrifugal coupling, stable protective frame, easy operation and stepless control
Technical parameters: - - Catalog number - 10062335
- - Article Status - New
- - Model - MSW-FPLAT25 WMAX
- - Noise level [dB] - 106
- - Material - Steel, Iron
- - Compaction depth [cm] - 25
- - Centrifugal force - 11000N
- - Engine capacity [cm³] - 196
- - Engine power [HP] - 6.5
- - Fuel tank capacity [l] - 3
- - Maximum rotational speed [rpm] - 3600
- - Engine - 1-cylinder, 4-stroke, gasoline, air cooled, OHV
- - Power [W] - 4100
- - Type of motor oil - 10W-30 / 10W-40
- - Plate dimensions [cm] - 53 x 37
- - Speed [m/min] - 25
- - Vibration frequency [VPM] - 5500
- - Dimensions (WxH) - 107 x 40 x 85.5 cm
- - Weight - 57.3 kg
- - Shipping dimensions (LxWxH) - 80 x 47 x 105 cm
- - Shipping weight - 140 kg
Included:
