Description
Manufacturer name: S-LS-1
Professional soldering station German manufacturer STAMOS SOLDERING made of high quality, original components.

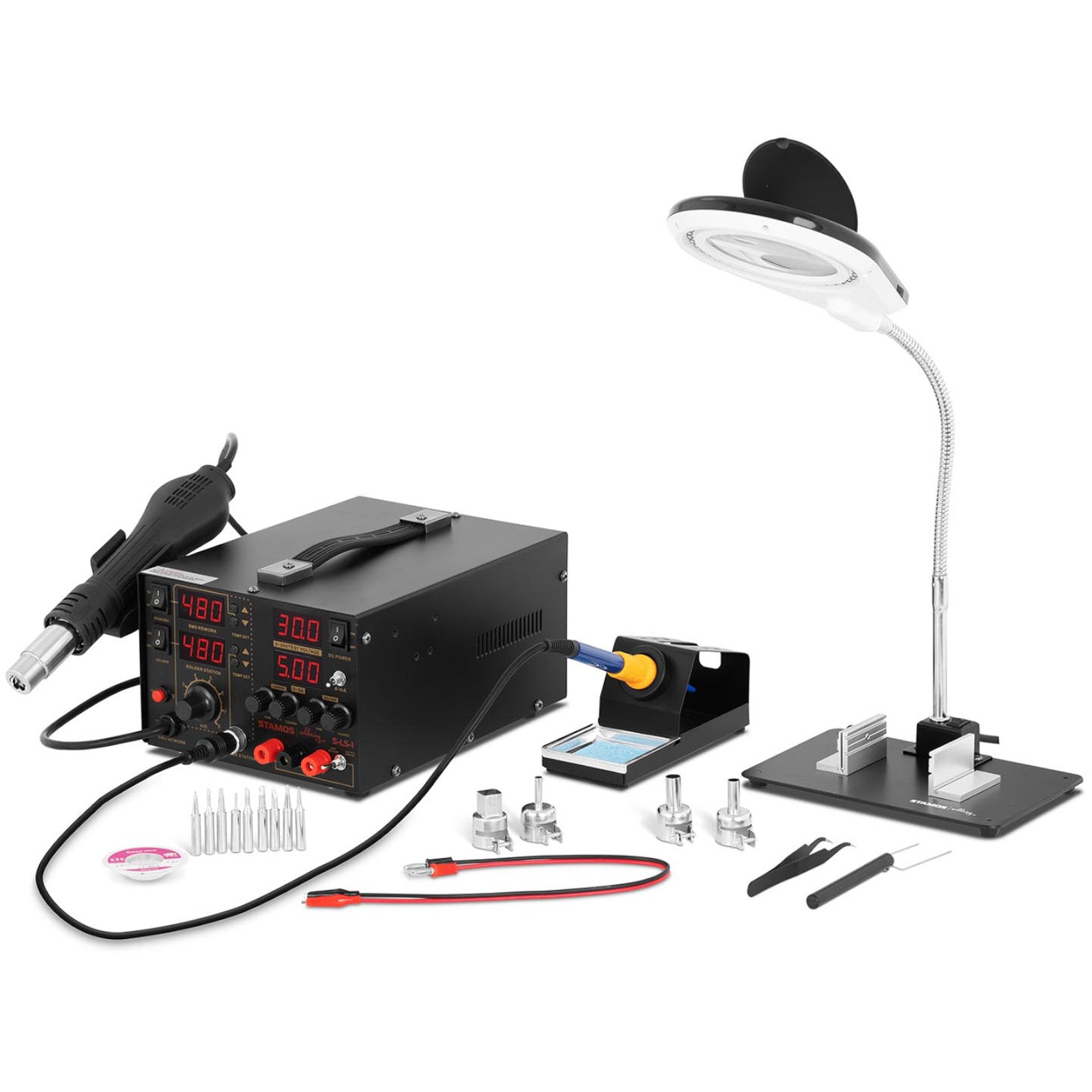

The device combines three devices: a soldering station, a hot air flask and a DC power supply. It will work well both in soldering, electronics repair, plastic welding, paint drying or film shrinking. The station is ideal in the computer, telecommunications or home workshop industries.
The device has a power of 1000 W. The temperature is regulated in the range of 200 - 480 °C. The 650 W hot air flask with a brushless fan provides an air flow rate of up to 120 l/min with the possibility of changing the temperature in the range of 100-480 °C. It is an excellent soldering and soldering tool for surface elements (SMD). The integrated heating element guarantees trouble-free heat transfer. The flask can also be placed in a special grip mounted on the side of the station. The included magnifying light provides excellent visibility. Emitted light allows to see more details. The control panel is equipped with steel buttons, which are used to set the soldering temperature, air flow rate (8 levels) as well as voltage and output current values. 4 legible LED displays are used to control the parameters. Small dimensions and a handle ensure mobility of the device and rubber legs stability.
Product features:
- - Versatility - a combination of solder station, hot air flask and power supply in one device
- - Multifunctionality - for soldering, galvanizing, shrinking, paint drying, adhesive removal, plastic welding,
- - Performance - 1000 W soldering station with temperature regulation in the range of 200 - 480 °C
- - Practicality - soldering flask - power 75 W, hot air gun - power 650 W,
- - Readability - four LED displays
Technical parameters: - - Model - S-LS-1
- - Catalog number - 6100
- - Article Status - New
- - Voltage - 230 V / 50 Hz
- - Power - 1000 W
- - Rated current - 6 A
- - Display - 4 x LED
Solder flask - - Power output - 75 W
- - Temperature control range - from 200 to 480 °C
- - Cave resistance - < 2="">
- - Tension of the cave - < 2="" m="" V="">
Hot air flask - - Power - 650 W
- - Temperature control range - from 100 to 480 °C
- - Air velocity - 120 l / min
DC power supply - - Max. voltage - 30 V
- - Output current - from 0 to 5 A
General dimensions - - Dimensions (WxH) - 33,5 x 27 x 20 cm
- - Weight - 7,3 kg
- - Shipping dimensions (LxWxD) - 41 x 30 x 24 cm
- - Shipping weight - 9,1 kg
The set includes a rich set of accessories: - - 4 x hot air nozzles
- - 9 x brazing tips (except for the one in the solder flask)
- - Sponge stand for solder flask
- - Tweezers for grasping heated elements
- - Measuring cable for testing
- - Magnifying glass with integrated lamp
- - Component elevator (so-called IC popper)
- - Soldering strap
In the DOWNLOAD tab there is a user manual, which describes in detail all elements of the device.
