INVERTO

EAN: 5453002616833

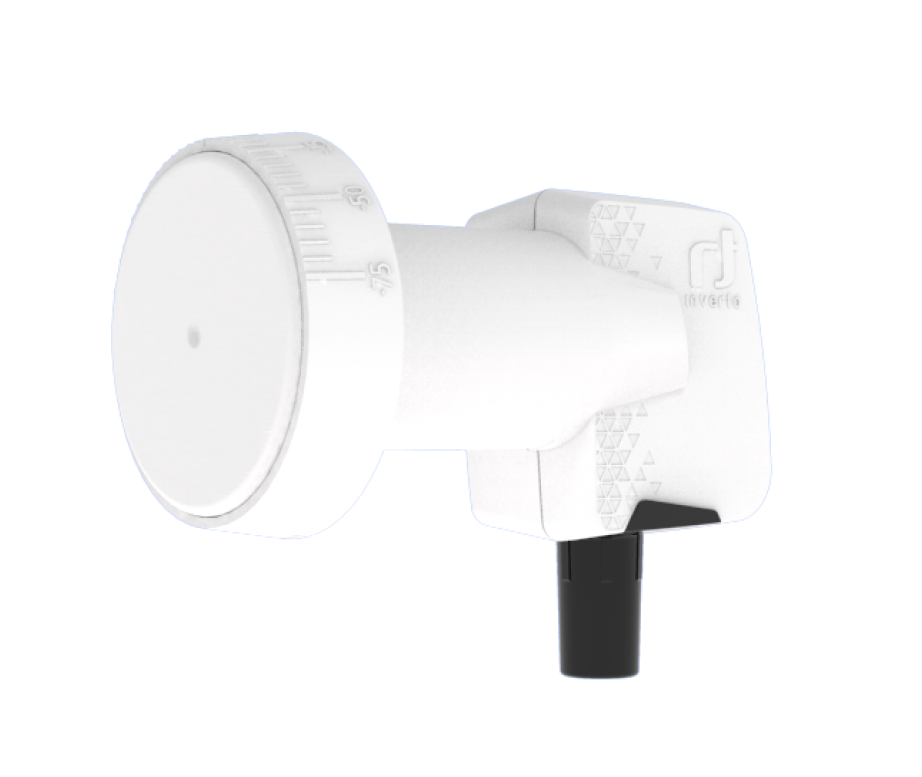

Konverter – INVERTO Home Pro Single-Konverter

Konverter – INVERTO Home Pro Single-Konverter

200 auf Lager

Anzahl
Normaler Preis €9,79 EUR
Normaler Preis Verkaufspreis €9,79 EUR
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet
Vollständige Details anzeigen

Overview

Eingangsfrequenzbereich: 10,7 GHz – 12,75 GHzAusgangsfrequenzbereich: 950 MHz – 2150 MHzLow

Key features

an
Technical specification
Specification Detail
frequency LO frequency 9.75 GHzHigh
order intermodulation – ICP3 10 dBm min.1 dB compression point (@ output): 0 dBm min. Polarization crosstalk: 22 dB min. Control signal Ca (V): 11.0 V – 14.0 V Control signal Cb (H): 16.0 V – 20.0 V. Control signal Cc (band switching): 22 kHz – 4 kHz, 0.4 V – 0.8 V peak
peak. VSWR output 2.5:1. Apparent level in band: -60 dBm max. Current consumption: 95 mA Operating temperature: -30°C to +60°C Output impedance: 75 ohms Output connector type: Type F (female) F/D ratio: 0.6Weight: 136 g
