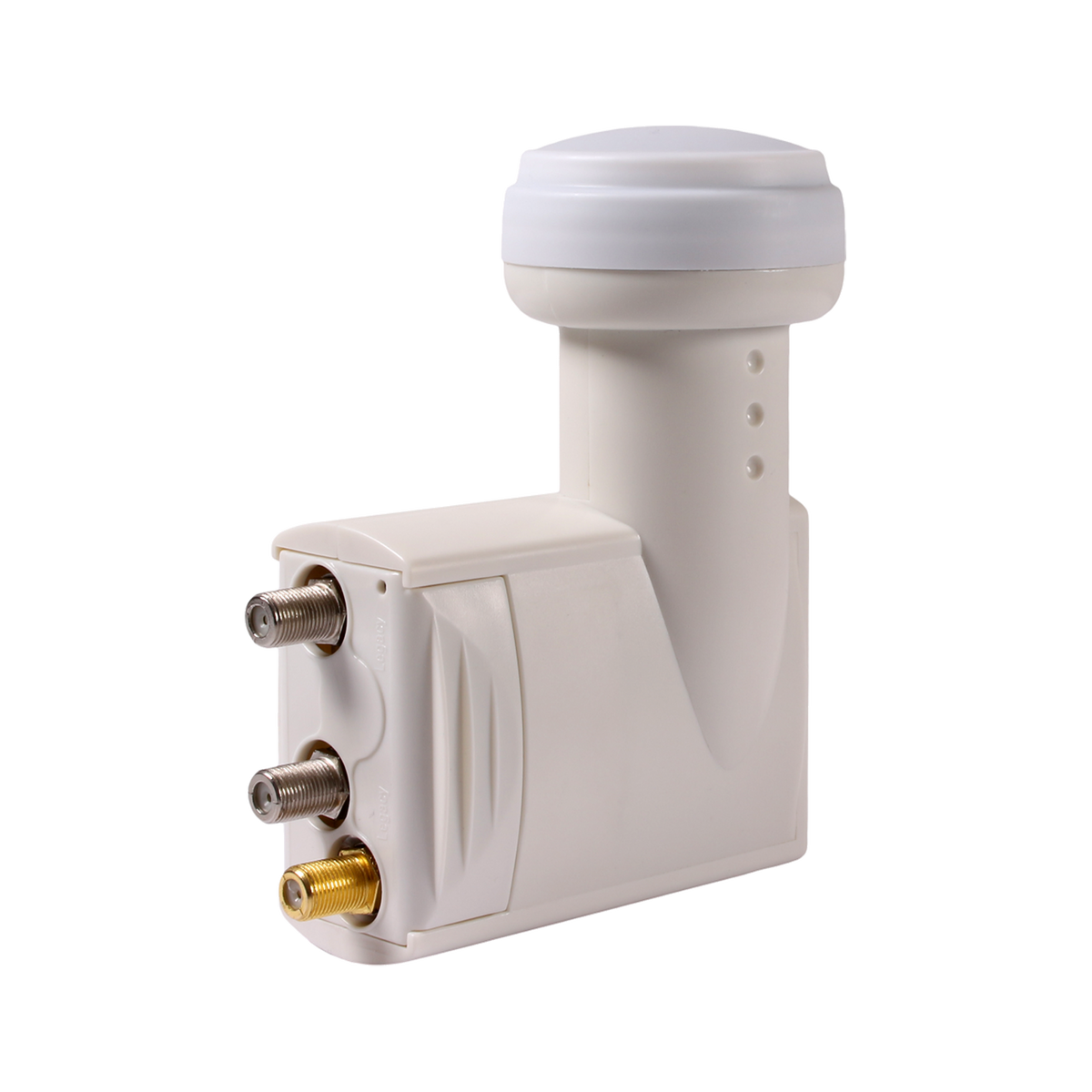

• LP Converters – OPTICUM UNICABLE SCR/2LEGACY ROBUST 4UB Converter

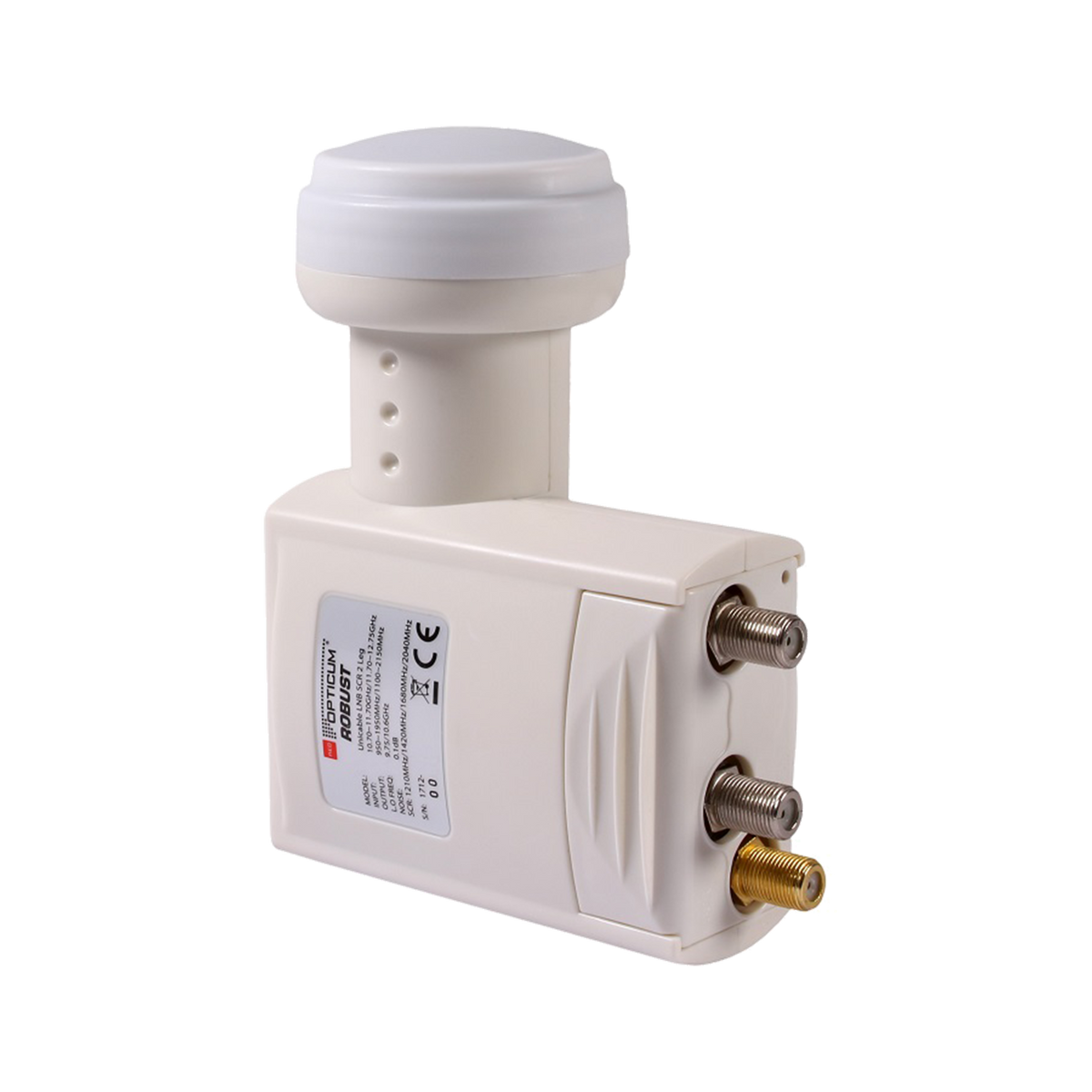

  • LP Converters – OPTICUM UNICABLE SCR/2LEGACY ROBUST 4UB Converter – image 2

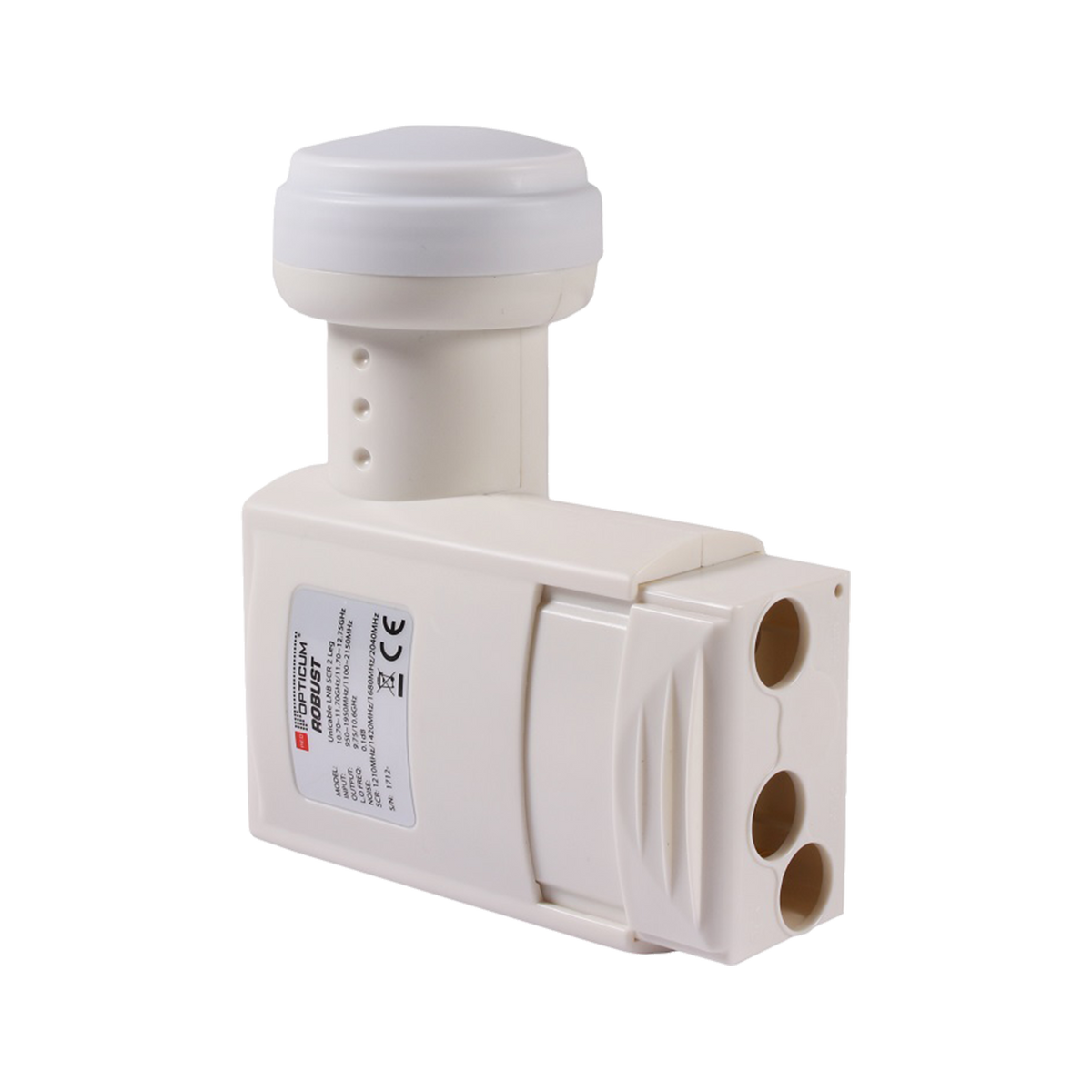

  • LP Converters – OPTICUM UNICABLE SCR/2LEGACY ROBUST 4UB Converter – image 3

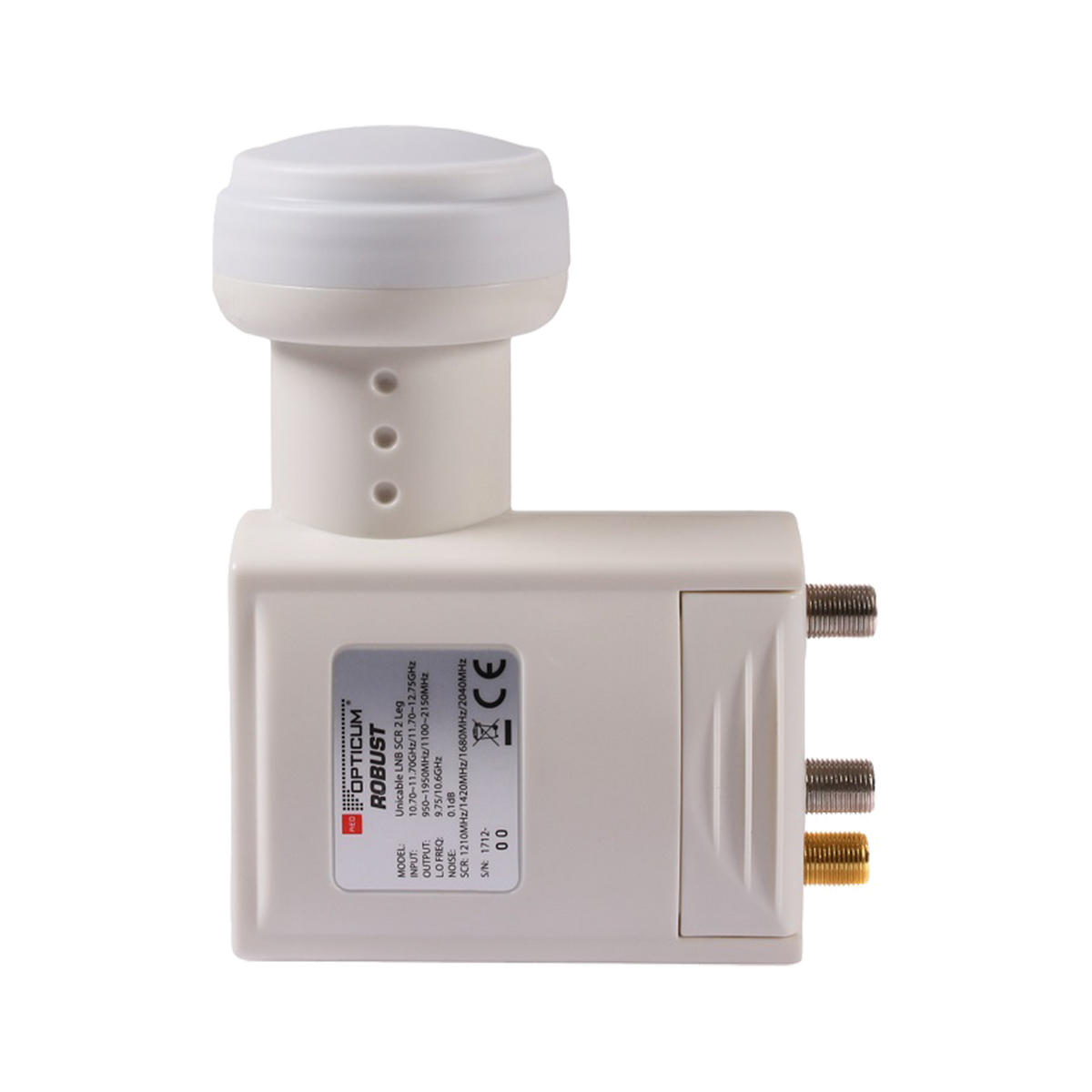

  • LP Converters – OPTICUM UNICABLE SCR/2LEGACY ROBUST 4UB Converter – image 4
  • LP Converters – OPTICUM UNICABLE SCR/2LEGACY ROBUST 4UB Converter – image 5
1 5

LP

EAN:5901912285484

Converters – OPTICUM UNICABLE SCR/2LEGACY ROBUST 4UB Converter

Converters – OPTICUM UNICABLE SCR/2LEGACY ROBUST 4UB Converter

7 auf Lager

€41,23 EUR
€41,23 EUR
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet
Vollständige Details anzeigen

Overview

Opticum UNICABLE Red Robust SCR 2 LEGACY Converter: The UNICABLE function uses four frequencies for signal transmission:- Receiver 1 - 1210 MHz- Receiver 2 - 1420 MHz- Receiver 3 - 1680 MHz- Receiver 4 - 2040 MHz.One gold

Key features

colored UNICABLE (SCR) converter output allows the signal to be transmitted via a single cable to up to 4 digital receivers with SCR or UNICABLE support.The converter’s two silver
colored outputs allow you to connect three traditional digital receivers.Technical specifications: - Lower input band: 10.7–11.7 GHz - Lower oscillator: 9.75 GHz - Upper input band: 11.7–12.75 GHz- Upper oscillator: 10.6 GHz- IF output, channel 1 (SCR): 1210 MHz- IF output, channel 2 (SCR): 1,420 MHz- Channel 3 IF output (SCR): 1,680 MHz- Channel 4 IF output (SCR): 2,040 MHz- Gain: >57 dB- Number of full
Technical specification
SpecificationDetail
band outputs2- Noise figure: 0.1 dB- Current consumption: 300 mA- Mounting hole diameter: 40 mm- Operating temperature: -40°C to +65°C
