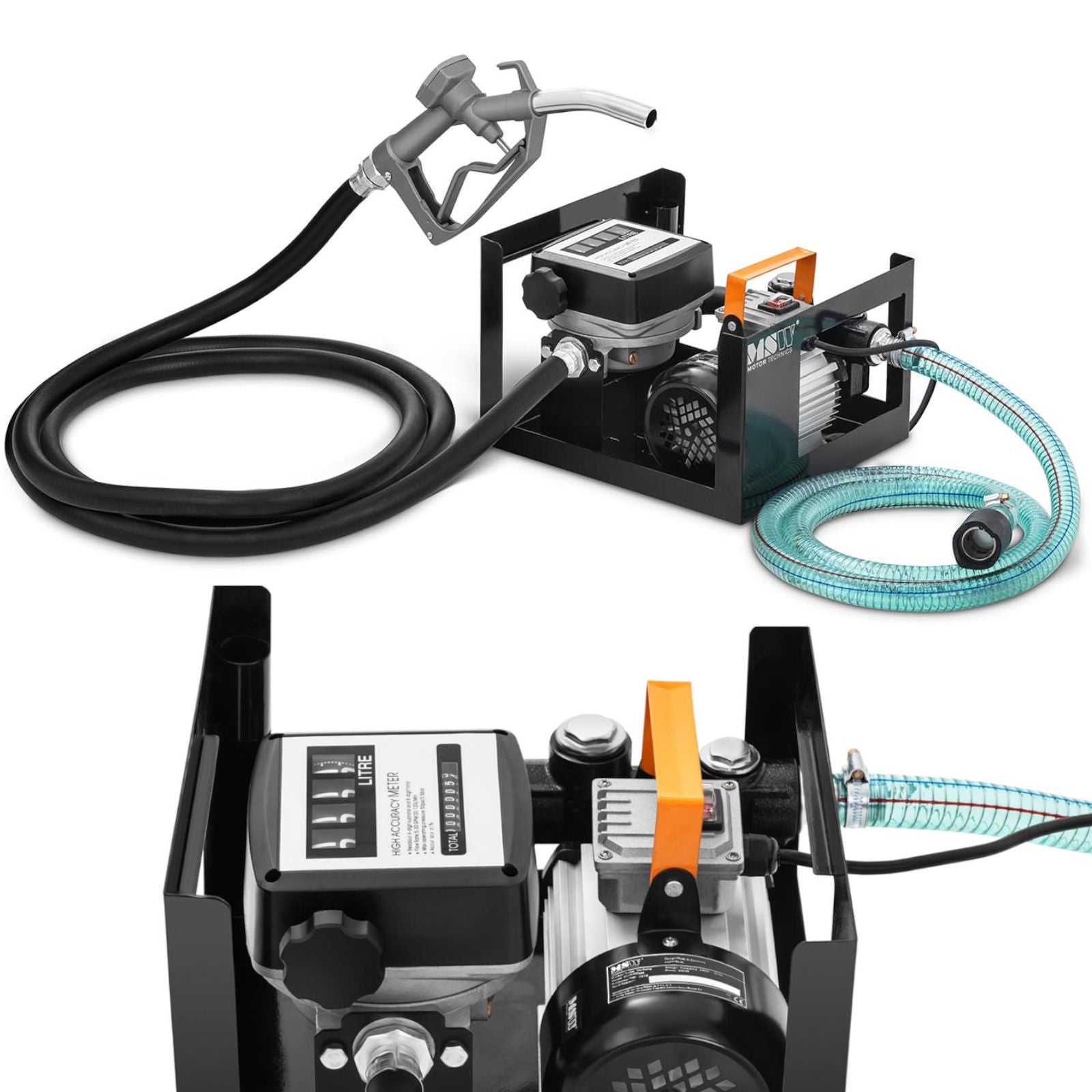

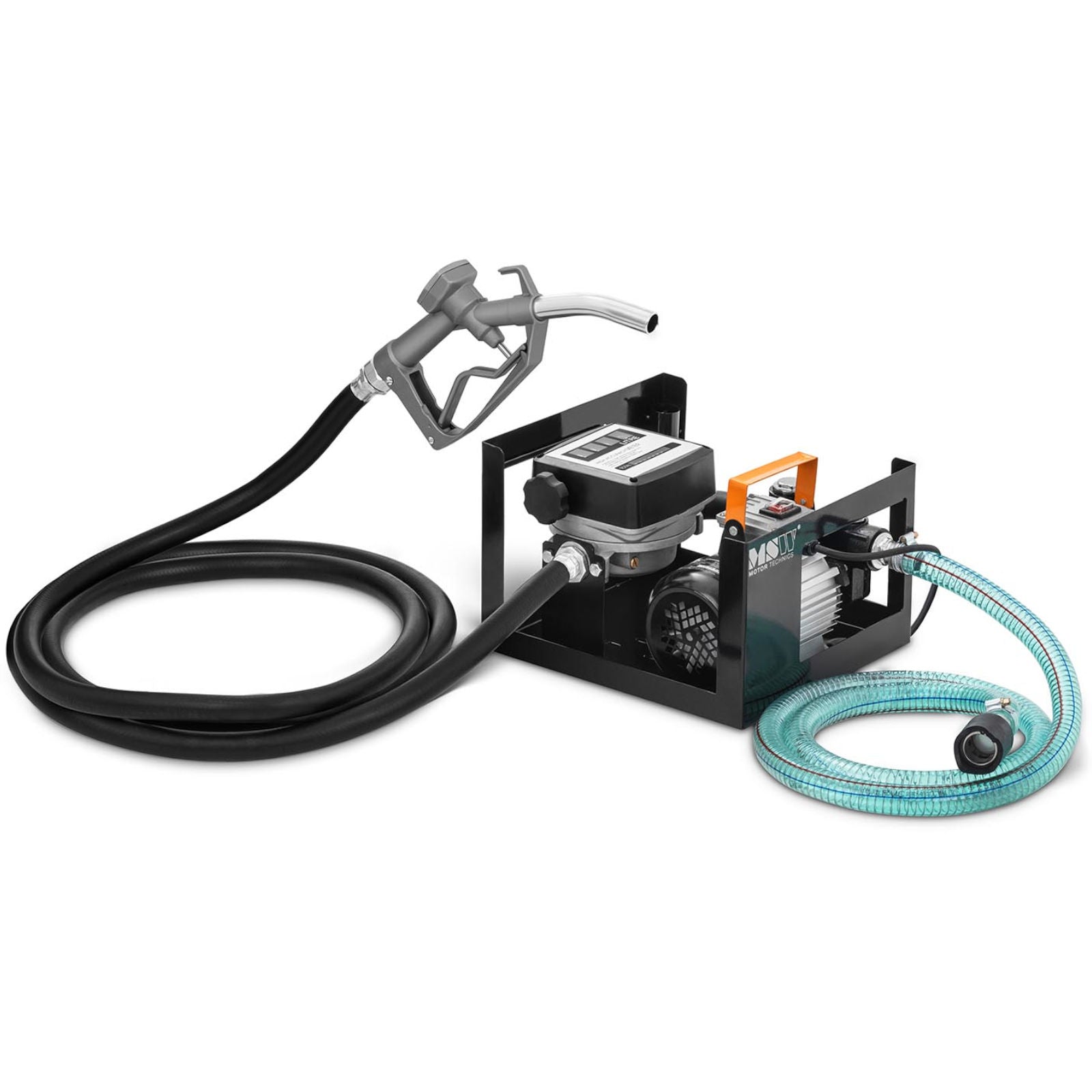

Electric diesel fuel dispenser pump with IP55 meter 230 V 600 W 60 l/min

Manufacturer's code: 10060820

The professional self-priming pump by MSW is designed for pumping oil, diesel fuel, biodiesel and kerosene (not for gasoline!). The dispenser is perfect for refueling vehicles and agricultural machines, making it suitable for use in workshops, garages and gas stations.

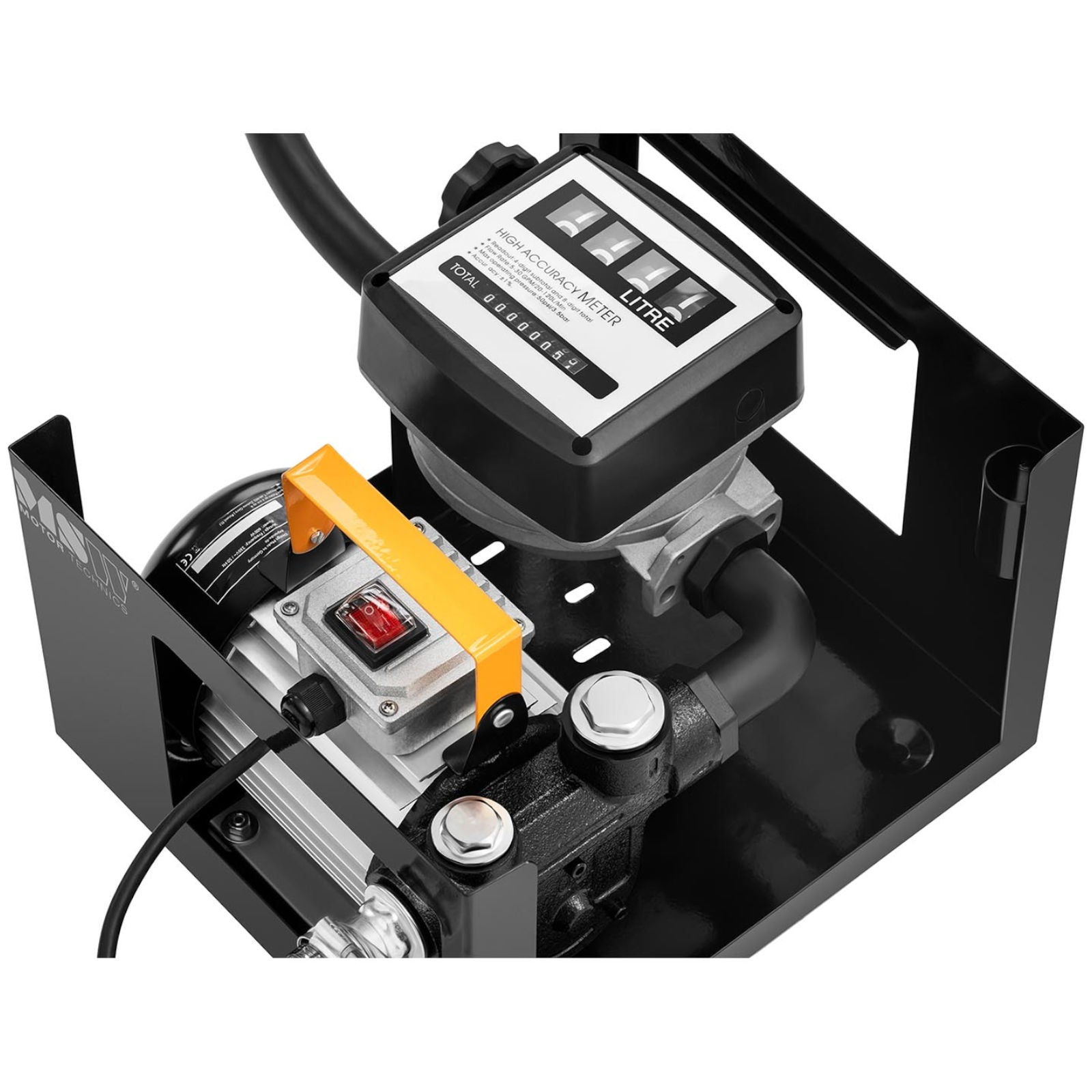

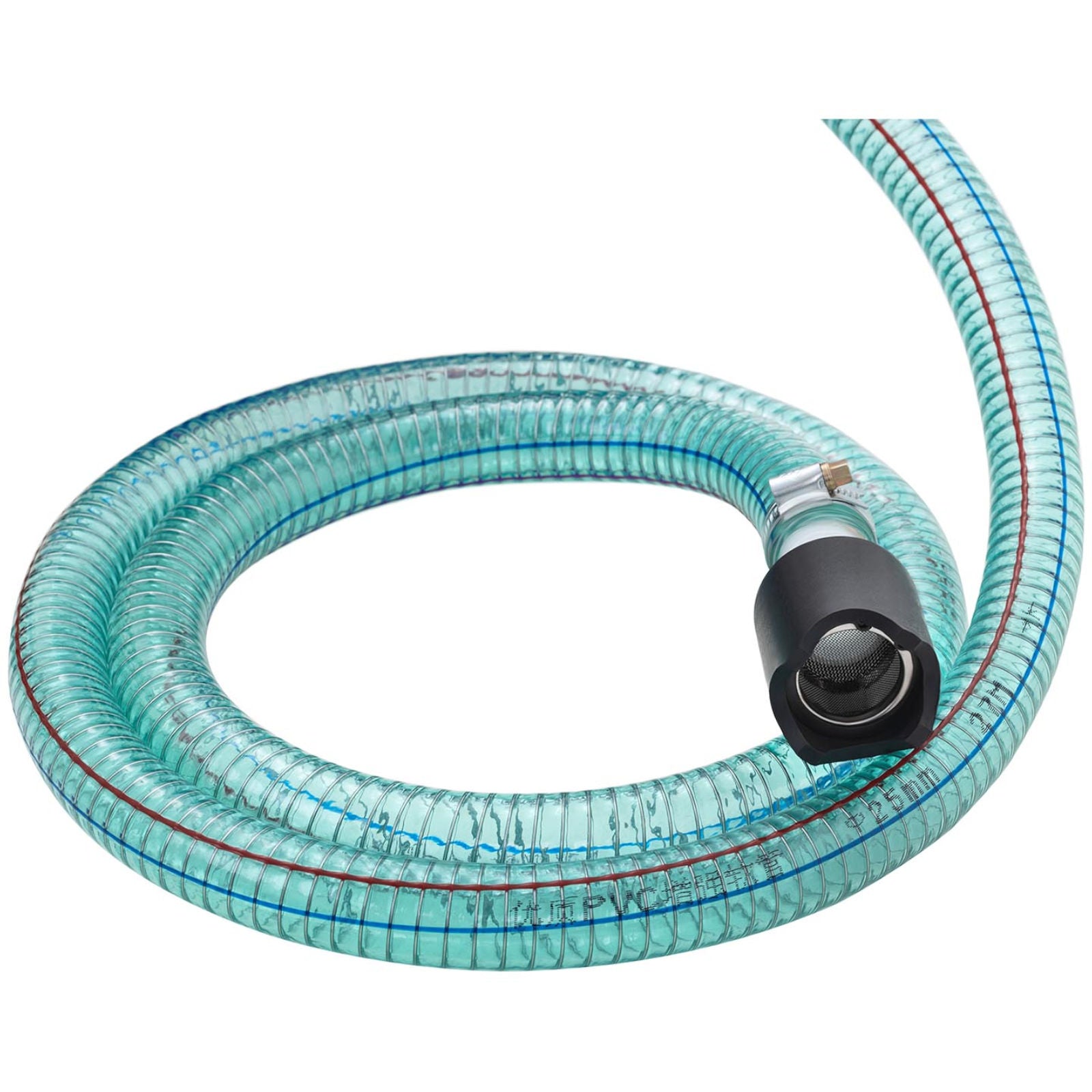

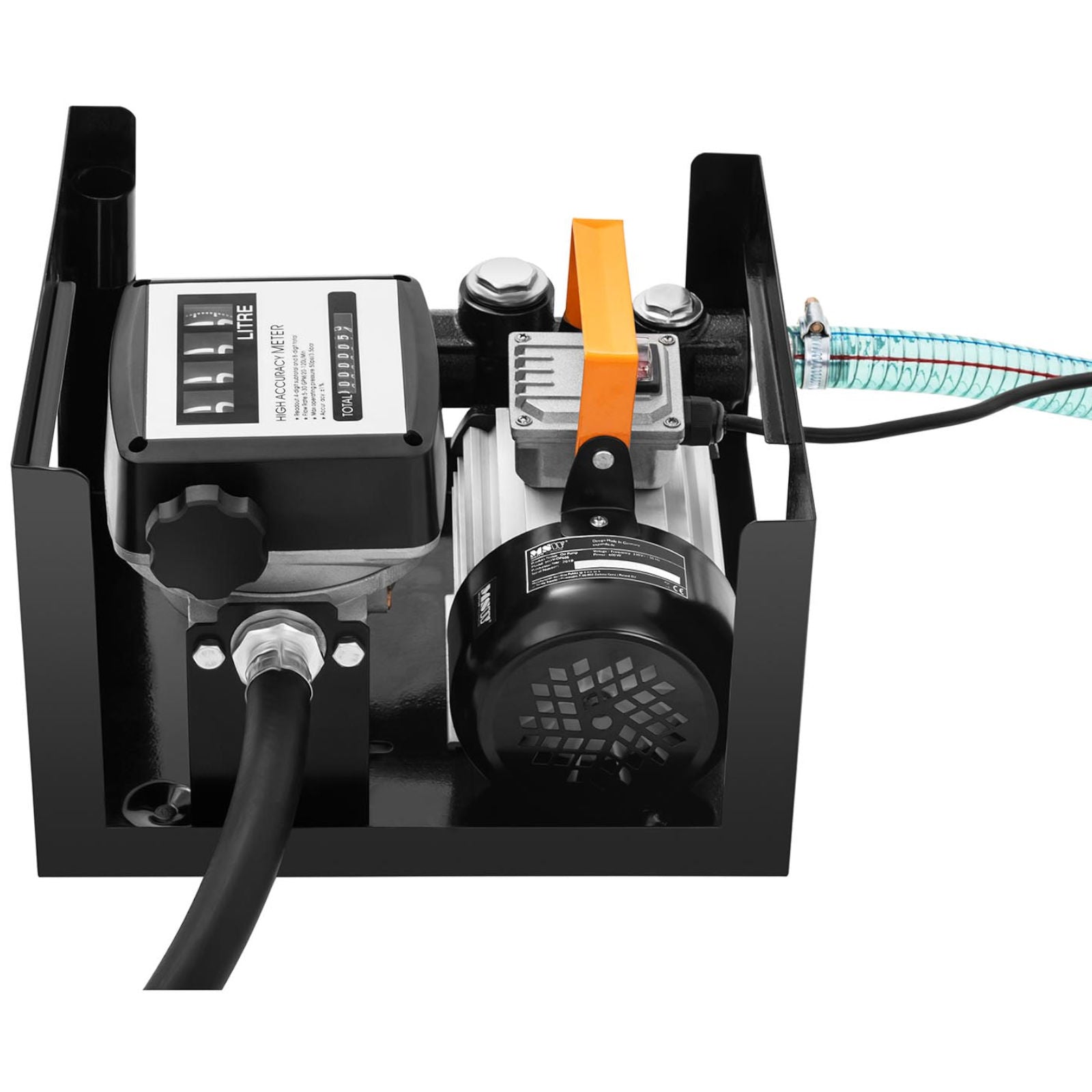

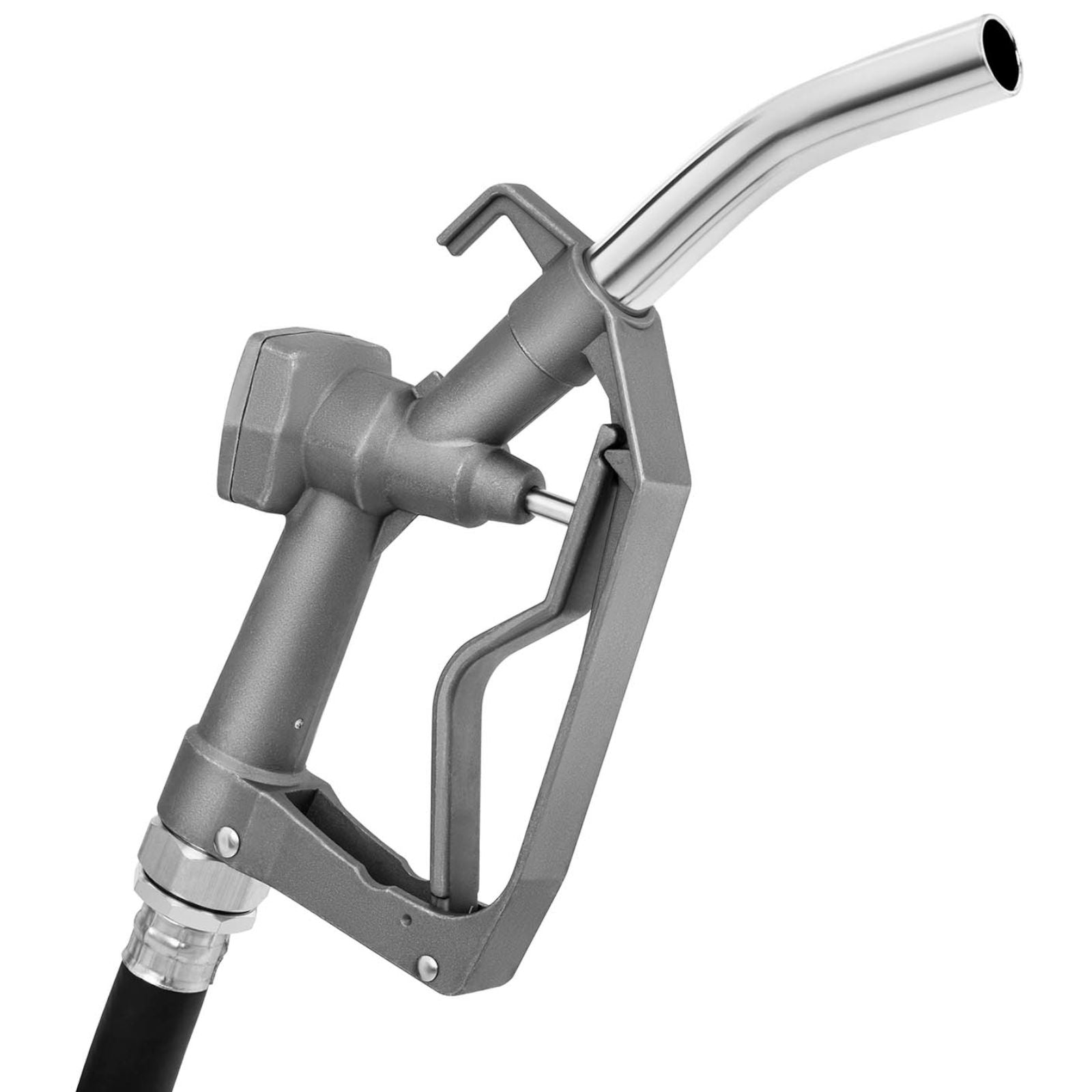

The device has a motor with a power of 600 W and 2800 rpm, which enables pumping at a speed of 60 l/min with a suction height of 5 m and a pressure of 3 bar. Self-primingis the operation of the pump without the need to refill the inlet channel. The pump will remove the accumulated air from the suction pipe itself. Theby-pass valve prevents overload and equalizes the pressure in the event of, for example, a bend in the pipe. Thanks to thedouble counterit is possible to read the current and total amount of pumped fuel. The current (four-digit) number can be reset for each refueling, but the eight-digit total will not be reset. The set includes a suction hose, outlet hose and threaded gun. The pump is mounted on a solid frame, ensuring mobile operation. The fuel line is equipped with a mesh filtering impurities. The pump may run dry for extended periods of time. The device is safe to use, is CE certified and has an IP55 protection rating. The hoses are 2 m and 4.2 m long.

Product features:

Technical parameters:

The set includes:
