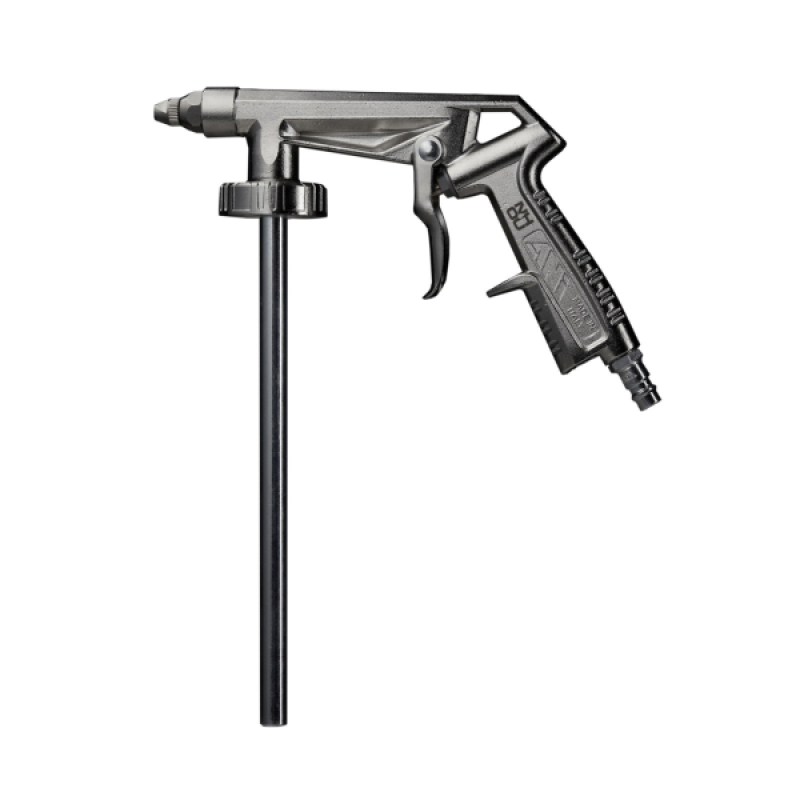

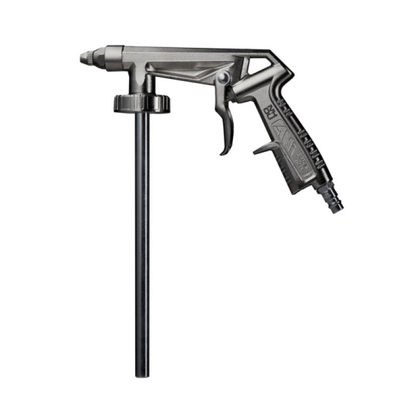

NHOU® Professionelle Unterbodenschutz-Spritzpistole – 500 mm Applikatorrohr

NHOU® Professionelle Unterbodenschutz-Spritzpistole – 500 mm Applikatorrohr

9 auf Lager

€30,00 EUR
€30,00 EUR
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet
Vollständige Details anzeigen

Extended 500mm Reach

Provides improved access beneath vehicles and into suitable recessed or difficult-to-reach treatment areas.

Professional Undercoating Use

Designed for compatible rustproofing oils, underbody coatings and corrosion-prevention materials.

Metal Feed Cup

The aluminium cup supports convenient filling and repeated professional application work.

Lightweight Construction

An approximate weight of 0.50kg helps reduce fatigue during longer treatment sessions.

Corrosion-Resistant Components

Nickel-plated, zinc-plated and stainless-steel parts support durability in demanding workshop environments.

Controlled Pneumatic Application

Provides direct compressed-air delivery for consistent application of suitable coating materials.

What's Included

1 × Spray Gun

NHOU® professional compressed-air undercoating spray gun.

1 × Application Tube

Approximately 500mm rigid application tube.

1 × Feed Cup

Aluminium suction feed cup.

1 × Nozzle and Valve Assembly

Installed nozzle and valve assembly.

1 × Instruction Manual

Where supplied by the manufacturer.

Questions

What is the 500mm tube used for?
It provides additional reach for applying undercoating beneath vehicles, around chassis structures and in suitable recessed areas.
Is the 500mm tube flexible?
No. It is a rigid extended application tube. Fully enclosed cavities may require a separate flexible cavity hose and nozzle.
Does the gun include a material container?
Yes. It includes a metal suction feed cup for compatible undercoating and rustproofing materials.
Is an air compressor included?
No. A compatible regulated air compressor, hose and connection fittings are required separately.
What is the maximum permitted pressure?
The specified maximum pressure is 8 bar. The actual working pressure should be selected according to the coating and application instructions.
Is it suitable for NHOU® rustproofing products?
It is intended for compatible NHOU® oil-based rustproofing and undercoating products. Confirm viscosity and equipment compatibility before application.
Can the gun be used with highly viscous paste-like compounds?
Only use materials approved for this gun and nozzle configuration. Very thick paste-like compounds may require specialist high-viscosity application equipment.
How should the gun be cleaned?
Depressurise the system, empty the cup and clean all material-contact components immediately using a cleaner approved for the applied coating.
Is this tool suitable for beginners?
It is intended for professional and experienced DIY use. Operators should understand compressed-air equipment, coating compatibility, masking and safe spray application.
Recommended Applications
Product Specifications
SpecificationDetail
ProductNHOU® Professional Undercoating Spray Gun
Application tube lengthApproximately 500mm
Power supplyCompressed air
Maximum pressure8 bar
Operating temperature–10°C to +90°C
Air connection1/4" female BSP cylindrical thread
Approximate weight0.50kg
Feed systemMetal suction feed cup
Primary applicationCompatible oil-based undercoating and rustproofing materials
Gun bodyNickel-plated die-cast aluminium
Internal air nozzleCarbonitrided and zinc-plated steel
External nozzleNickel-plated brass, CW614N
LeverNickel-plated steel
RivetZinc-plated steel
ValveUltraform® N2320 resin and brass
SpringAISI 302 stainless steel
SealsNBR 70
Suction pipeZinc-plated steel
Feed cup materialAluminium alloy
Safety Information
Lesen Sie vor Gebrauch die Spritzpistolenanleitung und das Sicherheitsdatenblatt des Beschichtungsmaterials. Tragen Sie geeignete Handschuhe, Augenschutz, Schutzkleidung und gegebenenfalls Atemschutz. Überschreiten Sie niemals den maximalen Druck, richten Sie die Pistole niemals auf Personen oder Tiere und entlasten Sie das Gerät immer, bevor Sie es reinigen, warten oder zerlegen.

Application Guide

How it goes on

Step 1 of 10

Read the instructions

Review the spray-gun manual and coating manufacturer's directions before use.

Step 2 of 10

Confirm compatibility

Verify that the selected rustproofing or underbody coating is suitable for the gun, cup, seals and nozzle.

Step 3 of 10

Prepare the coating

Mix or condition the product according to its label instructions.

Step 4 of 10

Fill the feed cup

Add the required quantity without exceeding the permitted fill level.

Step 5 of 10

Connect the air supply

Attach a suitable regulated compressor using compatible hoses and fittings.

Step 6 of 10

Test the application

Use a test panel to verify material flow, spray pattern and pressure before treating the vehicle.

Step 7 of 10

Apply evenly

Maintain a stable distance and move the tube in smooth, controlled passes.

Step 8 of 10

Protect surrounding parts

Avoid brakes, friction surfaces, tyres, exhaust components, belts and areas where an oil coating is unsuitable.

Step 9 of 10

Depressurise safely

Disconnect the air supply and release stored pressure before cleaning or adjustment.

Step 10 of 10

Clean immediately

Empty and clean the cup, suction pipe, tube and nozzle using a cleaner approved for the applied material.
