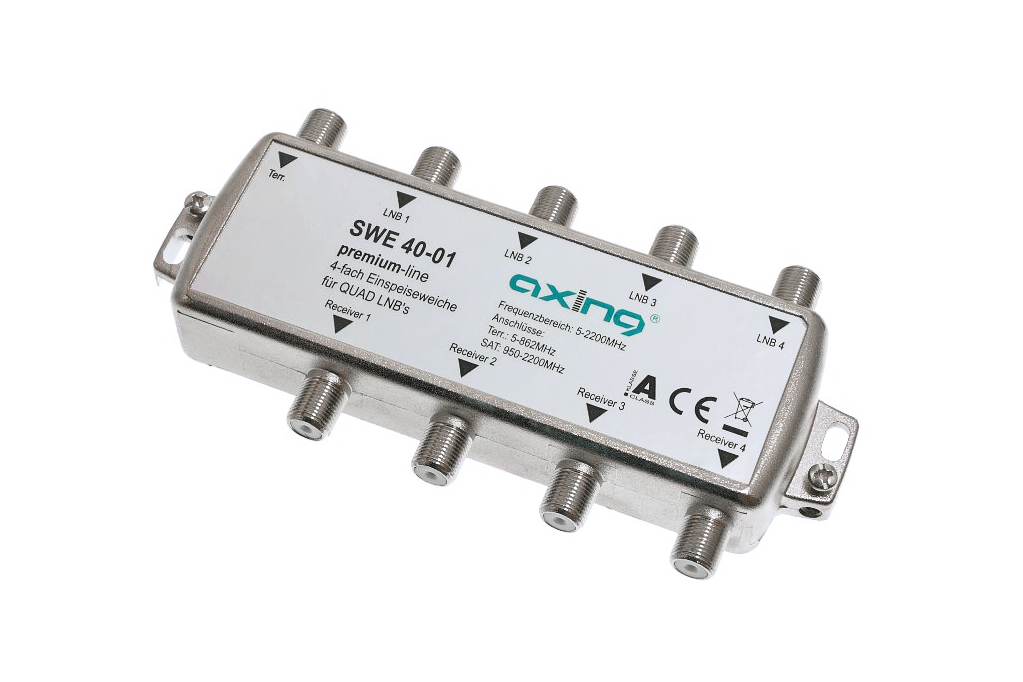

Filters, amplifiers, separators, crossovers, splitters – AX SWE 40-01 Summing Amplifier

The SWE 40-01 splitter allows for the combination of terrestrial television signals (RF input in the 47–860 MHz range) with four satellite signals (frequencies in the 950–2150 MHz from two polarizations) and transmit them to four independent reception points; four GARSAT-type outlets are required to split the combined signal into terrestrial and satellite signals); Technical specifications: model: Axing SWE40-01; frequency range for RTV input: 47–862 MHz; frequency range for Sat input: 950–2250 MHz; RTV insertion loss: 8 dB; Sat insertion loss: 2 dB; inputs/outputs: F-type connectors; passive component requiring no power supply; for indoor use; dimensions: 138 x 127 x 48 mm; mounting hole spacing: 120 mm (horizontal) and 110 mm (vertical);
