Description
Manufacturer's code:

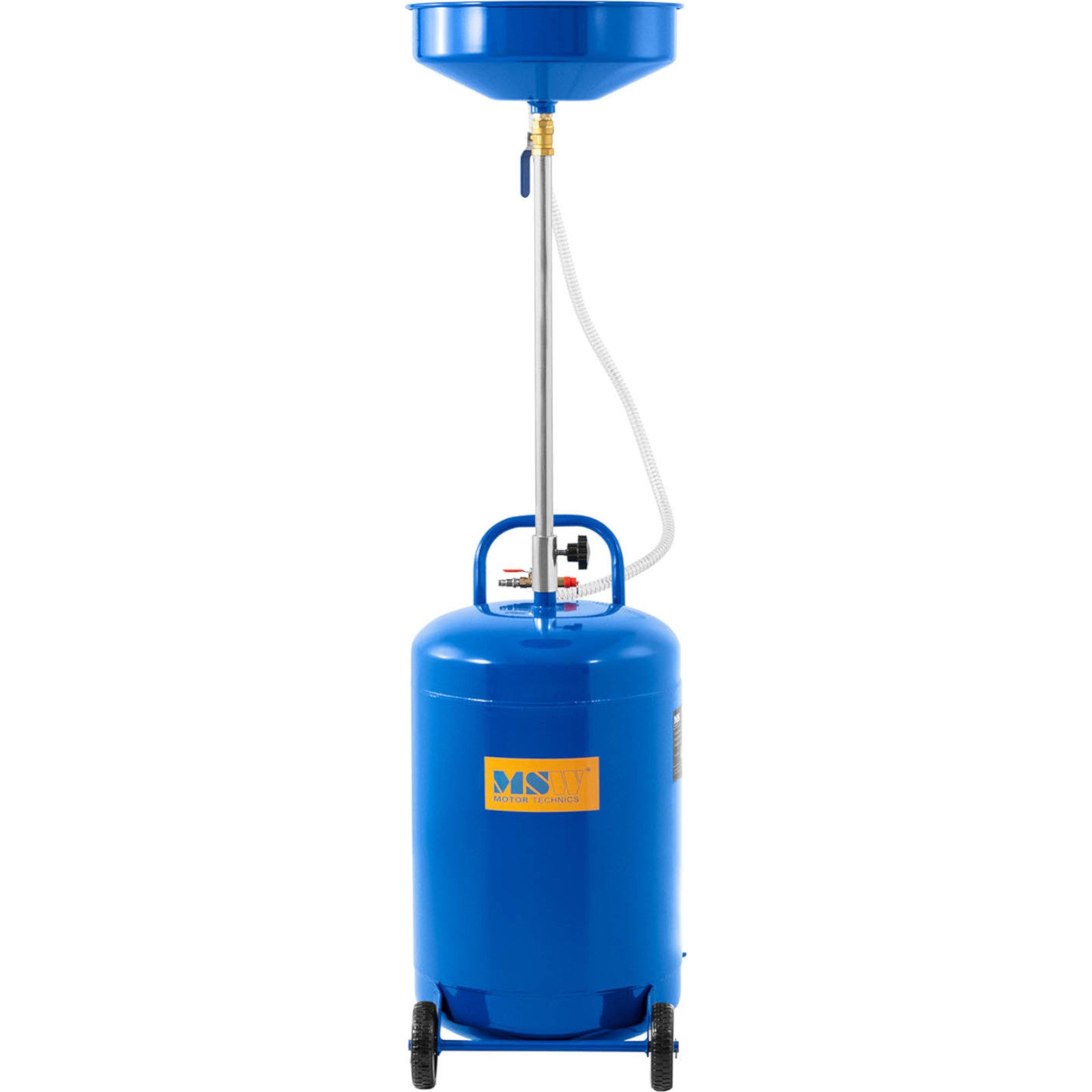

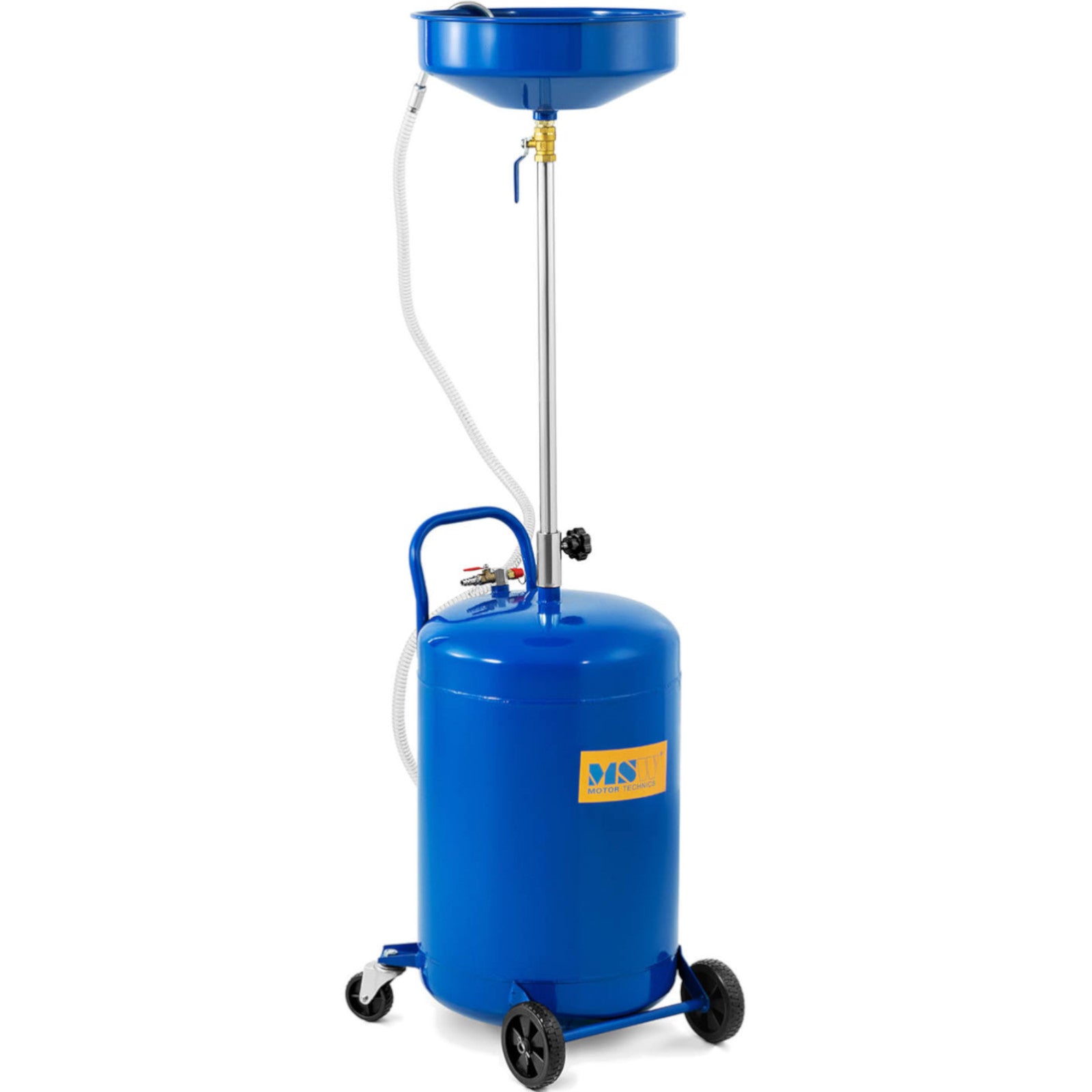

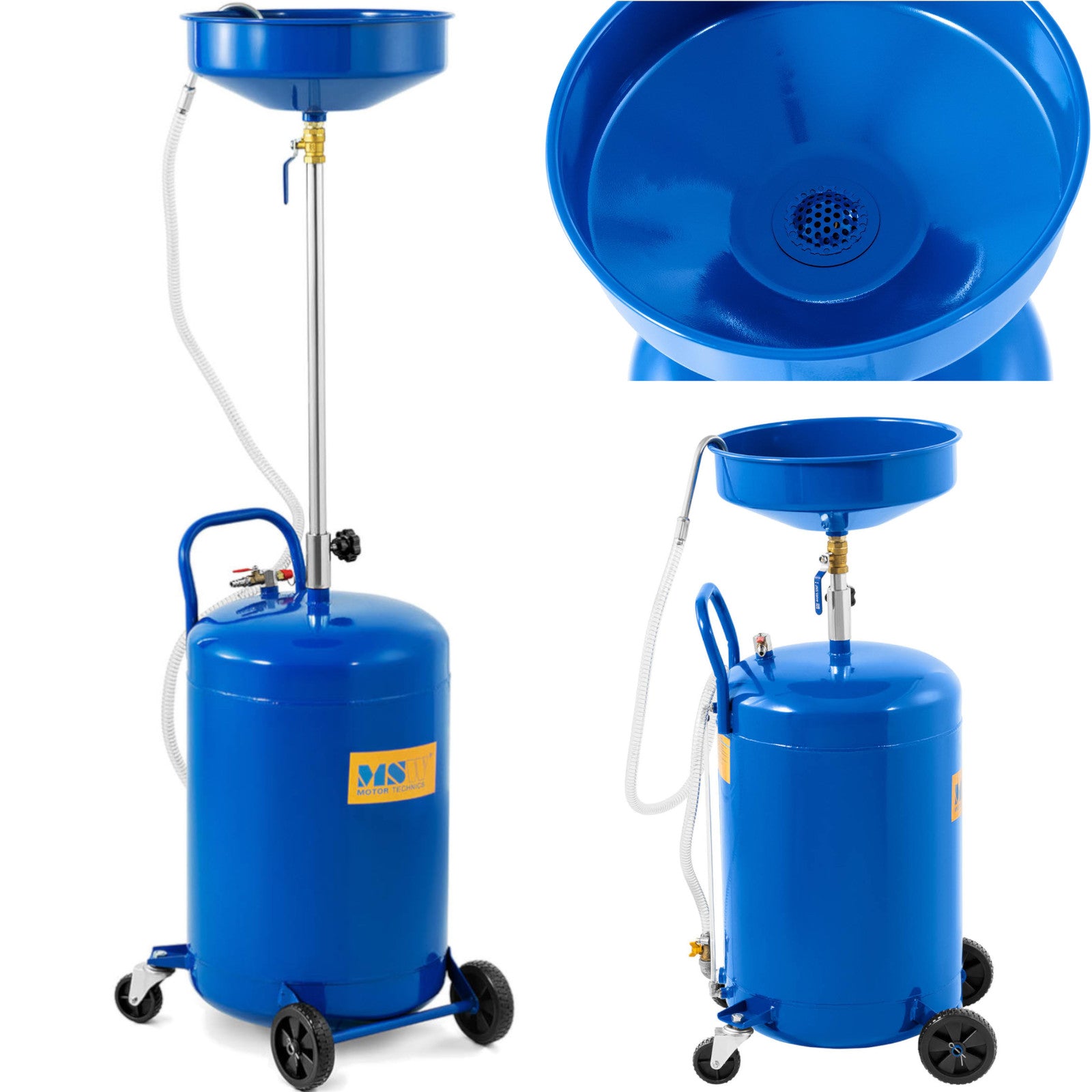

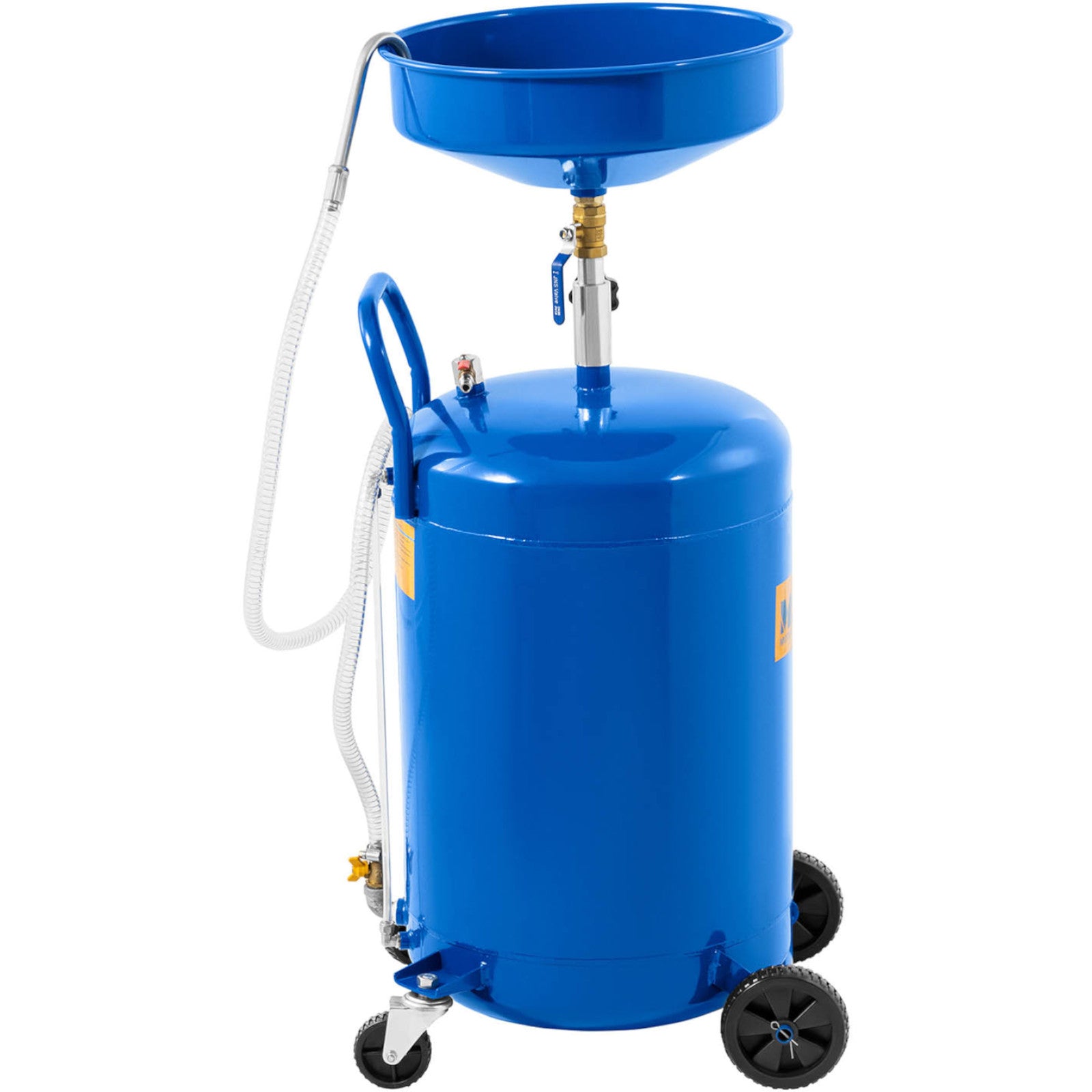

10061593MMA oil sink will be tested in car service workshops or hobby garages. The device has a tank with capacity
68 lThe tank of used oil has a capacity.
10 lThe flow rate is equal to
3 l/minAdjustable height in the range
940-1300 mm allows you to adapt the device to a wide range of types and sizes of engines. The design was made of solid materials,
steel and PVCFour wheels including two torsion wheels 2 x 5' and 2 x 3' ensure the mobility of the equipment. The working temperature of the oil for the device is
40-60deg C at the pressure of pressing max.
0-3 bar.Product features: - - Perfect for quick oil change,
- - for use in workshops,
- - Made of high quality materials,
- - Easy to operate the device.
Technical parameters: - - Model - MSW-OD-68
- - Catalog number - 10061593
- - The state of the article - New
- - Flow [l/min] - 3
- - The length of the snake [m] - 1,5
- - Material - Steel + PVC
- - Diameter of wheels [mm] - 2 x 5#8221 and 2 x 3#8221
- - Number of wheels [pcs] - 4
- - Height adjustment [mm] - 940-1300
- - Maximum power pressure [bar] - 0 - 3
- - Diameter of the bowl [mm] - 363
- - Capacity of the sink tank [l] - 10
- - Working temperature of pumped oil [deg C] - 40 - 60
- - Control tank capacity [l] - 68
- - Pressure gauge - No.
- - Safety valve - Yes.
- - Dimensions (DxSxW) [cm] - 50 x 39 x 157
- - Weight [kg] - 13,37
- - Dimensions of dispatch (DxSxW) [cm] - 50 x 45 x 84
- - Weight of dispatch [kg] - 15,41
Included: - - Oil sink

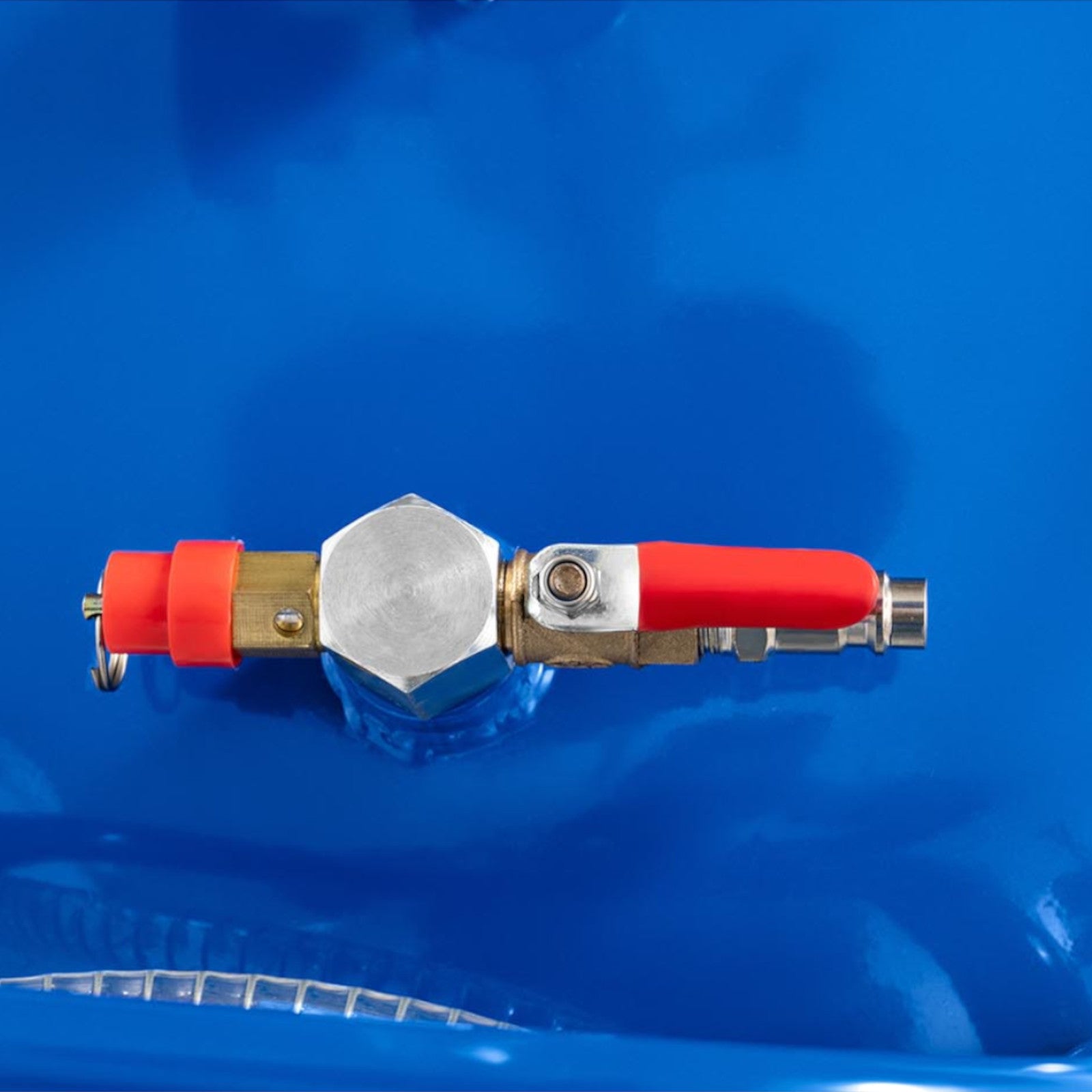

- - Tank with safety valve and ball valve

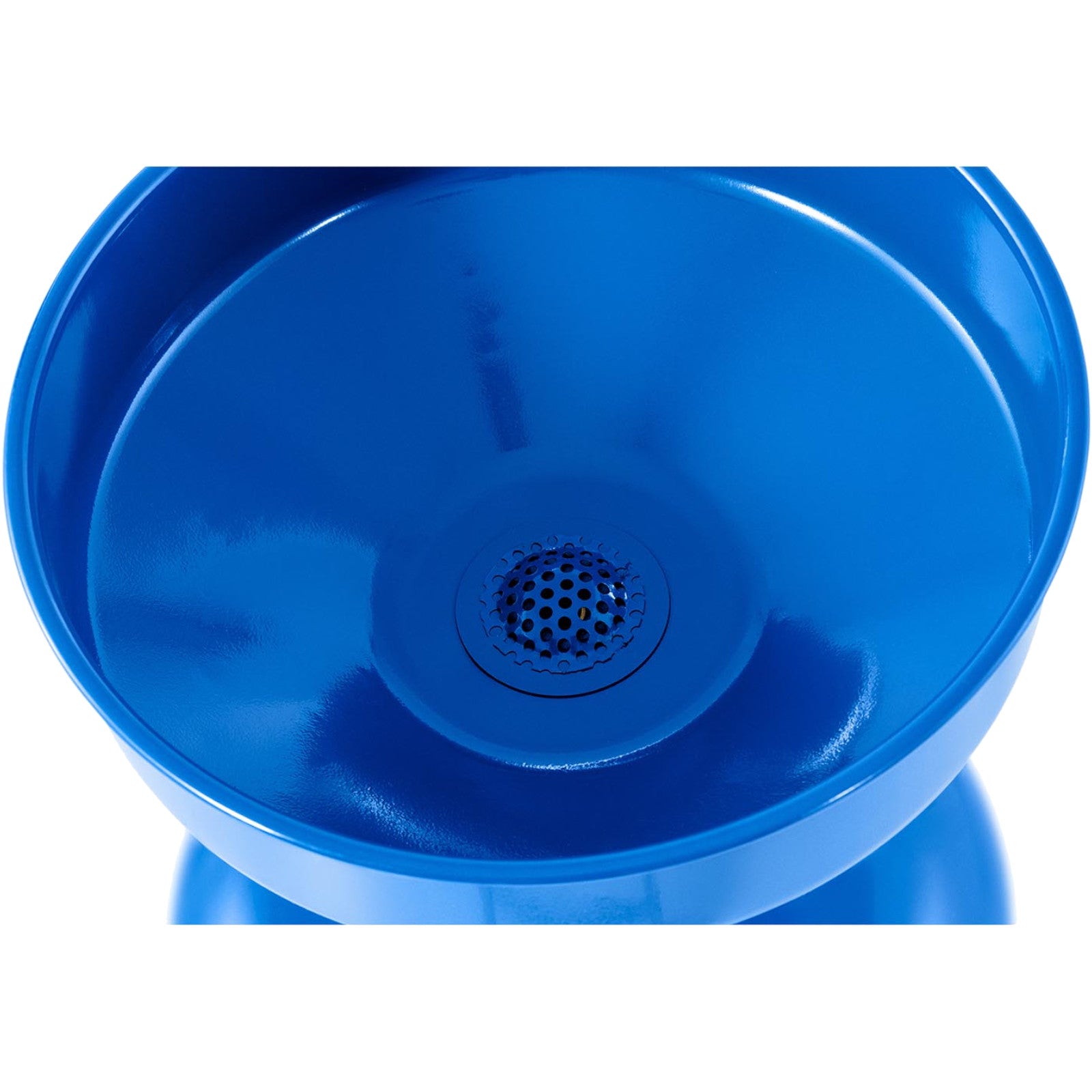

- - A bowl of 10 l
- - Sealing tape

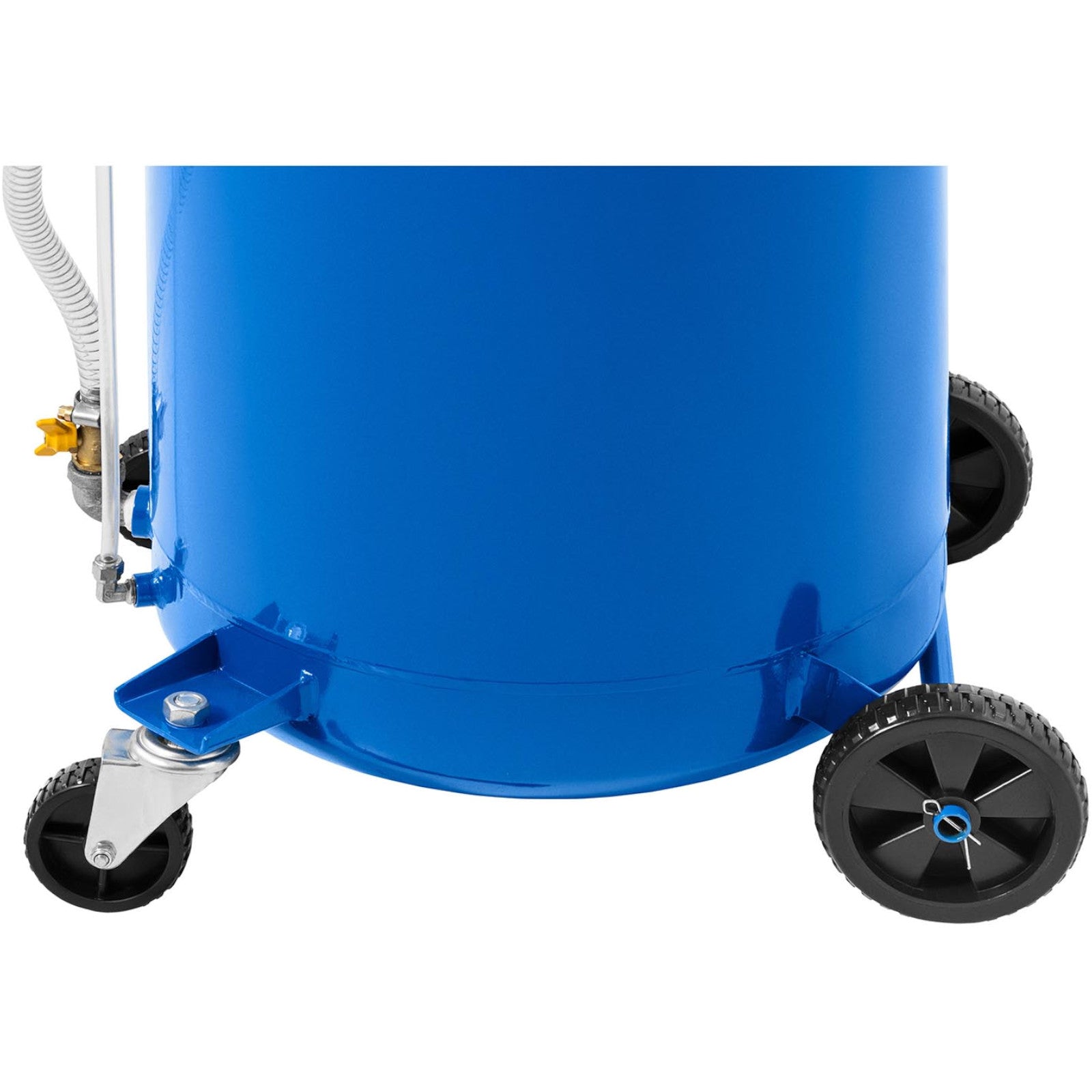

- - 4 wheels - 2 universal and 2 fixed
- - Oil rails
- - Steel pipe 1.46 m
- - 2 divided pins
- - 2 M12 nuts with two pads
- - User manual
