Description
Manufacturer's code:

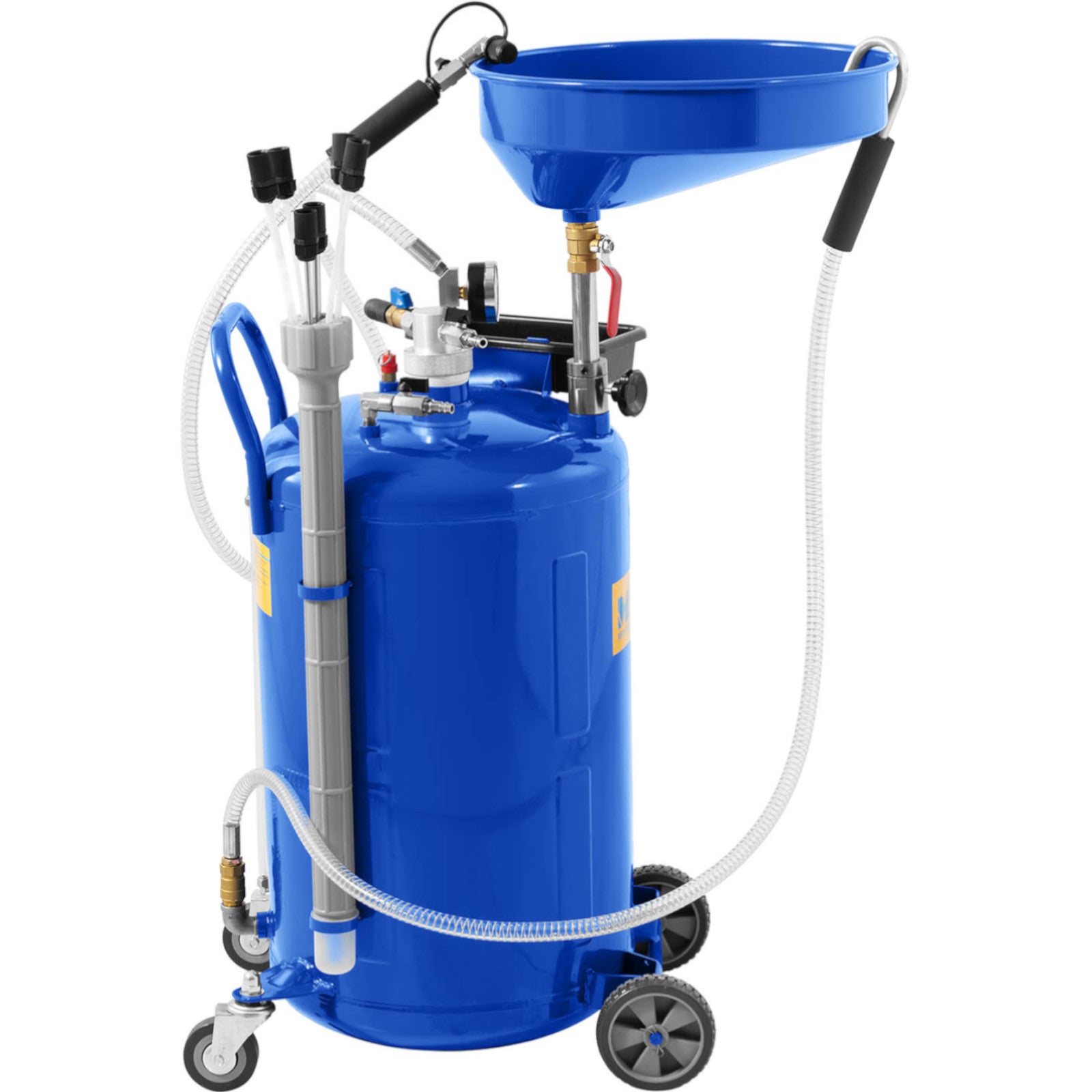

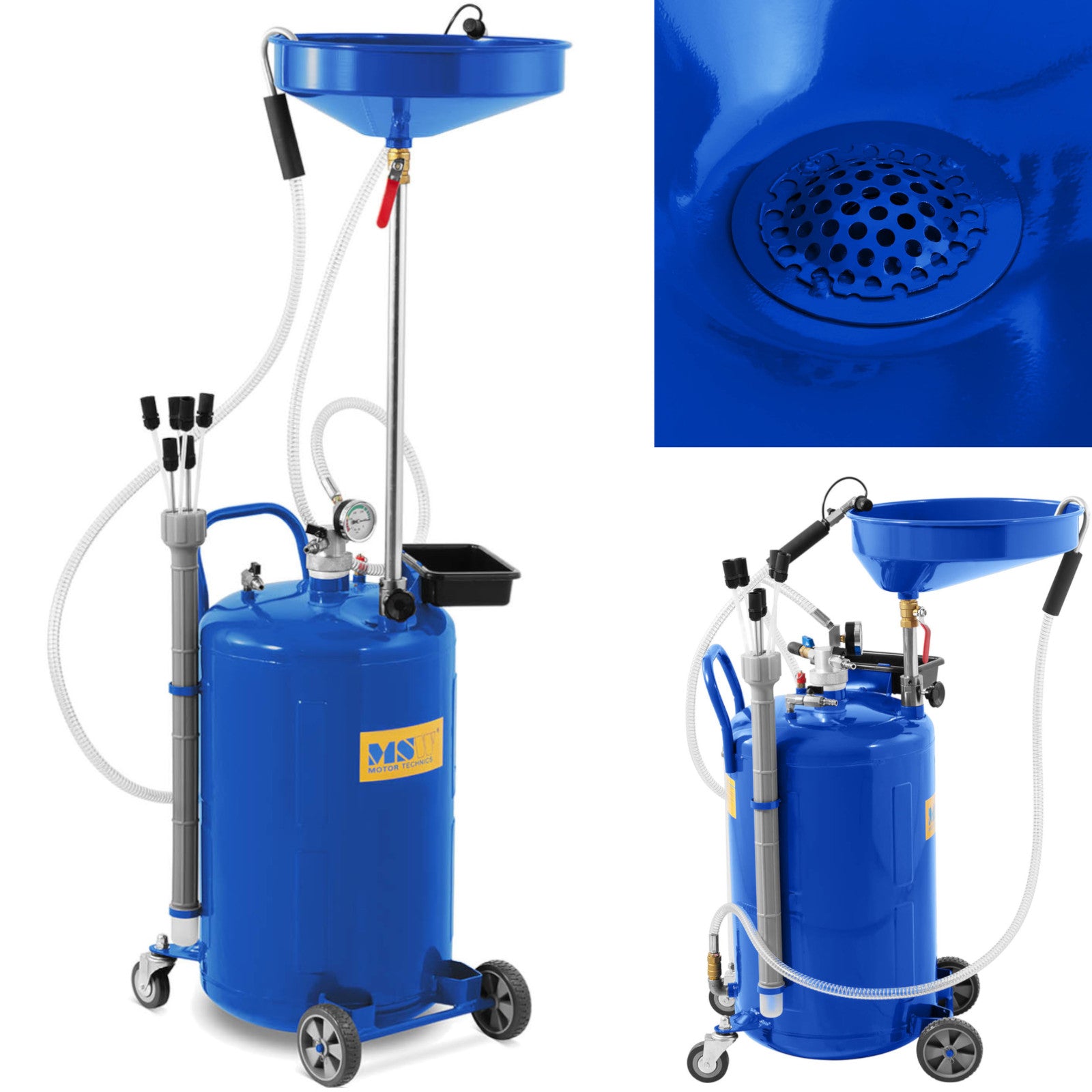

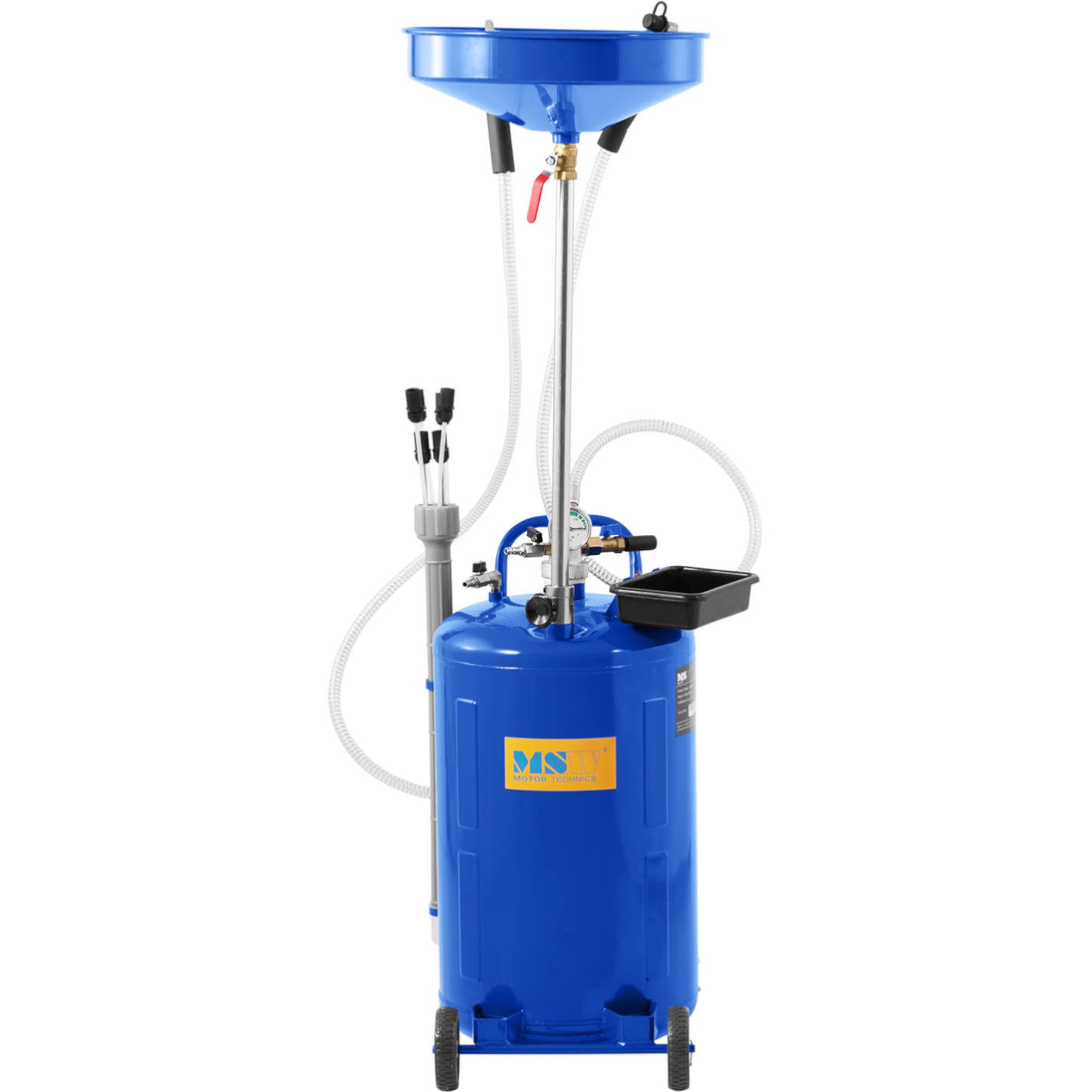

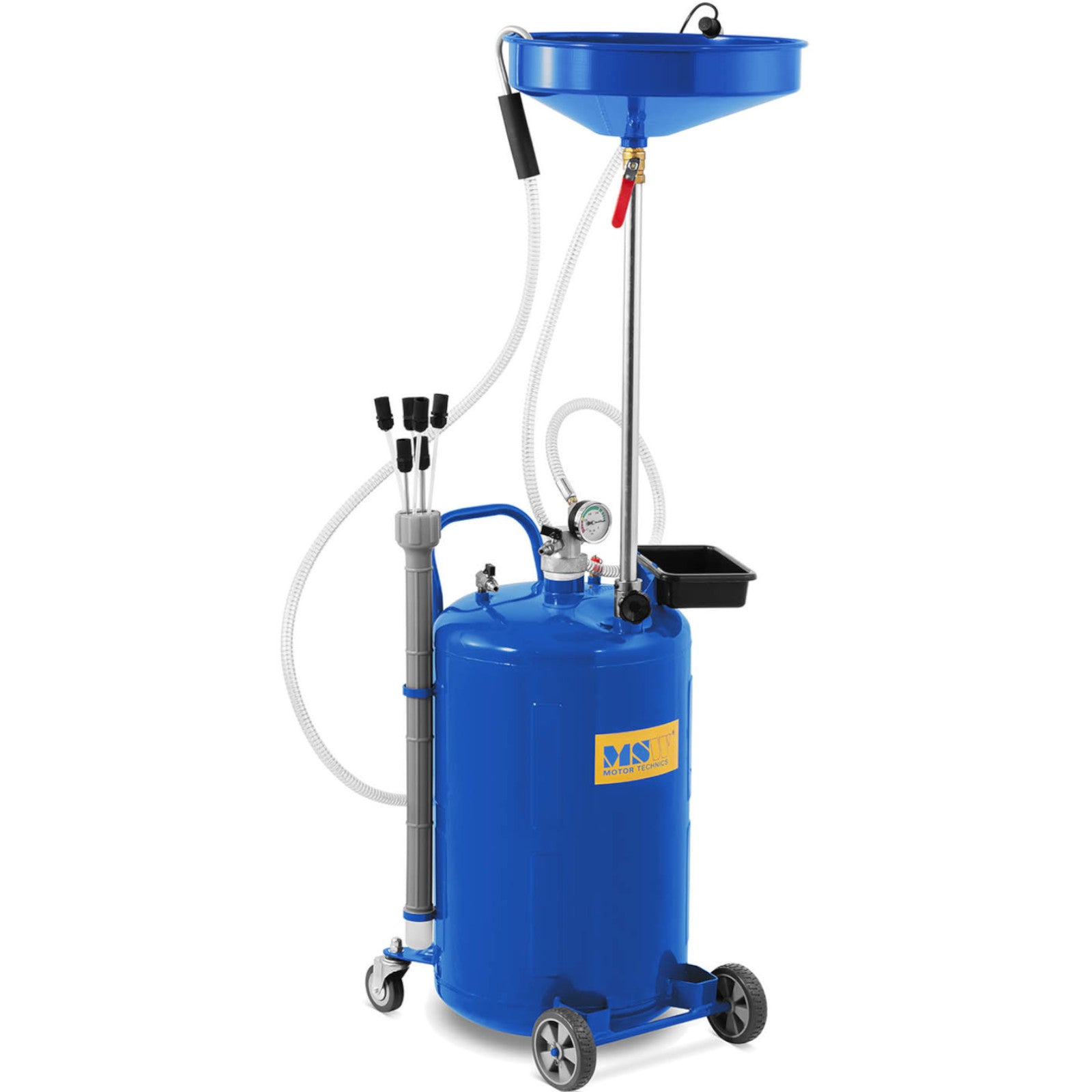

10061595MMA oil sink will be tested in car service workshops or hobby garages. The device has a tank with capacity
70 lThe tank of used oil has a capacity.
10 lThe flow rate is equal to
3 l/minAdjustable height in the range
900-145 mm allows you to adapt the device to a wide range of types and sizes of engines. The design was made of solid materials,
steel, PVC, PU, PE, PAFour wheels including two torsion wheels 2 x 5' and 2 x 3' ensure the mobility of the equipment. The working temperature of the oil for the device is
40-60deg C at the pressure of pressing max.
0-3 bar.Product features: - - Perfect for quick oil change,
- - for use in workshops,
- - Made of high quality materials,
- - Easy to operate the device.
Technical parameters: - - Model - MSW-ODE-70
- - Catalog number - 10061595
- - The state of the article - New
- - Flow [l/min] - 3
- - The length of the snake [m] - 1,5
- - Material - Steel + PVC + PU + PE + PA
- - Vacuum level [bar] - 0,8
- - Diameter of wheels [mm] - 2 x 5#8221 and 2 x 3#8221
- - Number of wheels [pcs] - 4
- - Height adjustment [mm] - 900-1450
- - Maximum power pressure [bar] - 0-3

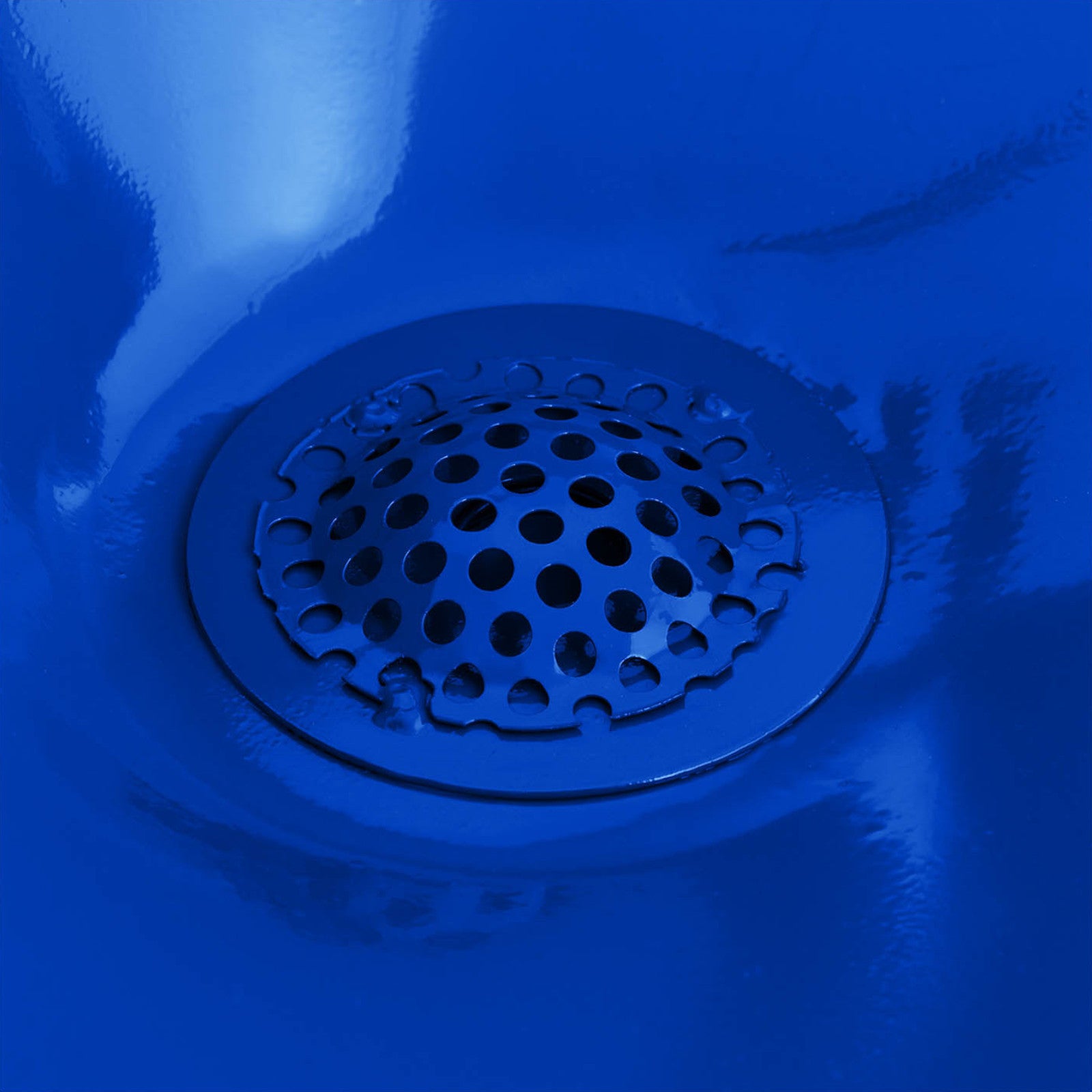

- - Diameter of the bowl [mm] - 400
- - Capacity of the sink tank [l] - 10
- - Working temperature of pumped oil [deg C] - 40-60
- - Control tank capacity [l] - 70

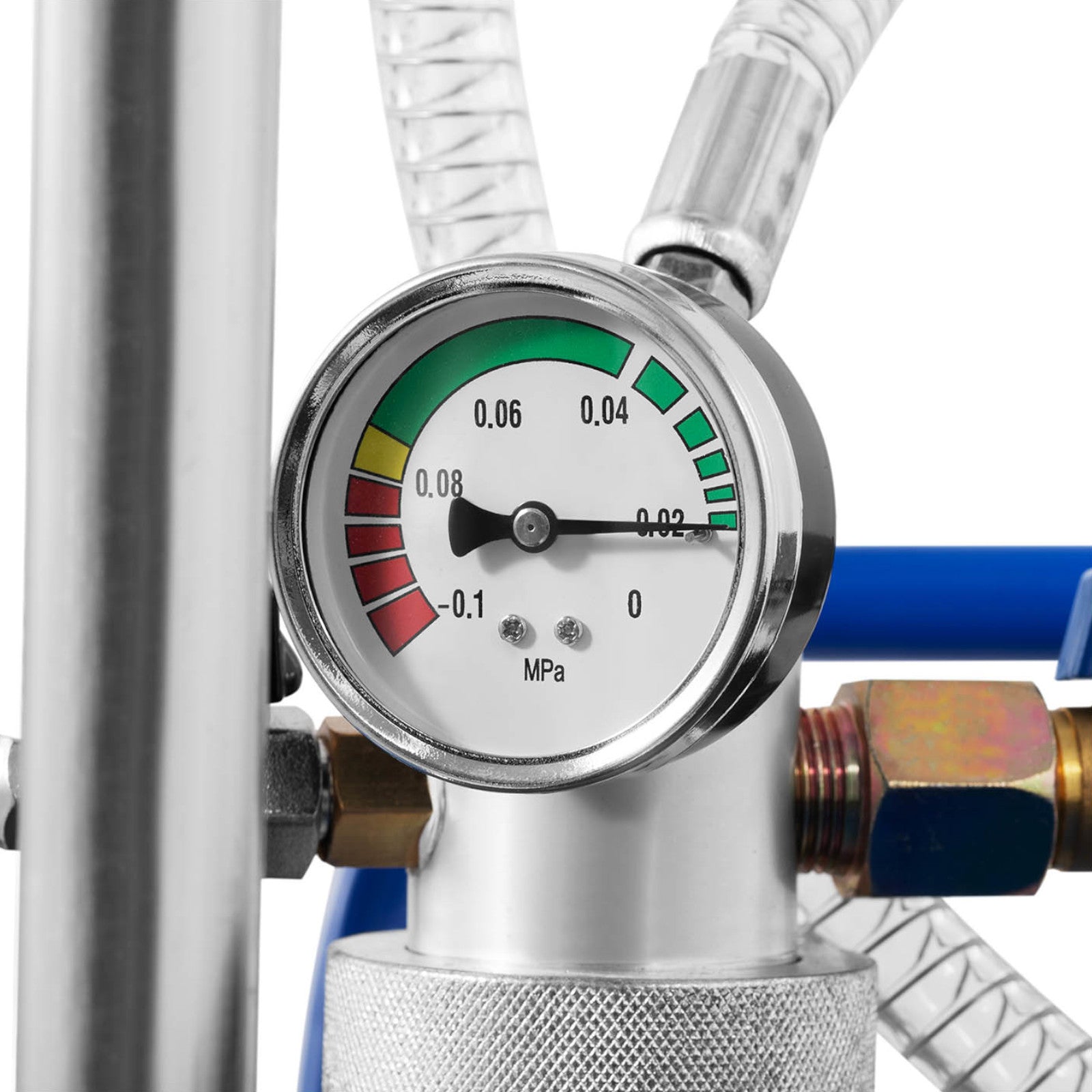

- - Pressure gauge - Yes.
- - Safety valve - Yes.
- - Dimensions (DxSxW) [cm] - 50 x 39 x 149
- - Weight [kg] - 17,01
- - Dimensions of dispatch (DxSxW) [cm] - 51 x 43.7 x 89.5
- - Weight of dispatch [kg] - 19,14
Included: - - Oil sink
- - Tank with safety valve and ball valve
- - A bowl of 10 l
- - Sealing tape
- - 4 wheels - 2 universal and 2 fixed
- - Oil rails
- - Steel pipe 1.46 m
- - Bakelite screw M10
- - 2 divided pins
- - 2 M12 nuts with two pads
- - Vacuum manometer
- - 5 suction pipes - SS: 8/6 mm, PA: 8/6/5 mm
- - A suction tube made of steel 1.50 meters
- - Suction tube cover 610 mm
- - Replacement oil bottle
- - User manual
