Description
Manufacturer's code:

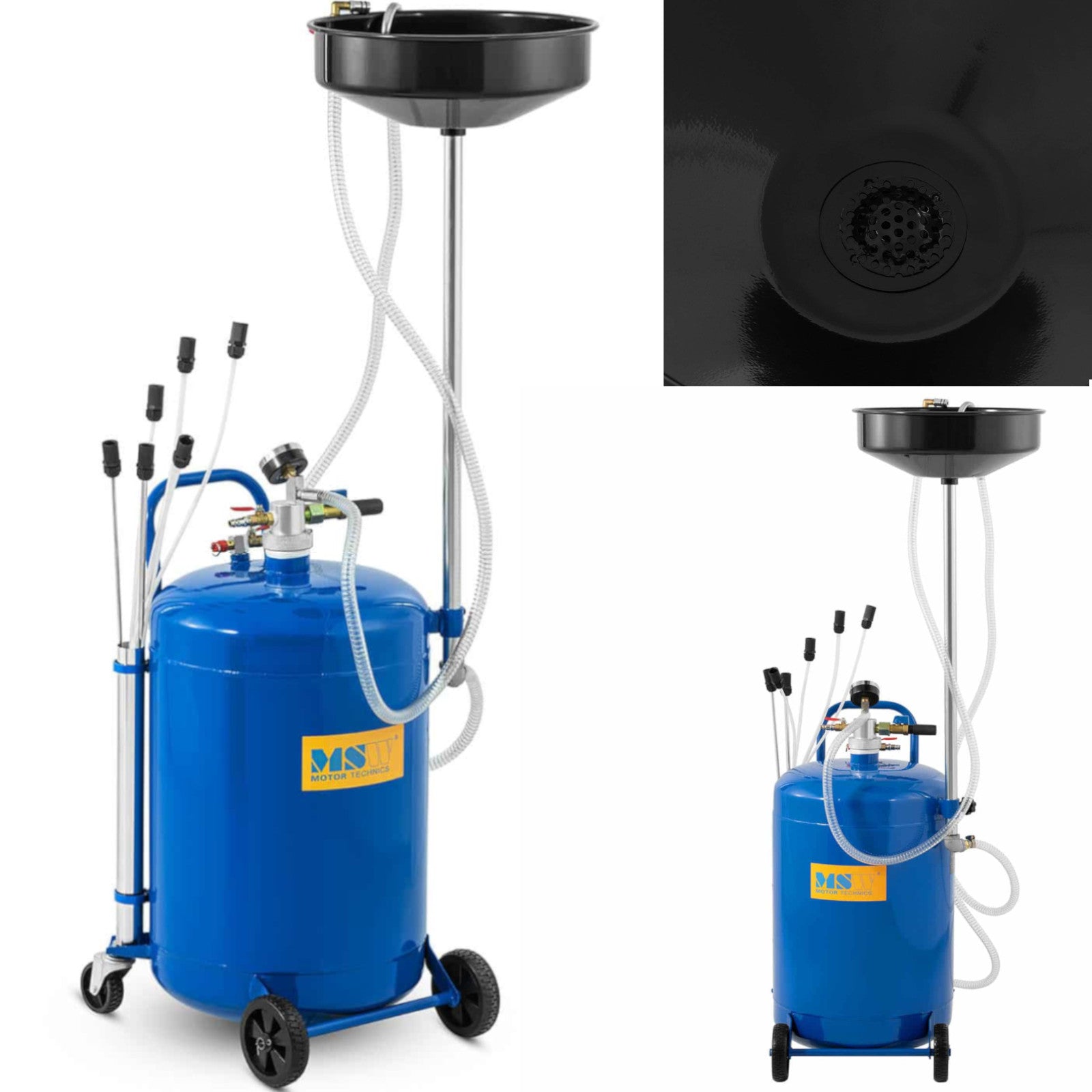

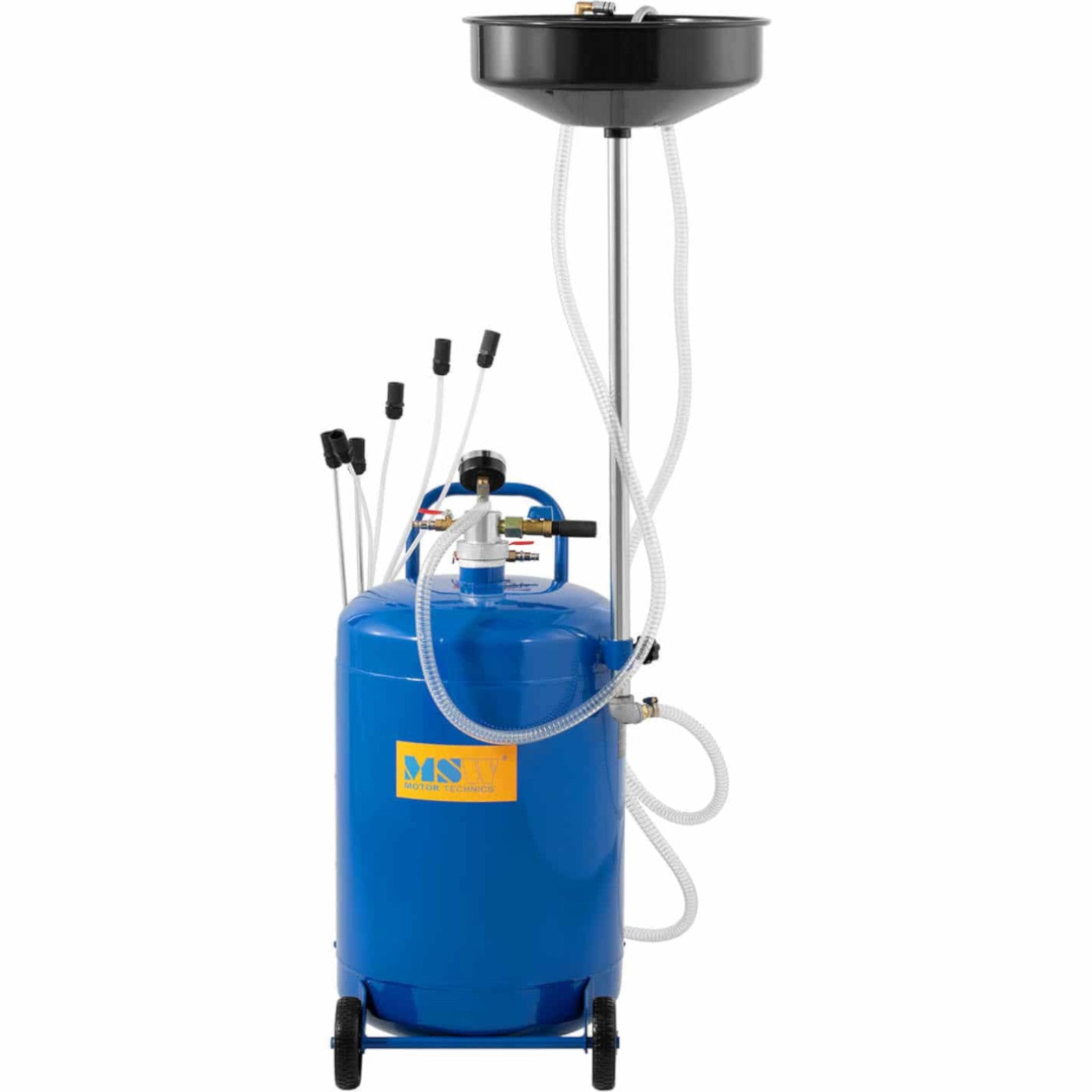

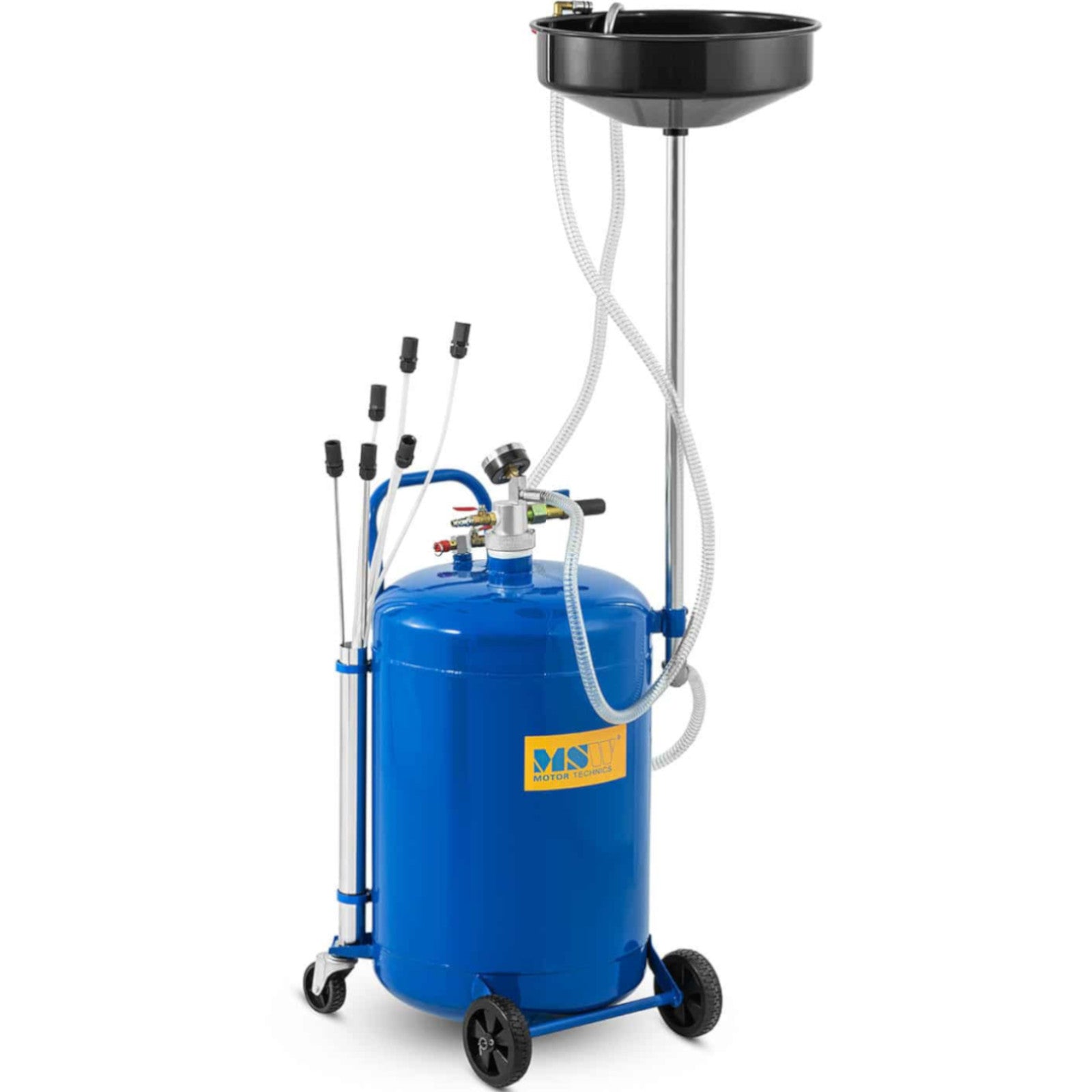

10061594MMA oil sink The machine has a 68 l tank. The tank of used oil has a capacity of
10 lThe flow rate is equal to
3 l/minAdjustable height in the range
1000-1400 mm allows to adapt the device to a wide range of types and sizes of engines. The design was made of solid materials

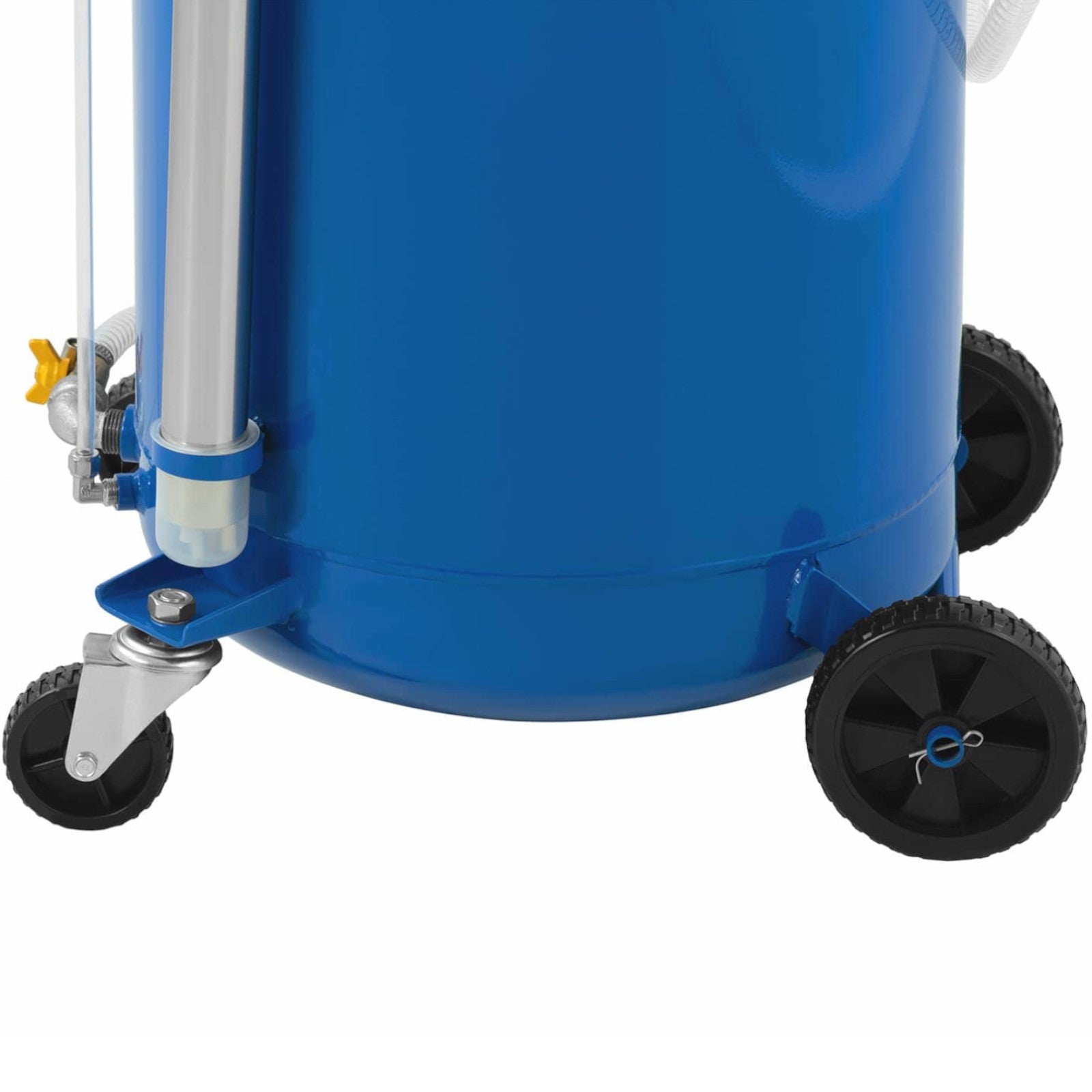

steel, PVC, PA, PUFour wheels including two torsion wheels of size
2 x 5' and 2 x 3'' provide mobility of equipment. The working temperature of the oil for the device is
40-60deg C at the pressure of pressing max.
0-3 barThe snake has length.
1.4 mProduct features: - - Perfect for quick oil change,
- - for use in workshops,
- - Made of high quality materials,
- - Easy to operate the device.
Technical parameters: - - Catalog number - 10061594
- - The state of the article - New
- - Model - MSW-ODE-68
- - Material - Steel + PVC + PU + PE
- - Diameter of the bowl [mm] - 363
- - Number of wheels - 4
- - Capacity of the sink tank [l] - 10
- - Diameter of wheels [mm] - 2 x 5#8221 and 2 x 3#8221
- - Control tank capacity [l] - 68
- - Flow [l/min] - 3
- - Height adjustment [mm] - 1000-1400
- - The length of the snake [m] - 1,4
- - Working temperature of pumped oil [deg C] - 40-60
- - Safety valve - Yes.
- - Pressure gauge - Yes.
- - Maximum power pressure [bar] - 0-3
- - Vacuum level [bar] - 0.8
- - Dimensions (DxSxW) - 46 x 38 x 140 cm
- - Weight - 15.12 kg
- - Dimensions of dispatch (DxSxW) - 50 x 44.7 x 83.5 cm
- - Weight of shipping - 17.06 kg
Included: - - Oil sink
- - Tank with safety valve and ball valve

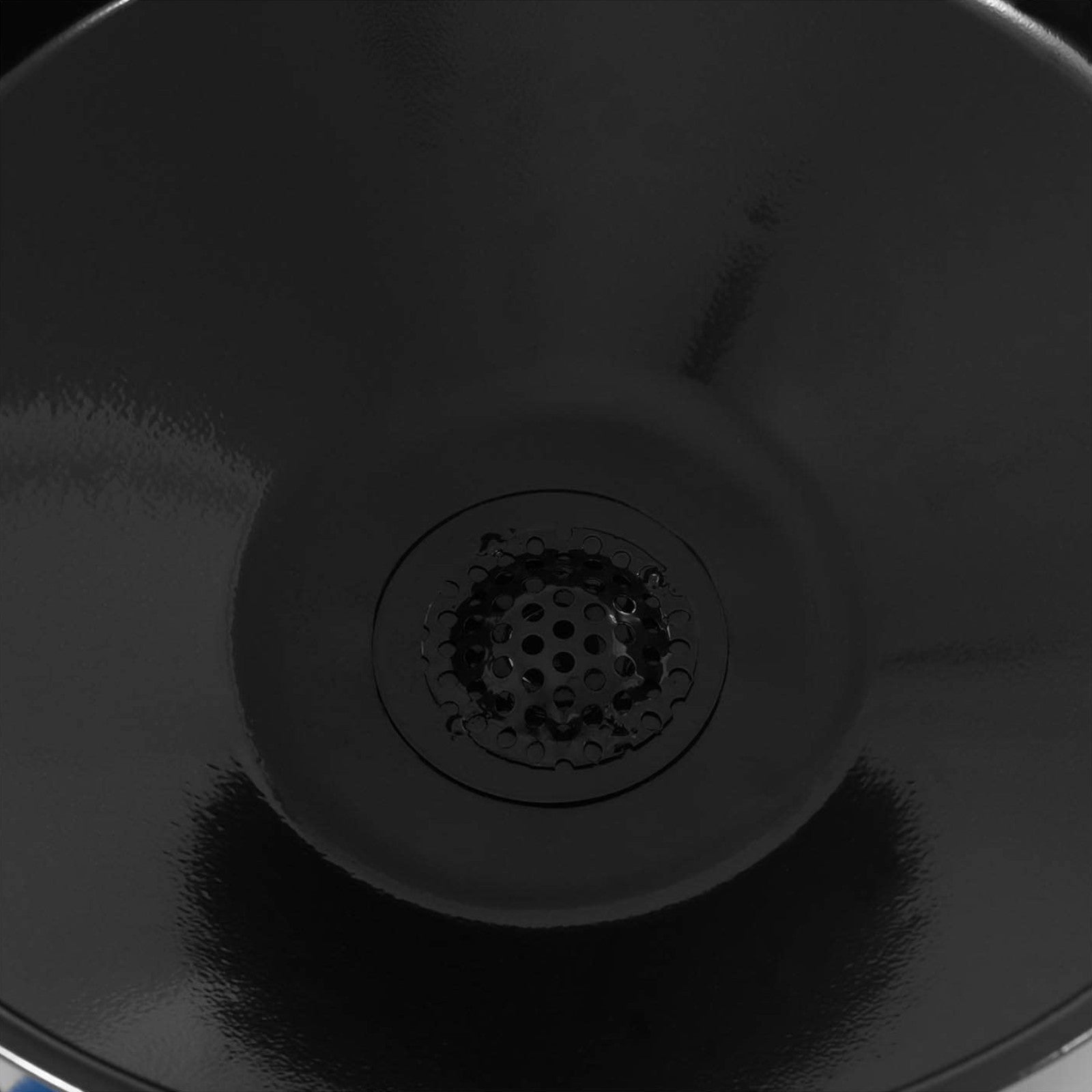

- - A bowl of 10 l
- - Sealing tape
- - 4 wheel
- - Oil rails
- - Steel pipe 1.46 m
- - M10 Bakelite screw
- - 2 divided pins
- - 2 M12 nuts with two pads

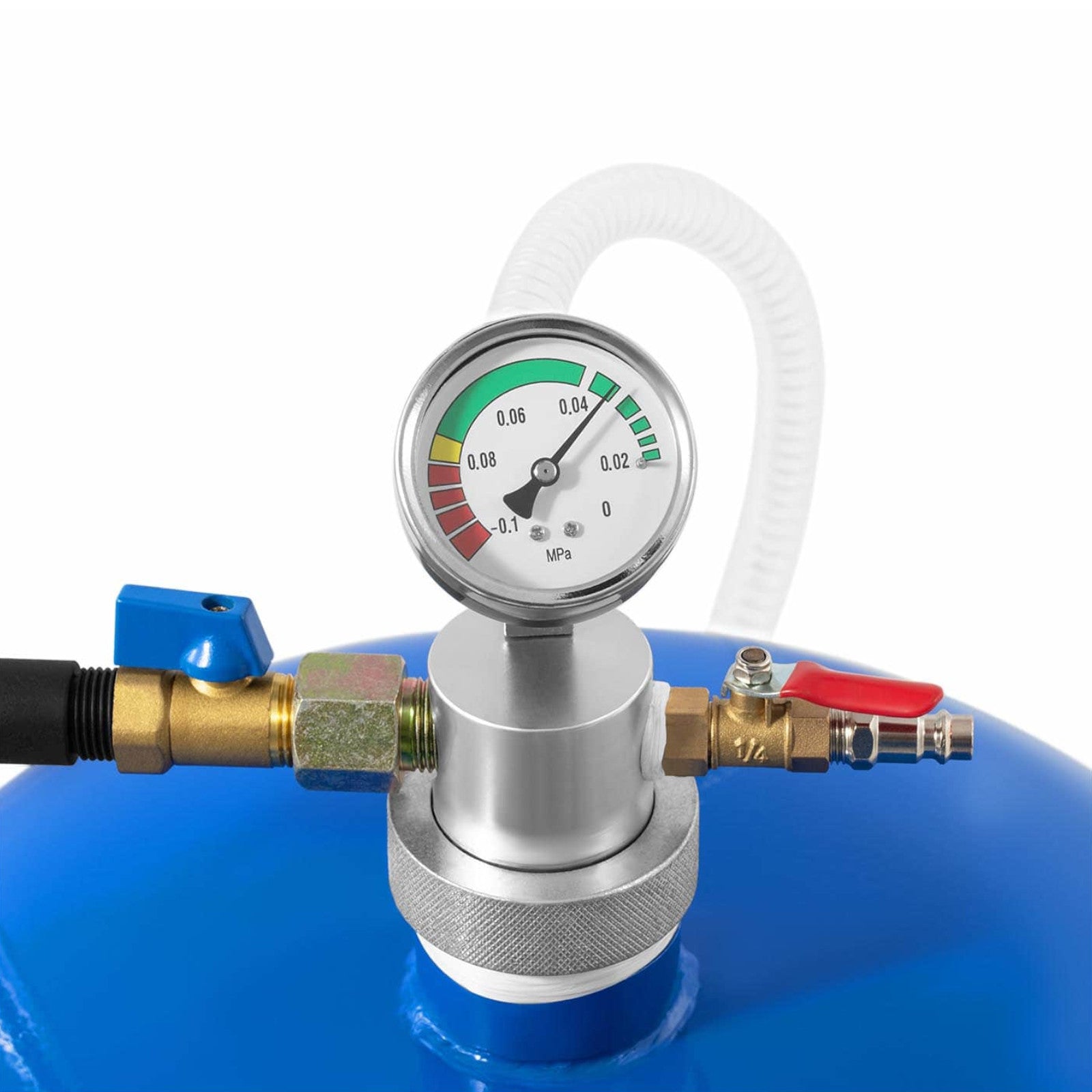

- - Vacuum gauge

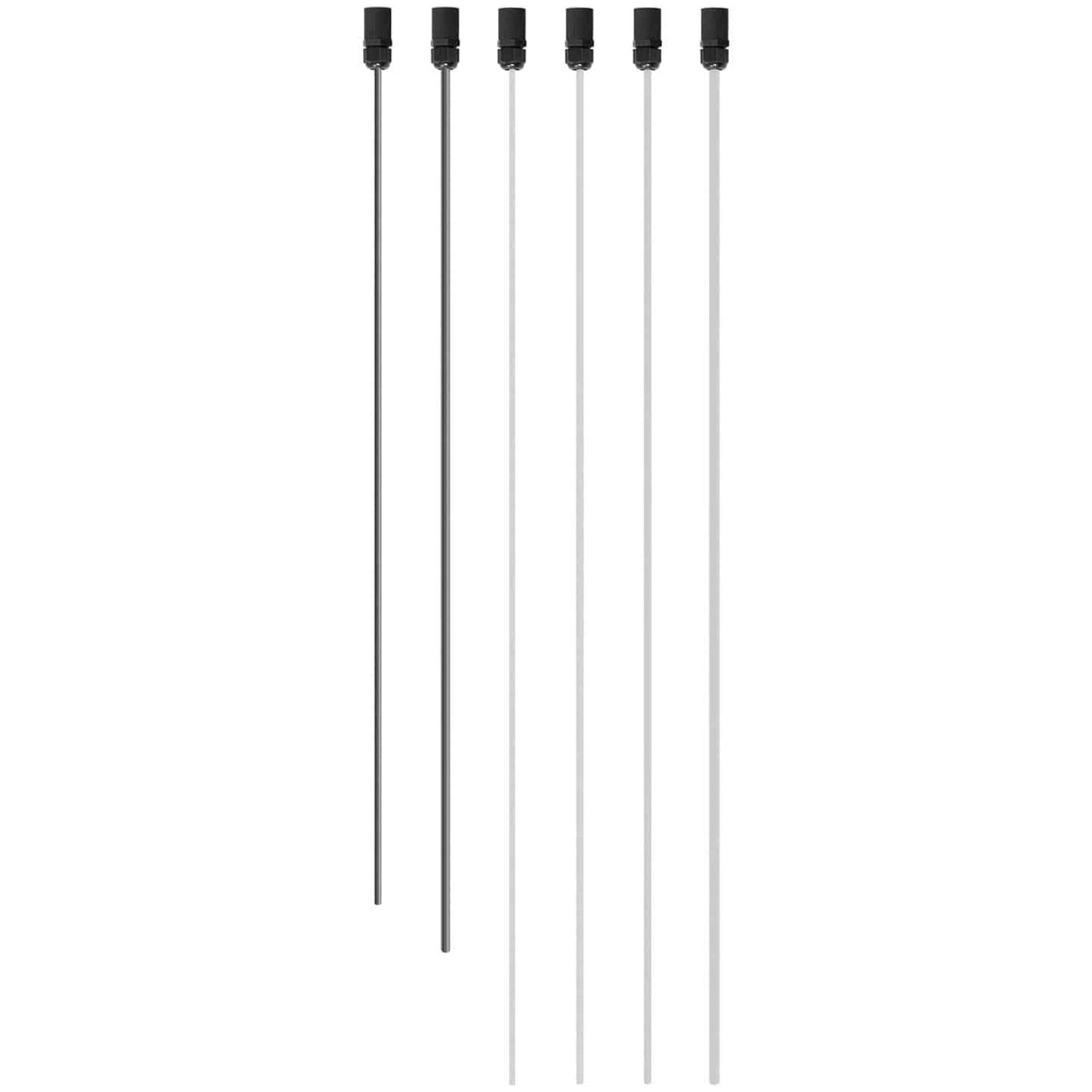

- - 5 suction pipes
- - Suction tube made of steel 1.46 meters
- - Suction pipe cover 424 mm
- - User Manual
