Description
Manufacturer's number:

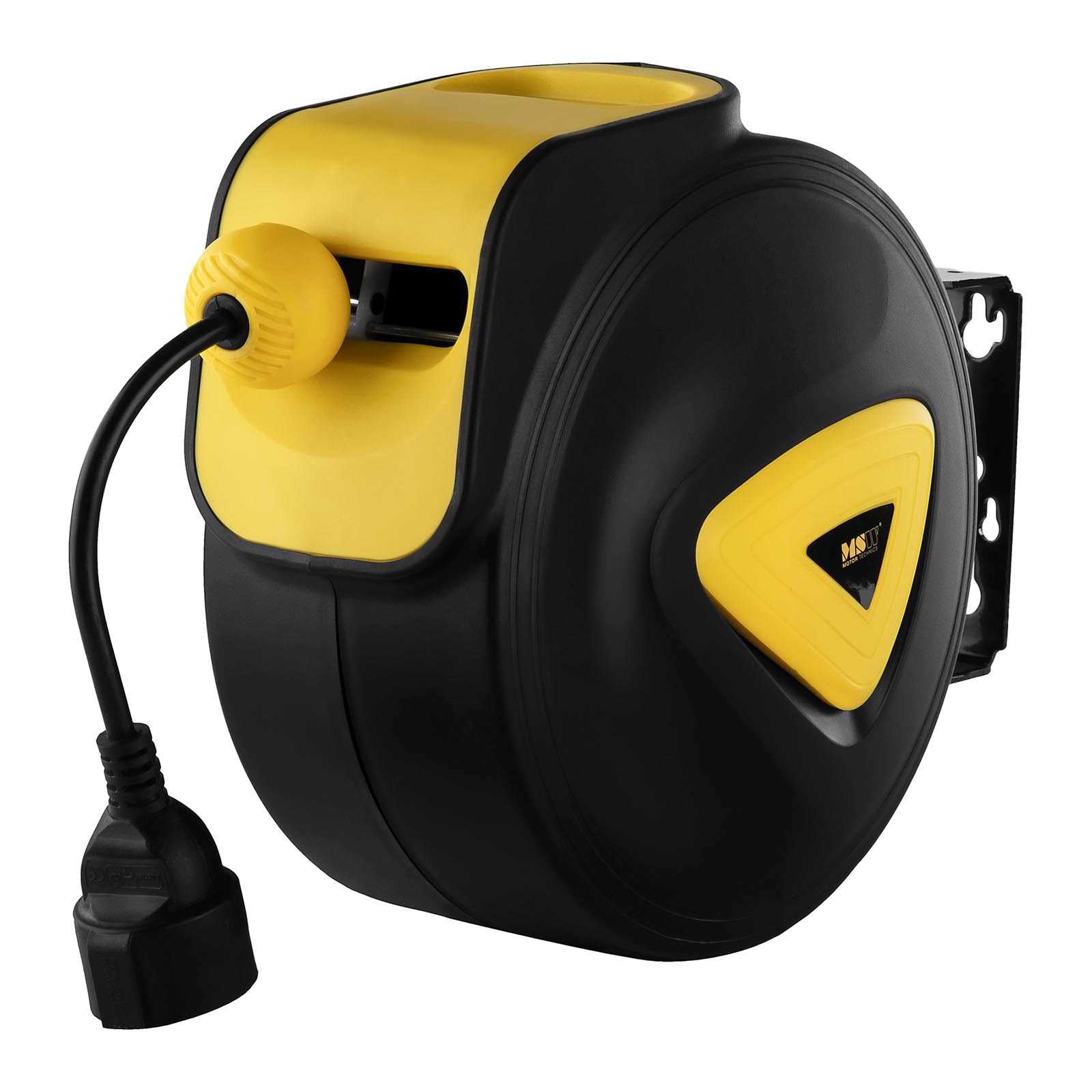

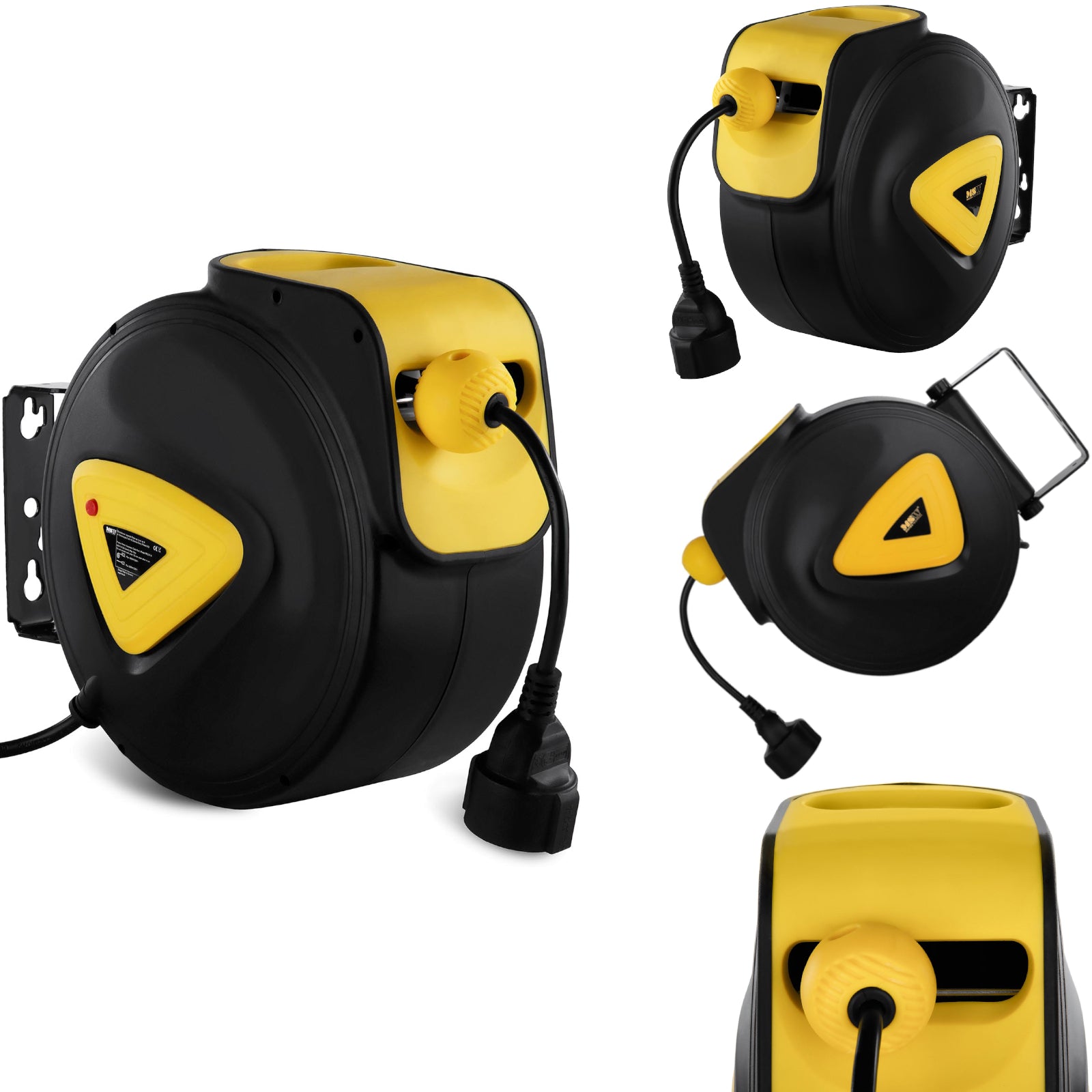

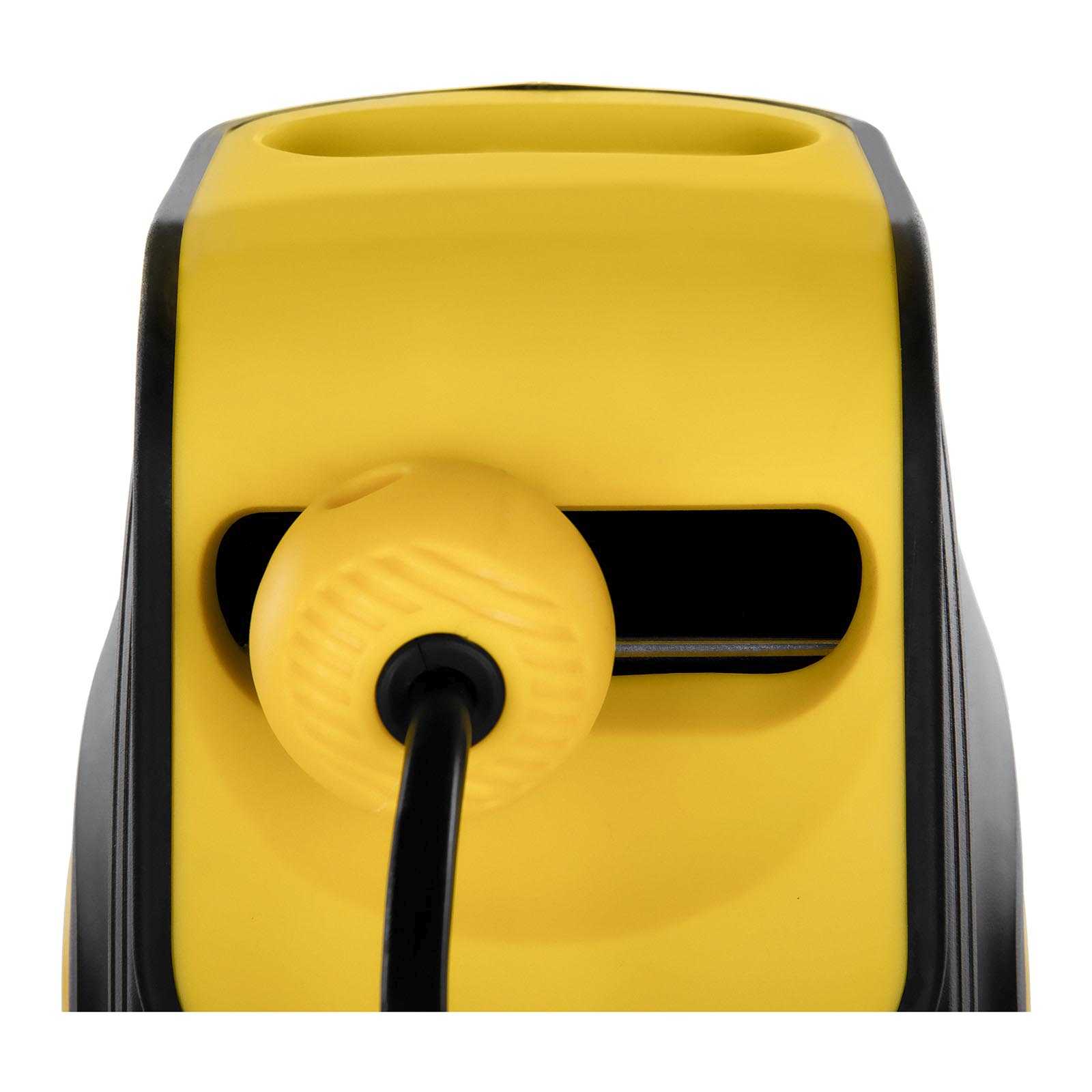

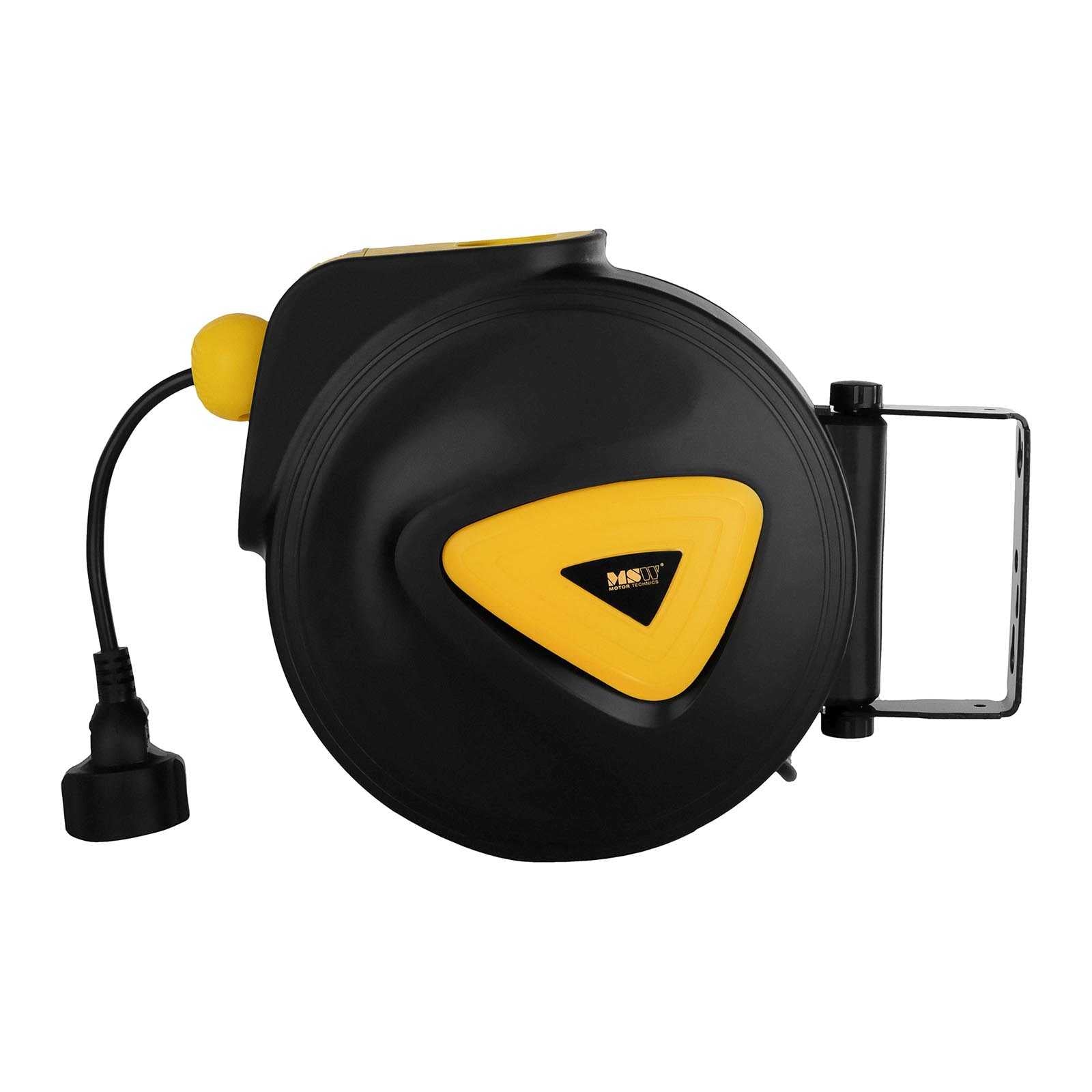

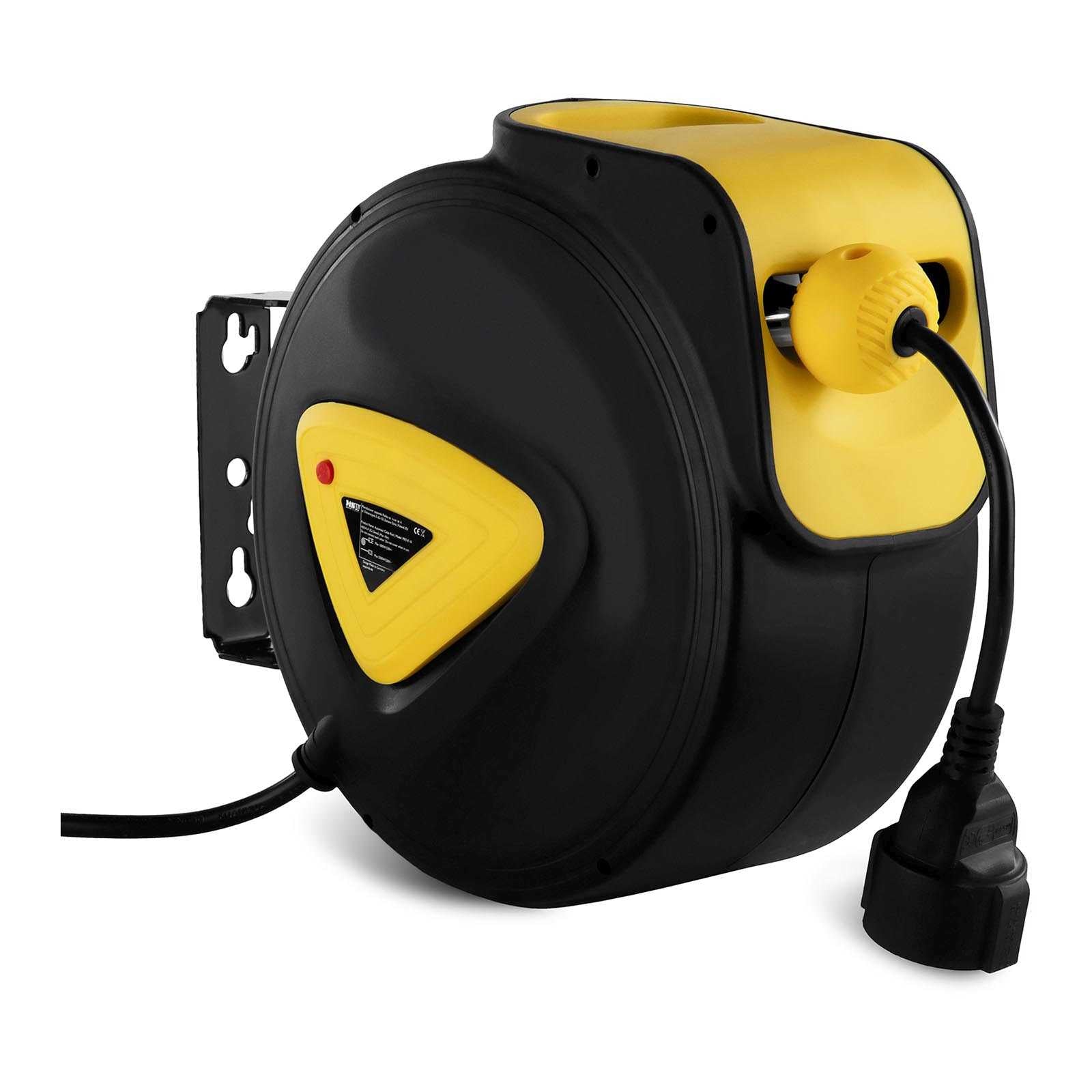

10060680The automatic cable drum of the German MMA brand is designed to increase the power conduction range.
compact sizes and small weight it is also suitable for small garages or workshops. Especially because the attached rack pins and the design of the bracket allow quick mounting of the drum on the wall (recommended height of 80 cm) or ceiling.
Spring mechanism with latch facilitates the development of a 20-metre cable conductor current of 230 V and 50 Hz frequency. The locking positions are arranged at a frequency of 2 to 3 per metre and the spring driven hose is coiled very quickly and without any risk of confusion.
the enclosure protects both cables from external damage and the user from electrocution. In addition, the support structure allows the drum to rotate to the left or right side.
Product features: - - Comfort - cable increases the power supply range by 20 meters (21.5 with power cable),
- - Simple - easy installation on the wall or ceiling,
- - Ergonomics - automatic folding mechanism and 2-3 locking positions per metre,
- - Security - a sealed housing protects against external damage,
- - Universality - can work with any electrical equipment 230 V / 50 Hz.
Technical parameters: - - Model - PRO-E 20 MSW
- - Catalog number - 10060680
- - Stan - New
- - The material of the casing - PP
- - Electric socket - AC230V / 10A / 50Hz
- - The type of cable - H05W-F 3G1.5mm2
- - Maximum load capacity (s) - 1000 W
- - Maximum load capacity (developed) - 2300 W
- - The length of the snake - 20 m
- - Length of power cable - 1,5 m
- - Ambient temperature range - -5deg C
- - Dimensions (DxSxW) - 36 x 15 x 27.5 cm
- - Weight - 5.35 kg
- - Dimensions of dispatch (DxSxW) - 32 x 17 x 31 cm
- - Weight of shipping - 5.9 kg
Included: - - Automatic cable drum 20 + 1,5,
- - Ostrom wheels (L = 50 mm Ø10 / Ø6mm)
- - Manual.
