Overview
The Cable balancer unloader with pneumatic hose 0.5 - 1.5 kg 1.3 m from Steinberg Systems brings wheel weights & balancing you can rely on, made for your workshop & garage needs. A popular choice in Workshop garage, Lifting or winch-lifts.
Manufacturer's code: 10030752
The balancer by Steinberg Systems allows you to keep heavy work equipment in the workshop, mass production or in the assembly hall. The device holds pneumatic tools weighing 0.5-1.5 kg in their working position, thanks to which the tools can be guided more easily, precisely and effortlessly. The balancer housing is made of solid and durable steel that can withstand even intensive use. The polyester hose securely supports the air tool during assembly and other work. The device is powered by compressed air with an operating pressure of 10 bar (max. pressure 60 bar). The strain relief for compressed air has an R3/8" connector, and for a hose it has an R1/4" connector. The balancer must always be operated vertically to optimally balance the weight. The hose is 1.3 m long and ensures freedom of movement.
Product features:
Technical parameters:

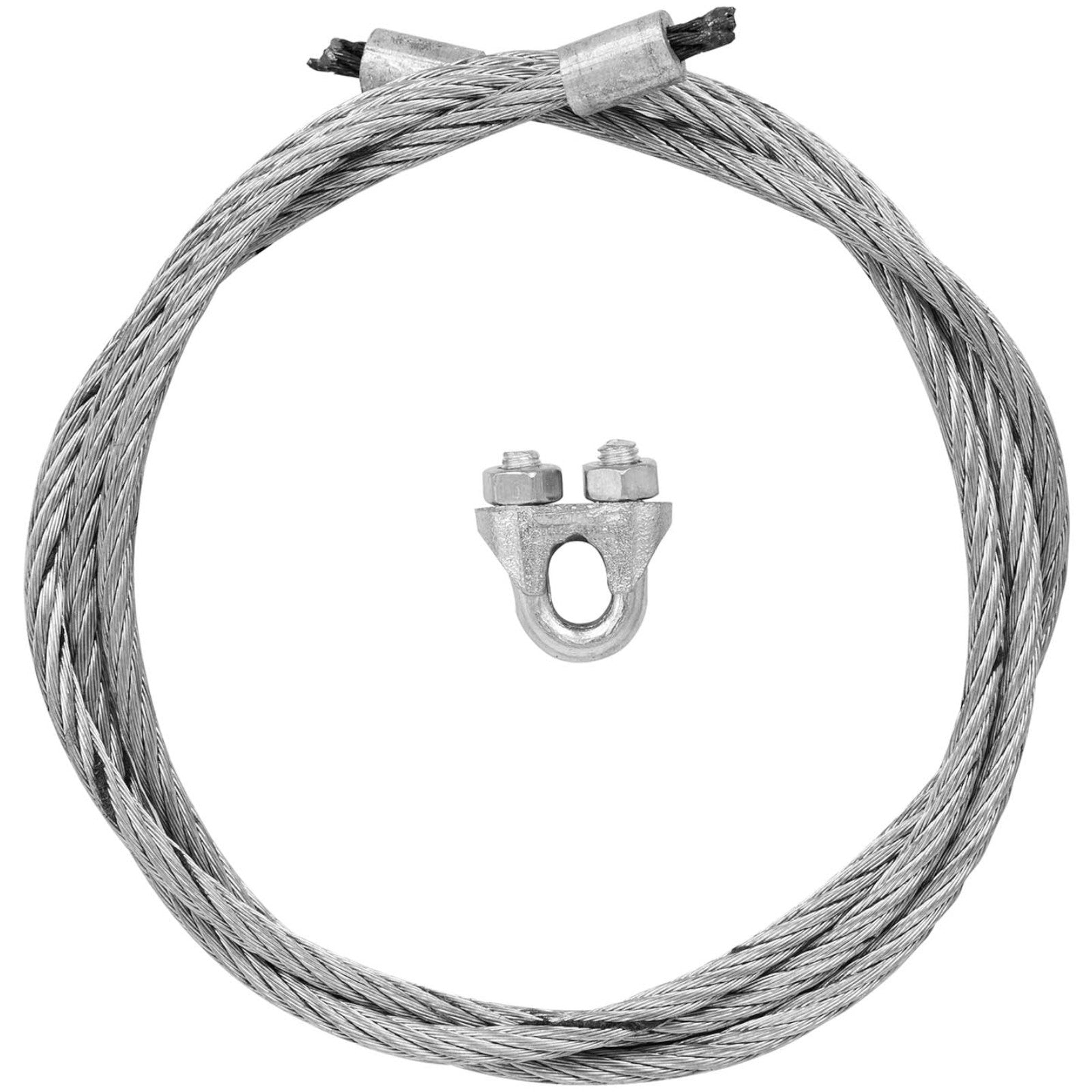

The set includes:
Key features
| Specification | Detail |
|---|---|
| Model | SBS-AHB-15 |
| Catalog number | 10030752 |
| Article condition | New |
| Working length [m] | 1.3 |
| Hose thickness [mm] | 8 x 12 |
| Material | Plastic, polyester, steel |
| Permissible load [kg] | 1.5 |
| Maximum load [kg] | 1.5 |
| Connection | Air inlet: 3/8", air outlet: 1/4" |
| Weight load [kg] | 0.5-1.5 |
| Maximum pressure [bar] | 6 MPa |
| Working pressure [MPa] | 1 |
| Dimensions (LxWxH) [cm] | 30 x 18 x 16 |
| Weight [kg] | 1.95 |
| Shipping dimensions (LxWxH) [cm] | 32.5 x 24 x 19.5 |
| Shipping weight [kg] | 2.45 |
