Description
Manufacturer's name:

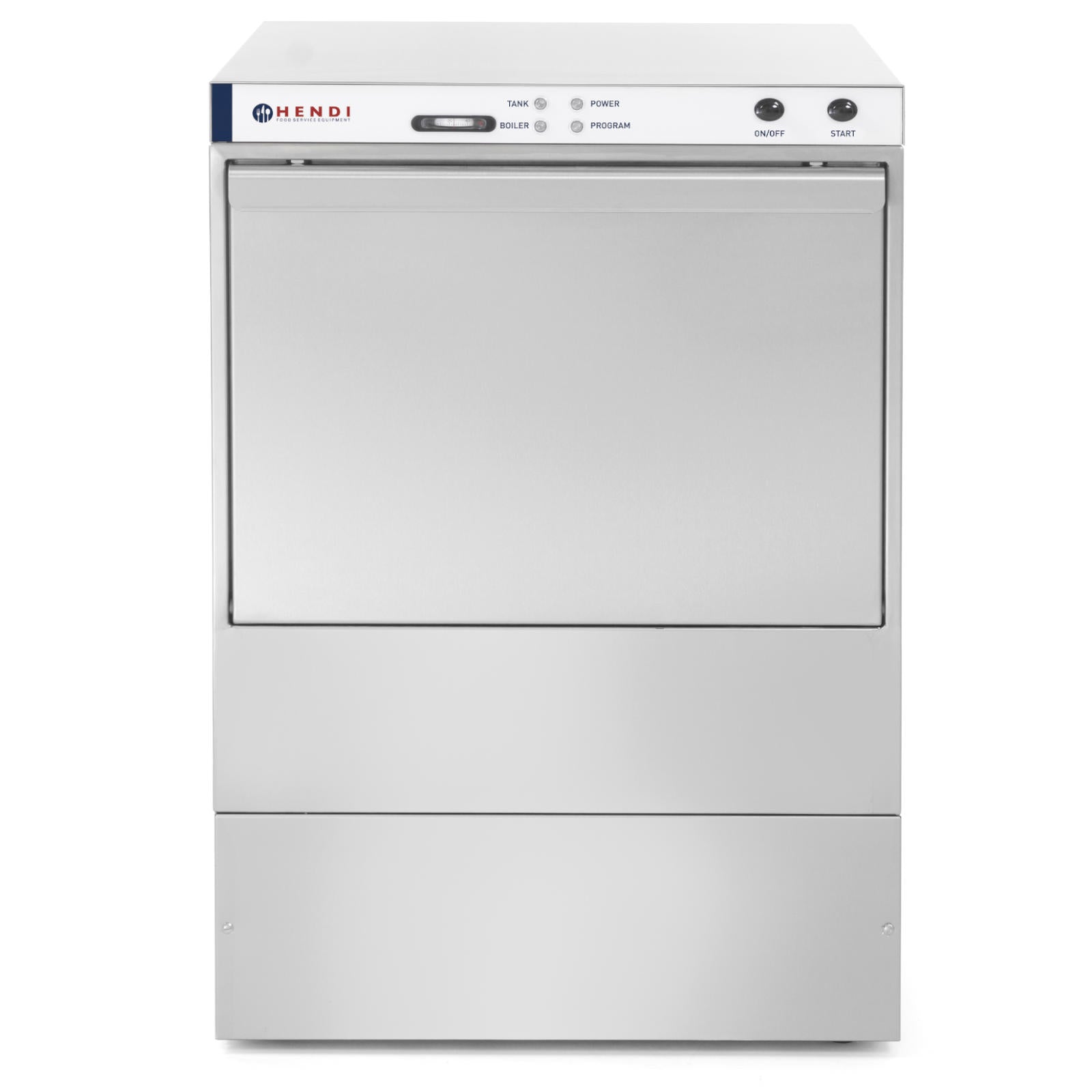

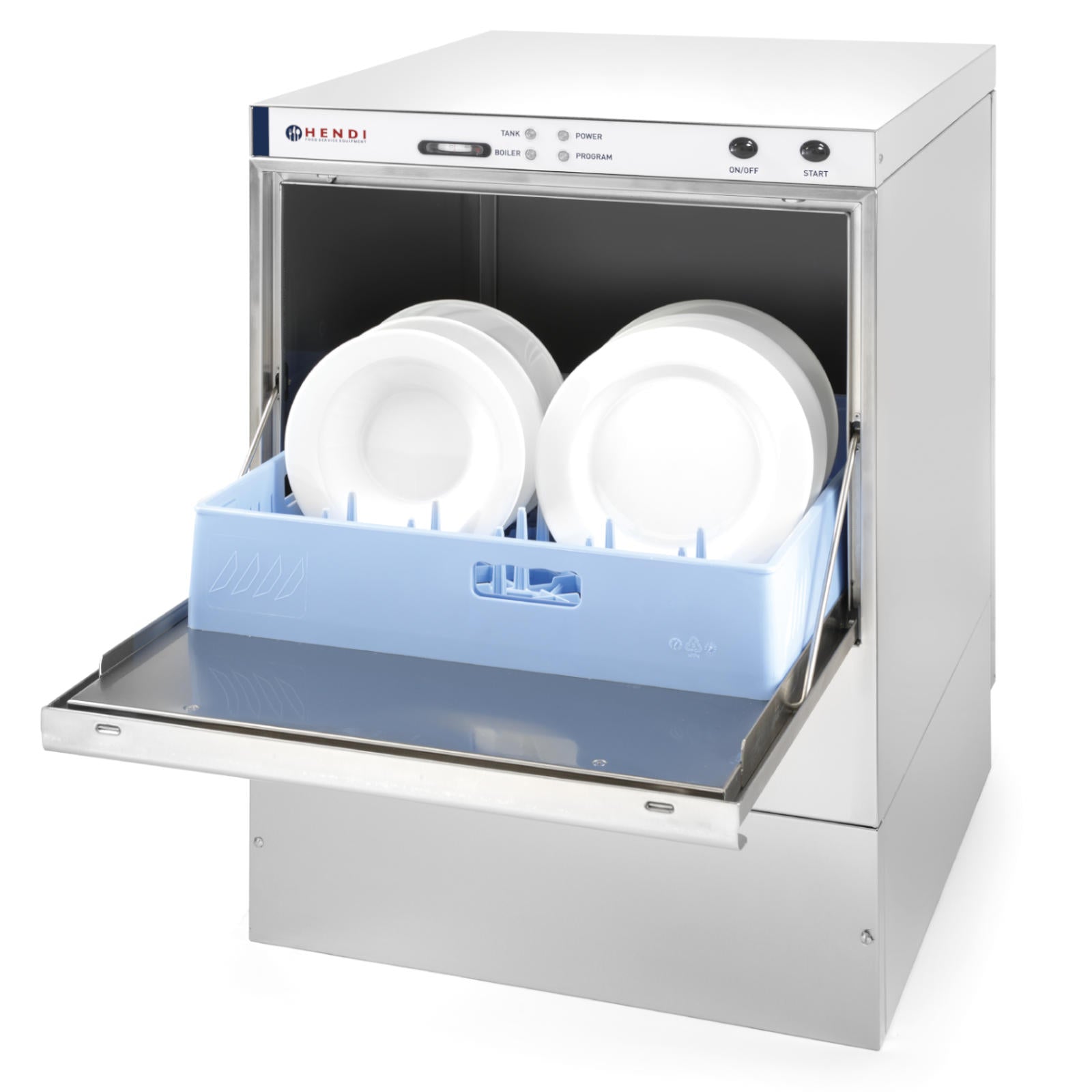

Hendi 230237Electromechanically controlled fast and cost-effective bar dishwasher Hendi brands are designed for cafes, restaurants, hotels and other professional restaurants and catering establishments. It is perfect for washing cups, cups, cutlery or plates and is extremely easy to use, maintain clean and service.
Characteristics and functions: - - up to 30 baskets per hour,
- - electromechanical control,
- - AISI 304 stainless steel housing,

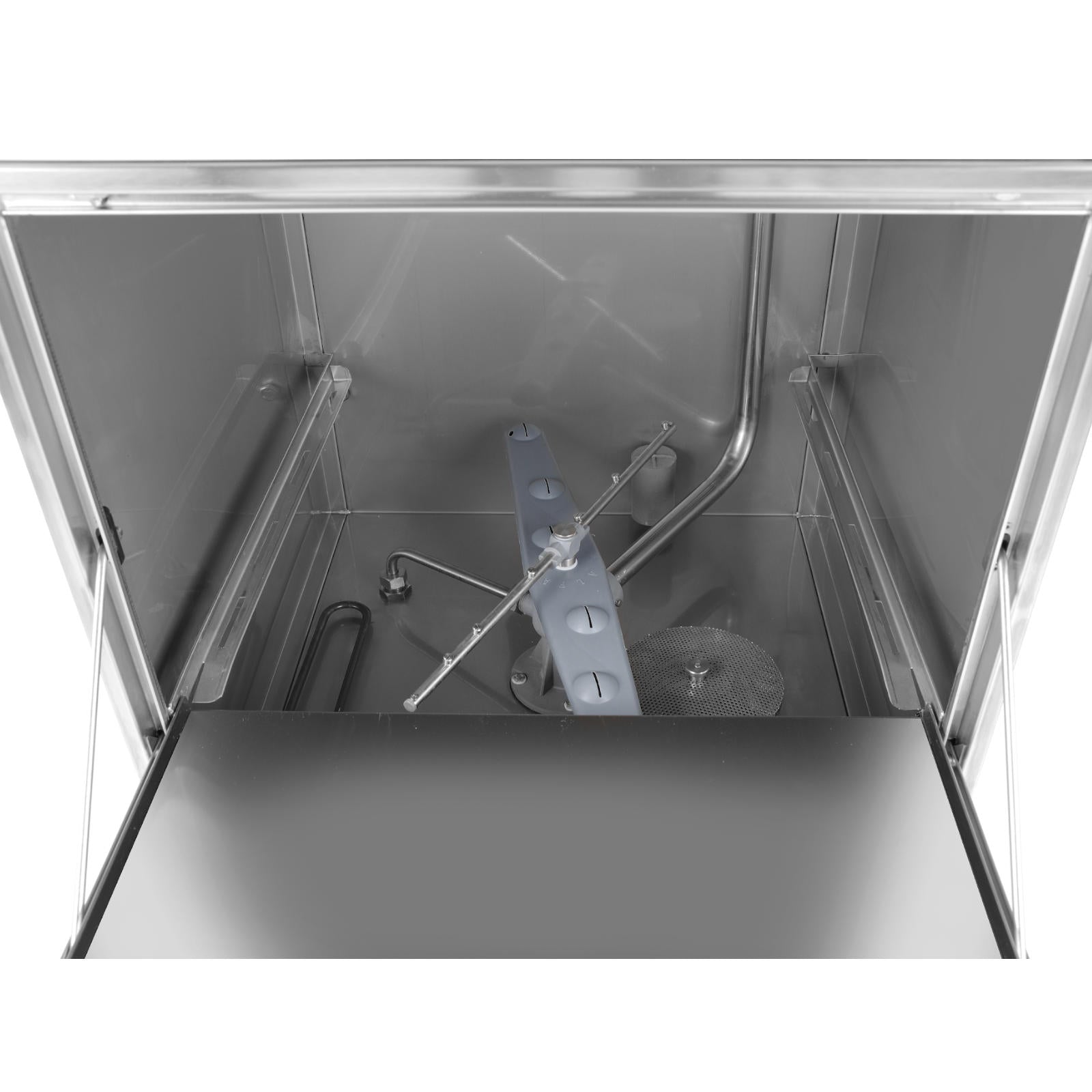

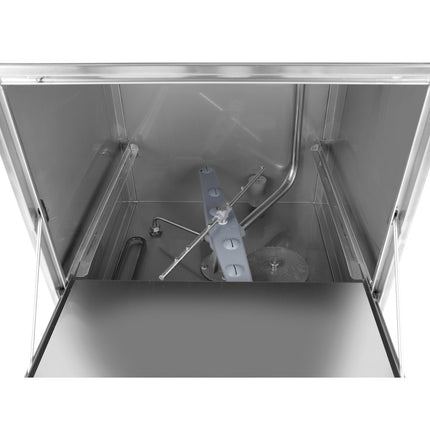

- - separate washing arms (plastic) and washing arms of stainless steel,
- - at the top of the washing arms, swivel arms,
- - solid two-layer door,
- - a 120 s washing cycle,
- - an extended set,
- - electrical cable without plug,
- - a pen for glossy and detergent,
- - adjustable in height of feet with a diameter of ø40 mm (± 10 mm).
Technical parameters: - - Voltage - 230 V
- - Power - 3600 W
- - The material of the casing - Stainless steel (AISI 304)
- - Washing arms material - Plastic
- - Arm material for washing - Stainless steel
- - Length 1 cycle of washing - 120 s
- - Productivity - 30 baskets per hour
- - Water consumption (1 cycle) - 2-2,5 l (depending on the water pressure)
- - The temperature of the washing water - 62 C
- - The temperature of the water is draining - 85 C
- - Boiler (capacity/power) - 230 V
- - Bath (capacity/power) - 35 l / 2.8 kW
- - Pump power - 0,75 KM
- - Safety thermostat (boiler) - 105 C
- - Safety thermostat (bathtubs) - 99 C
- - Pump leak factor - IP 44
- - Max. dimensions of the basket - 500 x 500 x 335 mm
- - Dimensions (DxSxW) - 570 x 600 (+370) x 830 mm
- - Weight - 57 kg

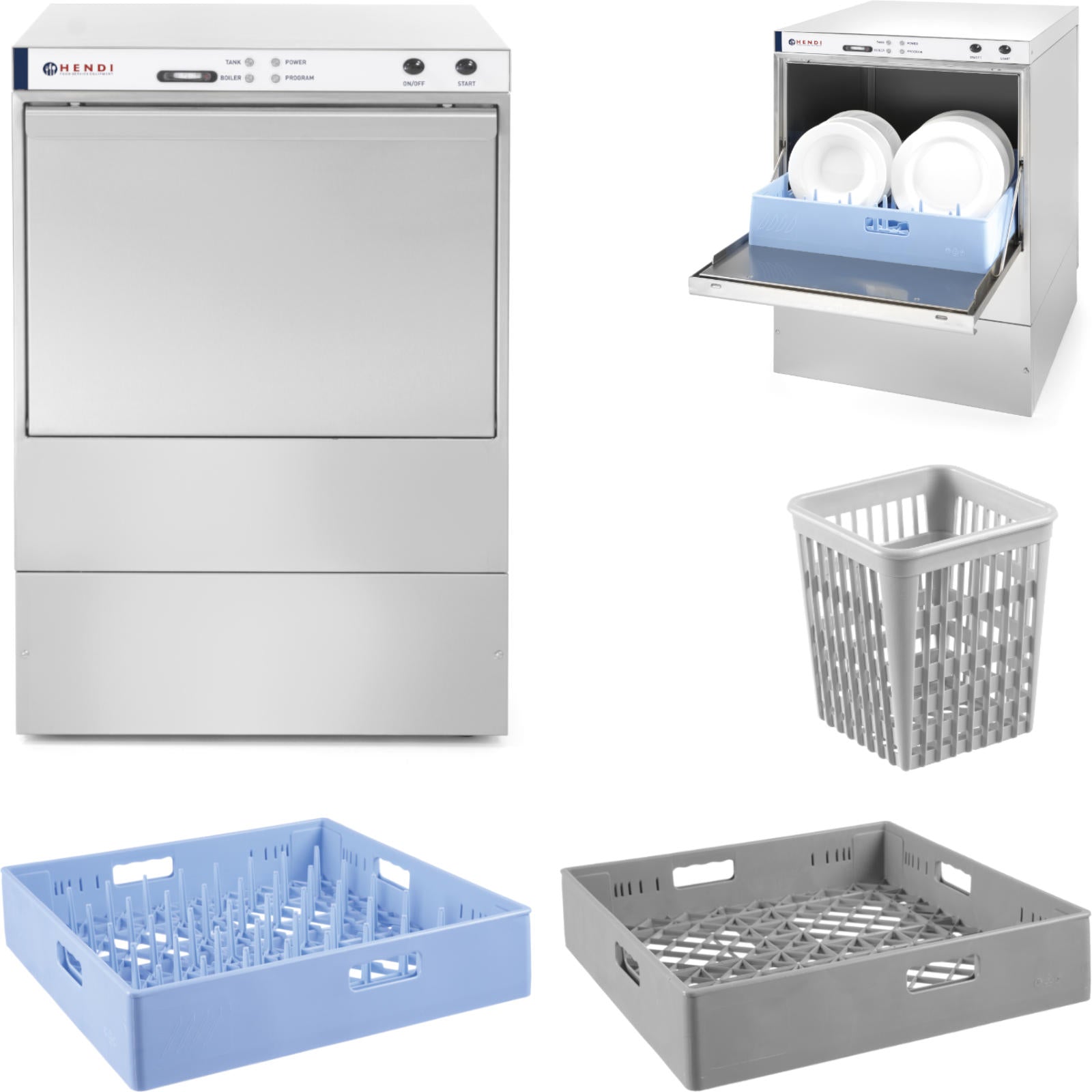

Included: - - bar dishwasher, fast and cost-effective 50x50cm 230V basket,

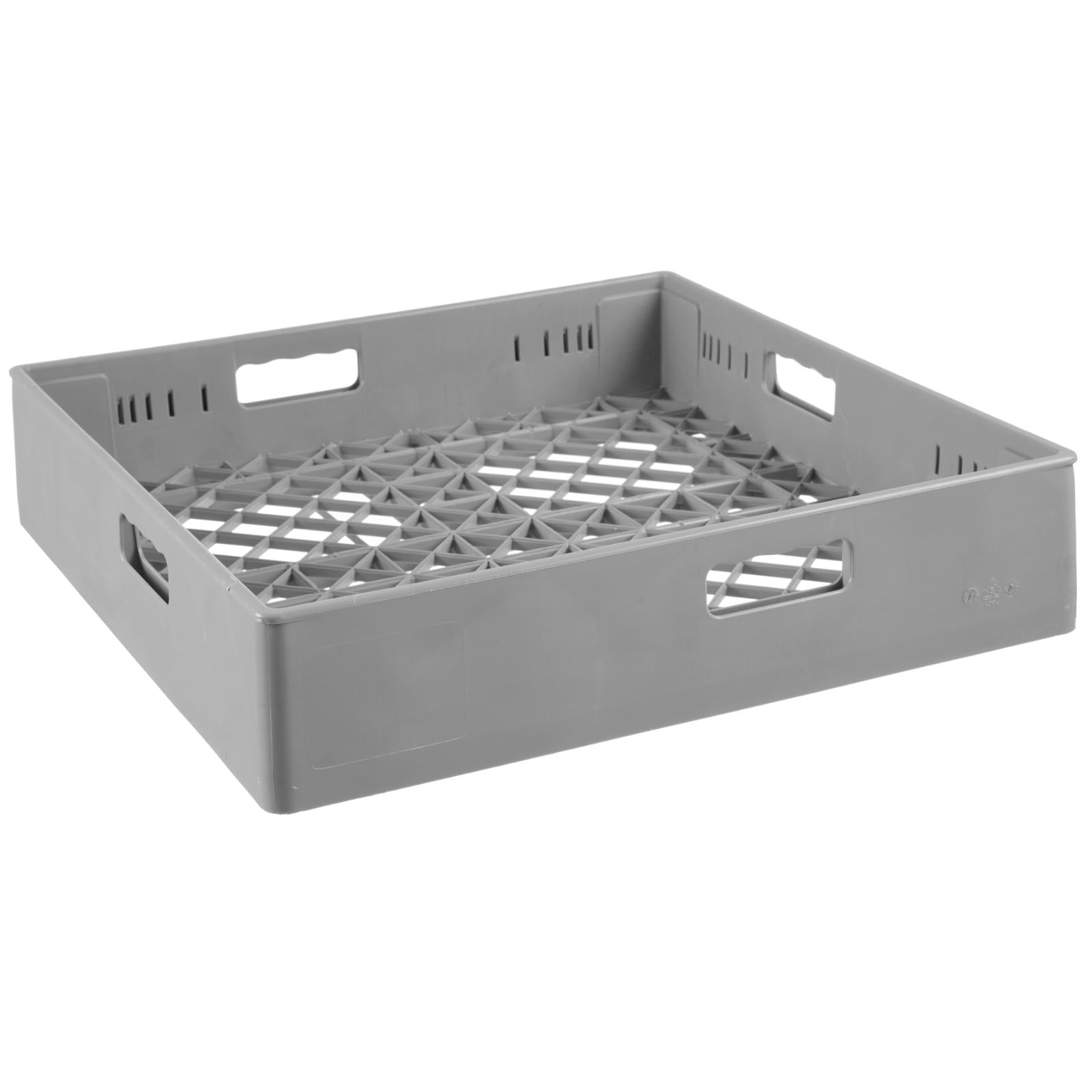

- - 1x universal basket 500x500x ((H)105 mm, for glass

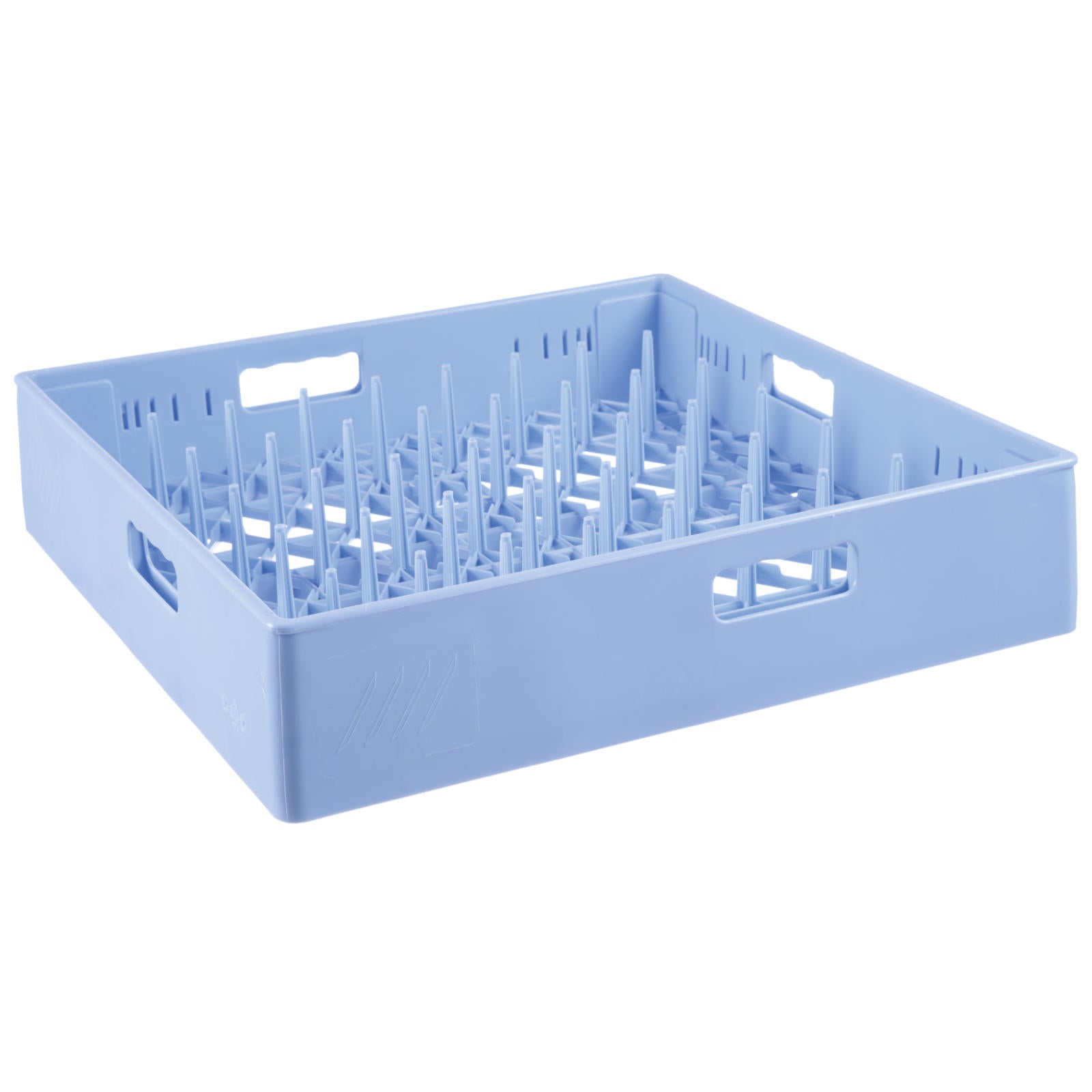

- - 1x basket with pins in 5x8 pcs, 500x500x ((H)105 mm, on deep and shallow plates

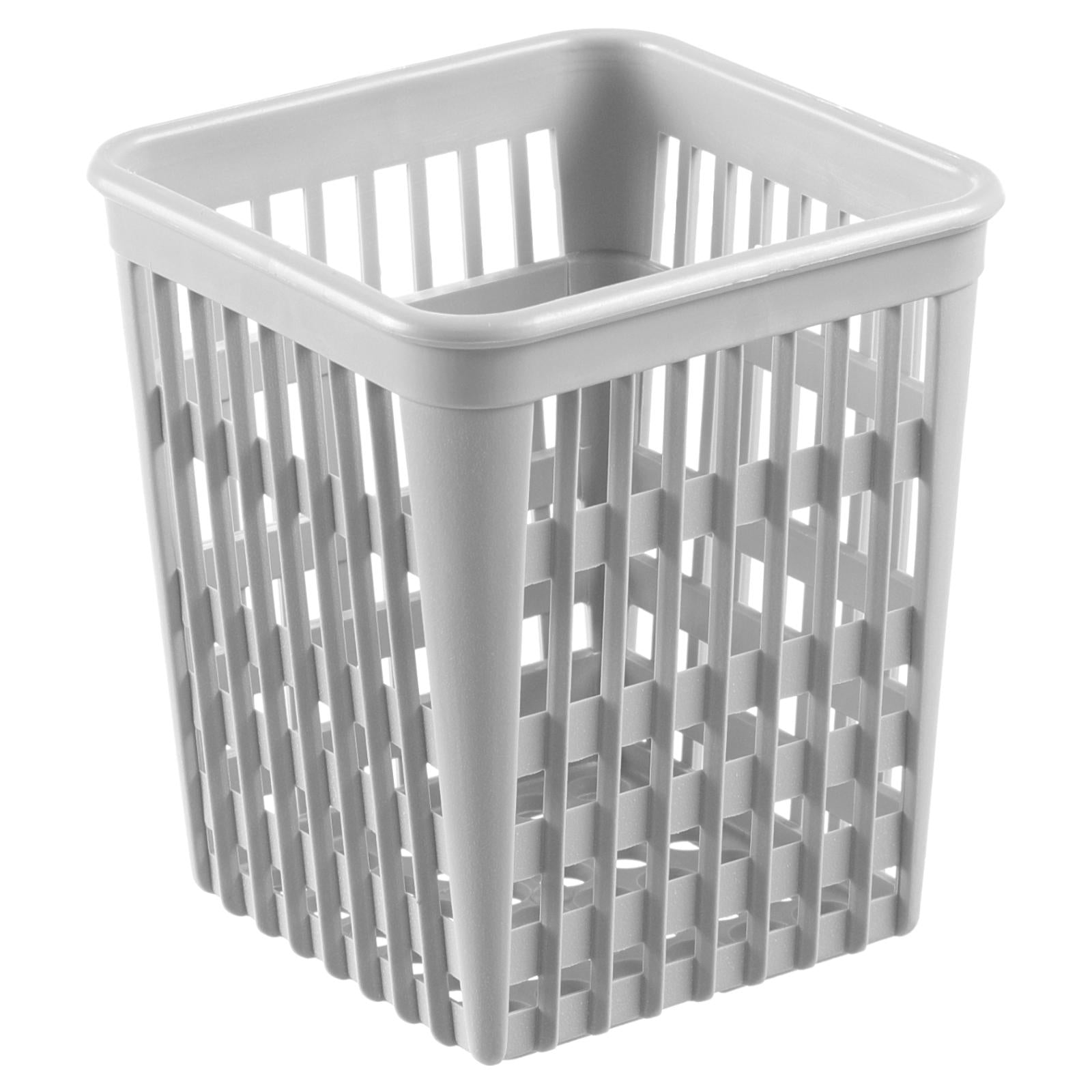

- - 1x 110x110x ((H)130 mm basket, on cutlery
- - The pen of the glitter.
- - Adapting to the installation of the detergent dispenser (spin in the back panel of the bathtub)
- - Water supply hose 1.5 m long, with connection 3⁄4#8221 thread.
- - 2 m long drain hose, Ø 25 mm (( 40 mm length)
- - Electric cable without plug
- - Adjustable in vertical foot ± 10 mm, Ø 40 mm
