Description
Manufacturer's code:

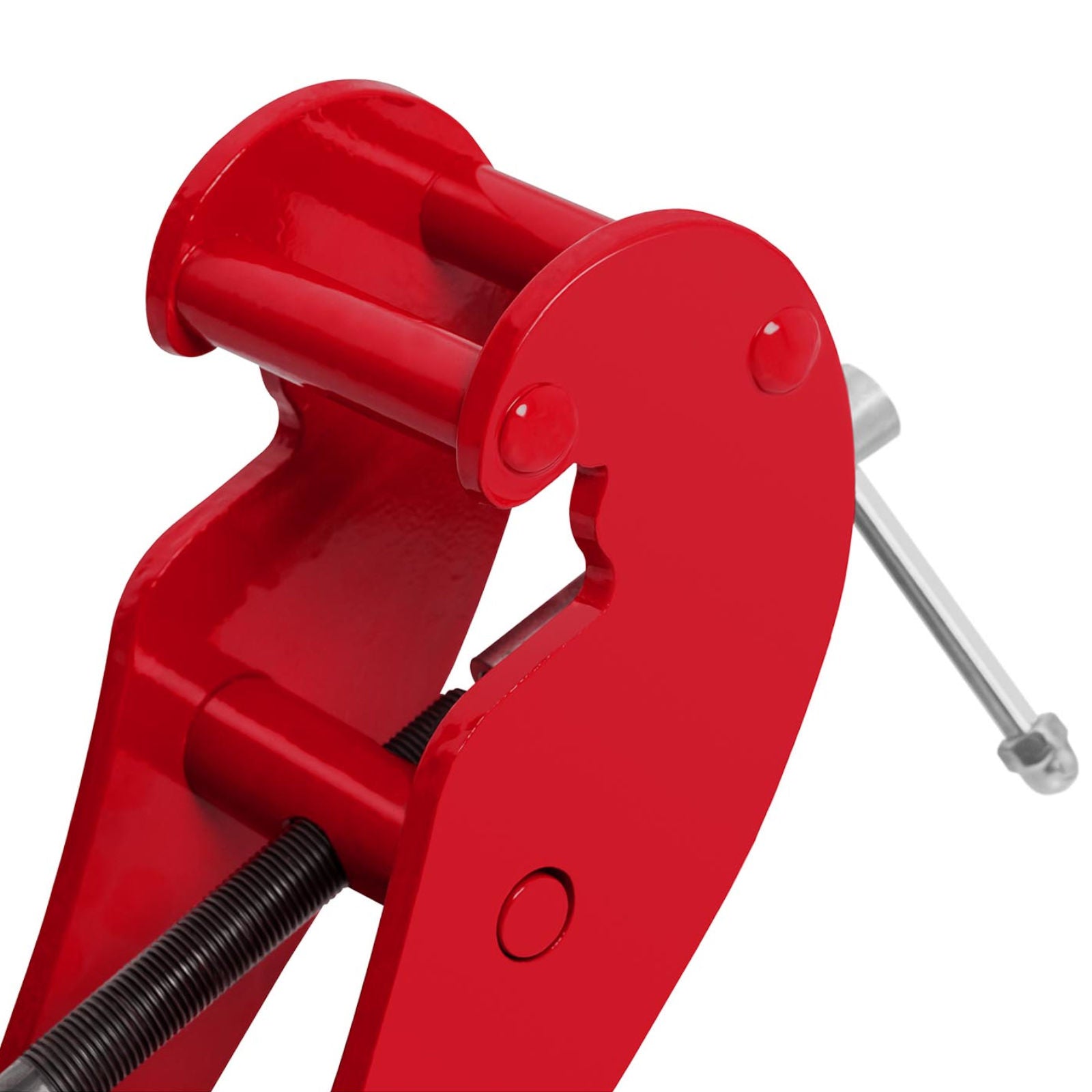

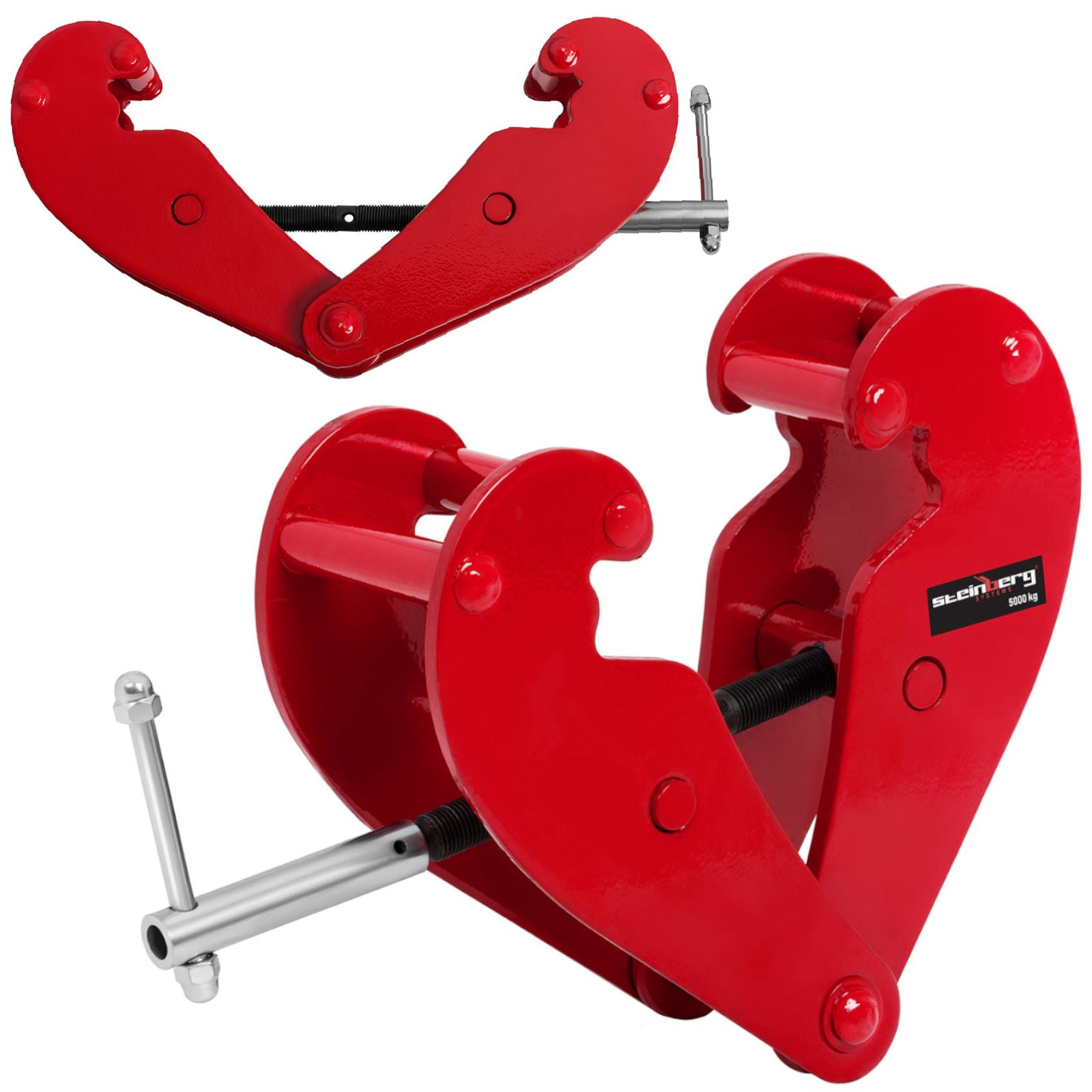

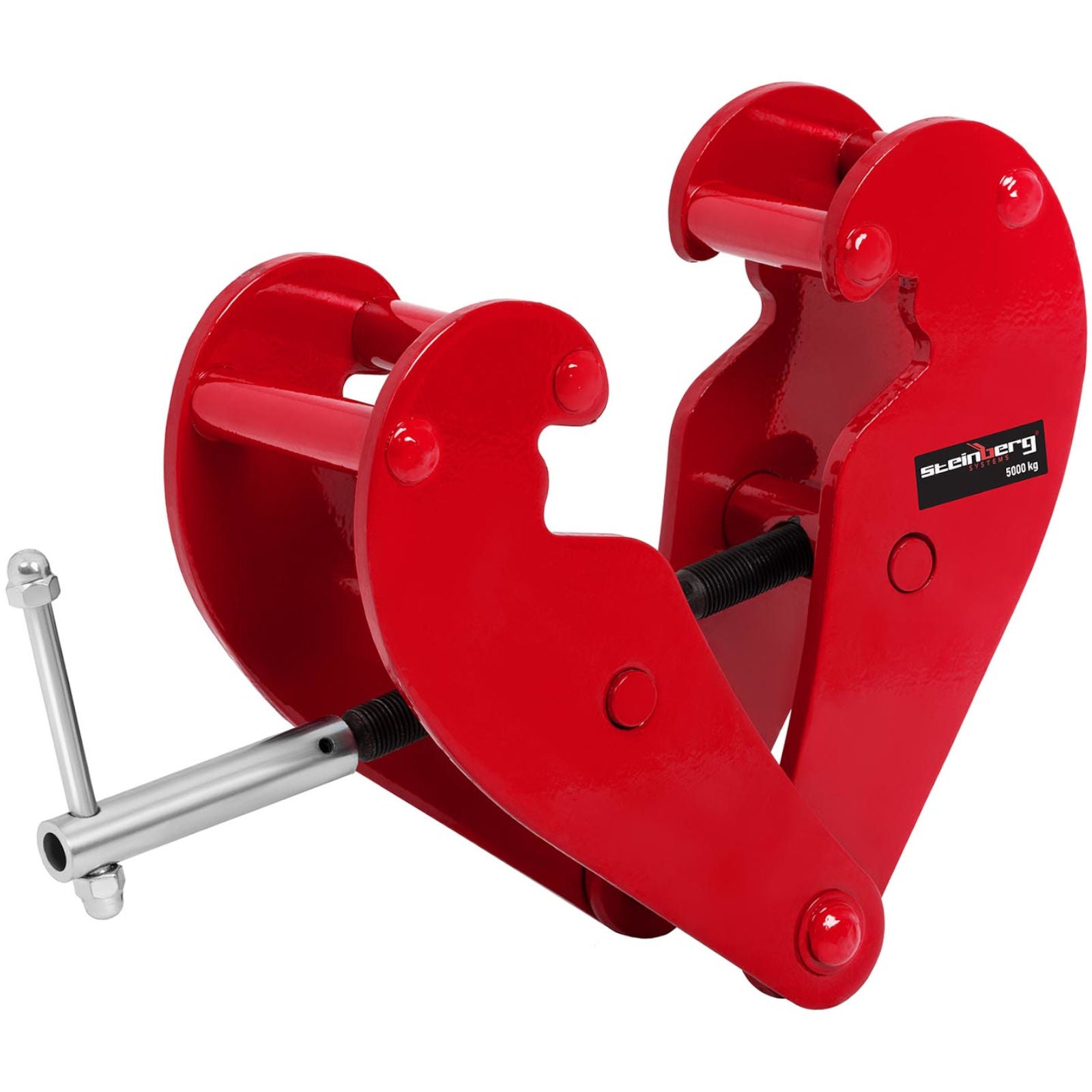

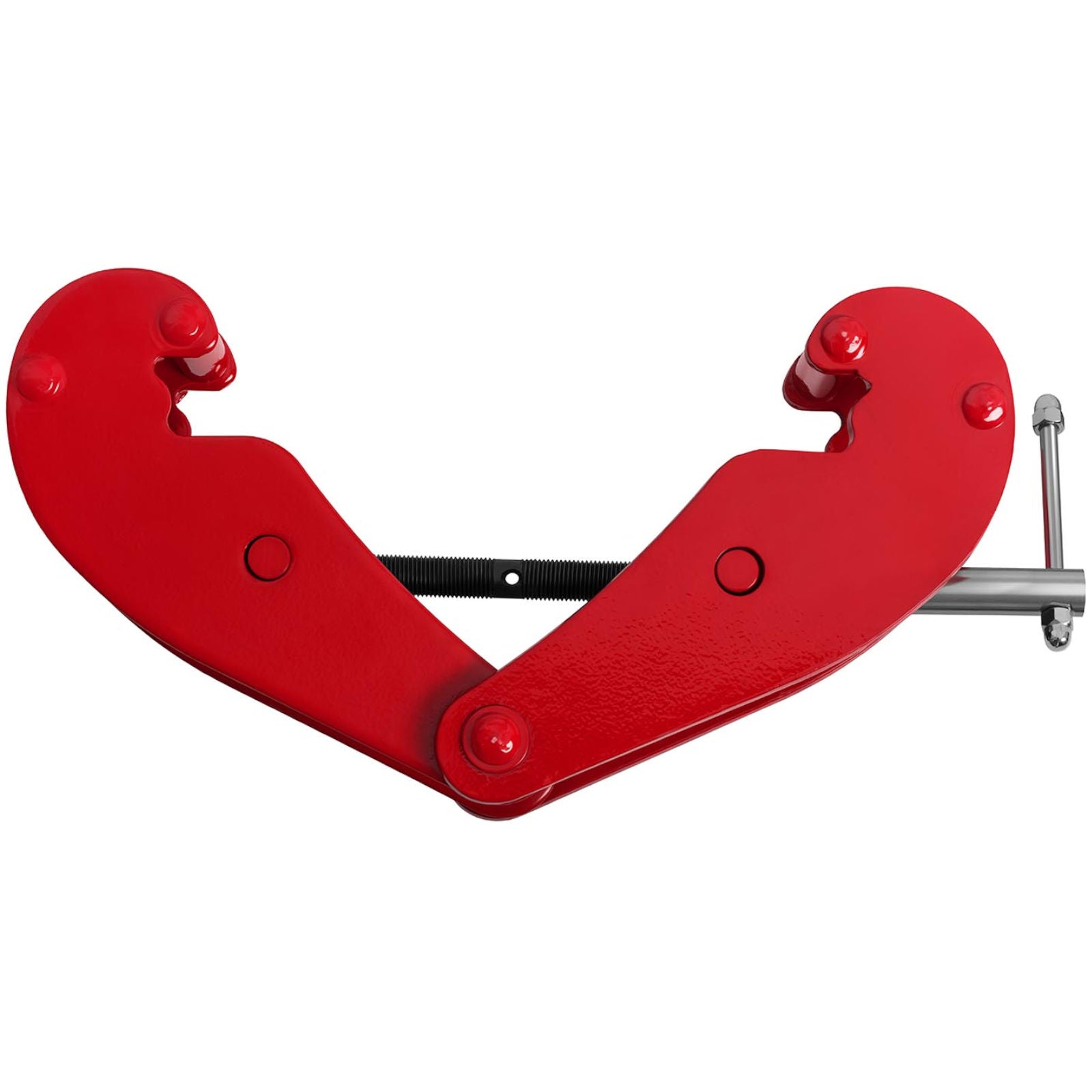

10030432Steinberg Systems girder clamp It's a tool for the use of the
for carrying cranes and bi-treaders of a weight of not more than 100 kg
Up to 5000 kgIt will also be used for hanging, for example, winches on beams. The girder clamp will be used in industry, in factories, shipyards, steelworks, recycling plants, scrap yards and powder painters.
The clamp allows you to carry weights of up to 5000 kg. Thanks

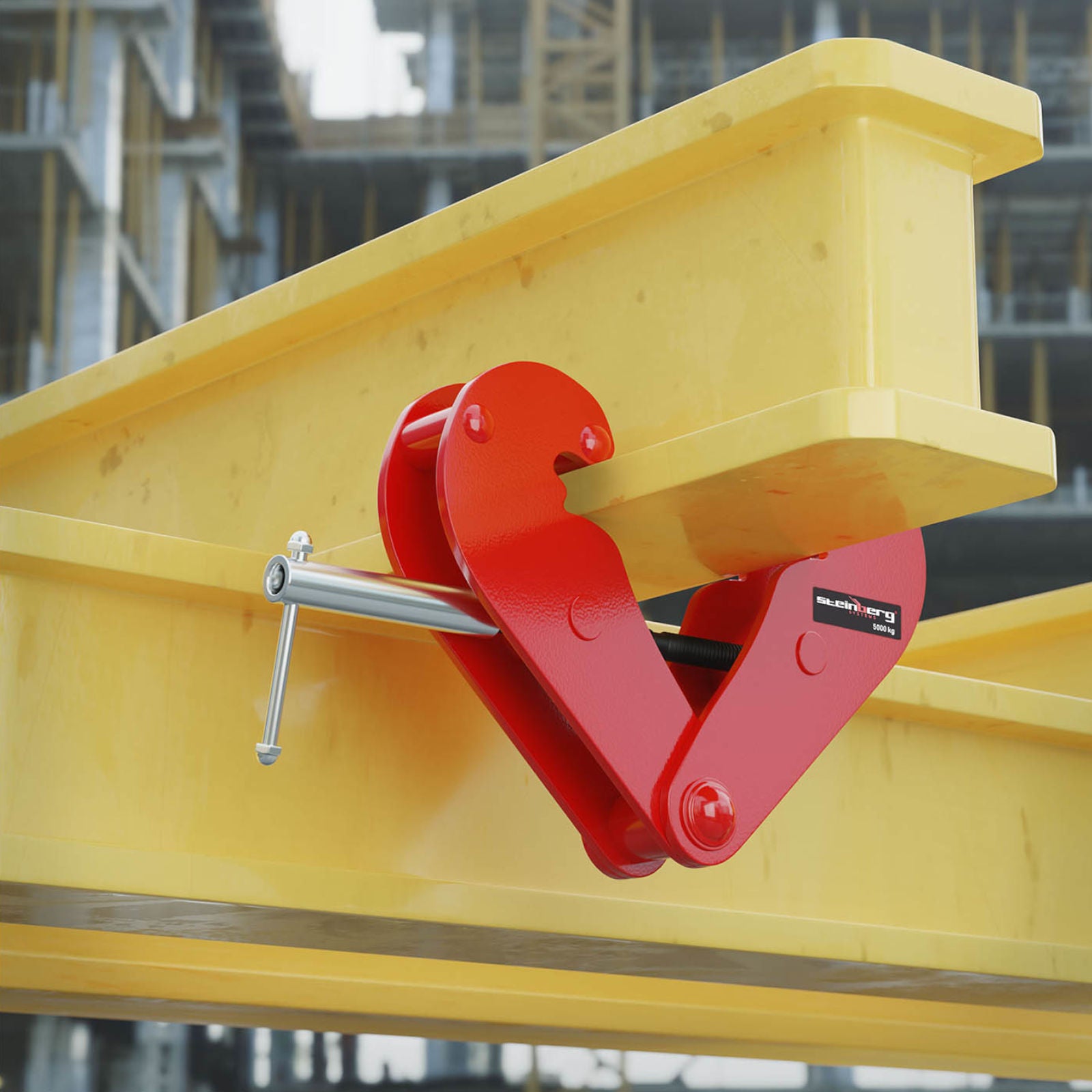

width adjustment in the range 90-310 mm it is possible to easily match the device to various types of cranes. It is mounted on overhead cranes or beams. No additional tools are needed for installation. The device was made of very much
durable steelIt has a corrosion-resistant coating.
The safety factor is 1.25 max. load capacityThe buckle is the ideal help in carrying large weight cranes.
Product features: - - Efficiency - carrying capacity up to 5000 kg,
- - Strength - solid steel construction, installation without additional tools,
- - Protection - safety factor of 1.25 max. load capacity,
- - Universality - adjustable width,
- - Durability - a protective coating.
Technical parameters: - - Model - SBS-TK-5000
- - Catalog number - 10030432
- - Stan - New
- - Maximum capacity - 5000 kg
- - Material - Steel
- - Clamp width range - From 90 to 310 mm
- - Dimensions (DxSxW) - 40 x 14 x 31.5 cm
- - Weight - 11.3 kg
- - Dimensions of dispatch (DxSxW) - 42.5 x 37.5 x 16.5 cm
- - Weight of shipping - 12 kg
Included: - - Clamp of the girder
- - PL Manual
