Description
Manufacturer's name:

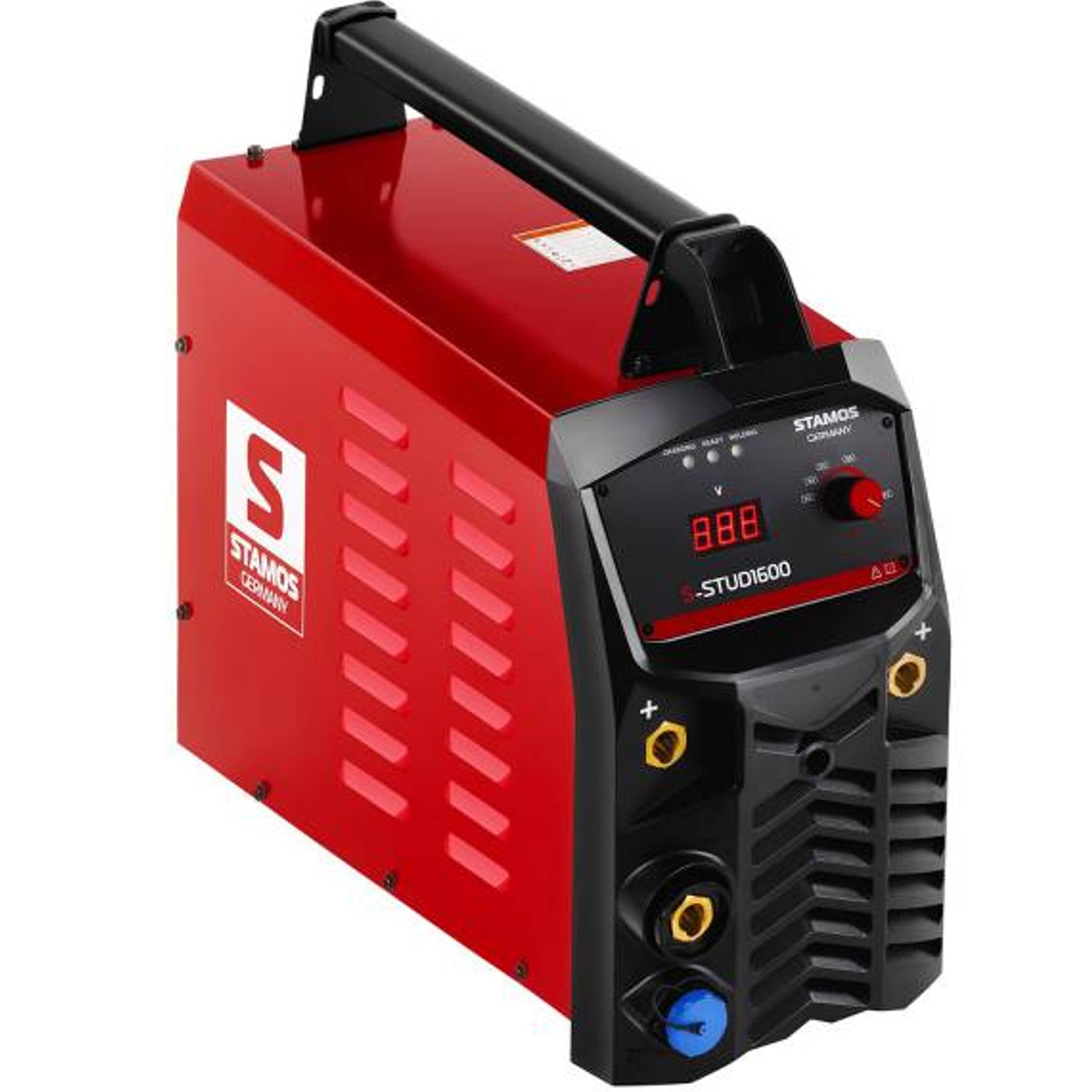

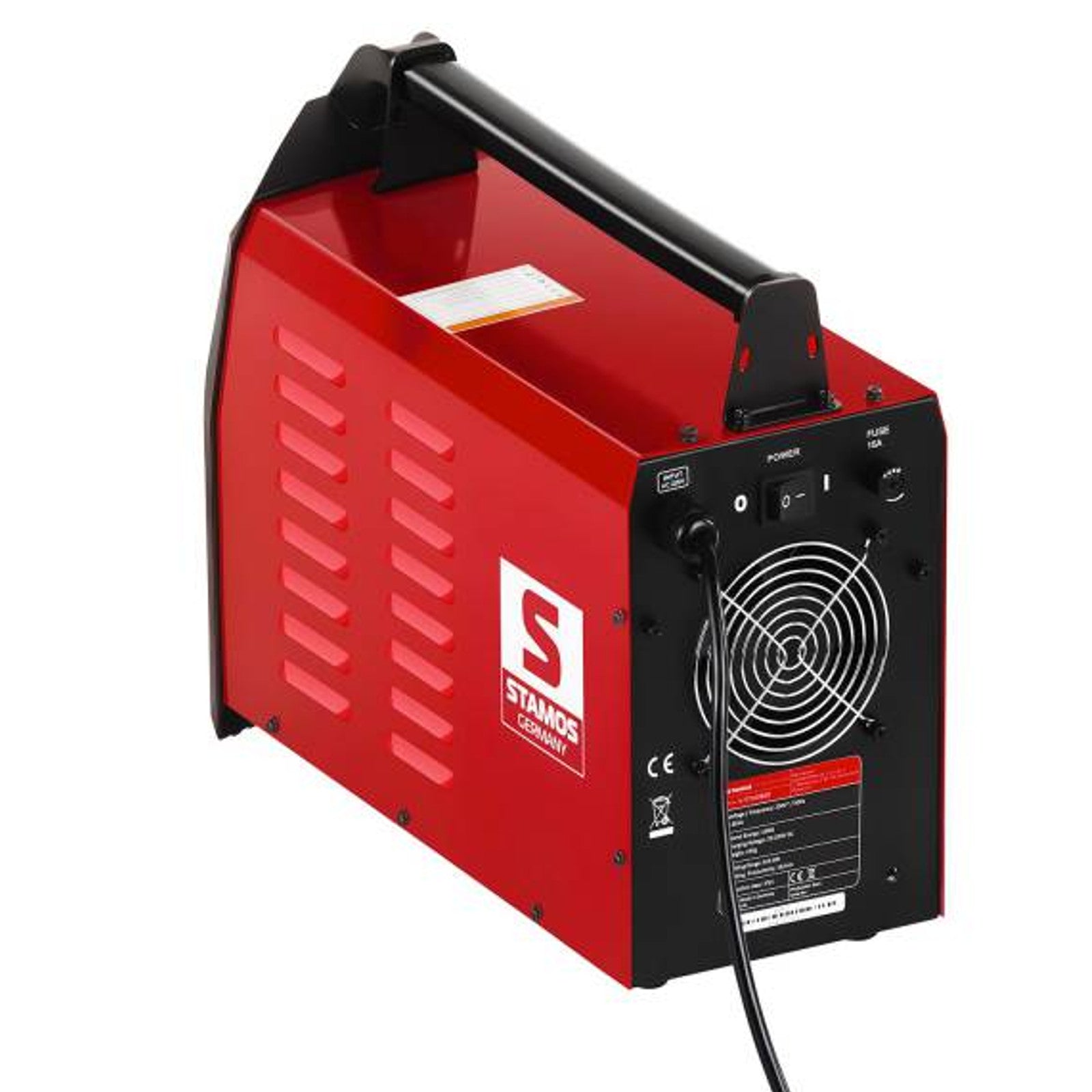

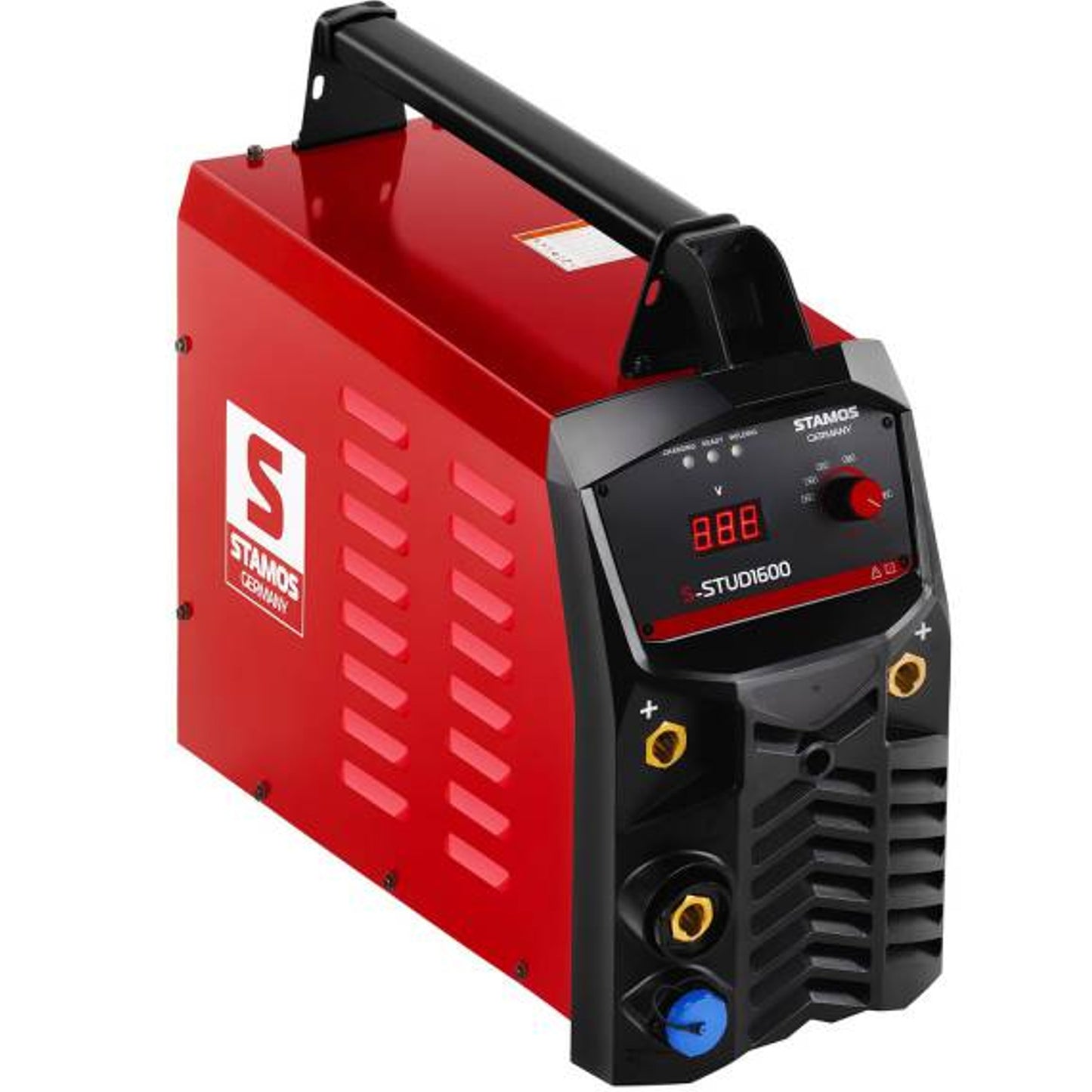

S-STUD1600 Capacitor welding machine from Stamos Germany The S-STUD1600 is suitable for metal-plastics and installation, e.g. sheet metal, insulation and fences. The model leaves high quality weldings.
The capacity of 72000 UF capacitors and 1600 J energy ensure high efficiency. The machine can handle materials such as copper, aluminium, titanium, steel (including stainless steel) and brass. Pre-treatment or finishing is not necessary.
The Stamos Germany welding machine is fitted with the M3, M4, M5, M6 and M8 mandrels (max. length 40 mm)Their pistol is attached with three pins. The set includes handles for holding the stakes.
Characteristics:- Quick pinning
- Sturdy weldings
- Pressure adjustment
- Instepless voltage adjustment
- Housing made of steel and plastic

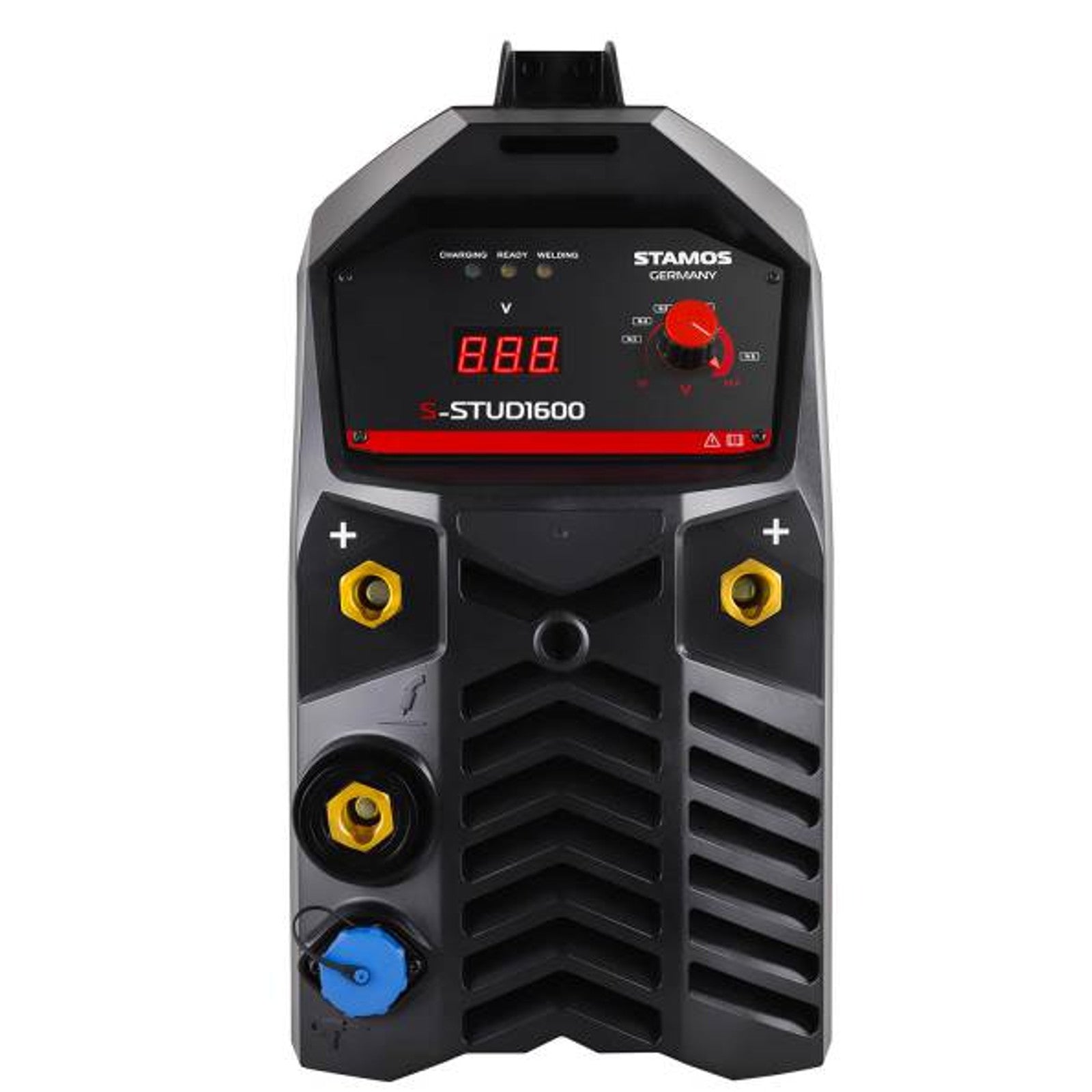

- Ready control panel
Technical parameters: - - Model - S-STUD1600
- - Catalog number - 2158
- - The state of the article - New
- - The material of the casing - Steel, plastic
- - Voltage - 230 V / 50 Hz
- - The welding voltage - 20 – 195 V
- - Rated power - 500 kVA
- - Capacitor capacity - 72000 UF
- - The stored energy - 1600 J
- - The welding range - Ø 3
- - Max. length of stakes - 40 mm
- - The welding efficiency - 10
- - Length of the wire of the welding gun - 4 m
- - Length of the mass cable - 2 x 4 m
- - Length of power cord - 2.2 m
- - Dimensions (DxSxW) - 56 x 21 x 38 cm
- - Weight - 19 kg
- - Dimensions of dispatch (DxSxW) - 65 x 32 x 43 cm
- - Weight of shipping - 26 kg

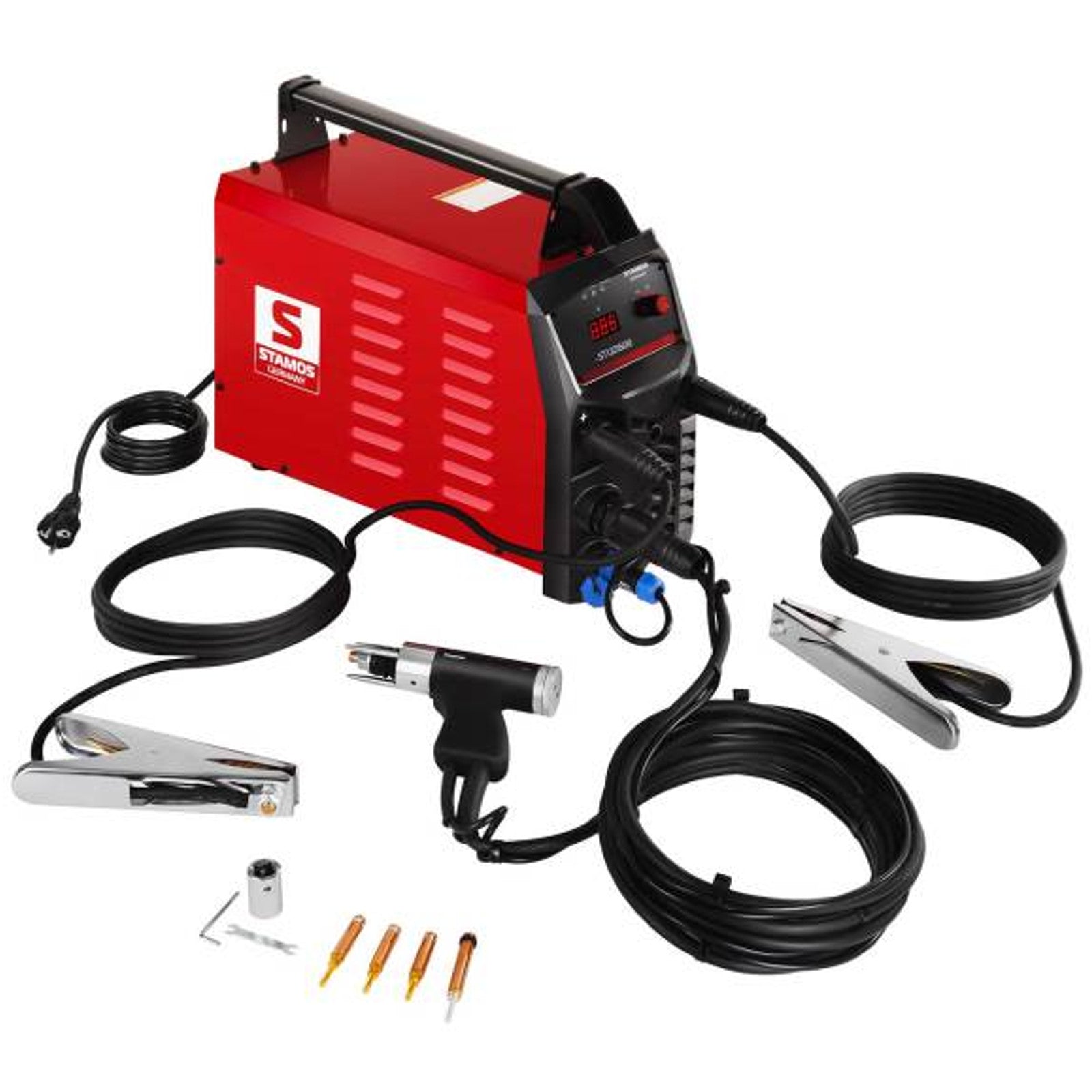

Included:- Capacitor welding machine

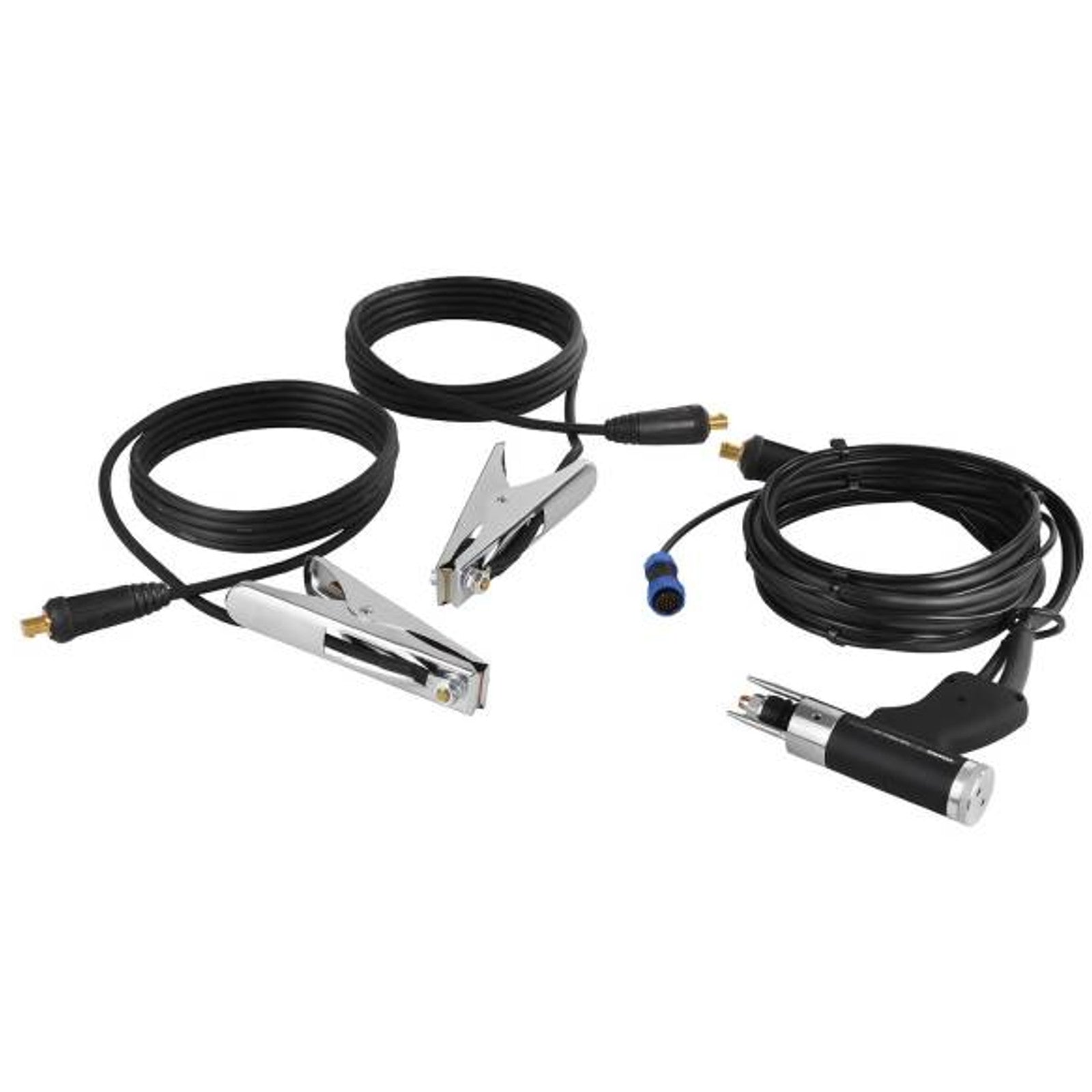

- A welding gun with a cable

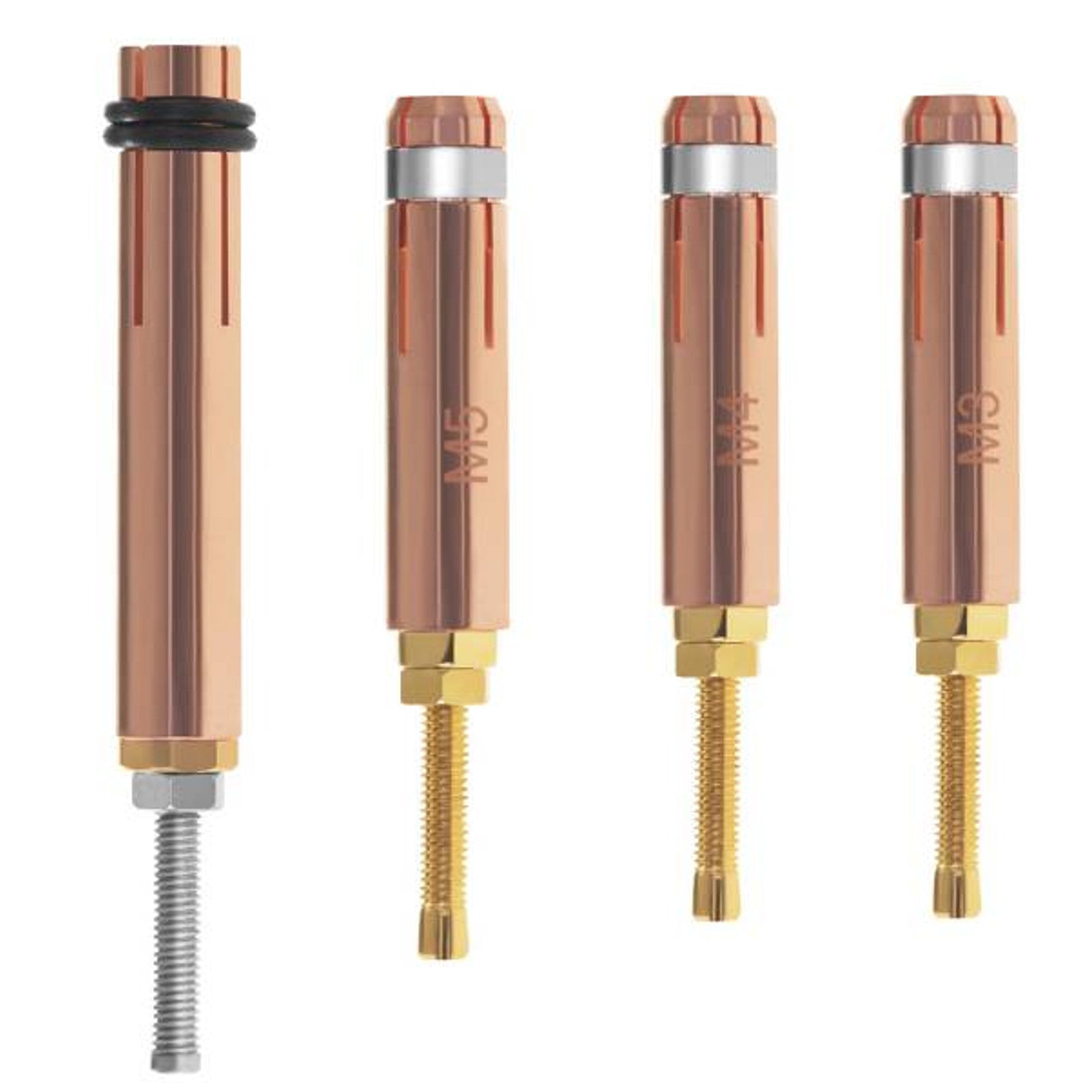

- Holders for pegs M3, M4, M5, M6, M8
- Mass cable with clamp

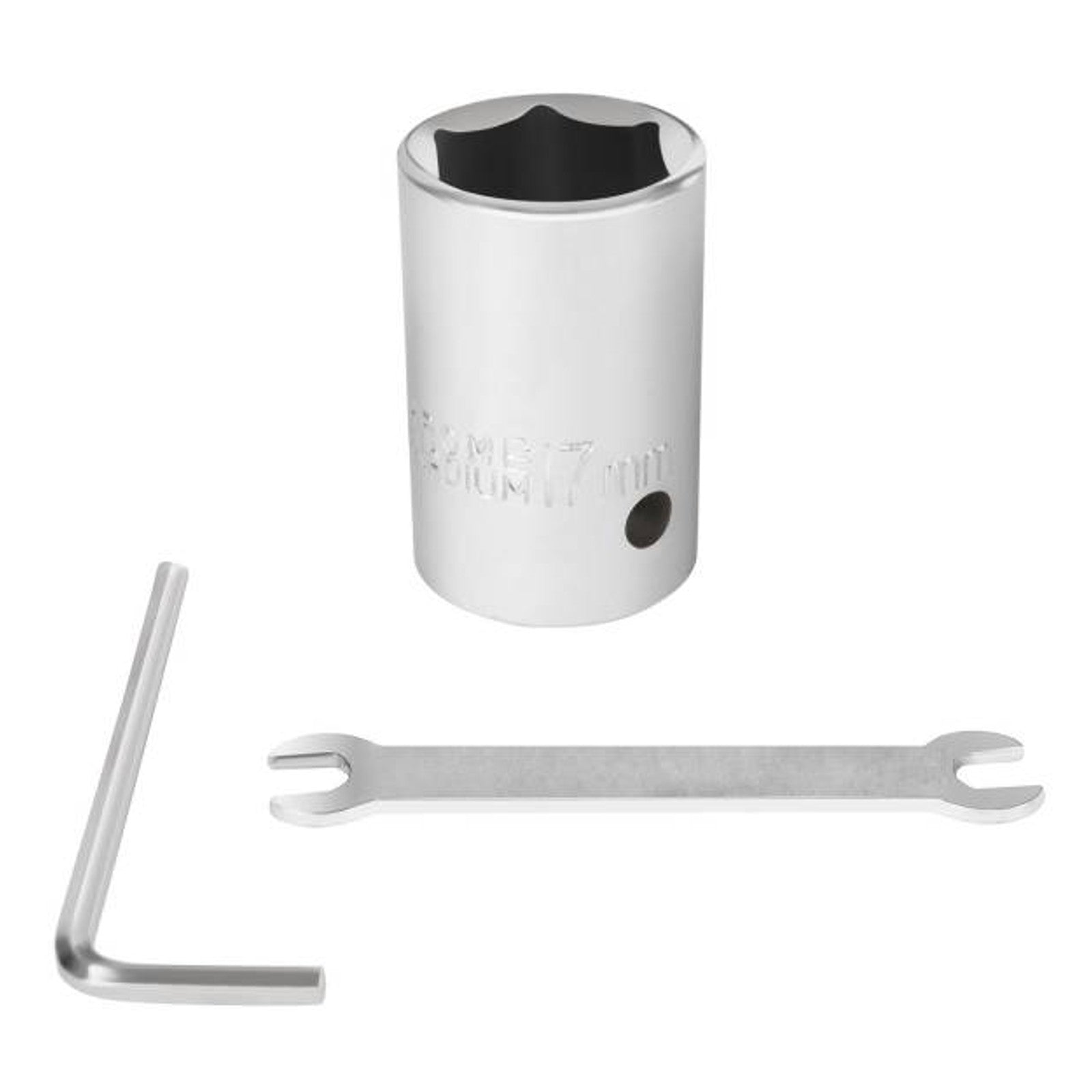

- The key for the assembly
- PL Manual
