Description
Manufacturer's code:
10062368A professional and compact car charger from
MSW will allow you to quickly and easily start your car and get it moving again. Regardless of whether you are starting a petrol engine or warming up a diesel engine, with the rectifier you can be prepared for any eventuality. The charger with a maximum starting current of
130 A reliably ensures a quick start, even if the car battery is discharged. It will be especially useful in a car workshop, where the engine is often only started for a short time and the battery has no chance of being properly charged. The device provides fast start-up that consumes a maximum of
2200 W. The car charger allows you to charge batteries with a capacity of
12 V 20 - 250 Ah 24 V 30 - 300 Ah. With a current of
45 A it ensures extremely fast charging times. Thanks to the output voltage of
12 Vor

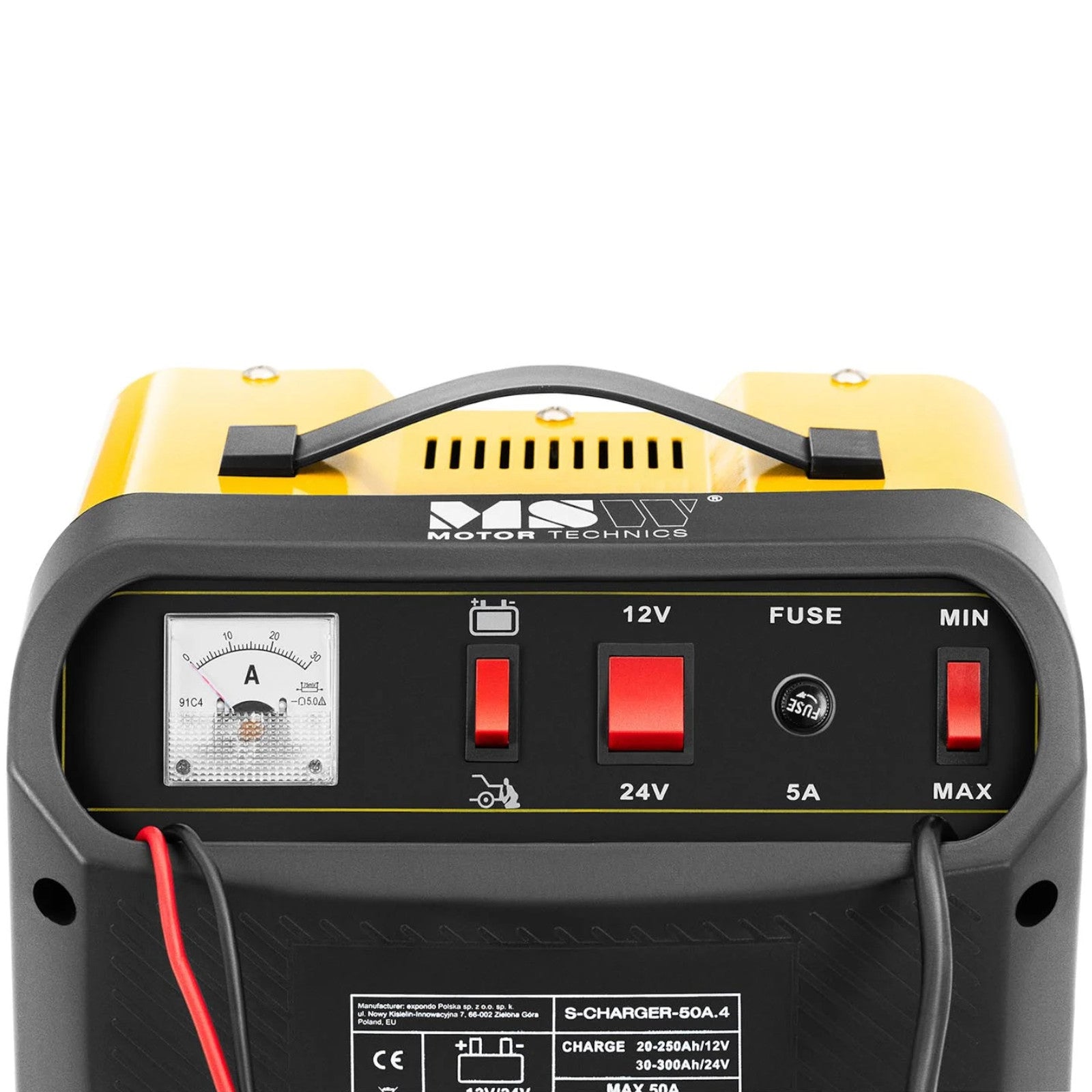

24 Vthe device can be used with larger vehicles such as trucks. After a quick charge, the battery is ready for use again. Before connecting the charger, check whether the battery has the recommended capacity. The charging power is easily set using the switch:
MIN for normally discharged batteries,
MAX for deeply discharged batteries. Depending on whether the battery is only low over many short journeys, or almost drained by energy-hungry extras such as heated windows or seats. Thanks to the built-in fuse, the device is protected against short circuit when connecting terminals with incorrect polarity. The cables are secured in the device so that they do not get lost. Thanks to the solid handle, it is easy to move the charger from one car to another.
Product features: - - Emergency start function for discharged car batteries,
- - High current up to 45 A for fast charging,
- - For batteries with a capacity of 12 V 20 - 250 Ah 24 V 30 - 300 Ah,
- - Cables permanently mounted in the device + cable storage,
- - MIN/MAX switch for different charge levels.
Technical parameters: - - Catalog number - 10062368
- - Article condition - New
- - Model - S-CHARGER-50A.4
- - Charging current [A] - 45
- - Battery type - AGM, EFB, gel
- - Maximum starting current [A] - 130
- - Insulation class - F
- - IP protection level - IP20
- - Functions - Charging, emergency start
- - Maximum power consumption of the boot function [W] - 2200
- - Output current [A] - 25 - 30
- - Maximum power consumption [W] - 720
- - Cable power supply [m] - 1.8
- - Output voltage [V] - 12 / 24
- - Voltage [V] - 230
- - Recommended battery capacity [Ah] - 12 V 20 - 250 Ah 24 V 30 - 300 Ah
- - Length terminal cable (+) [m] - 1.7
- - Terminal cable length (-) [m] - 1.7
- - Dimensions (LxWxH) - 24.5 x 27 x 20 cm
- - Weight - 9.85 kg
- - Shipping dimensions (LxWxH) - 32 x 33 x 25 cm
- - Shipping weight - 10.6 kg
Included: - - Car charger

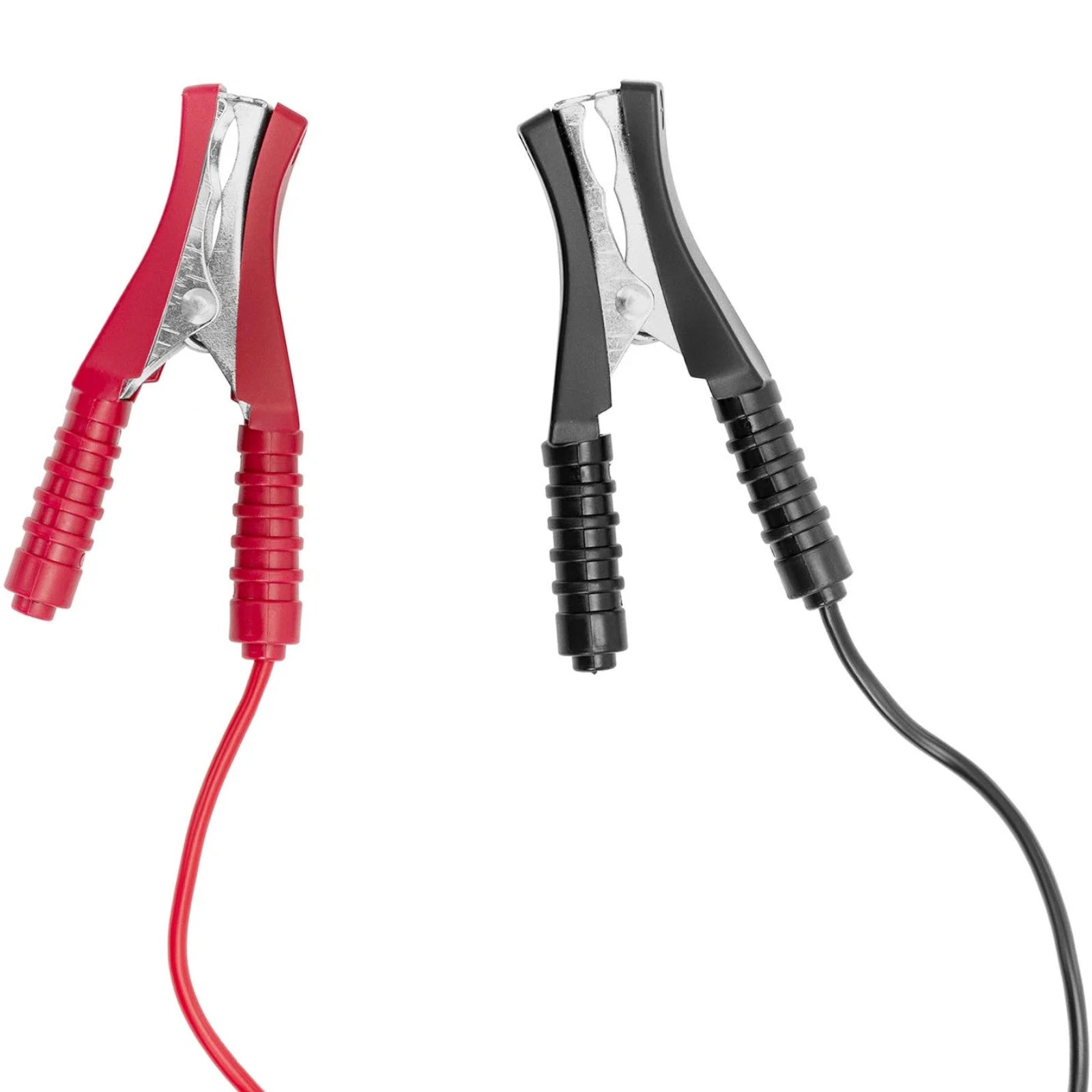

- - Black cable (1.7 m)
- - Red cable (1.7 m)
- - Cable power supply (1.8 m)
