Description
Manufacturer's code:

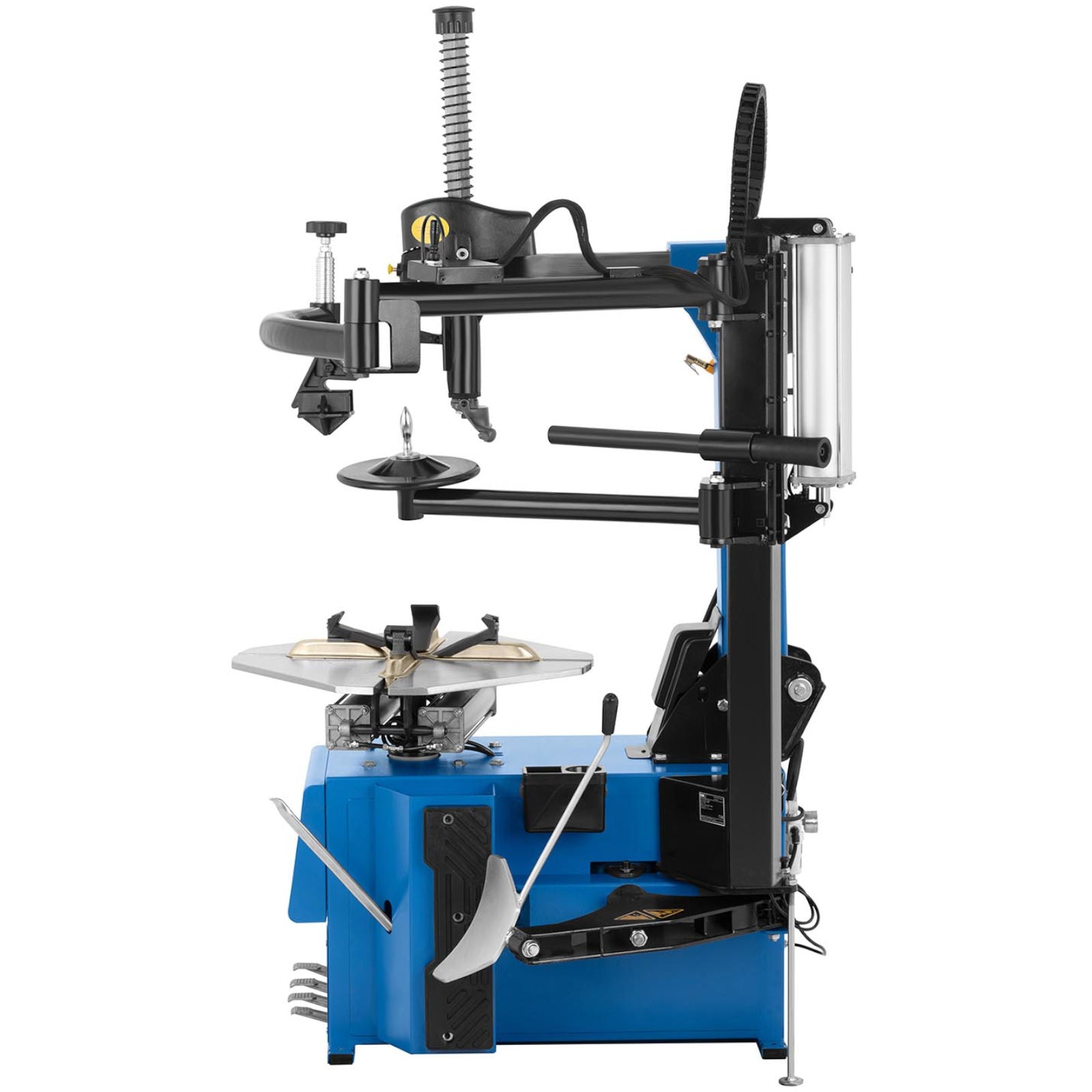

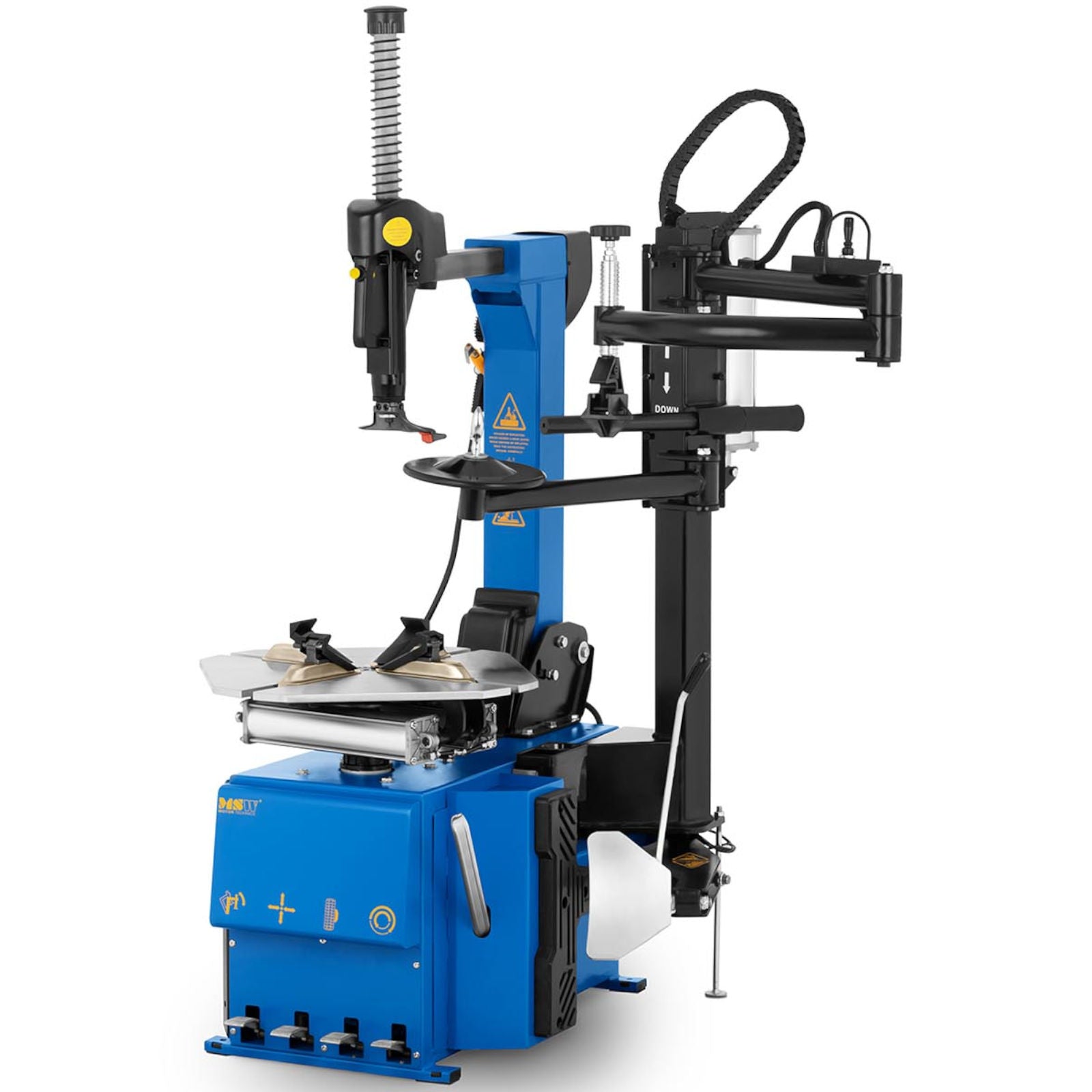

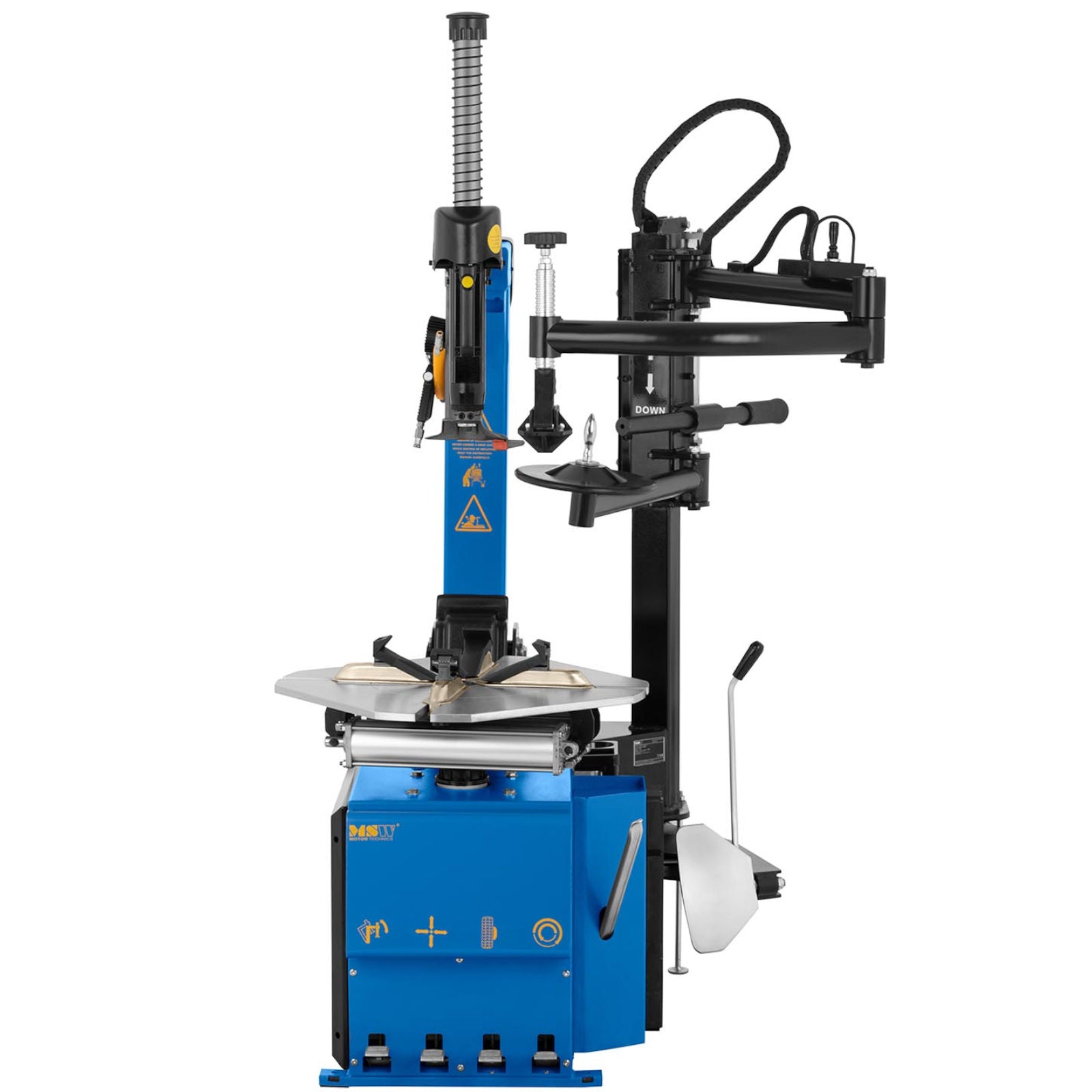

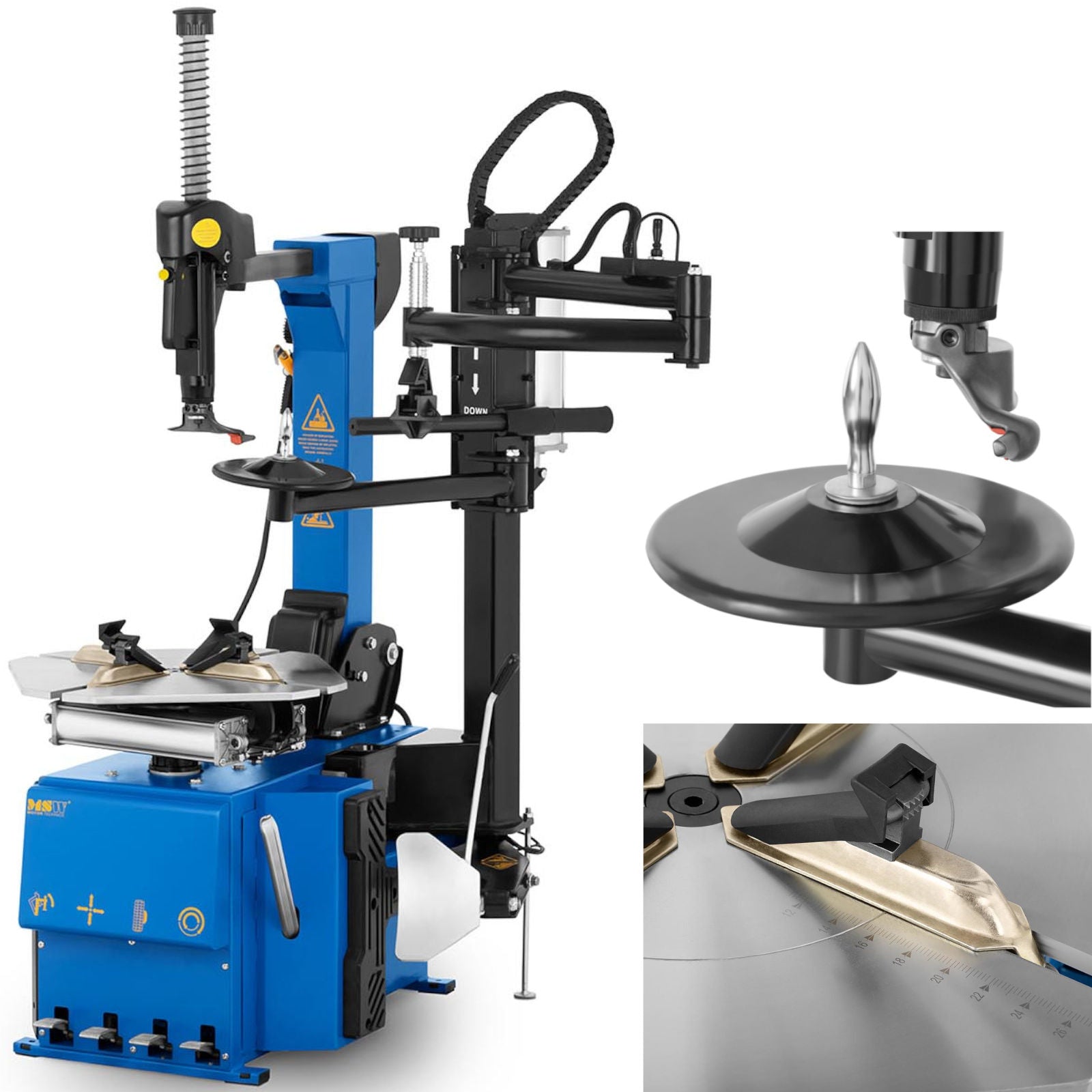

10060776The fitting unit for German brand MMA tyres it is ideal for workshops or car services. It will facilitate the removal and installation of tyres for trucks, cars and motorcycles.
The device allows the replacement of tyres on rims with diameter

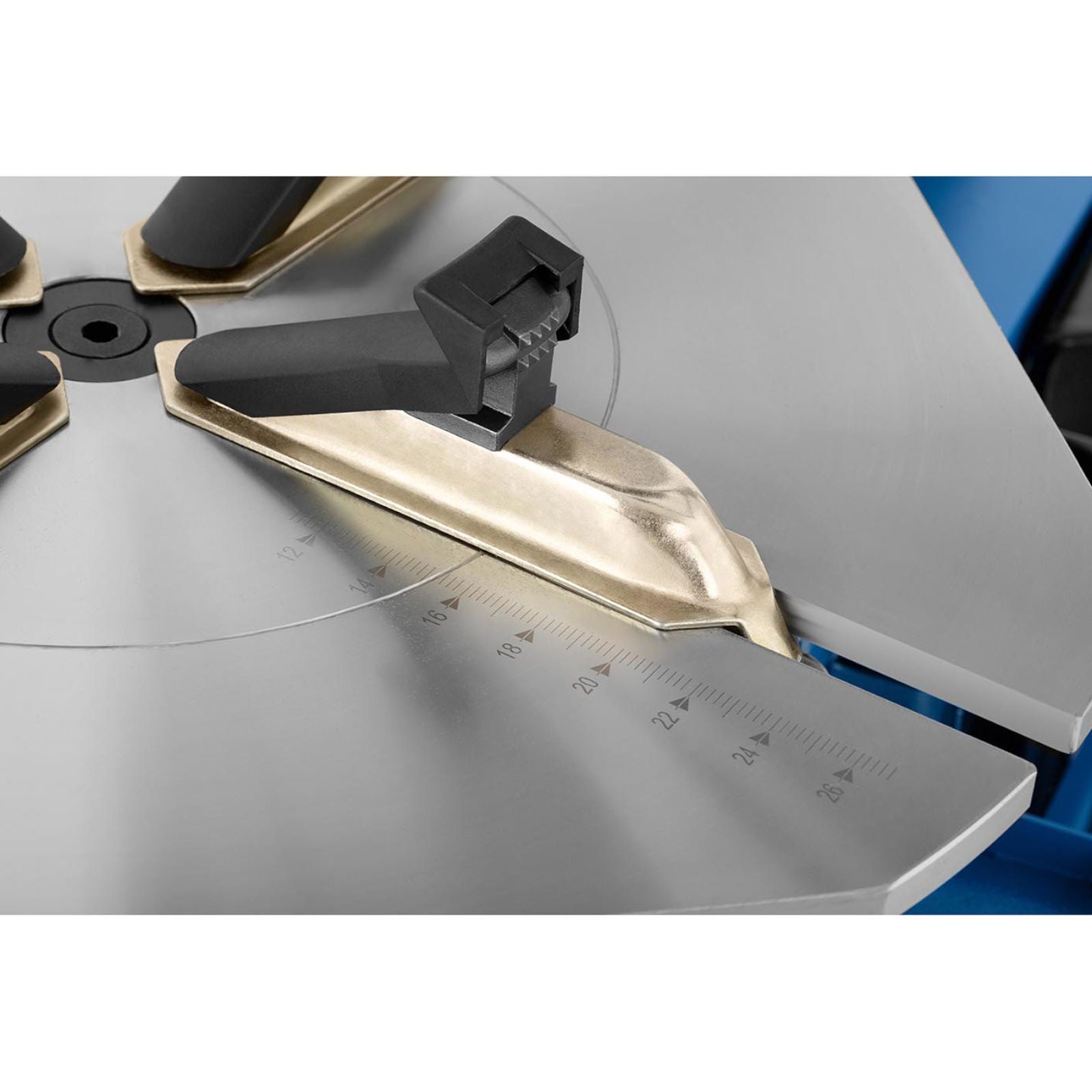

12- 24''The installer has
4-pop self-centering systemA force-forced thug.
2500 kg The tyre is removed from the rim. The head and the covers protect the rim against damage during disassembly. The device allows the column to tilt forward or backward to facilitate the photo of the punctured tyre.
Fed support leaves your hands free. The working surface is
630 x 630 mm which allows for comfortable working with rims up to 24 inches. Ergonomic table rotates with strength
1100 NmThe device has a rubber cover that protects the rim and the machine against damage.
Product features: - - Universality - replacement of tyres of most passenger cars,
- - Comfort for use - free hands by using pedals,
- - Efficacy - solutions applied to difficult cases, e.g. broken tyres,
- - Completeness - the set includes, among others, an pneumatic gun with a wheel pumping manometer and additional support arms,
- - Security - rubber covers prevent damage to both machines and rims.
Technical parameters: - - Model - MSW-TC-1100HA
- - Catalog number - 10060776
- - The state of the article - New
- - Maximum tyre width - 310 mm
- - Working pressure - 8 - 10 bar
- - Input voltage - 230 V
- - Power - 1100 W
- - Sound intensity - 60 dB
- - Dimensions of the rim (inner locking) - 11 - 21#8221
- - Dimensions of the rim (outer locking) - 12 - 25#8221
- ## The strength of the bumper ## 2500 kg
- - The length of the power cord - 2 m
- - Optional double auxiliary arms - Yes.
- - Front/rear protruding of the column (to the flat tyres) - Yes.
- - User manual - Yes.
- - The table's torque - 1100 Nm
- - Maximum table speed - 9 rpm
- - Protective class - I
- - Degree of protection of electrical components - IP2X
- - User manual - Yes.
- - Dimensions (DxSxW) - 150 x 204 x 188 cm
- - Weight - 279 kg
- - Dimensions of dispatch (DxSxW) - PAL1 110 x 88 x 96 cm / PAL2 130 x 93 x 38 cm
- - Weight of shipping - 320,5 kg
Included: - - Tyre fitting machine
- - Arm (1100 x 870 x 940 mm)
- - Arm (1200 x 930 x 350 mm)
- - Plastic basket
- - Air snake
- - Air gun with a manometer

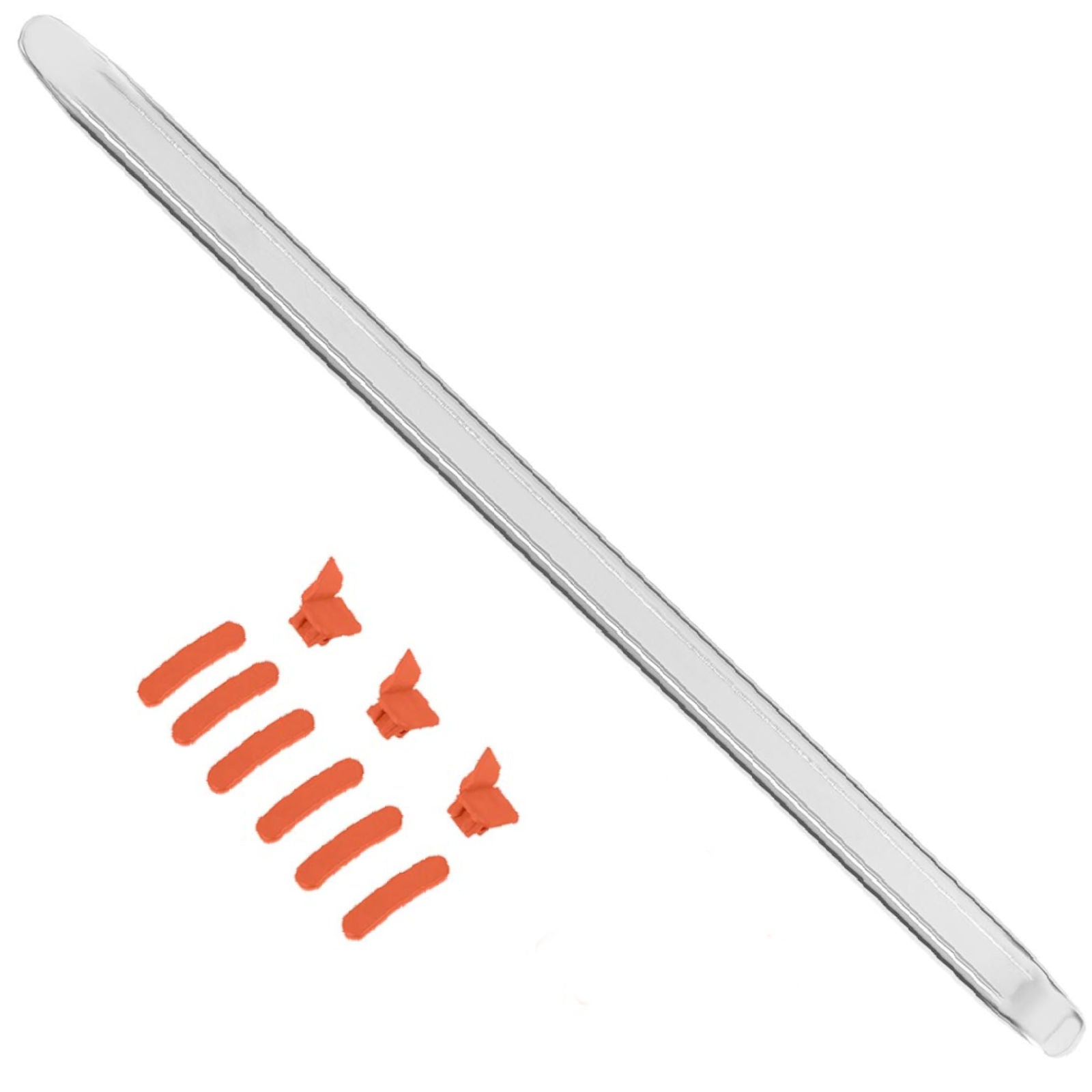

- - Tire spoon.
- - Plastic aluminium rim covers - 1 kpl.
