Description
Manufacturer's number:

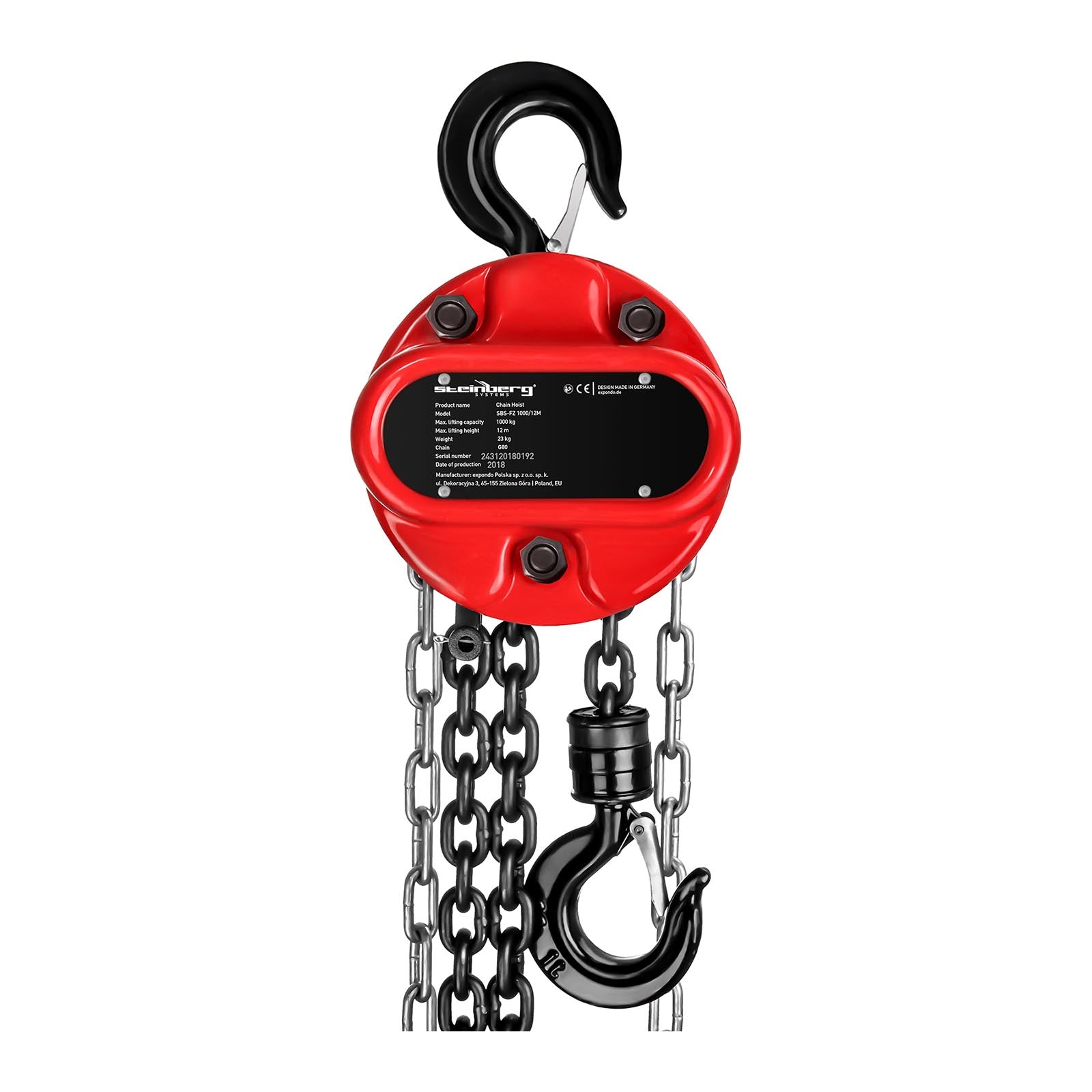

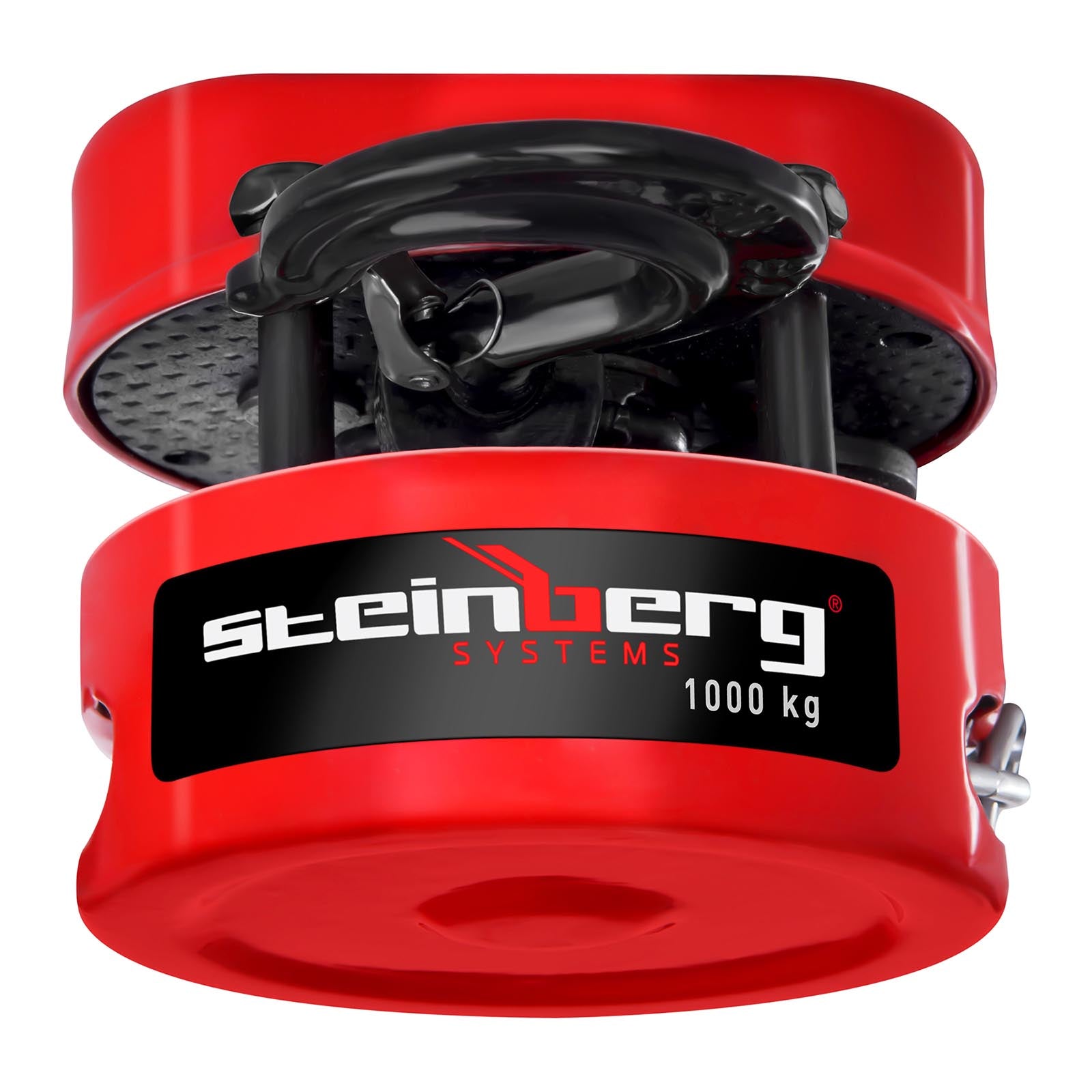

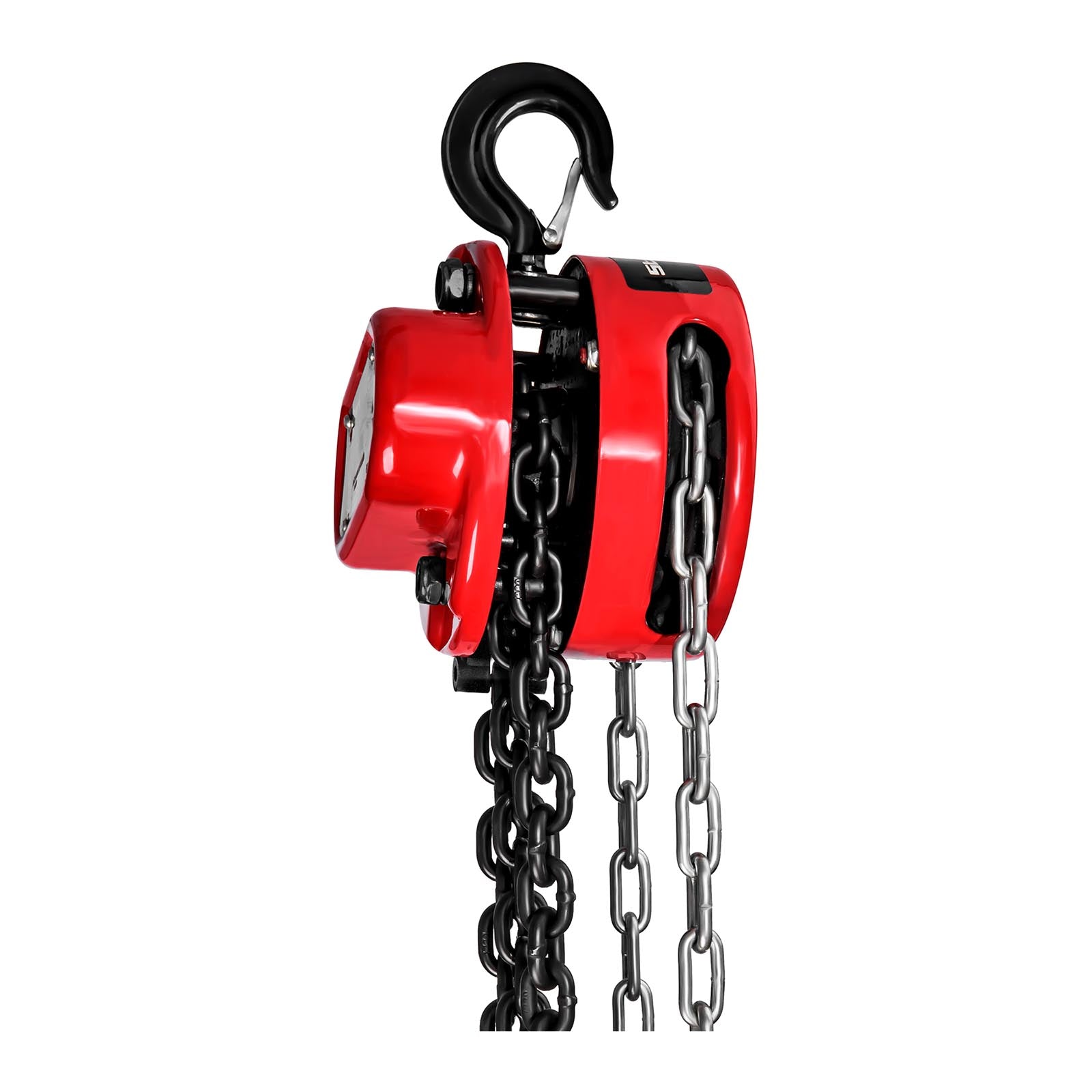

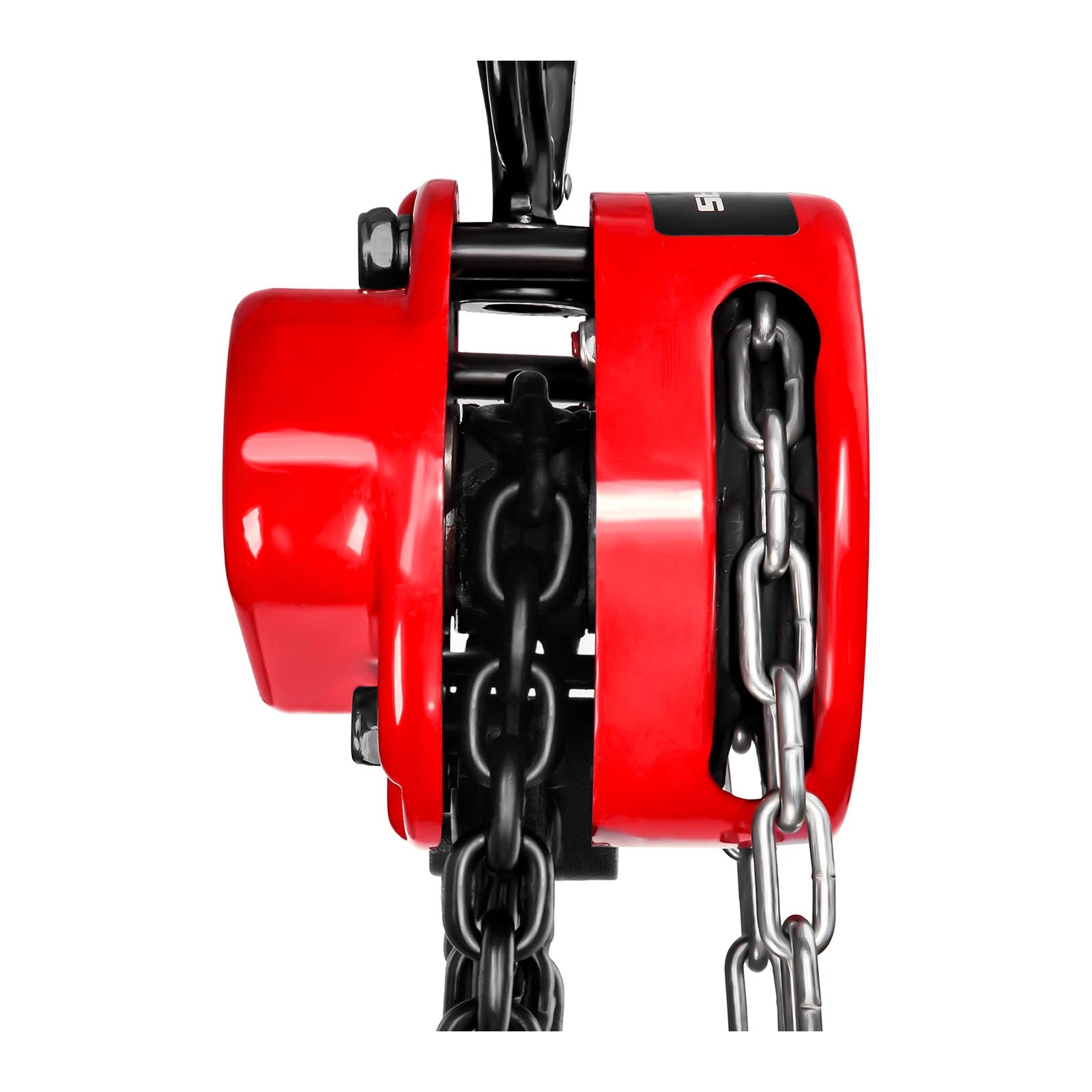

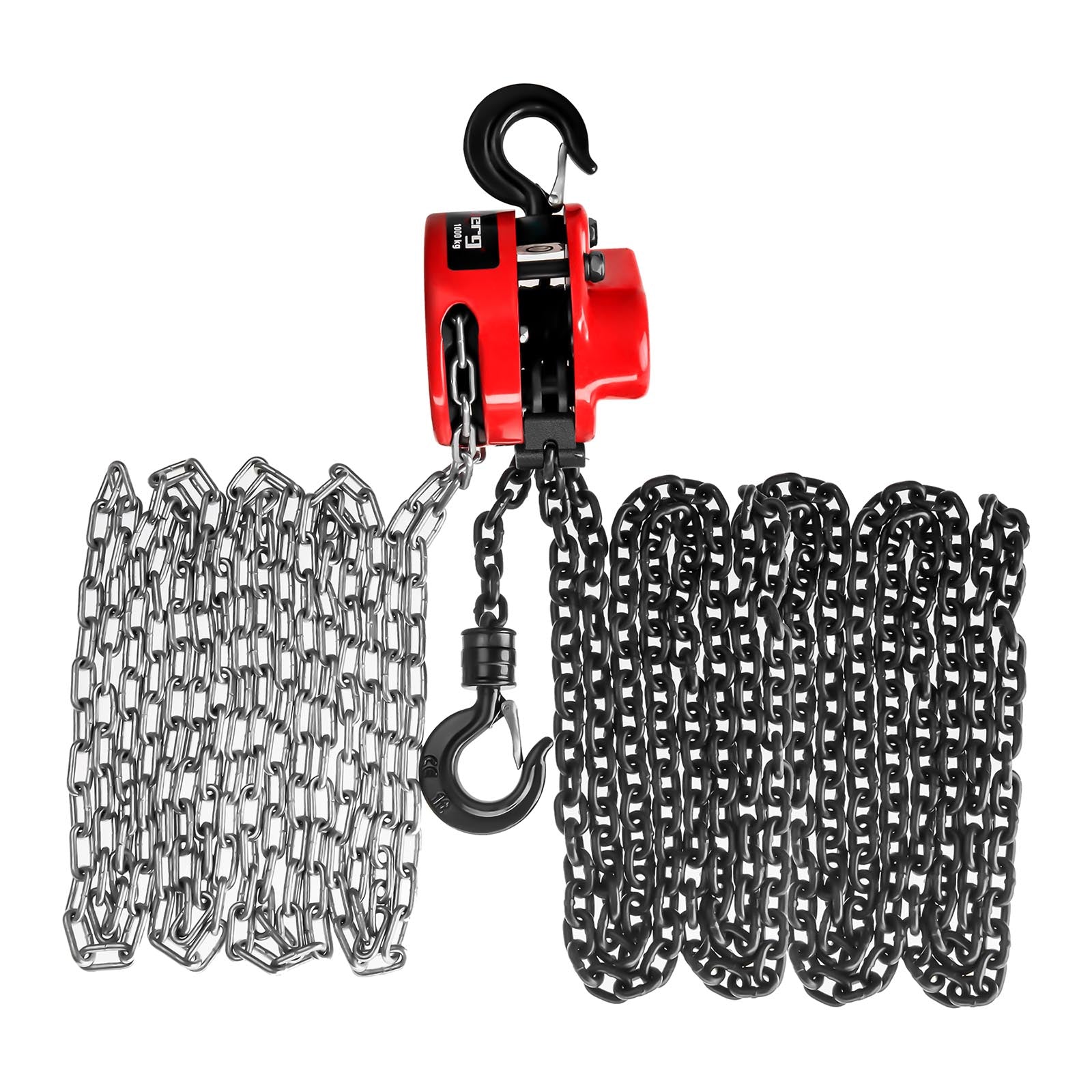

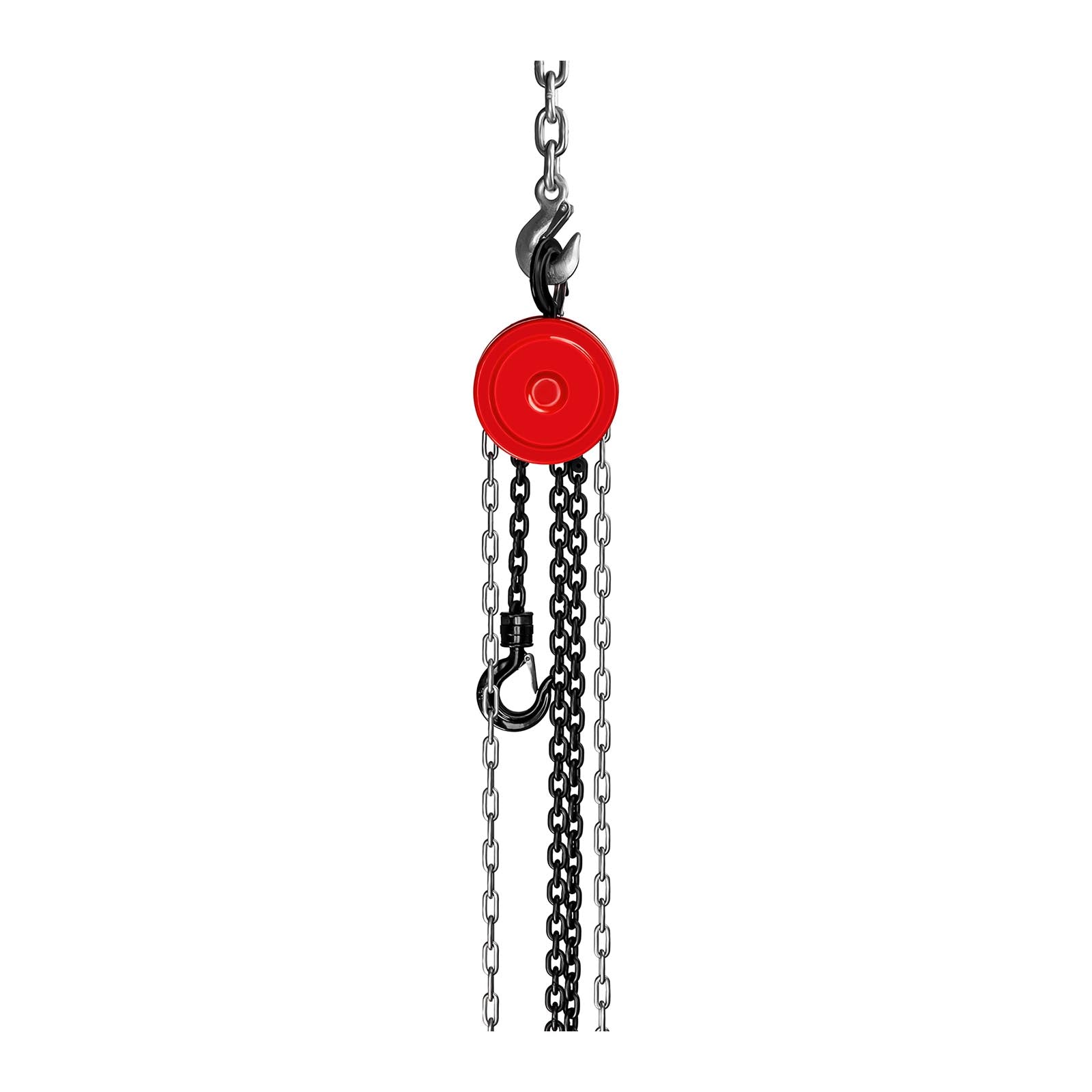

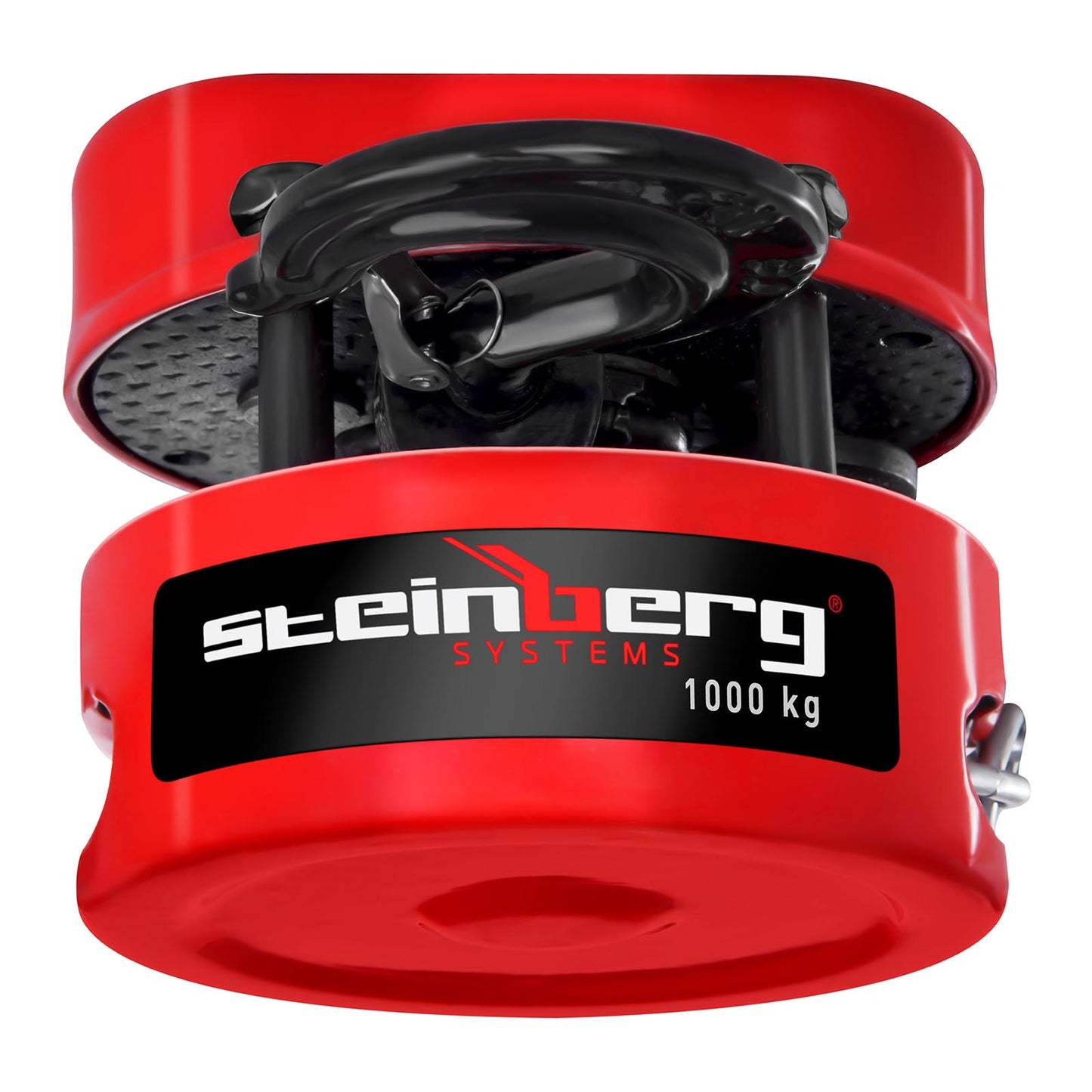

Steinberg Systems 10030373Chain winch The German brand Steinberg Systems is a versatile device that will be perfect for various manufacturing companies, mechanics, warehouses or construction sites. Its basic application is lifting and lowering heavy objects.
The hand-held chain lifter allows you to lift objects up to 1000 kg even up to a height of 12 meters. Thanks to the durable chains (G80 type, 6 mm diameter cell) and the high quality steel components, the operation with the SBS-FZ 1000/12M model is very safe. This is also influenced by the nylon-coated control bar tip and the safety mechanism that stops the equipment when the chain is loose. To increase user comfort the winch has been

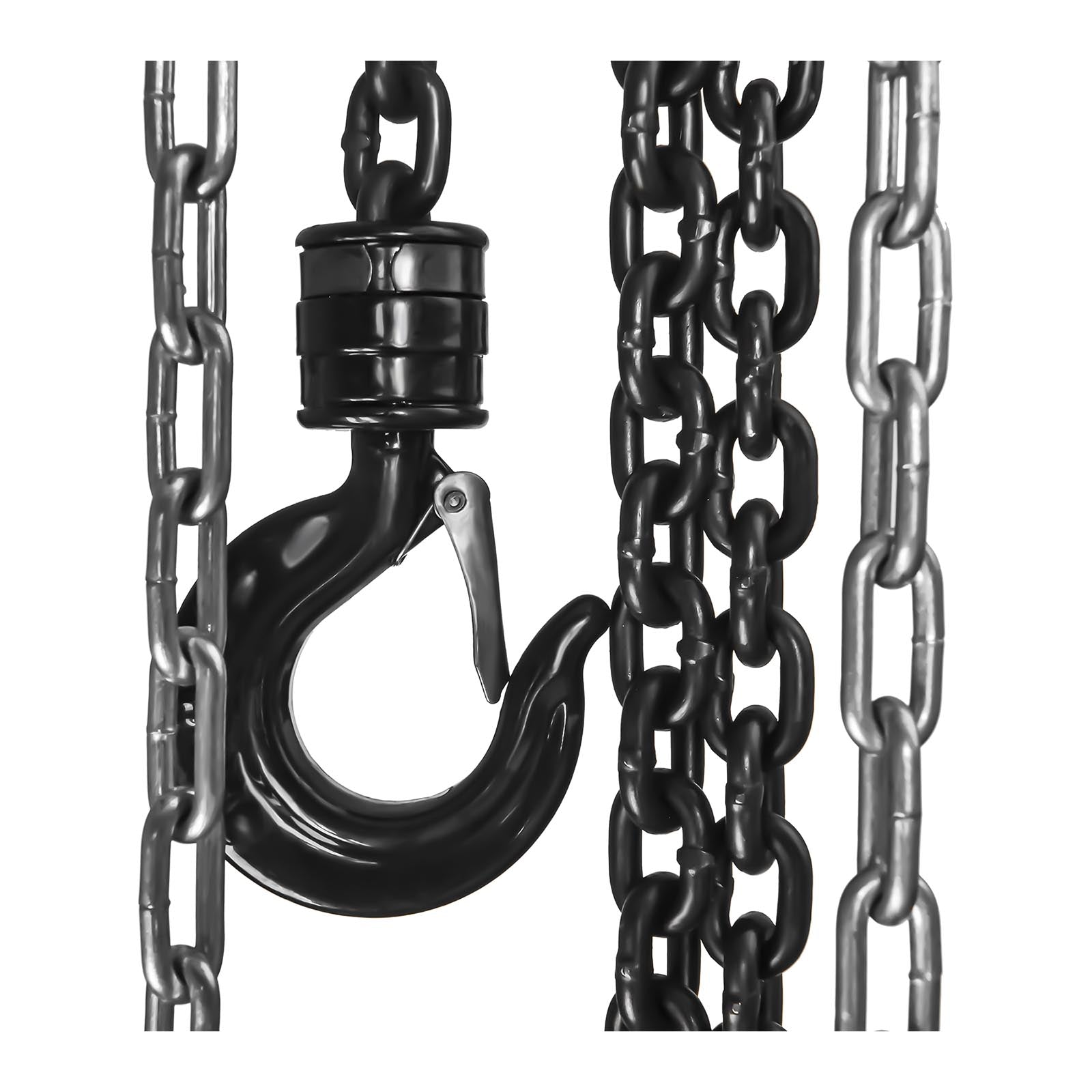

with two rotating hooks and light-weight levers connected with a mechanism inside the enclosure. It allows for comfortable lifting and lowering of the object.
Product features: - - Productivity - maximum load capacity up to 1 T enables lifting of objects up to 12 m,
- - Comfort - a control lever and a safety mechanism which stops the operation of the equipment when the chain is loose,
- - Security - steel construction, high quality of construction, two rotating hooks and a lever with anti-slip handle.
Technical parameters: - - Model - SBS-FZ 1000/12M
- - Catalog number - 10030373
- - The state of the article - New
- - Maximum capacity - 1000 kg
- - Material - Steel
- - Maximum lifting height - 12 m
- - Minimum distance between hooks - 265 mm
- - The required force to lift the weight - 340 N
- - Chain type - G80
- - Number of carrier chains - 1
- - The diameter of the chain link - 6 mm
- - Dimensions (DxSxW) - 14.5 x 13.3 x 23.5 cm
- - Weight - 21.2 kg
- - Dimensions of dispatch (DxSxW) - 42 x 21 x 18.5 cm
- - Weight of shipping - 22.6 kg
Included: - Chain winch
- EN Instructions
