Description
Manufacturer's name:

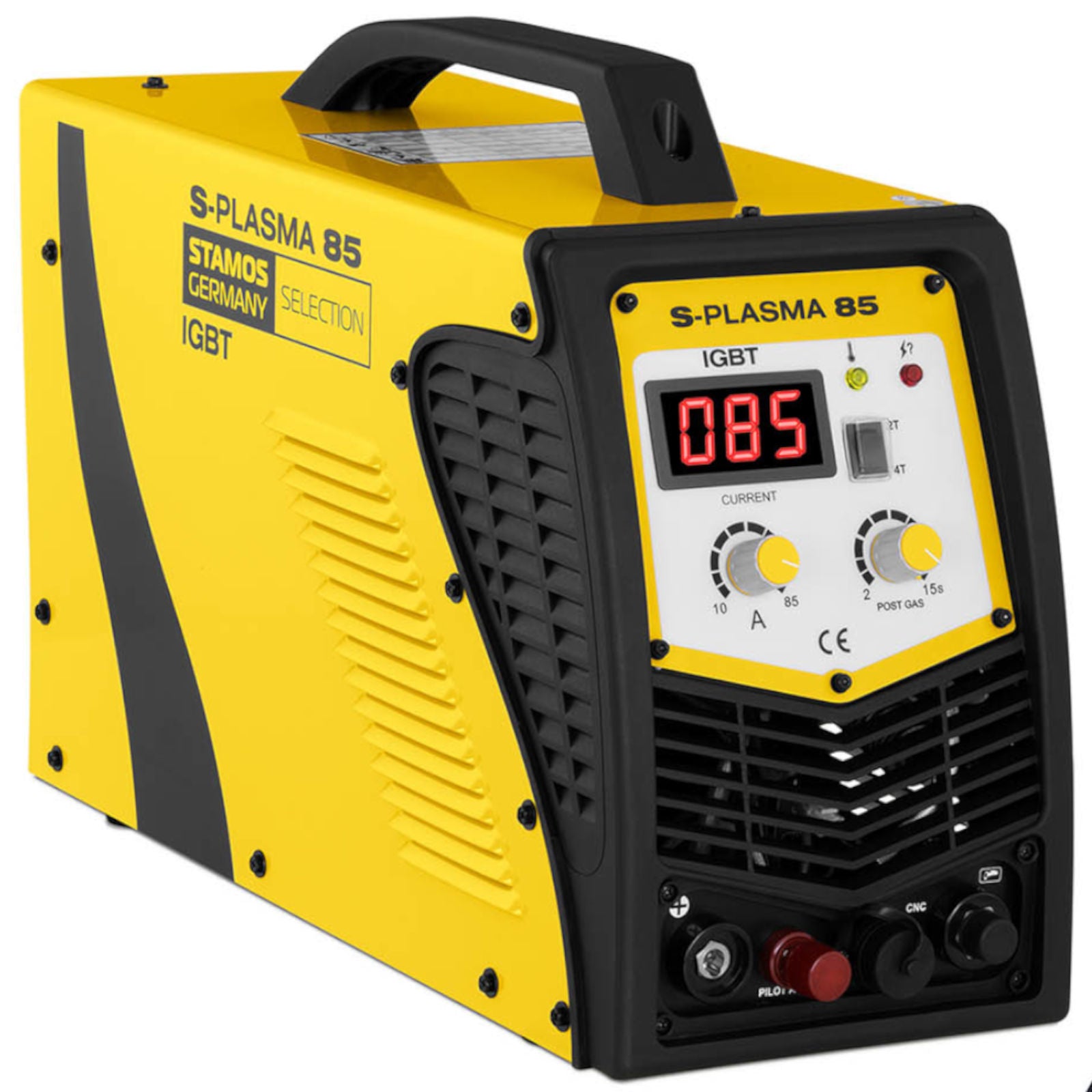

S-PLASMA 85CNCPlasma cutting machine of the German welding market leader
STAMOS GERMANY is able to achieve
maximum cutting current 85 AThis will allow for efficient processing of materials such as steel, nickel, aluminium, copper and other electroconducting metals. This will allow the equipment to be used in many industries requiring precise metal cutting.
In the device used advanced
technology IGBTIt uses special bipolar transistors with an isolated gate which
ensure reliability.
Quick switching of parameters and
low risk of tension is guaranteed by a three-phase semiconductor element. IGBT also affects small device size while maintaining high parameters.
Product features: -
- Functionality - for cutting steel and other electroconductive metals (titanium, copper, brass, etc.)
- - Universality - special socket allows connection of CNC plotter cutter
- - Productivity - modern IGBT technology and contactless arc glow ensure smooth and stable operation,

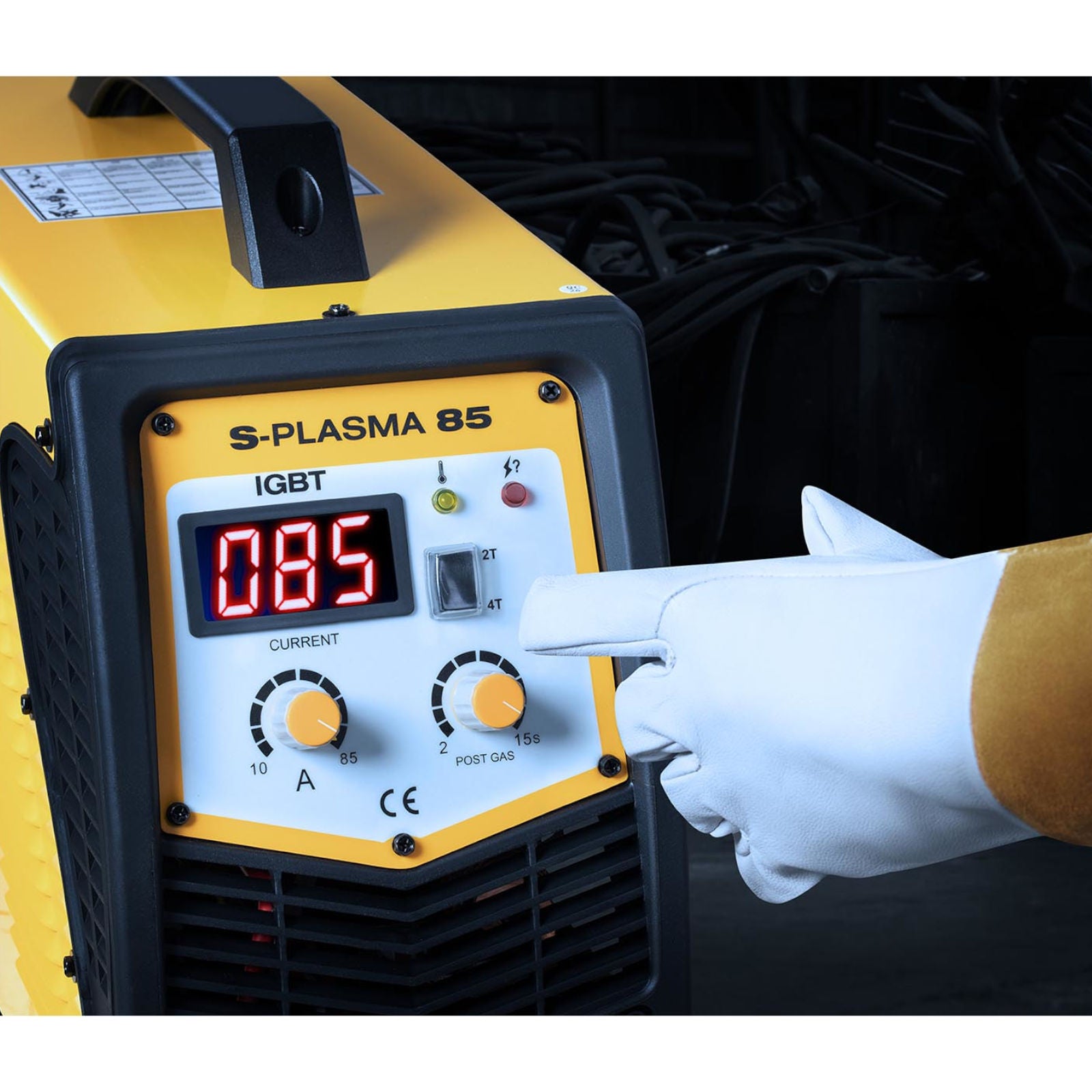

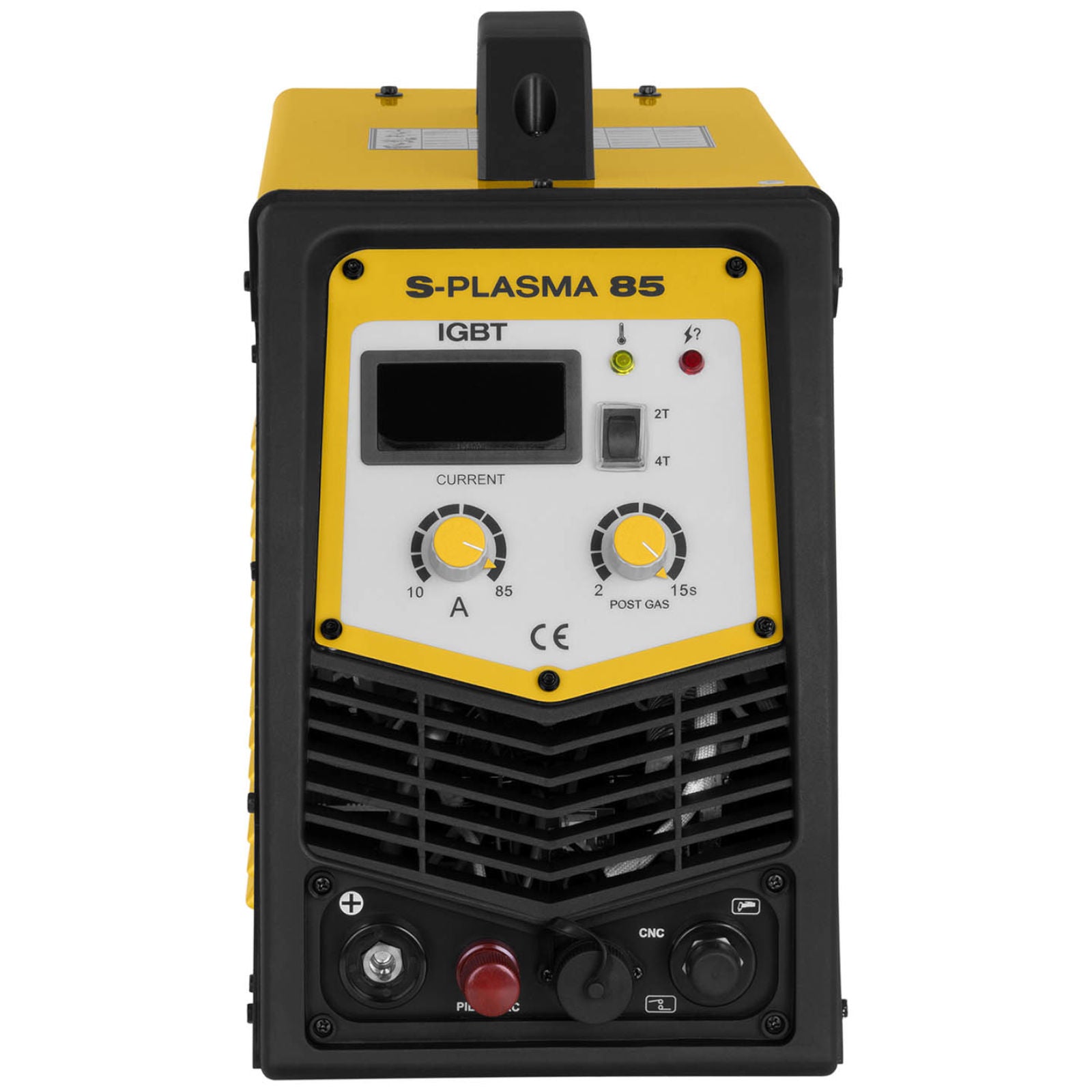

- - Simple operation - large knobs and switches allow precise setting of operating parameters without removing gloves,
- - Reading - LED display shows the current even in dark spaces, and LEDs inform about the drop in air pressure,

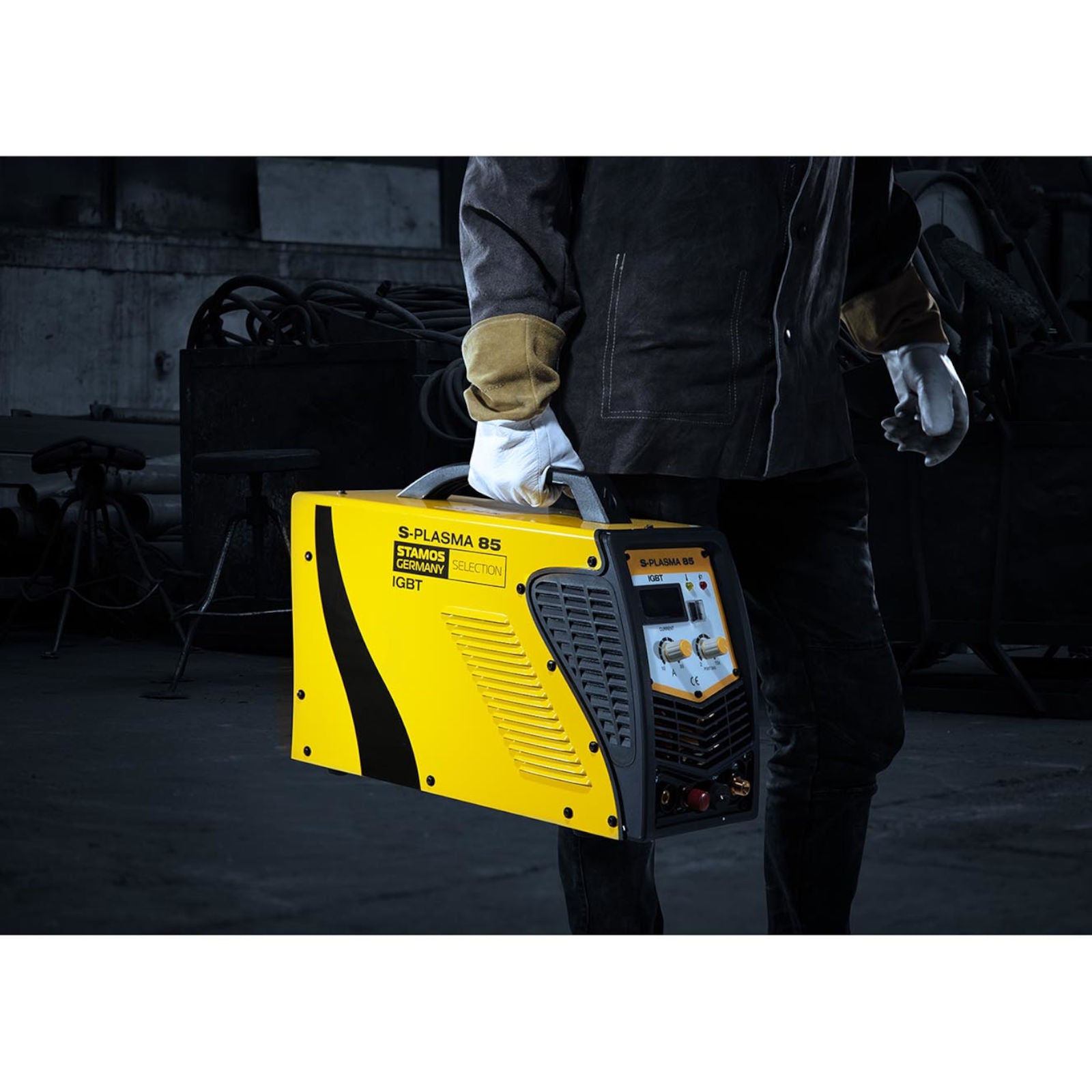

- - Easy transport - comfortable handles, small size and weight allow for smooth transfer of the cutters according to needs,
- - Convenience - long 5 and 4 meter wires guarantee freedom of movement during cutting and facilitate work in difficult places,

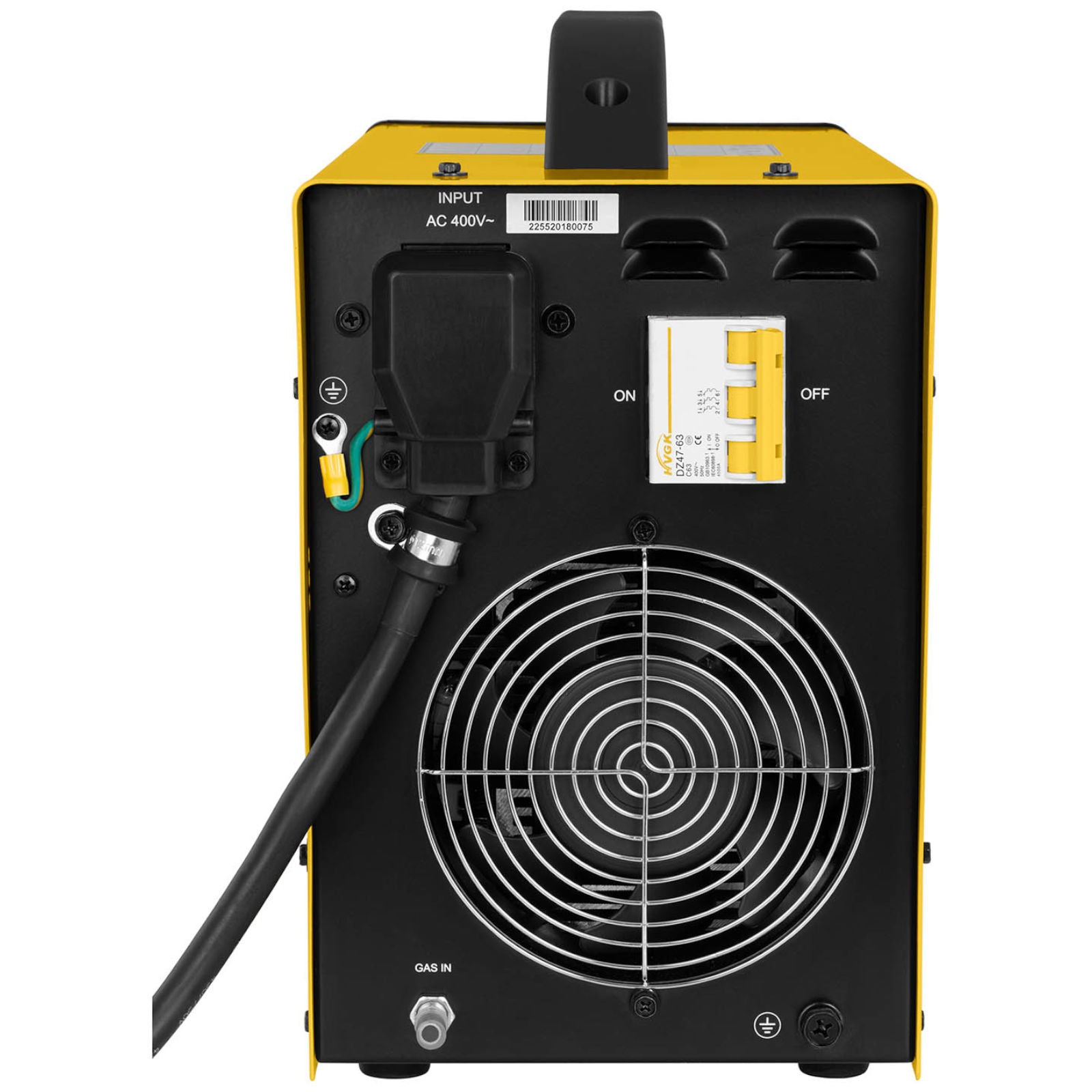

- - Security - built-in fan guaranteeing heat discharge,
STAMOS devices have been made according to strict European standards and have undergone CE and RoHS conformity tests. This guarantees long service life and high quality of the device.Technical parameters: - - Model - S-PLASMA 85CNC
- - Catalog number - 2079
- - The state of the article - New
- - Tension/frequency - 400 V (3 phases)/50 Hz
- - Function - Plasma cutting
- - Input rated current - 13,2 A
- - Maximum input current - 18,6 A
- - Input rated power - 13.2 kVA
- - Maximum input power - 18.6 kVA
- - Voltage without load - 280 V
- - Cut current - 20–85 A
- - Cycle of work - 60%
- - Cutting current in the cycle 60% - 85 A
- - Cutting current in the cycle of work 100% - 65,8 A
- - The final gas flow time - 5, 10, 60 s
- - Ventilation - Windmills
- - Cooling the handle - Gas
- - Length of the earthing duct - 3 m
- - The length of the wire to cut - 5 m
- - Air snake length - 4 m
- - The length of the power cord - 3.8 m
- - Maximum thickness of cut material - 27 mm
- - Cutting width - 1,2 mm
- - Required air flow - 175 l/min
- - Air pressure - 5.5 bar
- - Insulation class - F
- - IP protection - IP21s
- - Compliance with standards - EN 60974–1 / EN 60974–10
- - Declaration of conformity - CE
- - Dimensions (DxSxW) - 56 x 22 x 37 cm
- - Weight - 20.1 kg
- - Dimensions of dispatch (DxSxW) - 65.5 x 37.5 x 45 cm
- - Weight of shipping - 26.5 kg

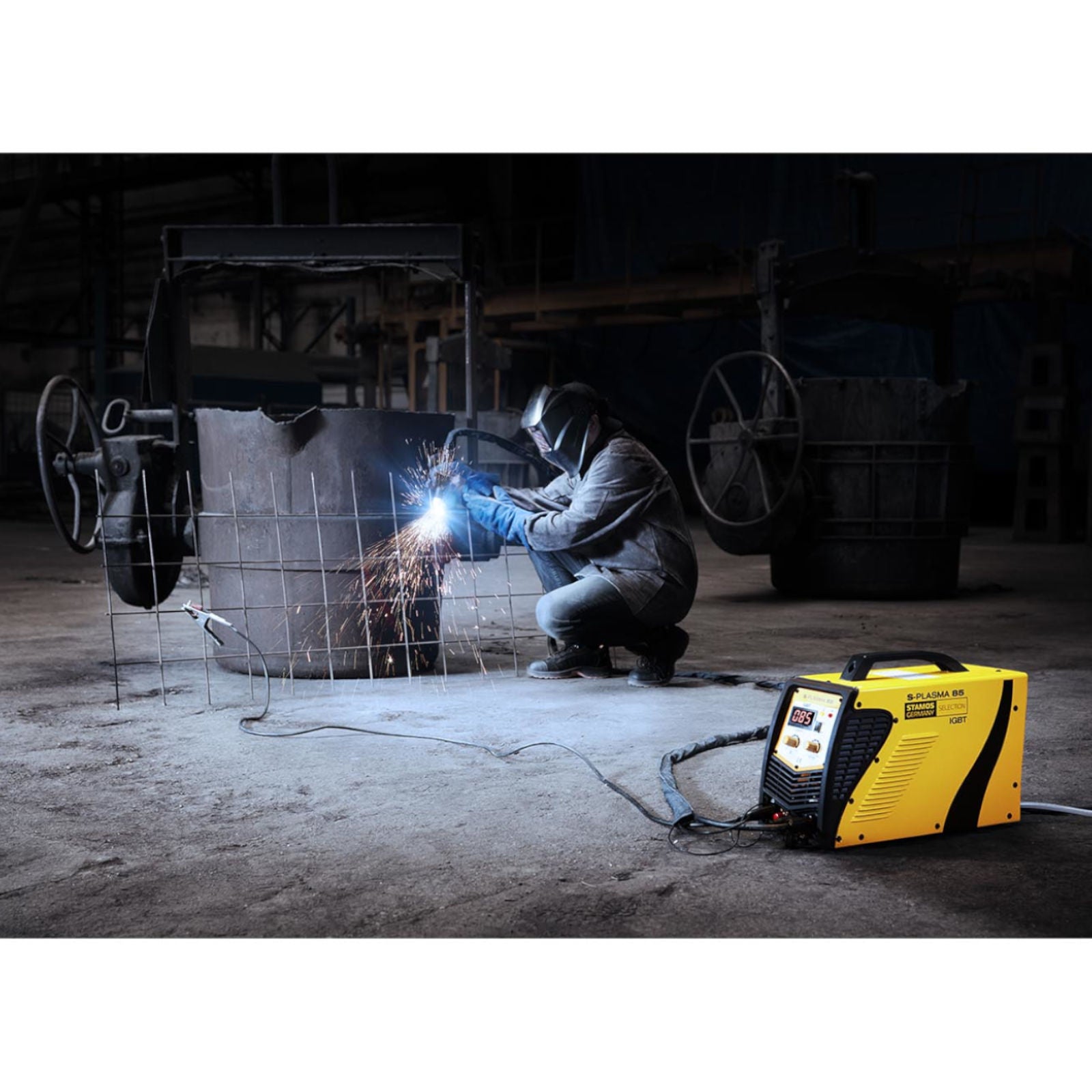

Working methods: - Plasma cutting - thanks to the current up to 85 A, the device will easily cut through such metals as iron, stainless steel, iron, copper or aluminum. Air pressure is variable continuously, allowing precise control of the plasma stream. Non-smoking material, small amount of distortion and smooth cutting gap are part of the advantages resulting from the use of the multifunctional Stamos Germany device.
Functions of the device: -
- 2T/4TWhen using the first one, press the button will trigger the cut initiations and let the process stop. In the case of the four-track, the user does not have to keep the buttons constantly, because the button starts or ends working,
-
- Non-contact plasma arc involvement allows you to start cutting without contacting the workpiece, which reduces the wear of operating parts and improves the performance of the work,
-
- Gas Post-Flow TimeIt's anti-oxidizing the weld,

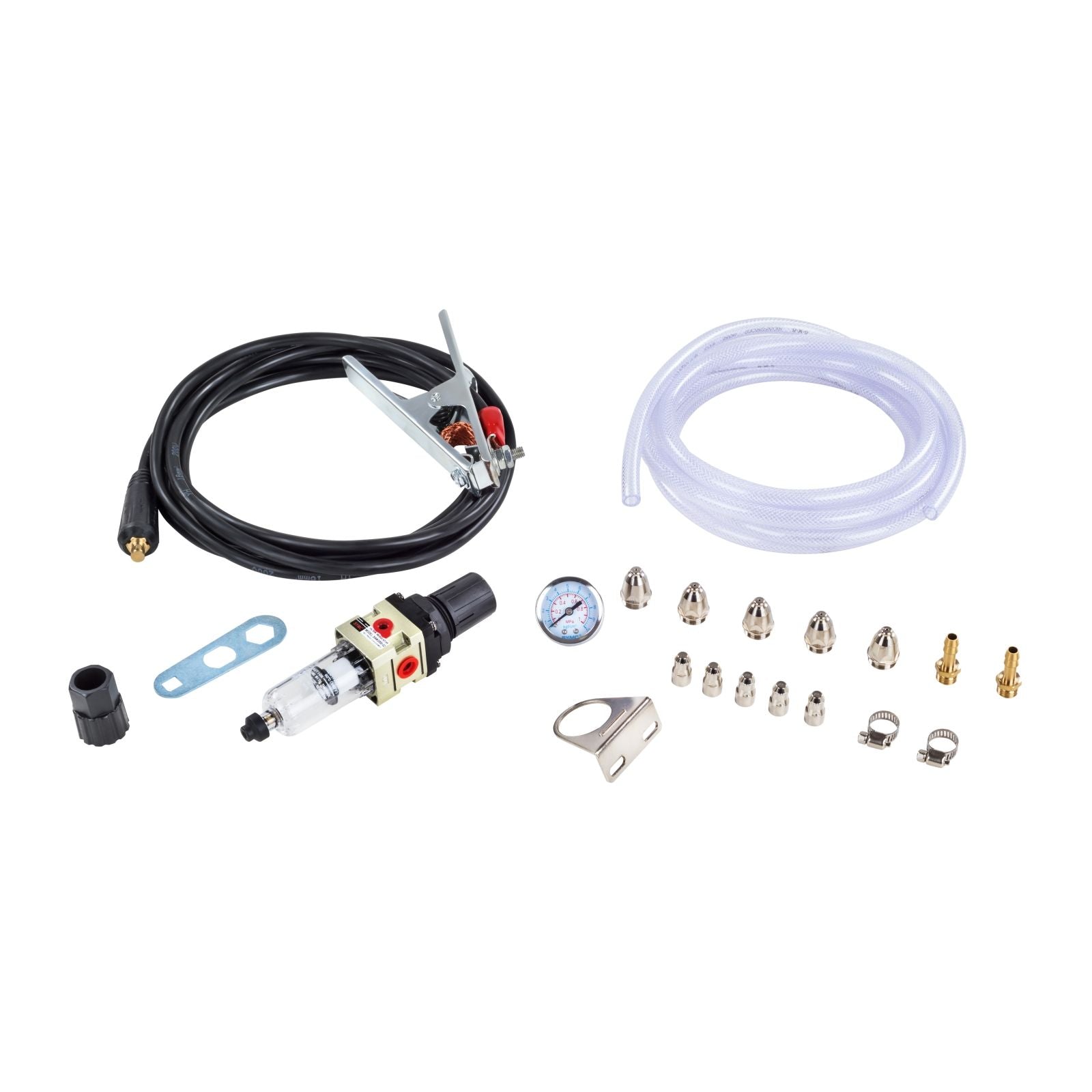

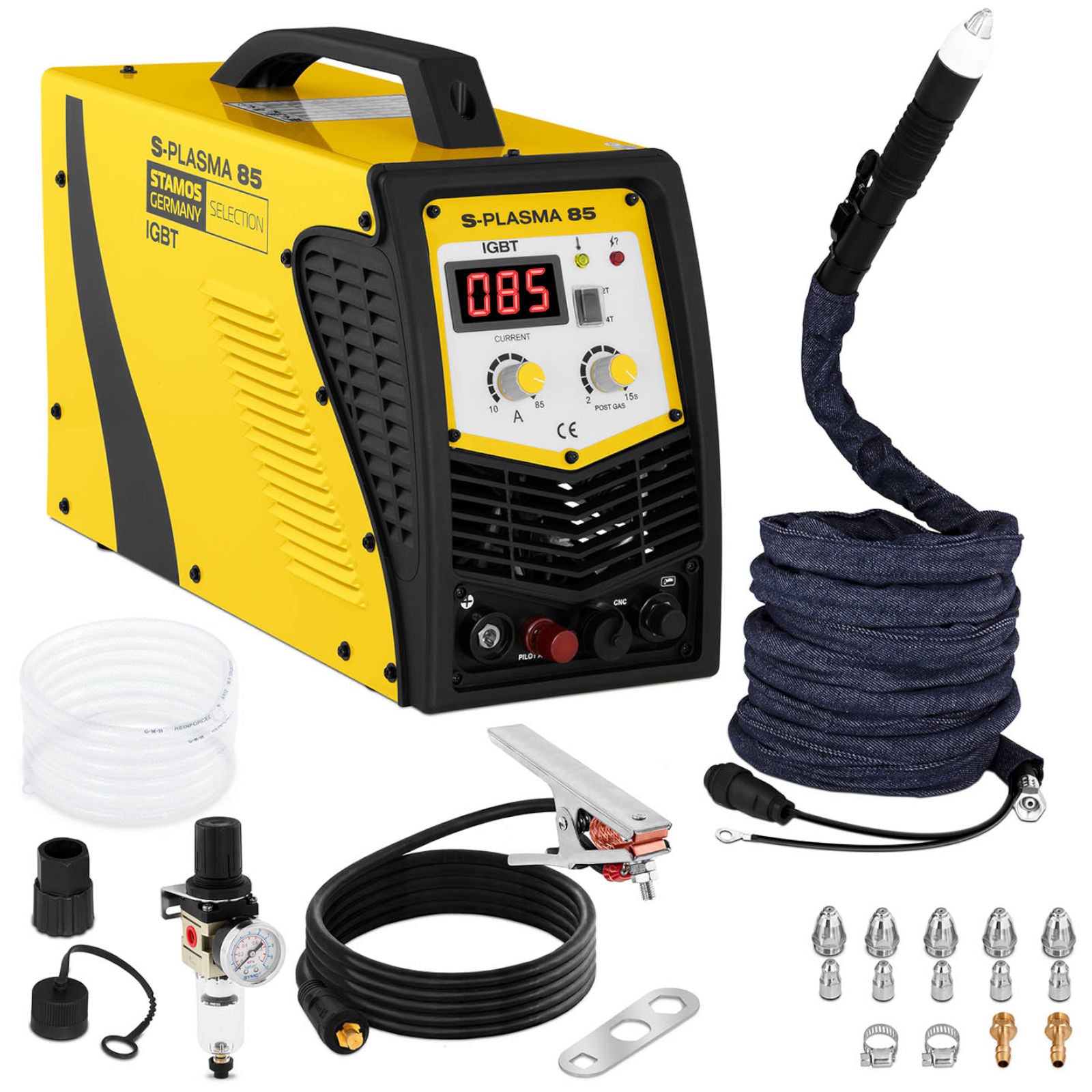

Included: - - S-PLASMA 85CNC cutter

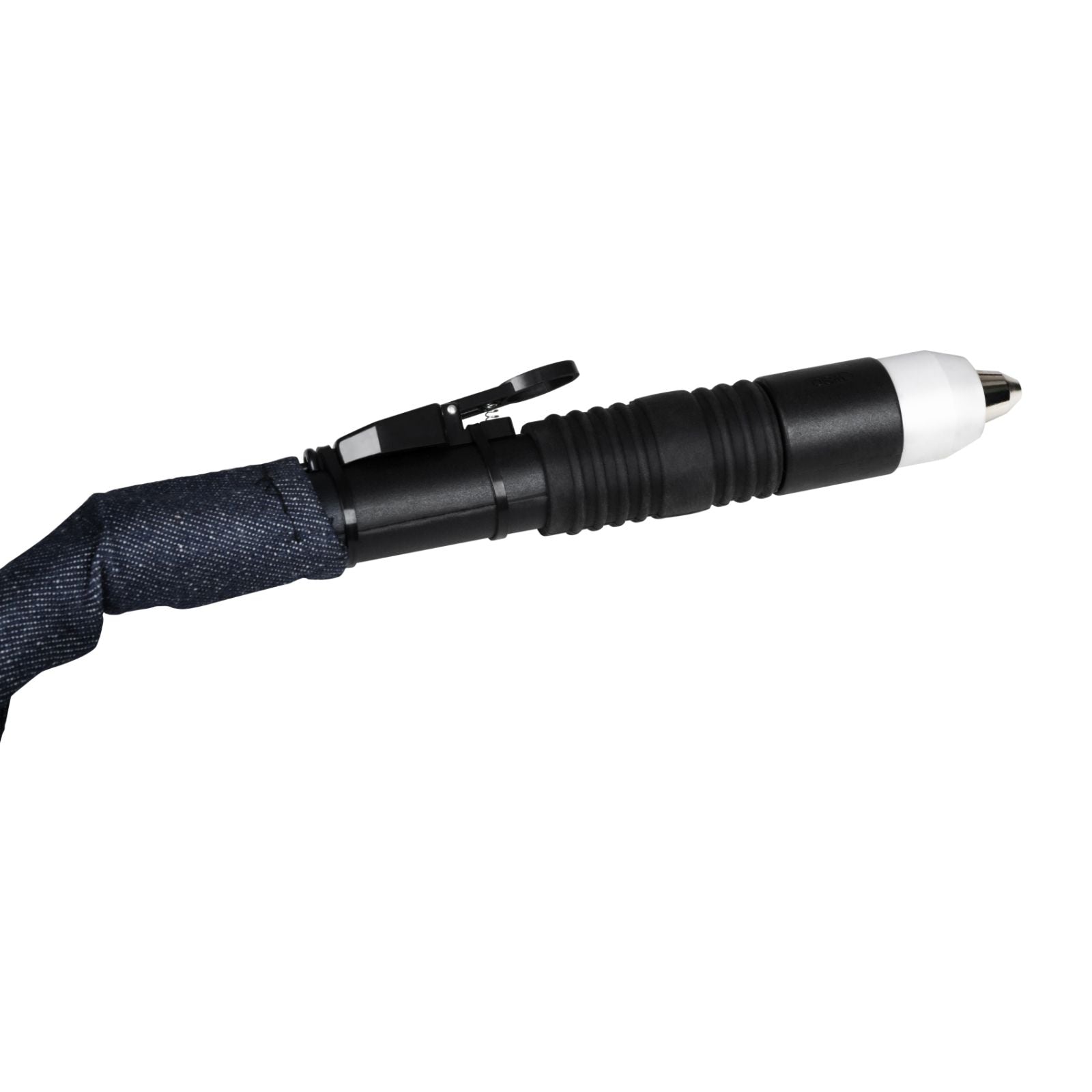

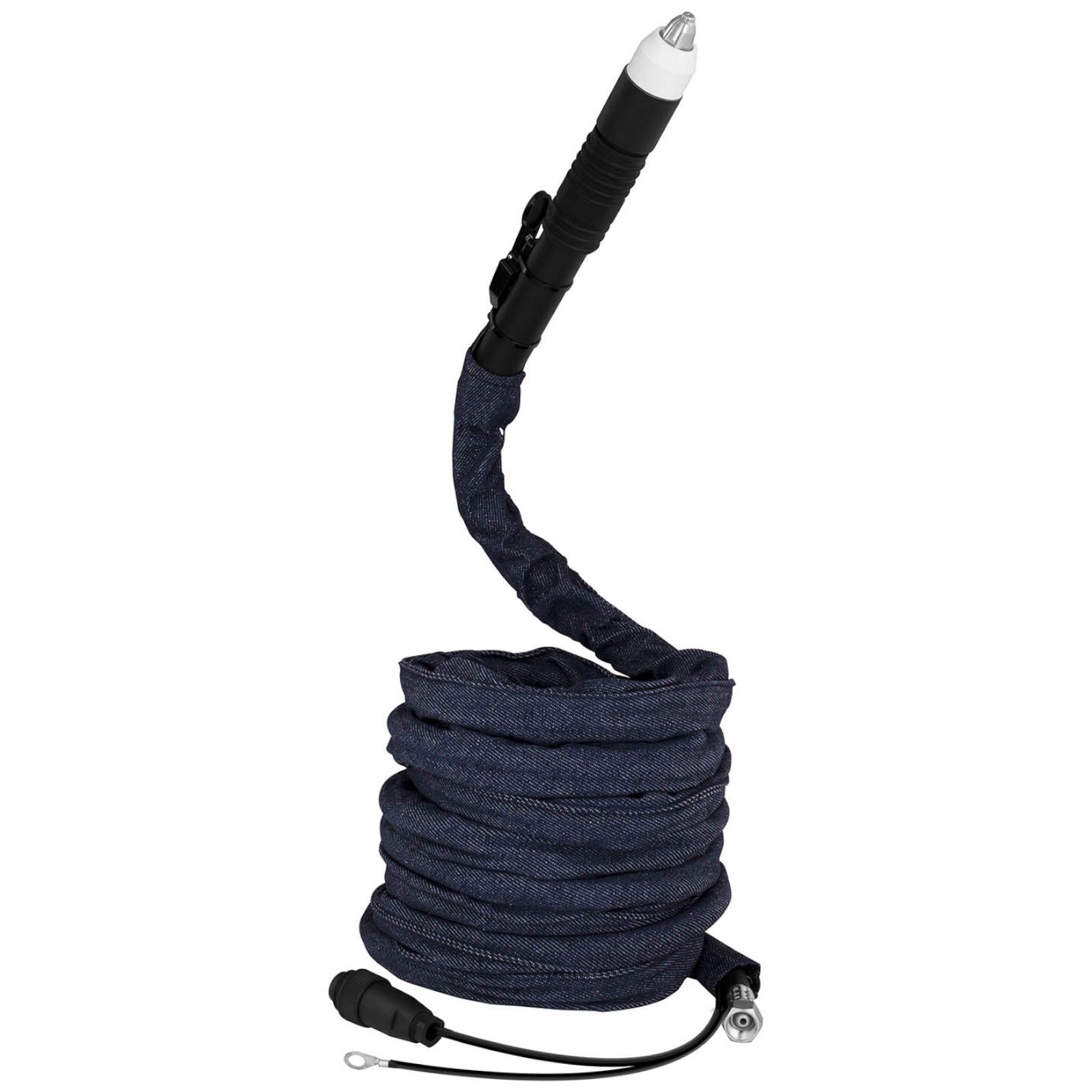

- - Plasma cutting handle 5 m
- - Grounding cable with clamp 4 m
- - Air cable 4 m
- - Pressure regulator
- - The manometer.
- - Cutting handle components
- - PL Manual
