Description
Manufacturer's code:

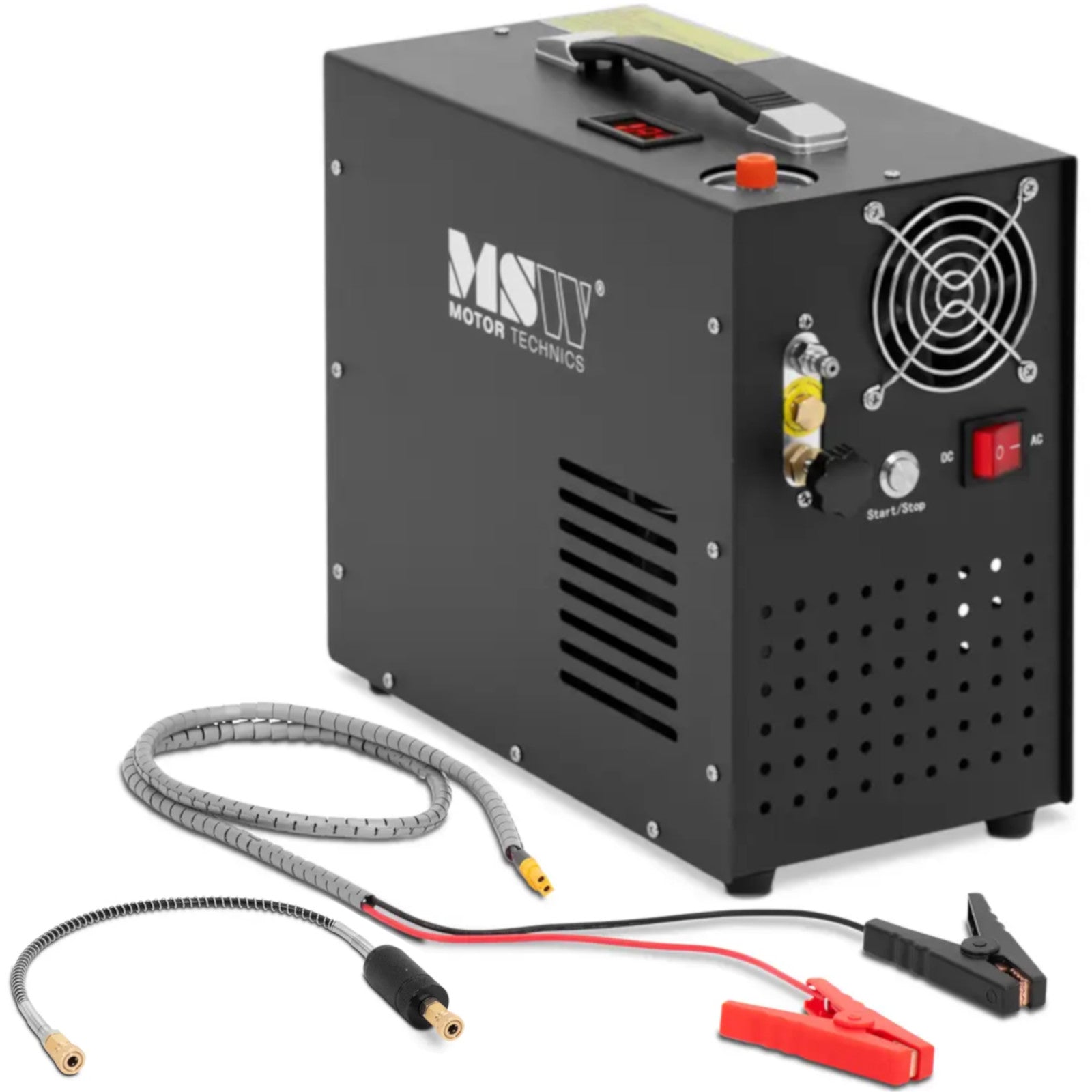

10062686Using the PCP compressor from MSW, you can fill various equipment with compressed air, e.g. paintball guns or air guns. Diving tanks will also be refilled just as quickly.
The compact device is powered by a 230 V socket and a 12 V battery. Therefore, the PCP compressor can be used anywhere and thus provide compressed air in the necessary devices. The compressor operates at a maximum pressure of 300 bar.

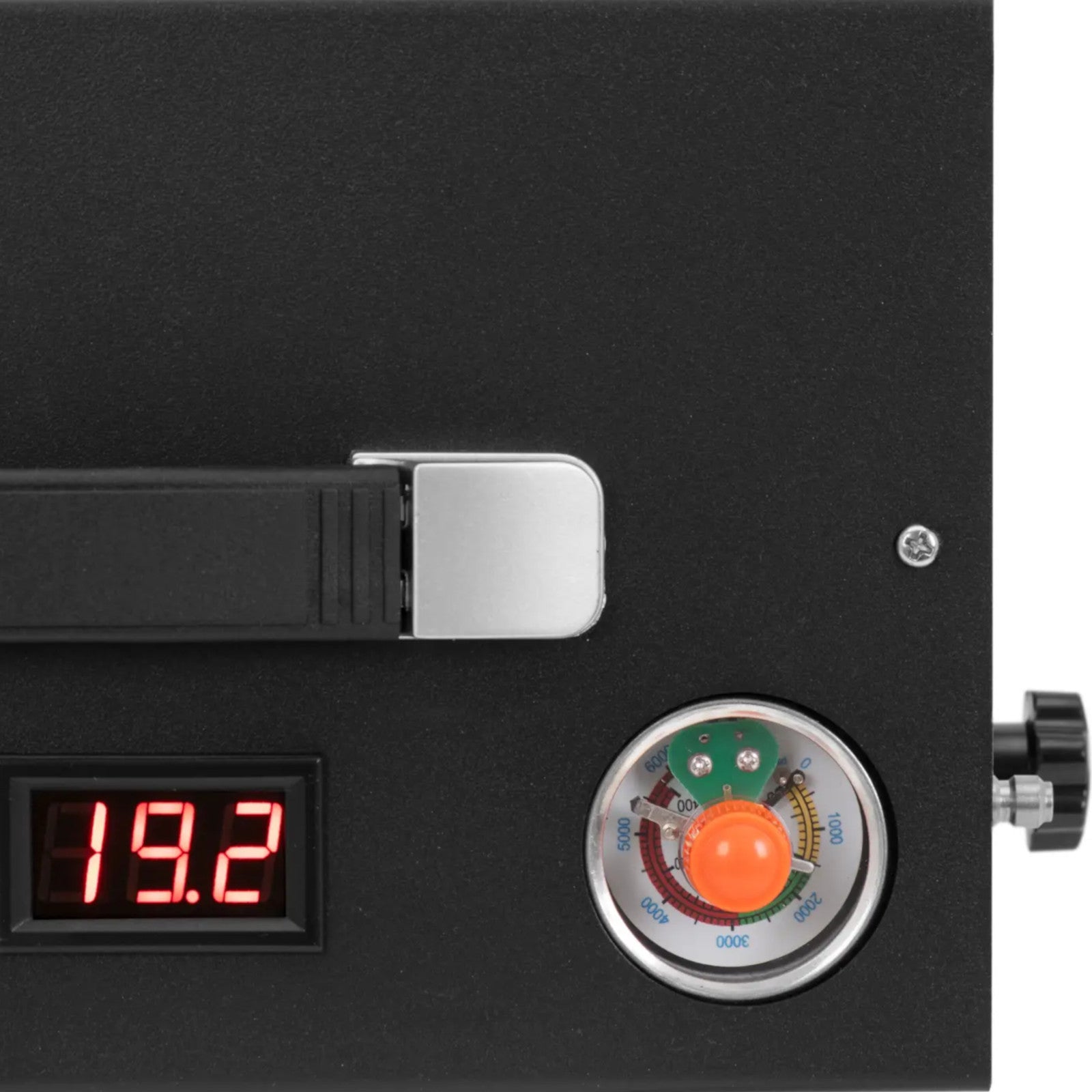

It needs 16 to 17 minutes to fill a 0.5 l tank to a pressure of 300 bar. Just set the desired pressure on the device and it will turn off automatically when it is reached. The air compressor does not require intensive maintenance because it is oil-free cooled by a fan. The device separates water and oil particles. The result is clean air confined in cylinders. Additionally, the valve will remove any deposits. Using the displays, you can check the temperature and set pressure, so all parameters will always be under control. Presenting the operating temperature in real time will allow you to safely keep it below 70 degrees Celsius.

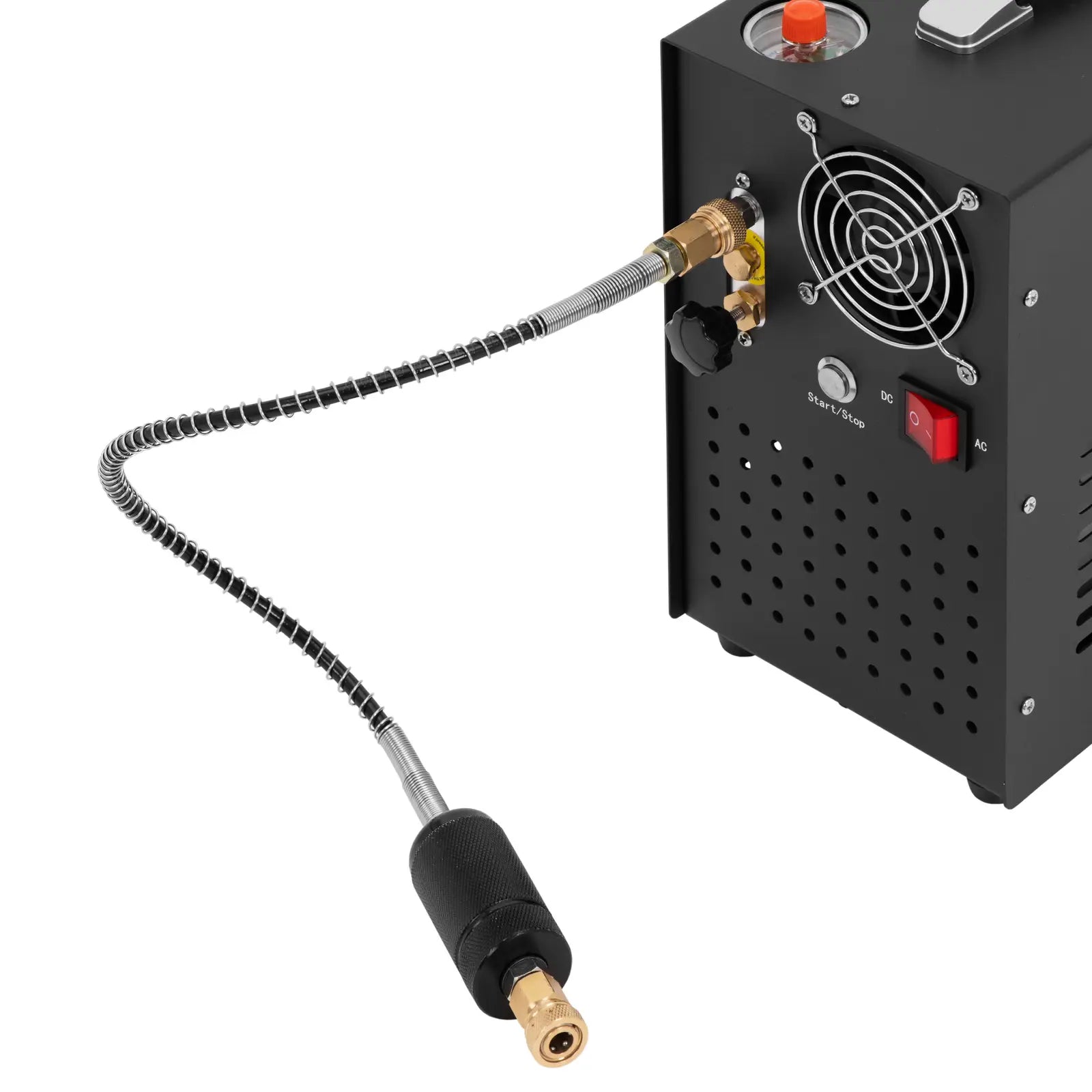

During filling, the compressor will reach a filling speed of 2880 rpm Using an 8 mm quick connector, you can efficiently connect the filling nozzle to the tanks. The compact and light device can be easily taken with you.
Product features: - - Regardless of whether you need to fill a diving cylinder, an air rifle or a paintball gun, the PCP compressor will provide compressed air to various devices,
- - The PCP compressor reaches a pressure of 300 bar and will fill a 0.5 liter cylinder in approx. min,
- - The drain valve of the diving cylinder compressor will automatically drain sediments outside,
- - Compact design, integrated air cooling and low weight will facilitate the transport of the compressor to the place of use,
- - The temperature and operating pressure can be easily set on the PCP compressor, and when the specified air pressure is reached, the device will turn off automatically,

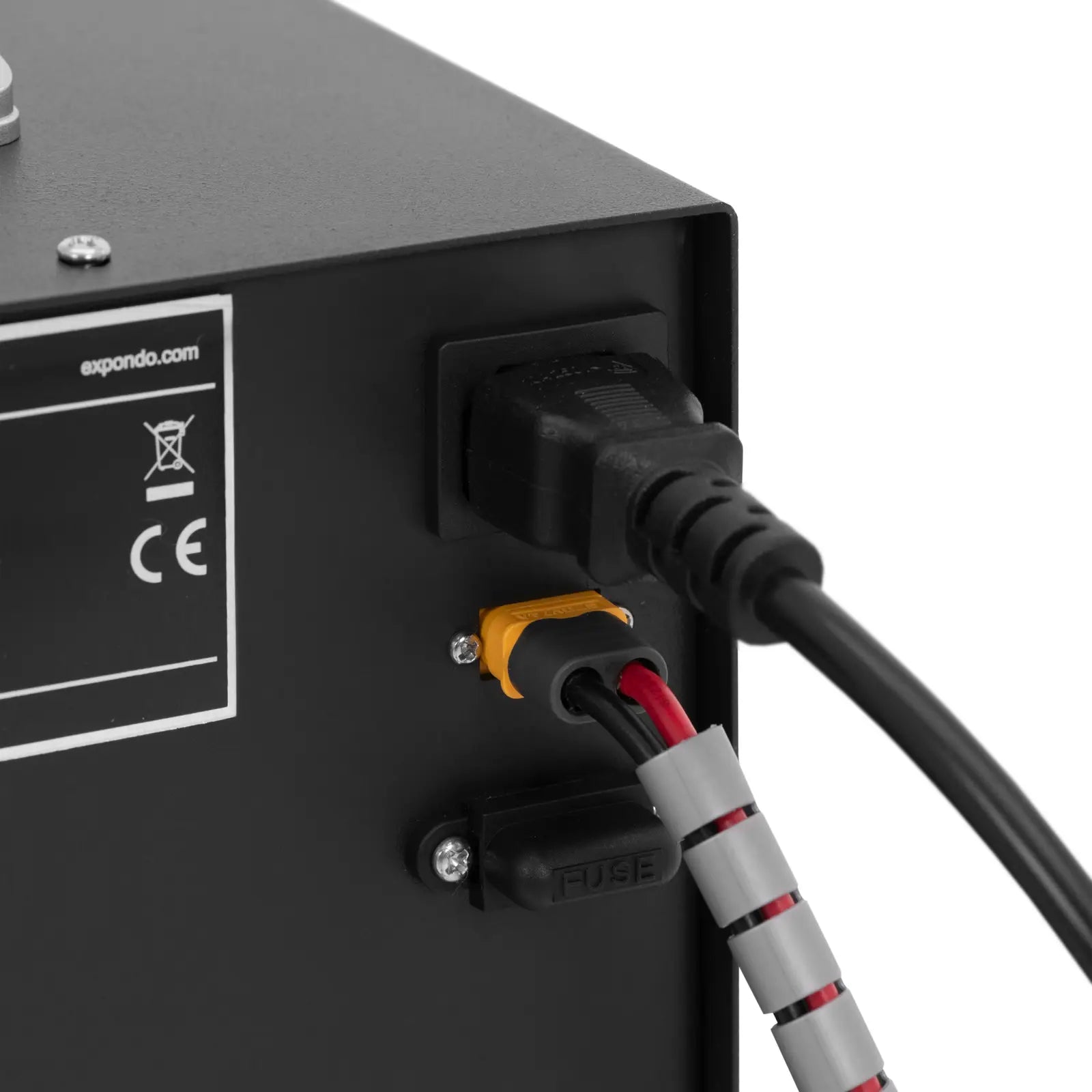

- - Thanks to the built-in adapter, the PCP compressor can be powered by 12 and 220 V AC.
Technical parameters: - - Catalog number - 10062686
- - Article condition - New
- - Model - MSW-PCPAIR 400
- - Material - Aluminum, Galvanized iron sheet
- - Color - Black
- - Rated speed [rpm] - 2880
- - Power [W] - 400
- - Air flow speed [l/min] - 12
- - Working pressure [bar] - 300
- - Filling speed - 0.5 l cylinder: 16 - 17 min 0 - 300 bar
- - Maximum working pressure [psi] - 4500
- - Cooling system - Air cooling
- - Working voltage [V] - 12 / 110 / 220
- - Working pressure [MPa] - 30
- - Working temperature range [deg C] - -10 / 70
- - Power cord - 150 cm
- - Hose length - 100 cm
- - Connection - 8 mm
- - Tank capacity - 1.5 l
- - Noise level - 78 dB
- - Maximum pumping volume - 1000 cm³
- - 12 V output - Yes

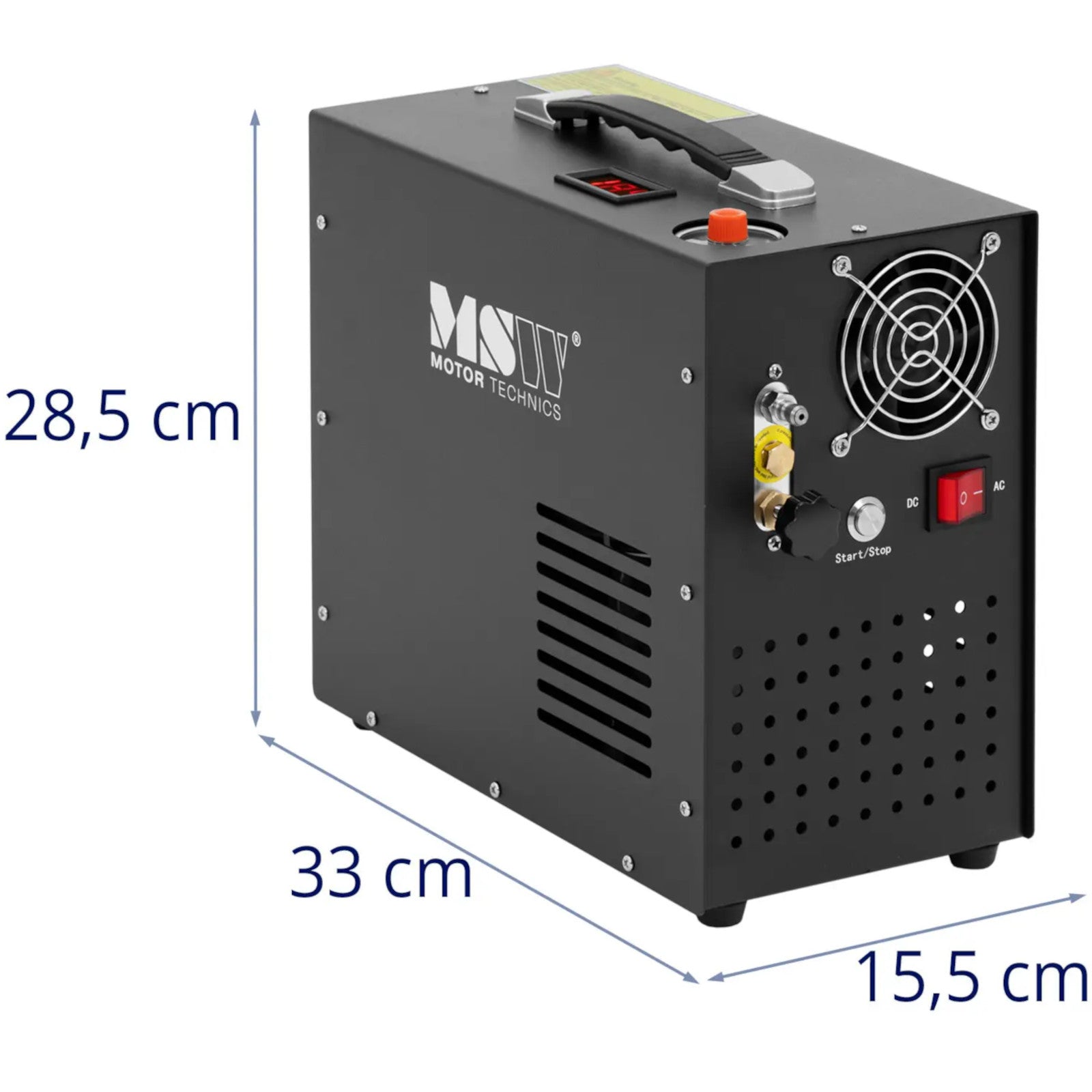

- - Dimensions (LxWxH) - 15.5 x 33 x 28.5 cm
- - Weight - 9.07 kg
- - Shipping dimensions (LxWxH) - 23 x 37.7 x 36.5 cm
- - Shipping weight - 10.12 kg

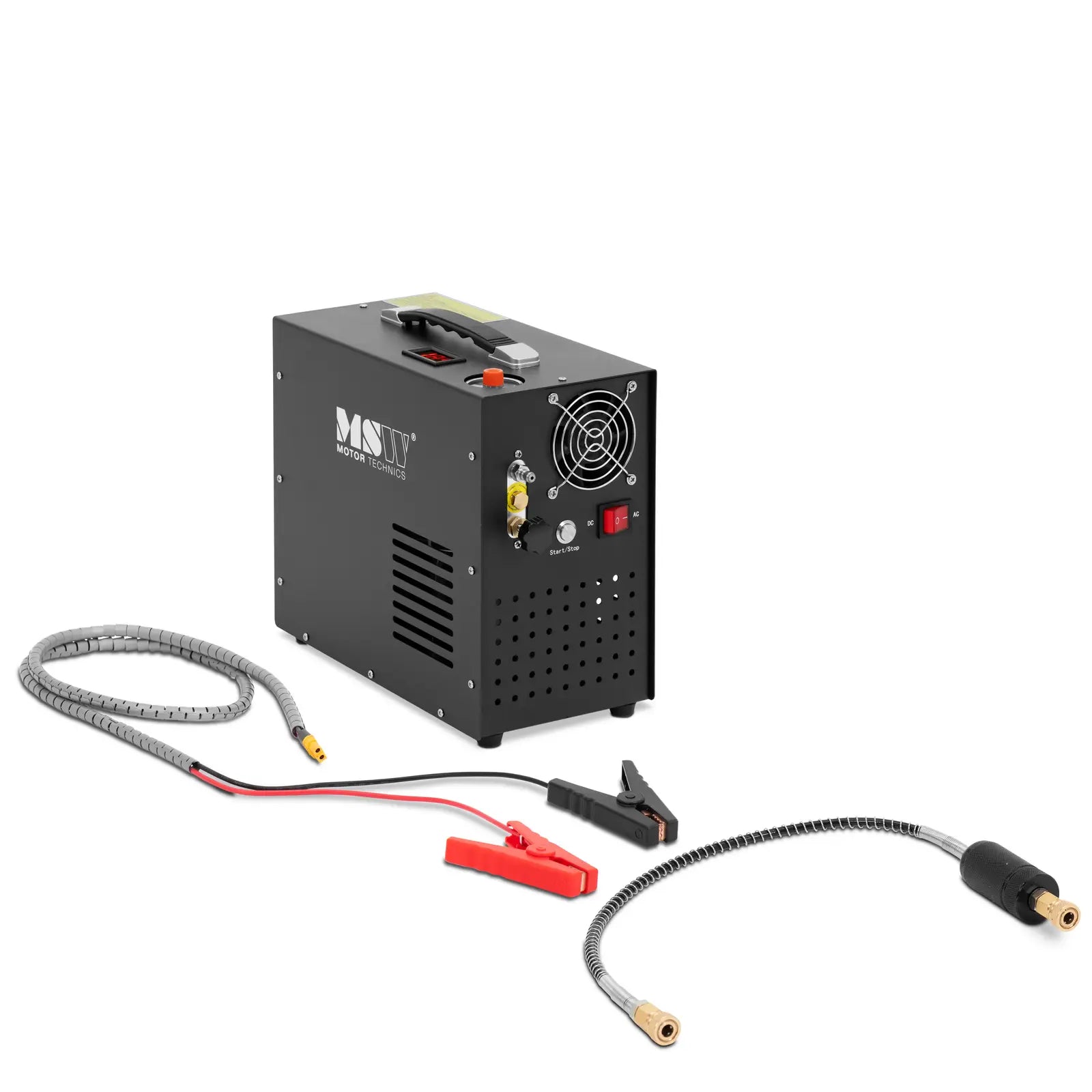

Included in the set: - - PCP compressor
- - Power cable
- - Jumper cables
