Description
Manufacturer's code:

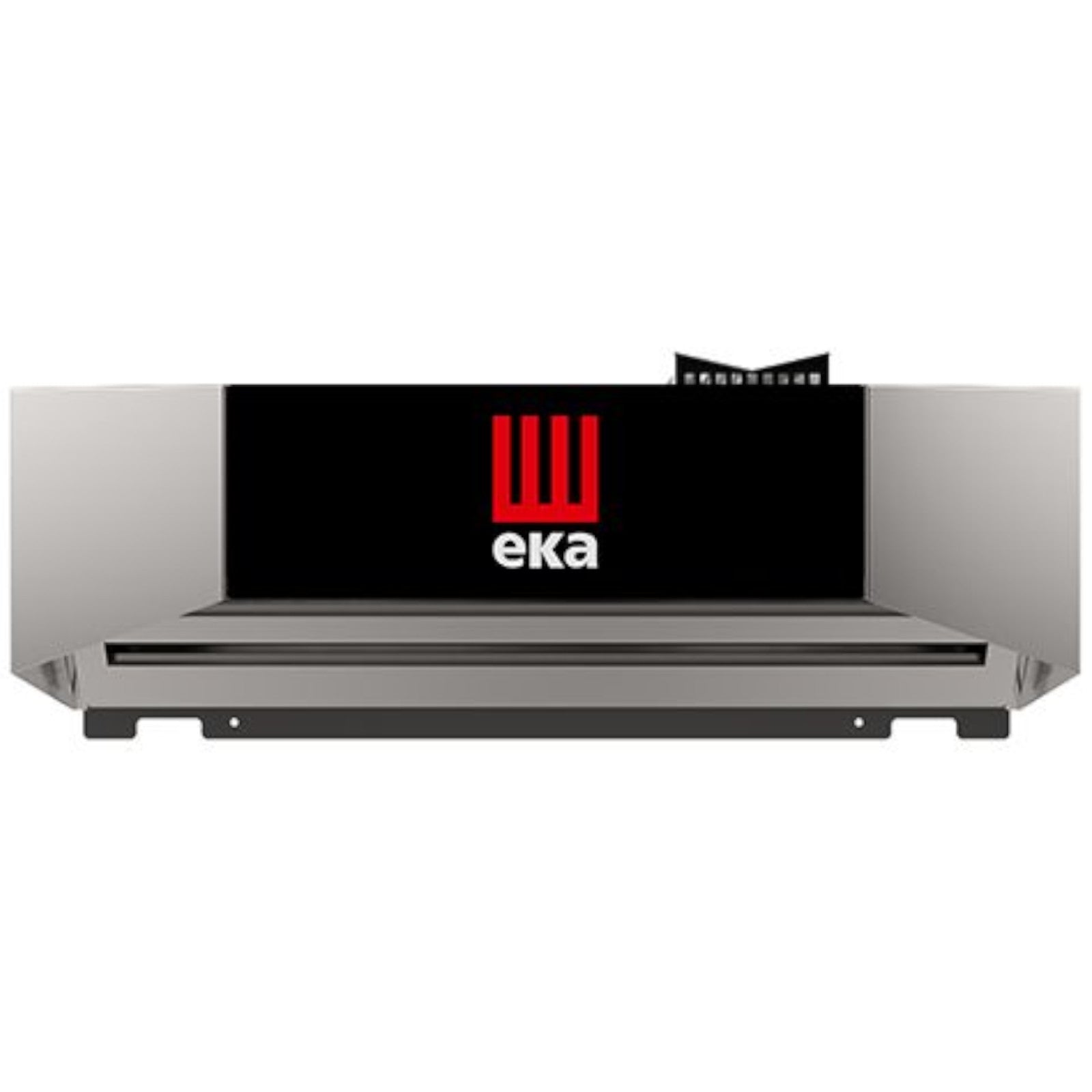

1030737Condensation hood Tecnoeka fits
Millennial Smart stoves with a capacity of 5x GN 1/1. It is equipped with a single-phase motor with one direction of rotation. The maximum air flow is
from 400 m3/h to 600 m3/h. The housing is made of the highest quality AISI 430 steel. Connection to fresh water is made via a 3/4" connector with a pressure of 100-200 kPa (1.0-2.0 bar). The device does not require connection to a permanent duct or ventilation chimney.
Product features: - - For Millennial Smart furnaces with a capacity of 5x GN 1/1,
- - Air flow 400-600 m3/h,
- - AISI 430 steel casing,
- - Fresh water connection.
Technical parameters: - - Brand - Tecnoeka
- - Voltage - 230
- - Input power (W) - 600
- - Dimensions (mm) - 730 x 860 x 308
The set includes: - - Condensation hood
- - Water connection hose with thread 3/4 #8221, 1.5 m long
- - 1 filter labyrinth
- - Electric cable 1.6 m long
- - Sewage drain Ø 30 mm
