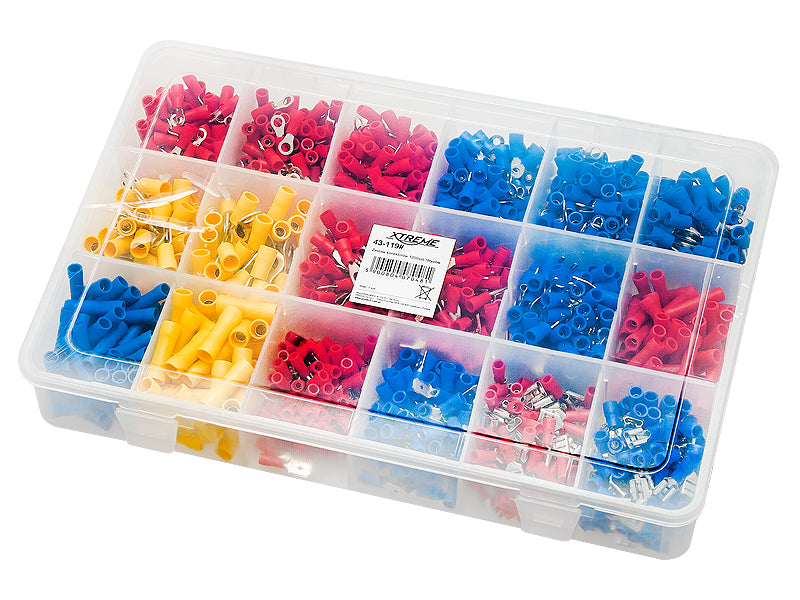

Connectors – 43-119# Connector Set, 1,200 pcs/18 types`

43-119# Connector Set, 1,200 pcs/18 types`

Set of insulated connectors, 1,200 pcs., 18 types

BINDER DIMENSIONS: Width: 280 mm Depth: 185 mm Height: 42 mm CONNECTOR SPECIFICATIONS: - Material: tin-plated steel - Insulation: PVC

LIST OF CONNECTORS

80 pcs.

Insulated eye connector, 3.2 screw, 4.3 cable

Conductor [mm²]: 0.5–1.5 Color: red I max [A]: 19 Screw size: M3

80 pcs.

Insulated eye connector, 4.3 screw, 4.3 cable

Conductor [mm²]: 0.5–1.5 Color: red I max [A]: 19 Screw size: M4

80 pcs.

Insulated eye connector, 5.3 screw, 4.3 cable

Conductor [mm²]: 0.5–1.5 Color: red I max [A]: 19 Screw size: M5

80 pcs.

Insulated eyelet connector—3.2 screw, 4.9 cable

Conductor [mm²]: 1.5–2.5 Color: blue I max [A]: 27 Screw size: M3

80 pcs.

Insulated eye connector, 4.3 screw, 4.9 cable

Conductor [mm²]: 1.5–2.5 Color: blue I max [A]: 27 Screw size: M4

60 pcs.

Insulated eye connector, 5.3 screw, 4.9 cable

Conductor [mm²]: 1.5–2.5 Color: blue I max [A]: 27 Screw size: M5

40 pcs.

Insulated eye connector, 5.3 screw, 6.7 cable

Conductor [mm²]: 4–6 Color: yellow I max [A]: 48 Screw size: M5

40 pcs.

Insulated eye connector, 6.5 screw, 6.7 cable

Conductor [mm²]: 4–6 Color: yellow I max [A]: 48 Screw size: M6

80 pcs.

Insulated spade connector, 3.2 screw, 4.3 cable

Conductor [mm²]: 0.5–1.5 Color: red I max [A]: 19 Screw size: M3

80 pcs.

Insulated fork connector, 4.3 screw, 4.3 cable

Conductor [mm²]: 0.5–1.5 Color: red I max [A]: 19 Screw size: M4

80 pcs.

Insulated fork connector, 4.3 screw, 4.9 cable

Conductor [mm²]: 1.5–2.5 Color: blue I max [A]: 27 Screw size: M4

50 pcs.

Insulated cable connector, 1.7 , length 26

Conductor [mm²]: 0.5–1.5 Color: red I max [A]: 19

50 pcs.

Insulated cable connector, 2.3 , length 26

Conductor [mm²]: 1.5–2.5 Color: blue I max [A]: 27

40 pcs.

Insulated cable connector, 3.4 , length 26

Conductor [mm²]: 4–6 Color: yellow I max [A]: 48

70 pcs.

Insulated male flat connector, cable 4.3 , tip dimensions 0.8/6.35 , length 20

Conductor [mm²]: 0.5–1.5 Color: red I max [A]: 10

70 pcs.

Insulated male flat connector , 4.3 cable, terminal dimensions 0.8/6.35 , length 21

Conductor [mm²]: 1.5–2.5 Color: blue Max. current [A]: 15

70 pcs.

Flat female connector, insulated cable 3.8 , terminal dimensions 0.8/6.35 , length 20

Conductor [mm²]: 0.5–1.5 Color: red I max [A]: 10

70 pcs.

Flat female connector, insulated cable 4.3 , terminal dimensions 0.8/6.35 , length 21

Conductor [mm²]: 1.5–2.5 Color: blue I max [A]: 15
