Description
Manufacturer's code:

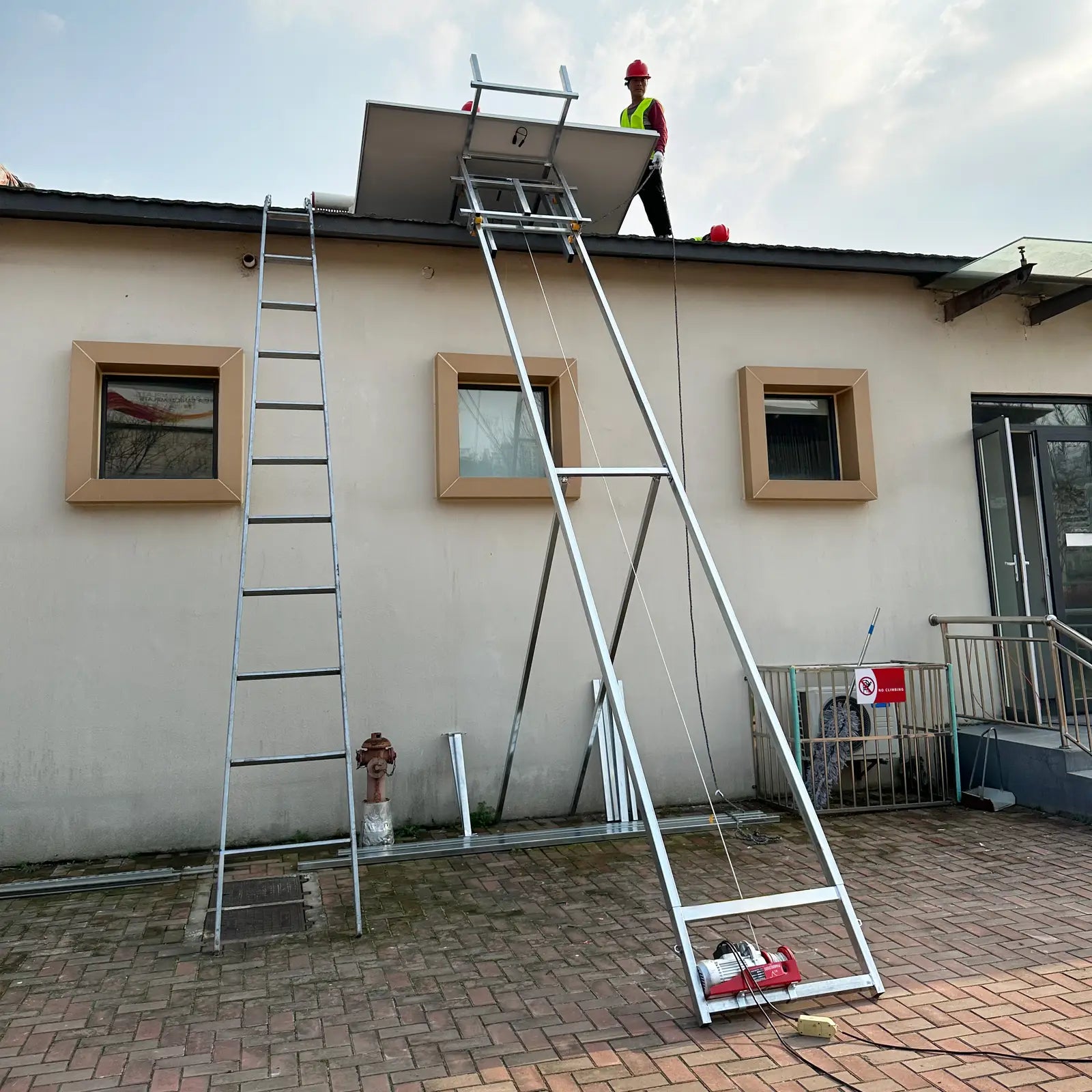

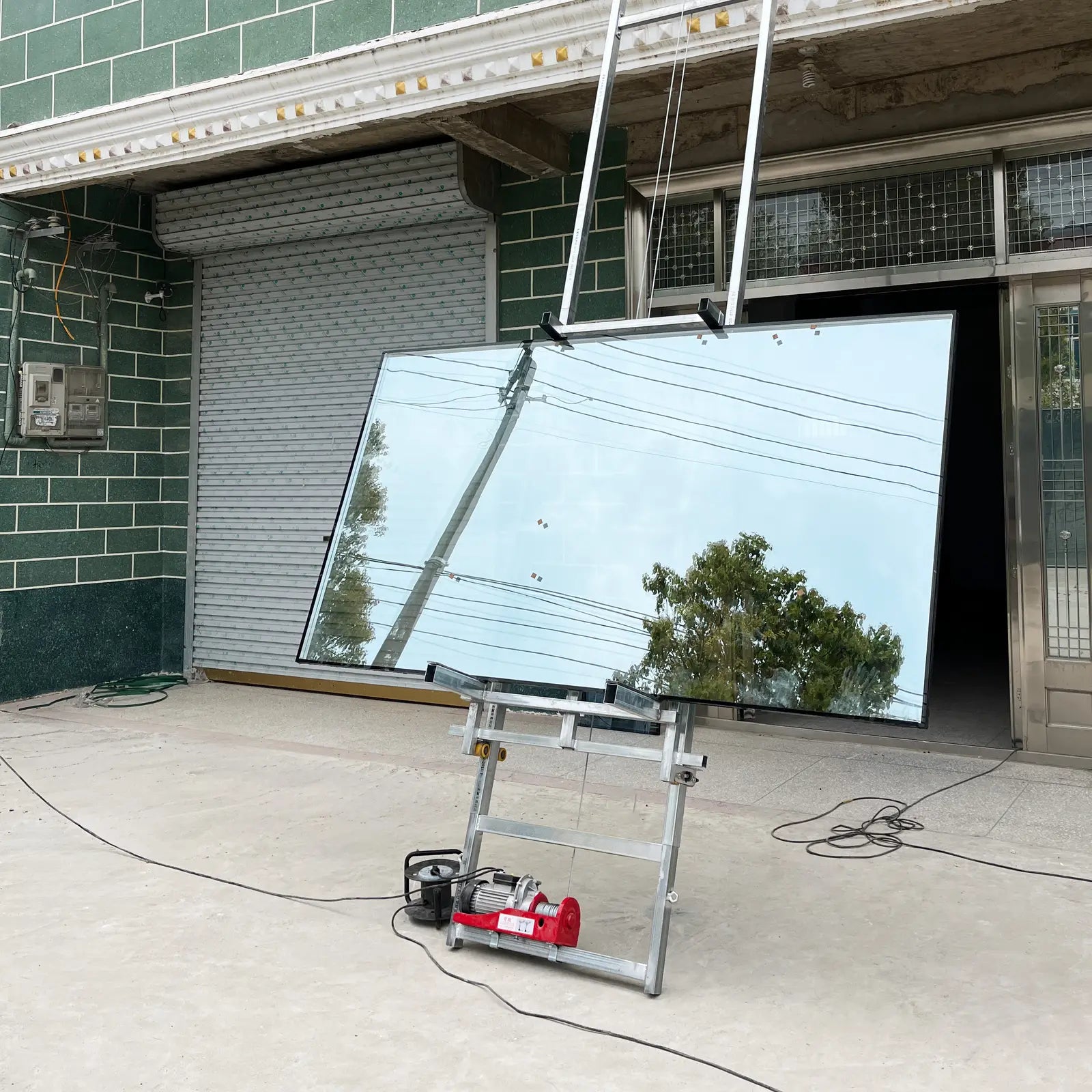

10062740The roofing lift with a 1500 W motor from MSW will lift up to 300 kg at a speed of 12 m/min. Thanks to its high lifting capacity, the device will efficiently transport materials, tools and solar panels to the roof and various floors.
The lift with a 150 x 70 cm platform will provide a maximum lifting height of 10 m. Thanks to its vertical design, the construction lift is suitable for a variety of projects, including flat roof work and other construction tasks. The ladder lift is characterized by low weight and a well-thought-out design that facilitates transportation and ensures quick disassembly and assembly. The special design will increase comfort on the construction site and at the same time improve transport and storage. The elevator will also impress with its advanced protection systems.

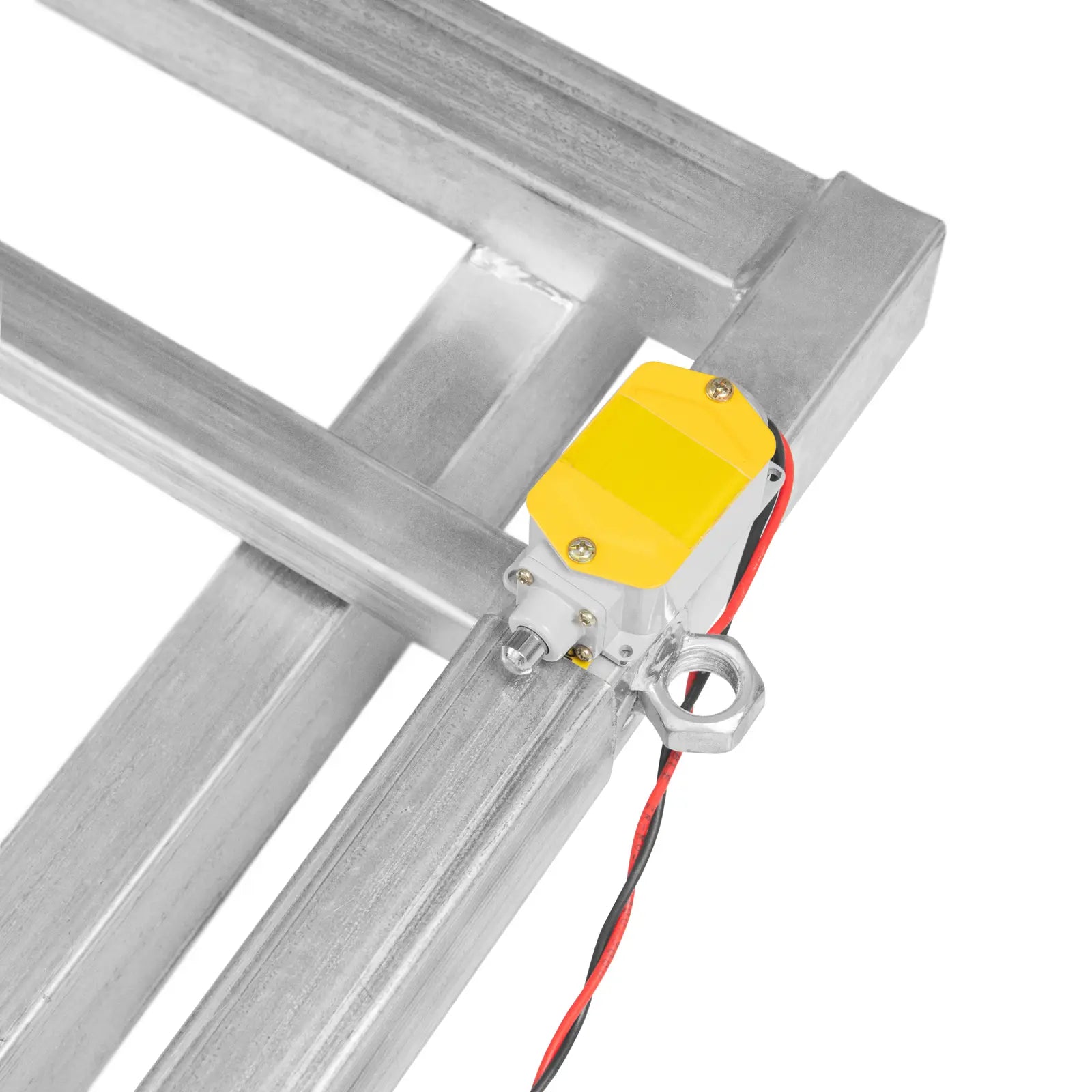

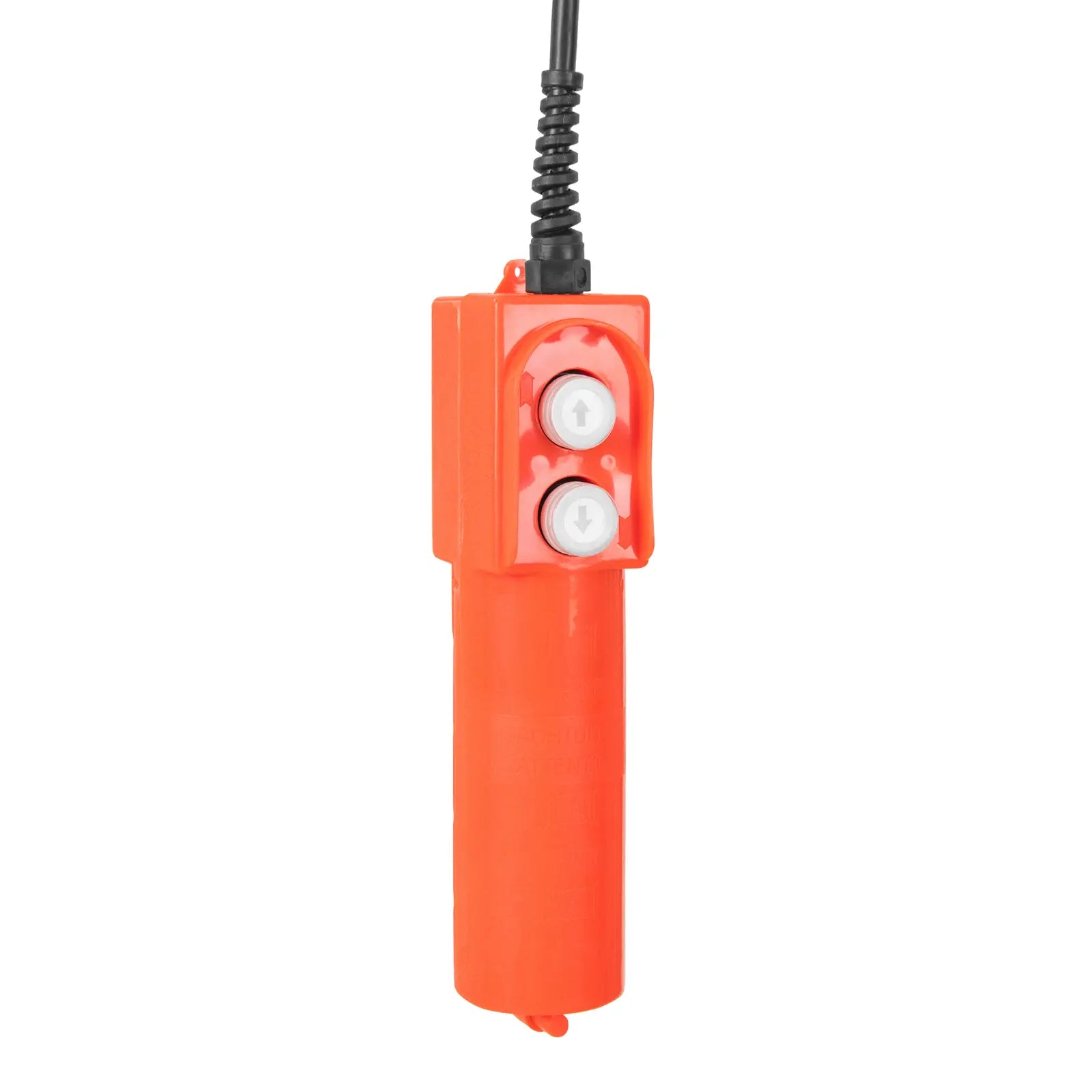

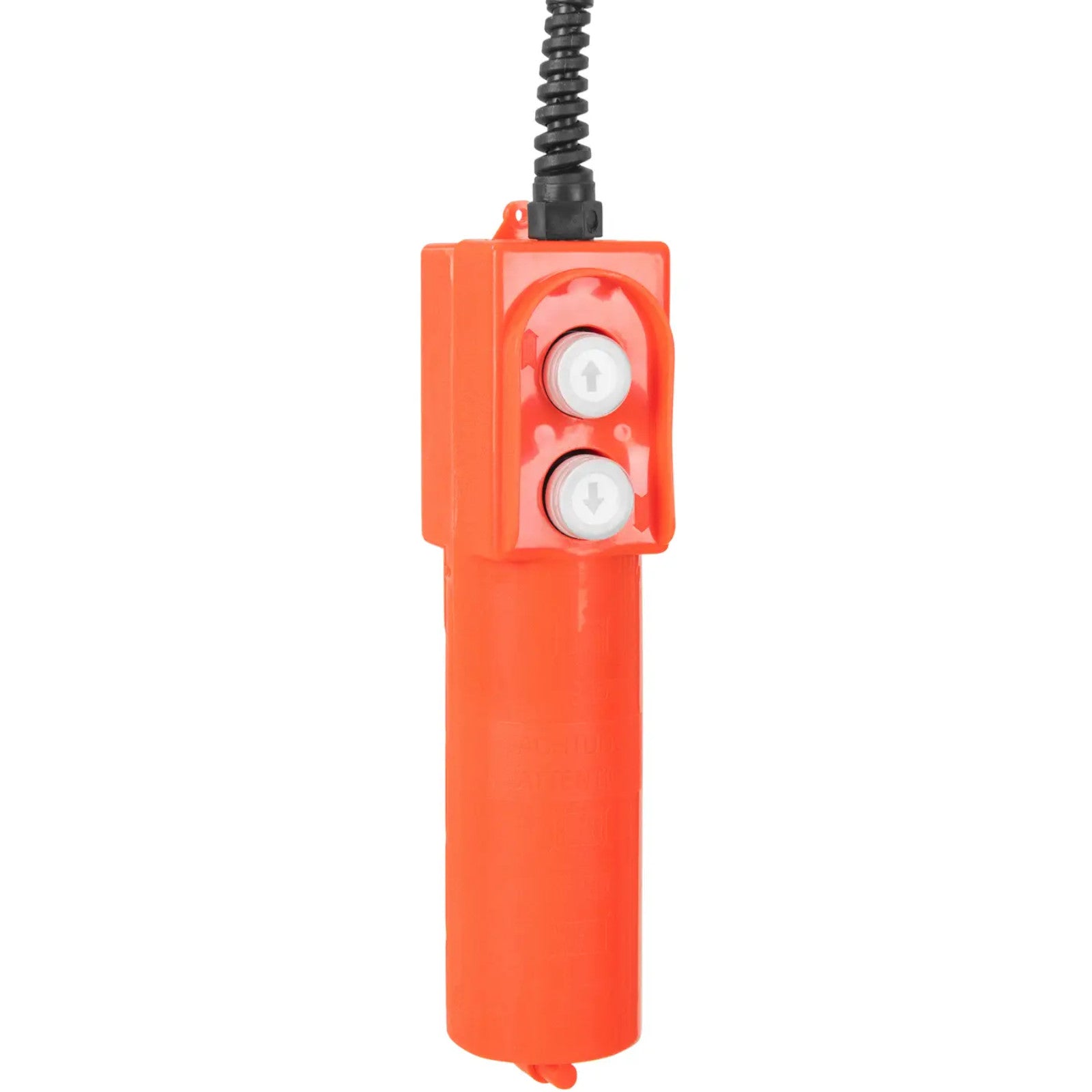

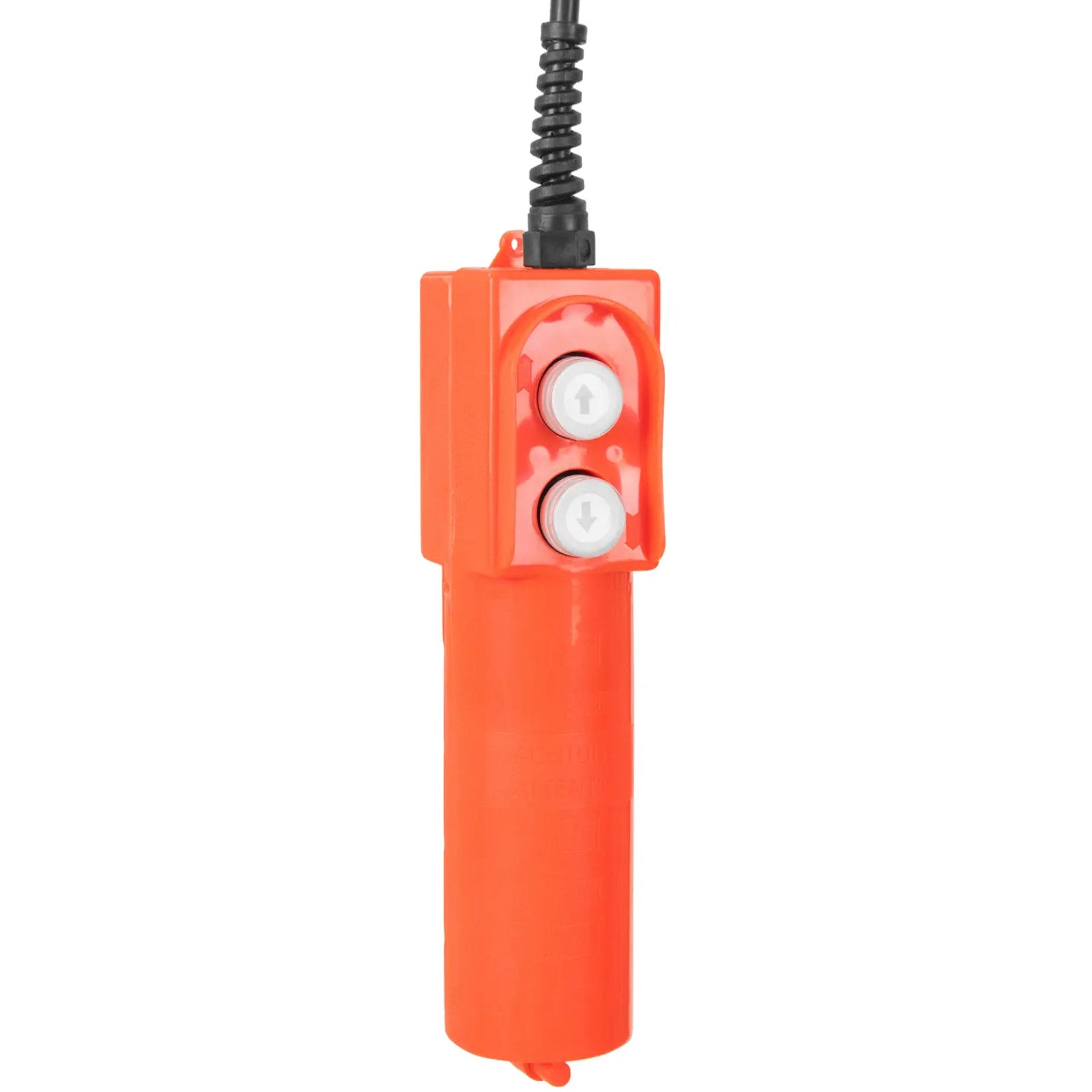

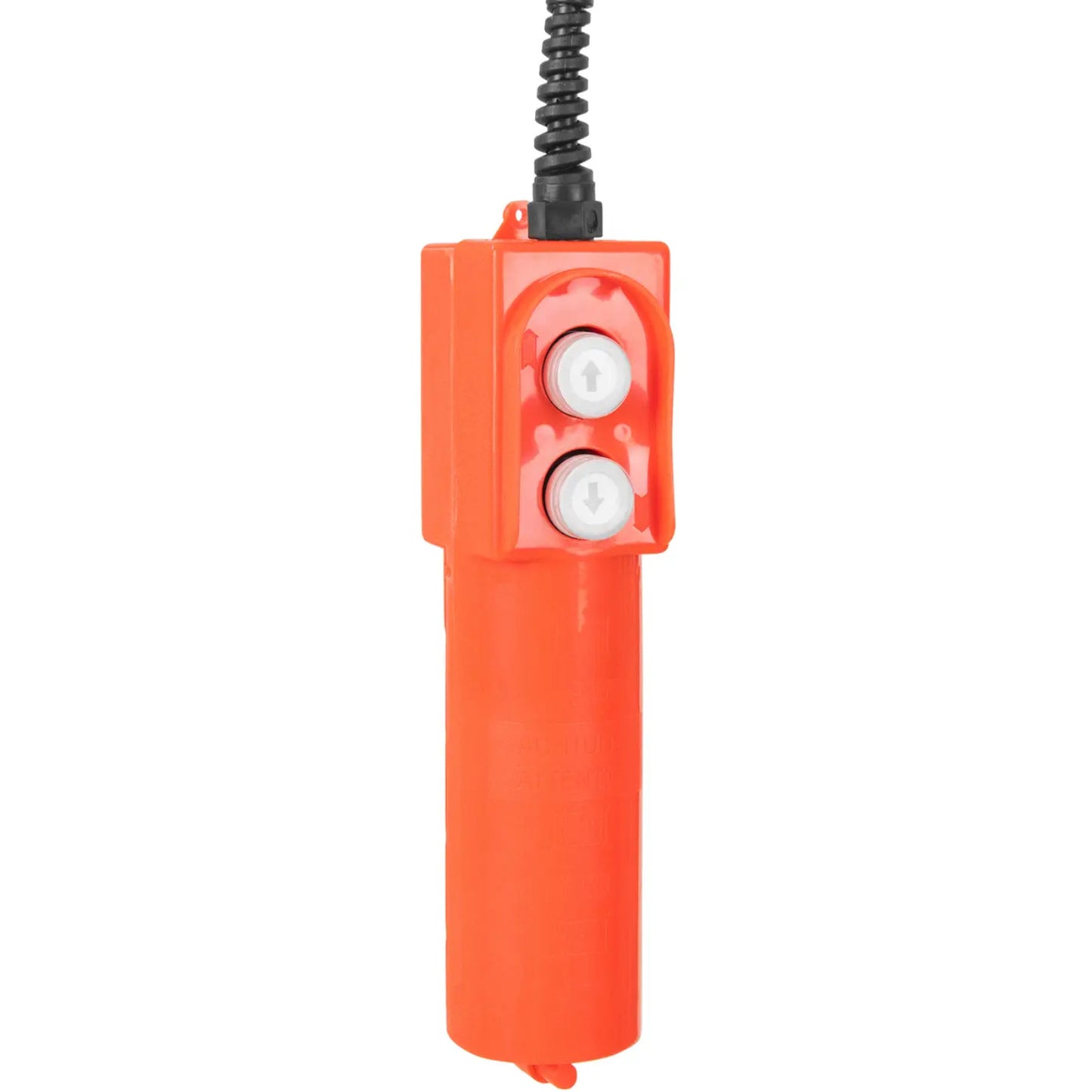

Using the remote control with cable (5 m), you can conveniently operate the lift from a safe distance. A limiter, emergency stop and overload protection will also provide optimal protection for the user and the lifted load.
Product features: - - The 1500 W roof lift will lift up to 300 kg at a speed of 12 m/min,
- - Roof lift with a 150 x 70 cm platform and a lifting height of up to 10 m,
- - The construction lift has a wired remote control, a limiter, an emergency switch and overload protection,
- - The vertical structure of the ladder lift is suitable for various buildings, e.g. with flat roofs,
- - A roof lift with low weight and well-thought-out design for quick disassembly and assembly.
Technical parameters: - - Catalog number - 10062739
- - Article condition - New
- - Model - MSW-RF10S
- - Frequency [Hz] - 50
- - Material - Steel, Galvanized steel
- - Color - Silver metallic
- - IP protection level - IP40
- - Platform size [cm] - 150 x 70 x 30
- - Motor wire - Copper
- - Input voltage [V] - 230
- - Insulation class - B
- - Maximum lifting speed - 12 m/min
- - IEC protection class - I
- - Device duty cycle - S2 (short-time operation, constant load)
- - Power cable - 1 m
- - Rope length - 20 m
- - Remote control cable - 5 m
- - Maximum load - 300 kg

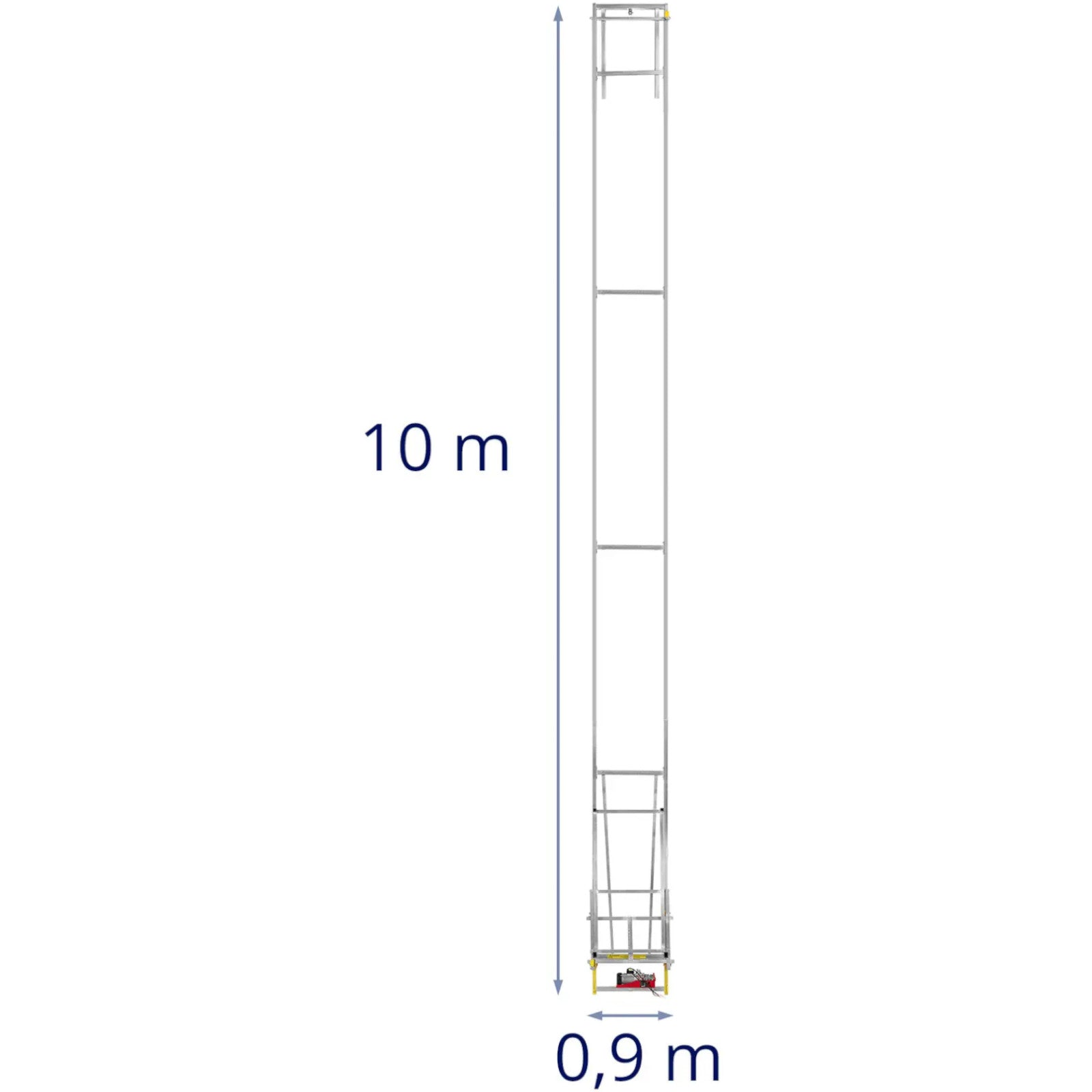

- - Maximum lifting height - 10 m
- - Rope diameter - 5 mm
- - Engine - power - 1.5 kW
- - Wired remote control - Yes
- - Overload protection - Yes
- - Dimensions (LxWxH) - 57 x 90.5 x 1000 cm
- - Weight - 107.5 kg
- - Dimensions shipping (LxWxH) - 258 x 96 x 37 cm
- - Shipping weight - 152 kg

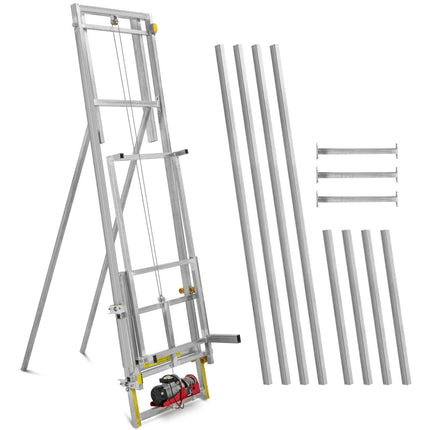

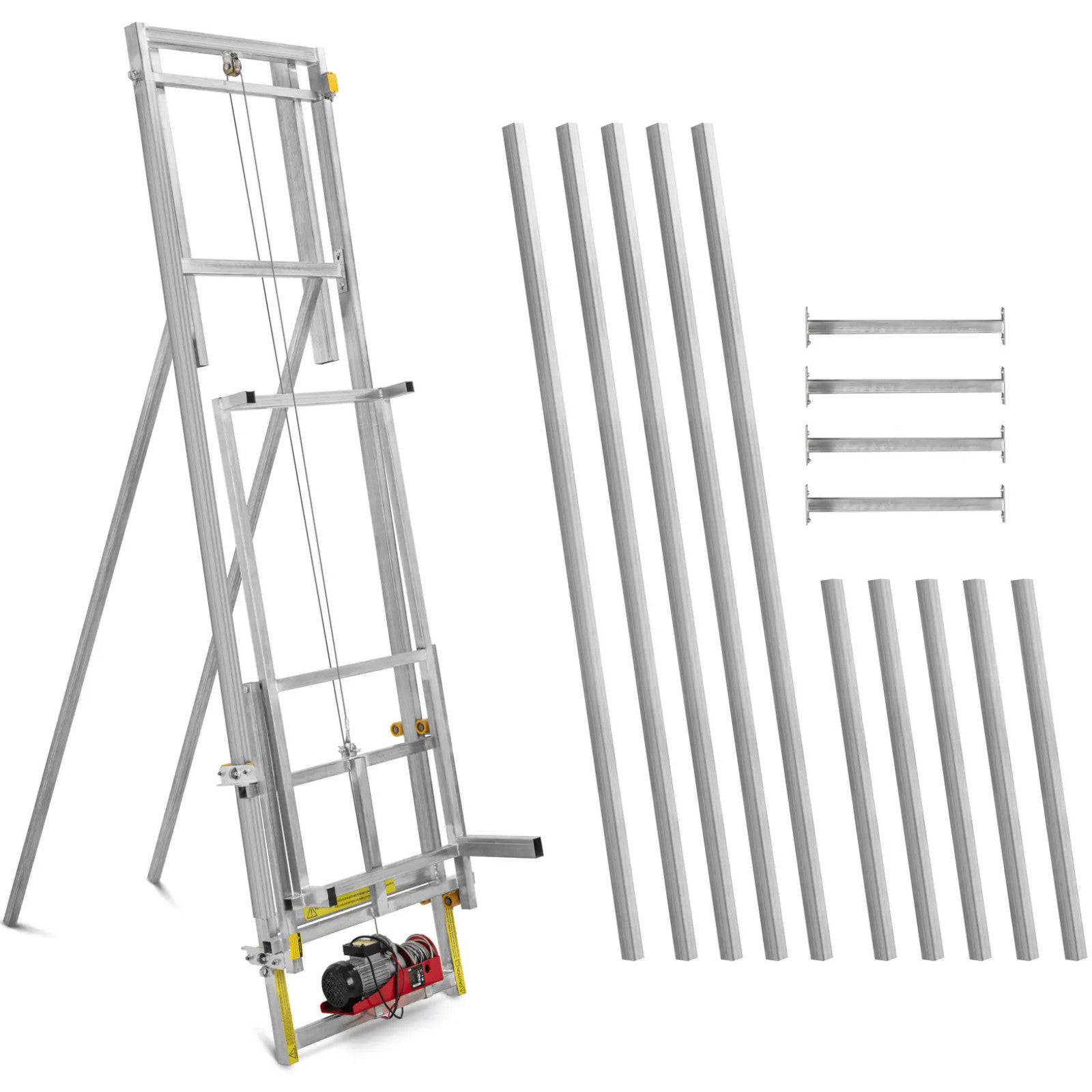

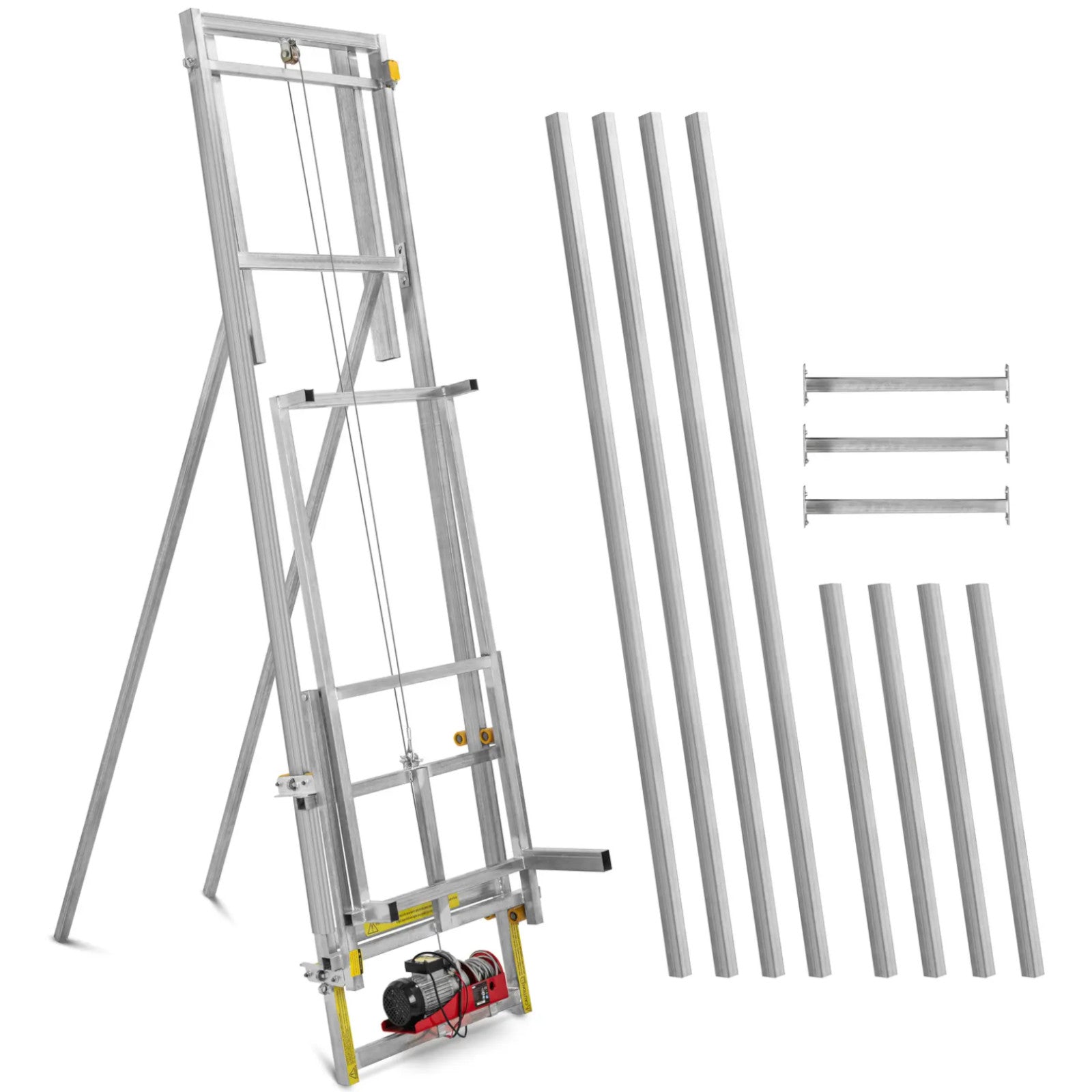

In the set: - - Roofing lift
- - 6 tubes (40 x 60 mm / 3 m)
- - 2 tubes (35 x 55 mm / 2.5 m)
- - 6 tubes (1 m)
- - 2 tubes (40 x 10 mm / 3 m)
- - 4 horizontal support tubes
- - 2 short tubes
- - Upper and lower tube frame
- - Winch
- - Trolley
- - Switch
- - Connecting screws
