Cordless cable press crimper 16-400 mm2 120 kN

Description

Manufacturer's code: 10062610

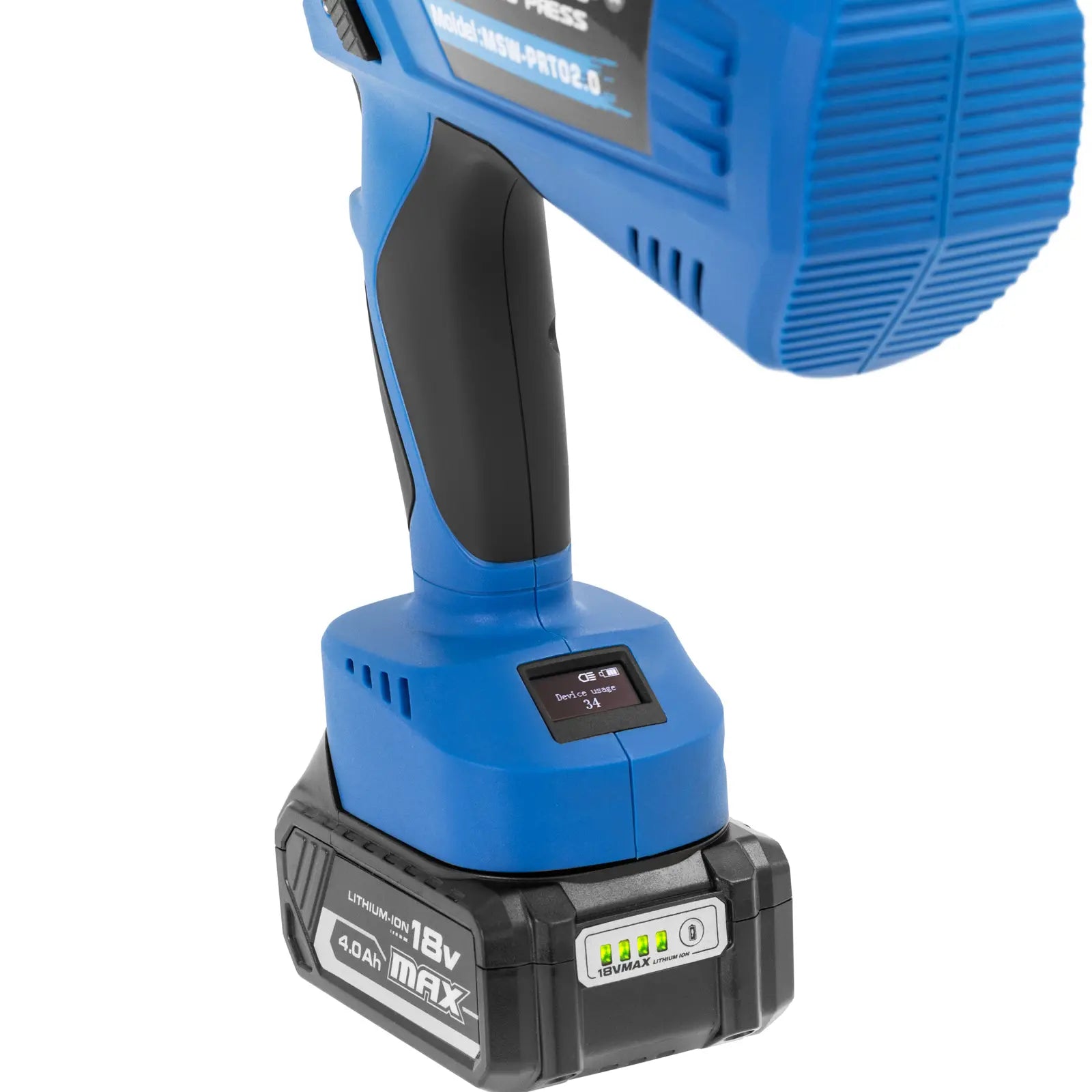

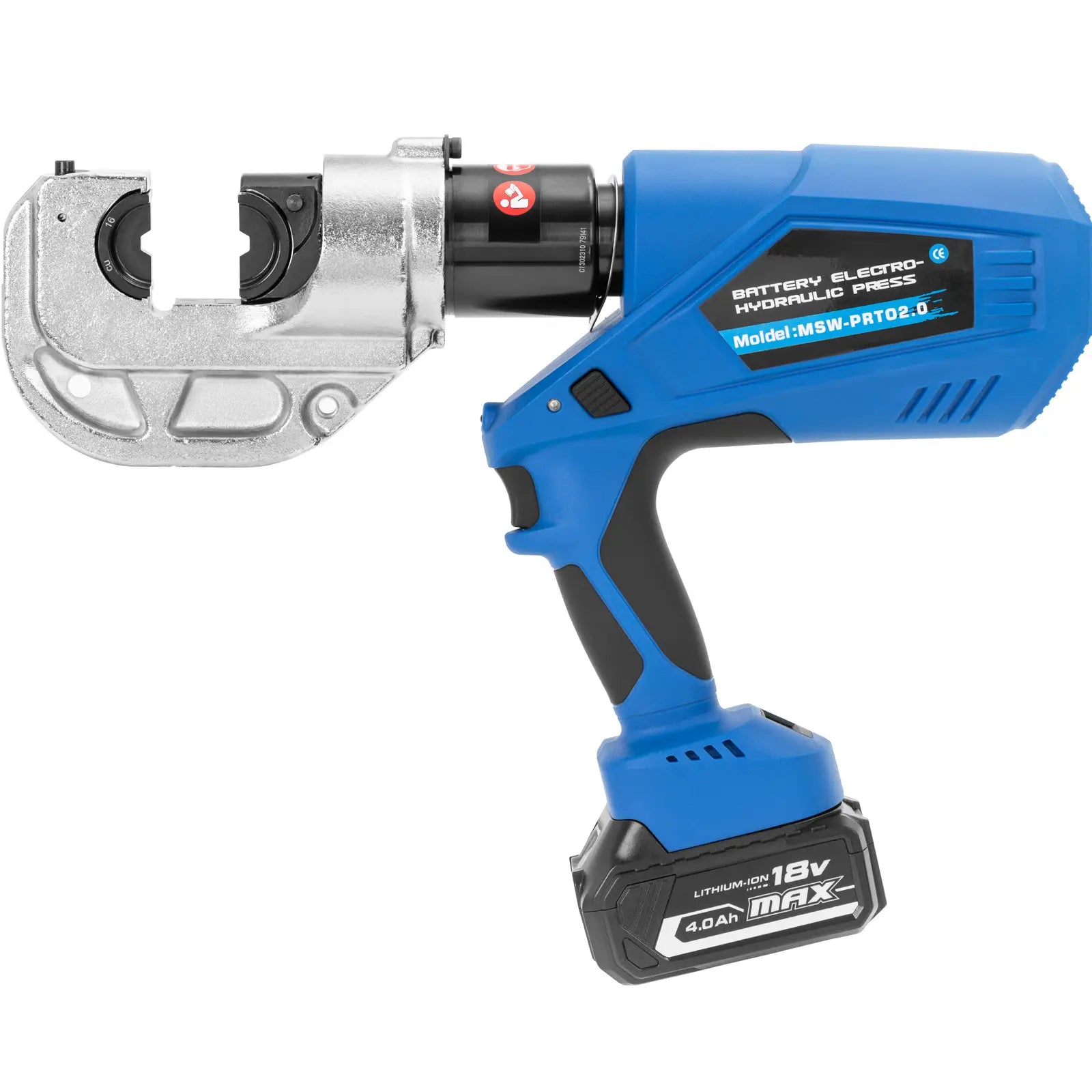

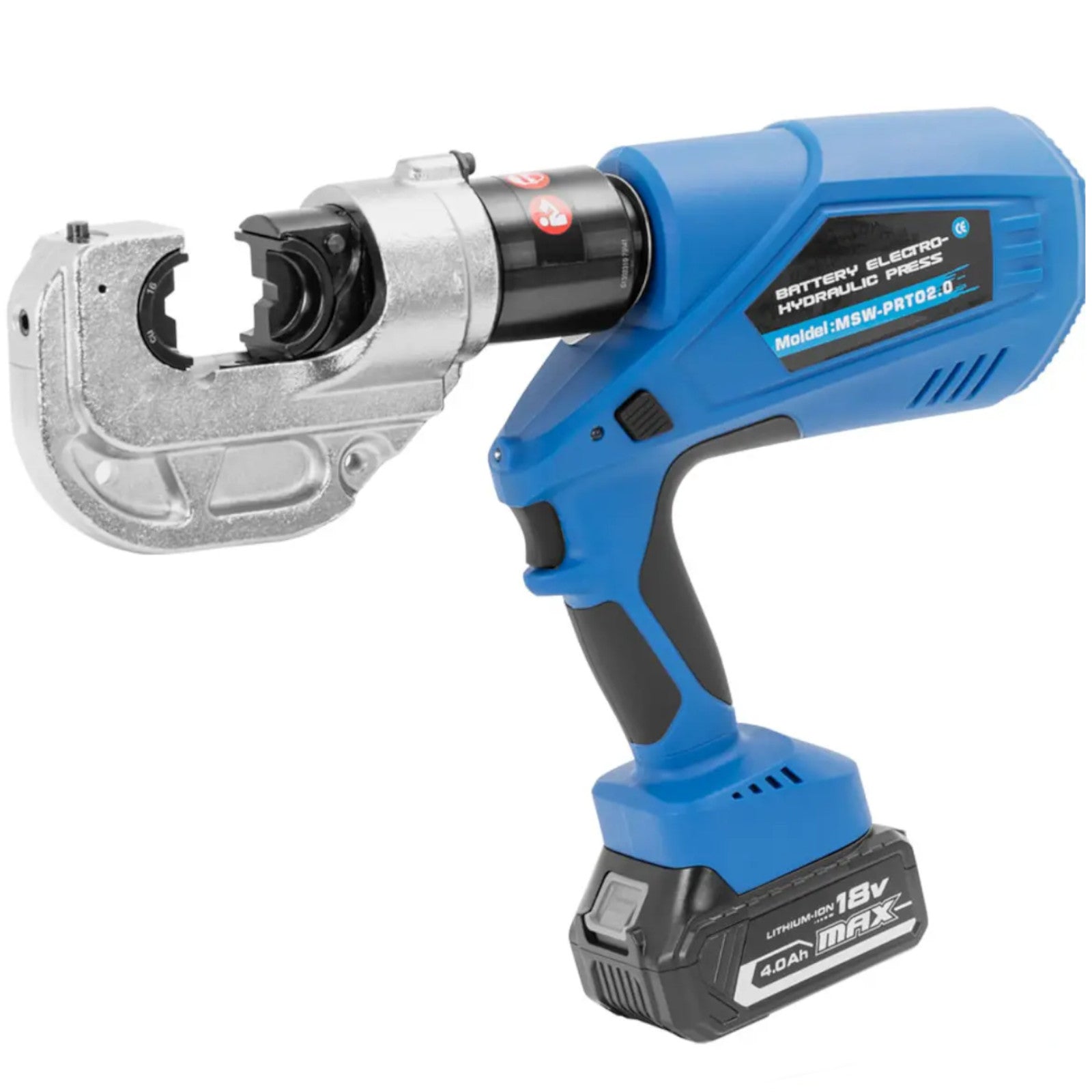

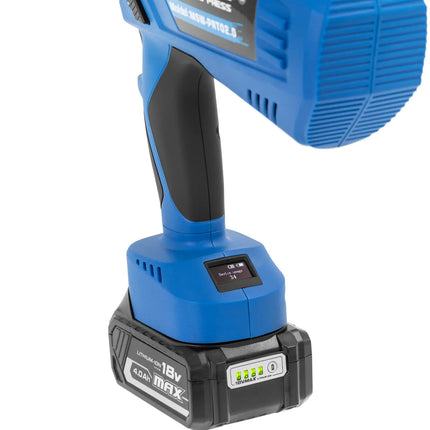

The MSW hydraulic cable crimper is an ideal tool for electrical and automotive plants and DIY enthusiasts. Creates durable cable and pipe connections in seconds. Thanks to one-hand operation and an ergonomic handle, performing this task is not only easier, but also much faster than other methods. The cable crimper convinces with its compact and ergonomic design.Anti-slip rubberhandle and optimized center of gravity ensure safe work. Thanks to thepowerful LED lampyou can work with appropriate lighting. On the dot matrix OLED display, you can also read the crimping time (5 to 8 s), battery level or information such as maintenance reminders and error codes. The clamping head can be freely rotated 360deg around the longitudinal axis. This way, you can easily reach even corners and other hard-to-reach places. The cable crimper is easy to use. Just prepare the components and press the cable end firmly with one hand. The device works with a force of up to 120 kN. The cordless cable press automatically detects the maximum pressure using a microcomputer, retracts the piston and releases the clamped cable. In the event of a failure, simply reset the piston manually. The wide crimping range of the hexagonal profile cable crimper is from 16 to 400 mm². The advantage of hexagonal crimping is that the conductors of the electrical cable are crimped very evenly due to simultaneous pressure from all sides. The device is ideal for mobile use as it comes with a shock-resistant carrying case in which all parts can be safely stored. A practical shoulder strap facilitates transport to the site.
Product features:
  • - Hydraulic crimper for crimping and crimping cable lugs,
  • - Cable crimper for quick and safe crimping of copper or aluminum terminals,
  • - Hydraulic crimping pliers with a range of 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 and 400 mm²,
  • - Quick-change jaws make the cordless cable press the perfect companion in the workshop,
  • - Microcomputer cable crimper automatically detects the maximum pressure and crimps the ends at the press of a button on the ergonomic handle.

Technical parameters:
  • - Catalog number - 10062610
  • - Article condition - New
  • - Model - MSW-PRTO2.0
  • - Frequency [Hz] - 50/60
  • - Material - Rubber, Plastic, Steel
  • - Color - Blue
  • - Voltage [V] - 100-240
  • - Cycle time [s] - 5-8
  • - Capacity [Ah] - 4.0
  • - Rotation range [deg] - Clamping head: 360
  • - Protections - Overheating/overload protection
  • - Charging time [h] - 1.2
  • - Clamping force - 120 kN
  • - Clamping range - Cu: 400 mm² / Al: 300 mm²
  • - Ambient temperature [deg C] - -10 - 40
  • - LED lighting - Yes
  • - Battery powered - Yes
  • - Case included - Yes
  • - Number of charging cycles - 12
  • - Oil tank capacity [l] - 0.16 l

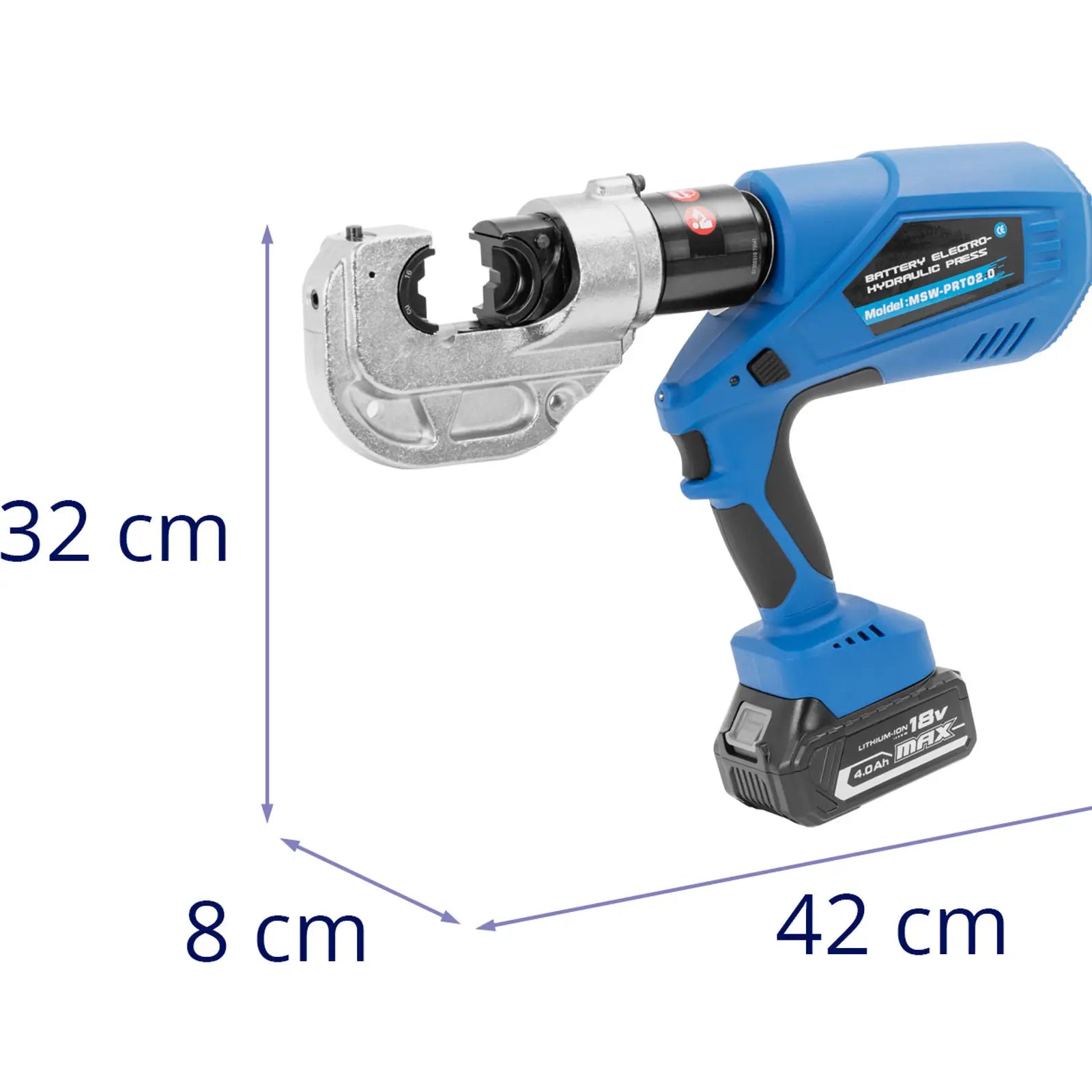

  • - Dimensions (LxWxH) - 42 x 8 x 32 cm
  • - Weight - 7.3 kg
  • - Shipping dimensions (LxWxH) - 61 x 45 x 15 cm
  • - Shipping weight - 15.2 kg

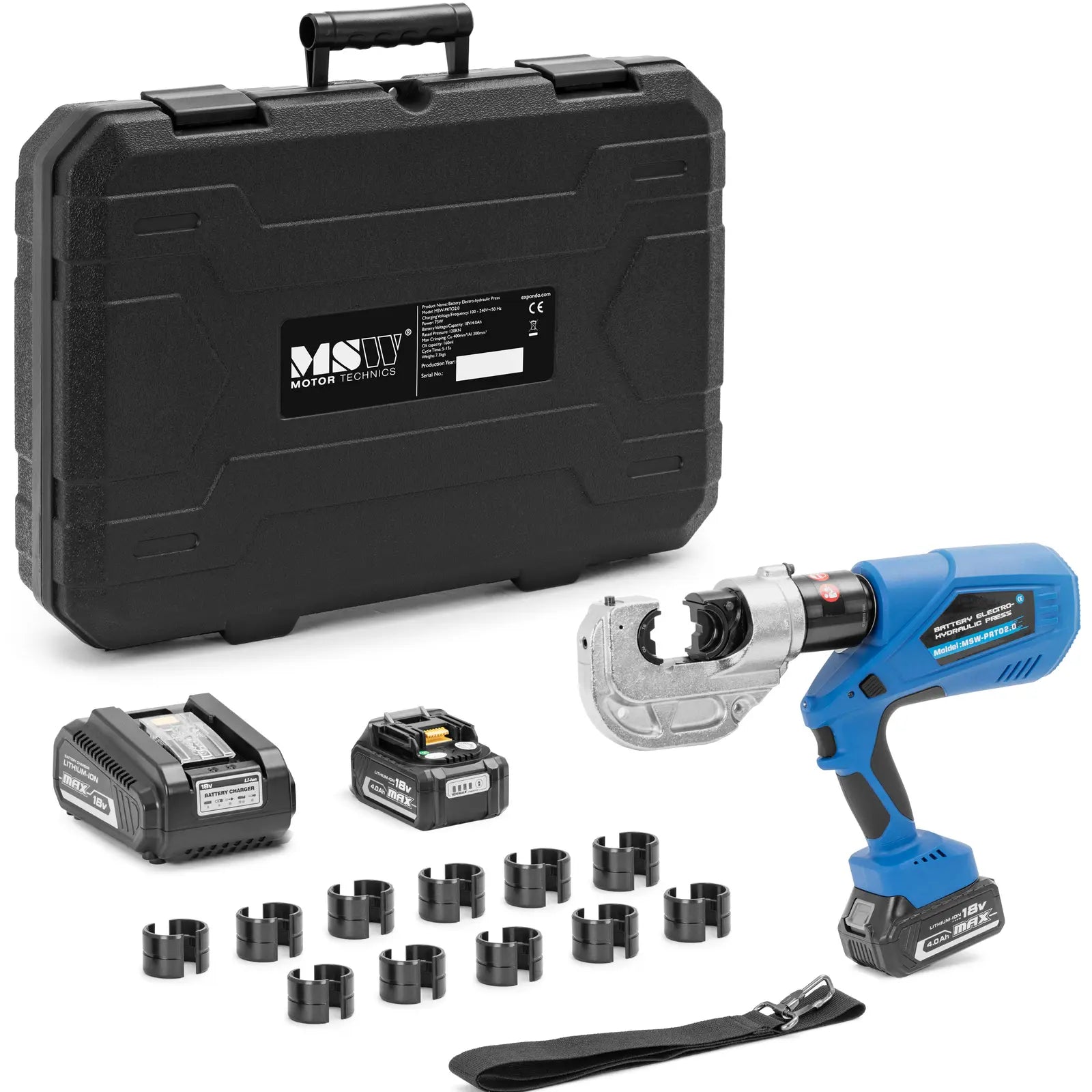

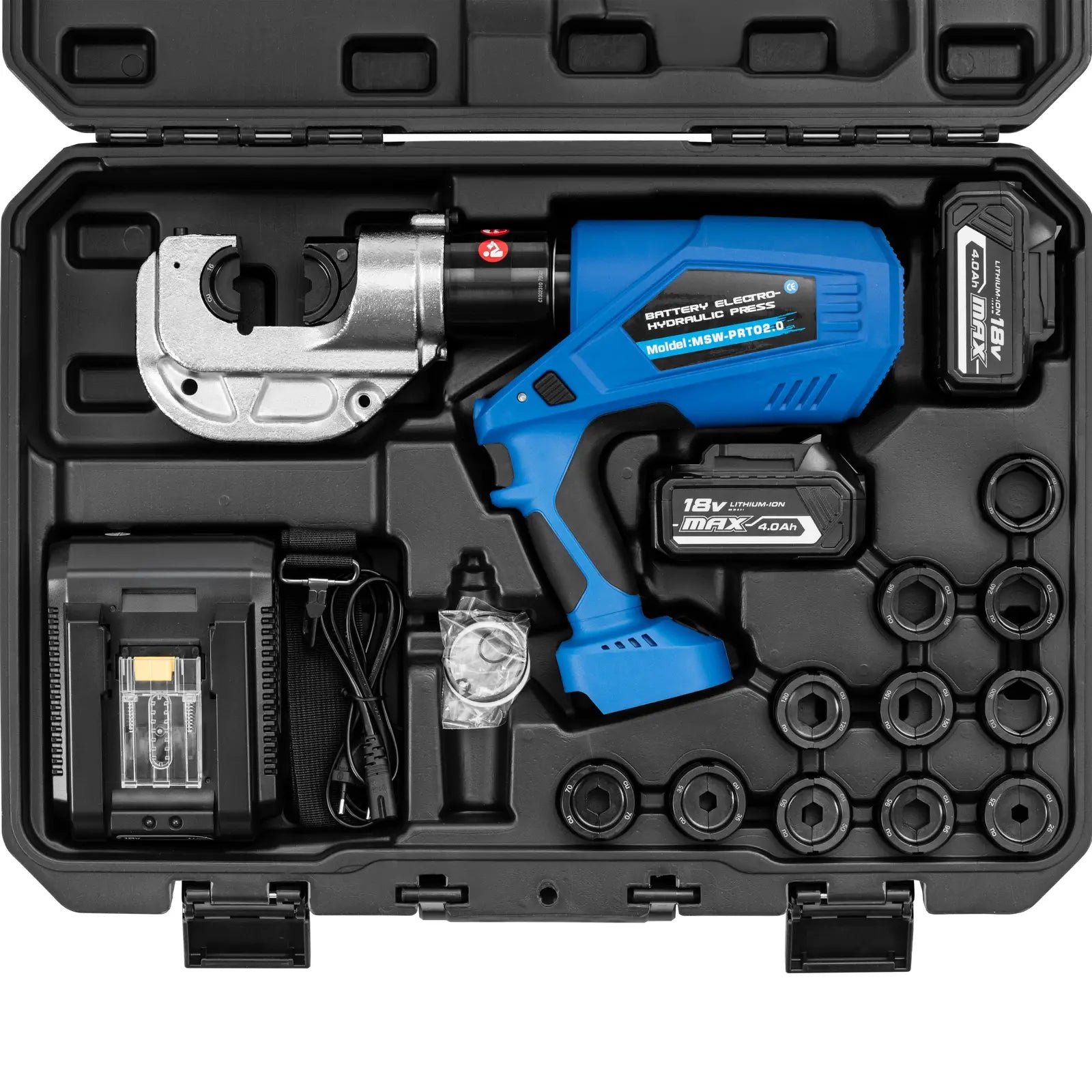

Included in the set:
  • - Hydraulic cable crimper
  • - Clamping jaws (16 / 25 / 35 / 50/70 / 95 /120 / 150 / 185 / 240 / 300 / 400 mm²)
  • - 2 batteries
  • - Power supply
  • - 1 set of sealing rings for the cylinder
  • - 1 set of sealing rings for the safety valve

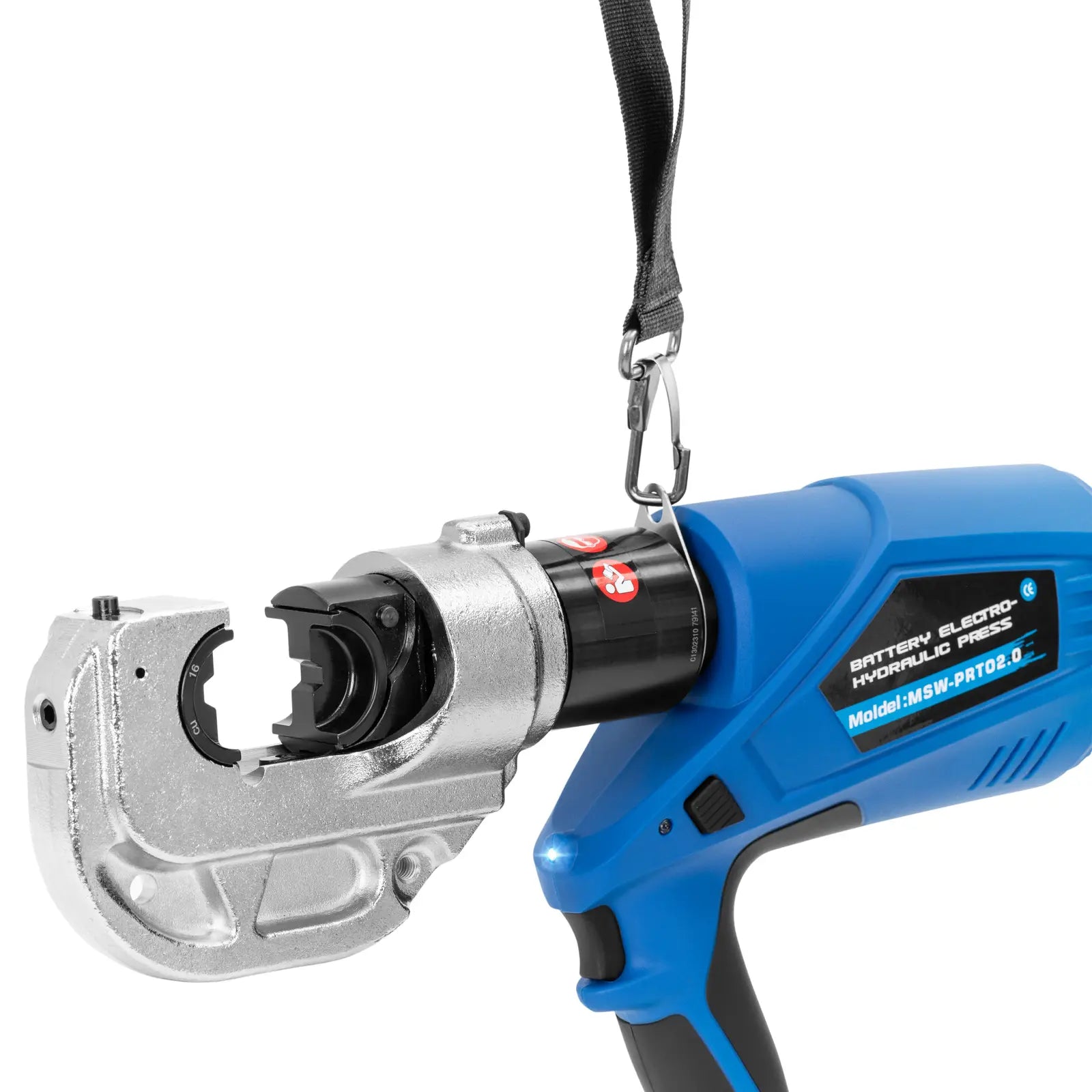

  • - Shoulder strap
  • - Transport case

Cordless cable press crimper 16-400 mm2 120 kN

Product form

Manufacturer's code: 10062610The MSW hydraulic cable crimper is an ideal tool for electrical and automotive plants and DIY enthusiasts. Creates... Read more

Barcode: 4062859238191

37 in stock

€1.095,81 Incl. VAT

    • Guaranteed secure & safe checkout.

      paypal

    Description

    Manufacturer's code: 10062610
    The MSW hydraulic cable crimper is an ideal tool for electrical and automotive plants and DIY enthusiasts. Creates durable cable and pipe connections in seconds. Thanks to one-hand operation and an ergonomic handle, performing this task is not only easier, but also much faster than other methods. The cable crimper convinces with its compact and ergonomic design.Anti-slip rubberhandle and optimized center of gravity ensure safe work. Thanks to thepowerful LED lampyou can work with appropriate lighting. On the dot matrix OLED display, you can also read the crimping time (5 to 8 s), battery level or information such as maintenance reminders and error codes. The clamping head can be freely rotated 360deg around the longitudinal axis. This way, you can easily reach even corners and other hard-to-reach places. The cable crimper is easy to use. Just prepare the components and press the cable end firmly with one hand. The device works with a force of up to 120 kN. The cordless cable press automatically detects the maximum pressure using a microcomputer, retracts the piston and releases the clamped cable. In the event of a failure, simply reset the piston manually. The wide crimping range of the hexagonal profile cable crimper is from 16 to 400 mm². The advantage of hexagonal crimping is that the conductors of the electrical cable are crimped very evenly due to simultaneous pressure from all sides. The device is ideal for mobile use as it comes with a shock-resistant carrying case in which all parts can be safely stored. A practical shoulder strap facilitates transport to the site.
    Product features:
    • - Hydraulic crimper for crimping and crimping cable lugs,
    • - Cable crimper for quick and safe crimping of copper or aluminum terminals,
    • - Hydraulic crimping pliers with a range of 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 and 400 mm²,
    • - Quick-change jaws make the cordless cable press the perfect companion in the workshop,
    • - Microcomputer cable crimper automatically detects the maximum pressure and crimps the ends at the press of a button on the ergonomic handle.

    Technical parameters:
    • - Catalog number - 10062610
    • - Article condition - New
    • - Model - MSW-PRTO2.0
    • - Frequency [Hz] - 50/60
    • - Material - Rubber, Plastic, Steel
    • - Color - Blue
    • - Voltage [V] - 100-240
    • - Cycle time [s] - 5-8
    • - Capacity [Ah] - 4.0
    • - Rotation range [deg] - Clamping head: 360
    • - Protections - Overheating/overload protection
    • - Charging time [h] - 1.2
    • - Clamping force - 120 kN
    • - Clamping range - Cu: 400 mm² / Al: 300 mm²
    • - Ambient temperature [deg C] - -10 - 40
    • - LED lighting - Yes
    • - Battery powered - Yes
    • - Case included - Yes
    • - Number of charging cycles - 12
    • - Oil tank capacity [l] - 0.16 l
    • - Dimensions (LxWxH) - 42 x 8 x 32 cm
    • - Weight - 7.3 kg
    • - Shipping dimensions (LxWxH) - 61 x 45 x 15 cm
    • - Shipping weight - 15.2 kg

    Included in the set:
    • - Hydraulic cable crimper
    • - Clamping jaws (16 / 25 / 35 / 50/70 / 95 /120 / 150 / 185 / 240 / 300 / 400 mm²)
    • - 2 batteries
    • - Power supply
    • - 1 set of sealing rings for the cylinder
    • - 1 set of sealing rings for the safety valve
    • - Shoulder strap
    • - Transport case
