Overview

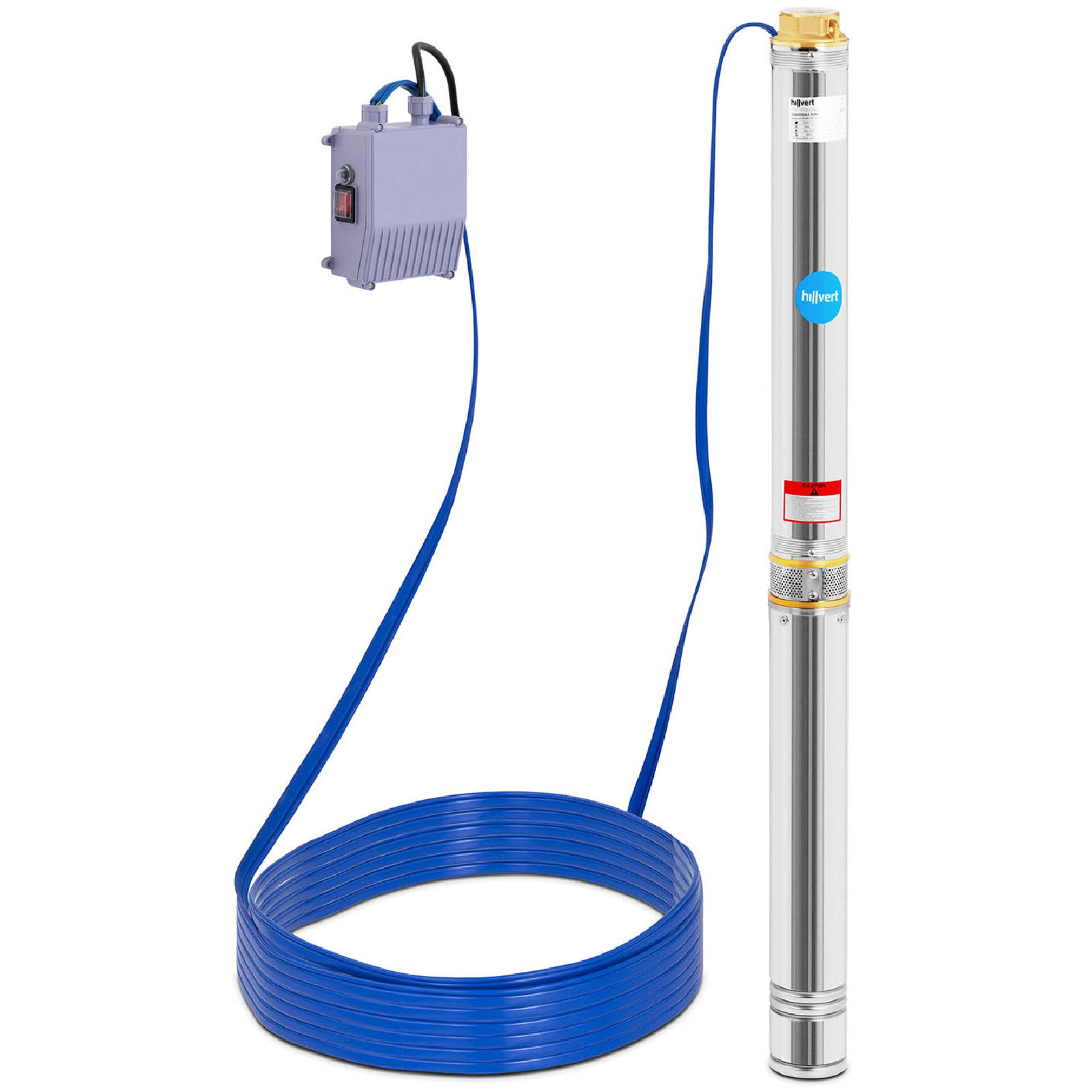

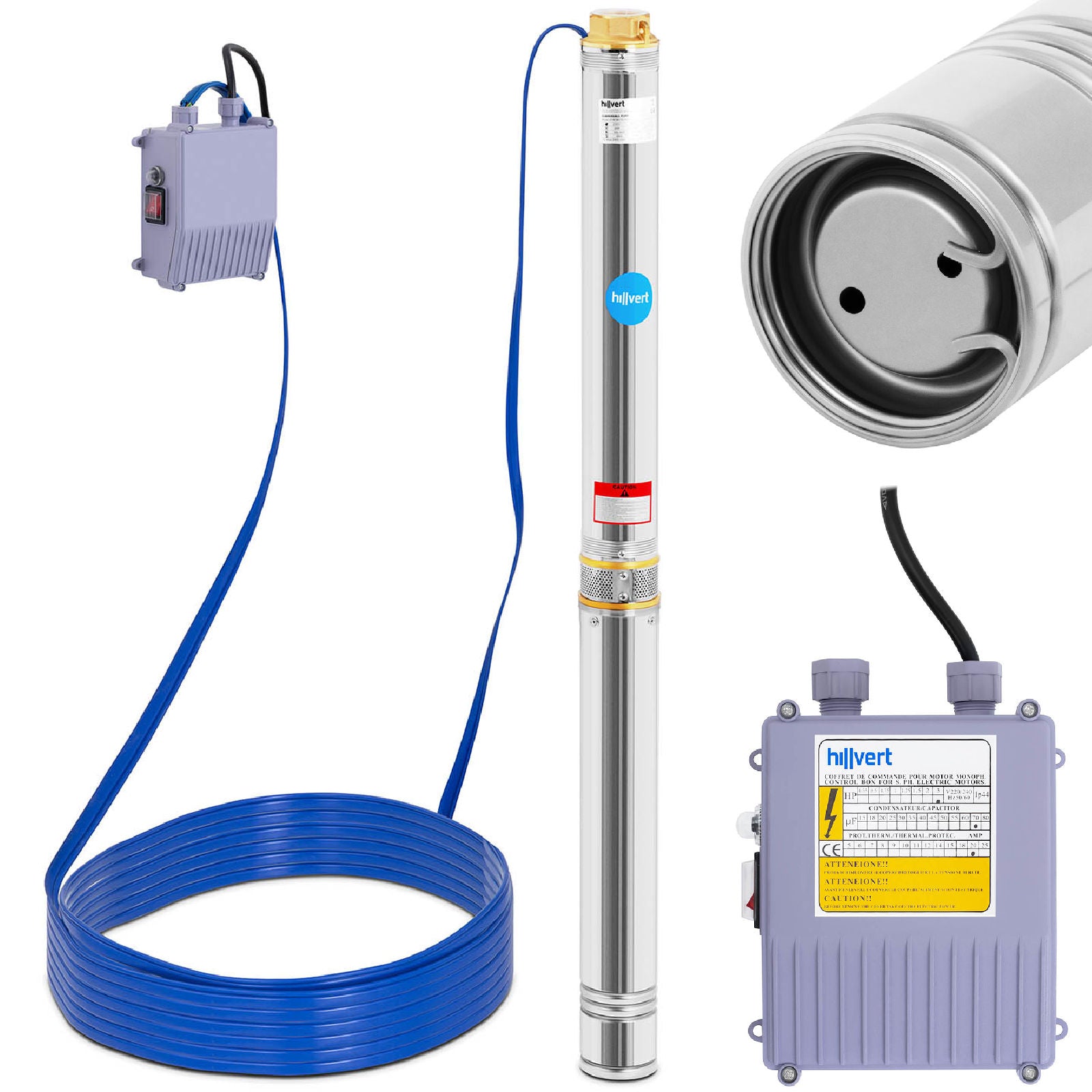

The Submersible pump for a deep well made of stainless steel, 13,800 l/h. up to 76.4 m from Hillvert brings well pumps & systems you can rely on, made for your home & garden needs. A popular choice in Home and Garden, Garden.

Product code: 1011938

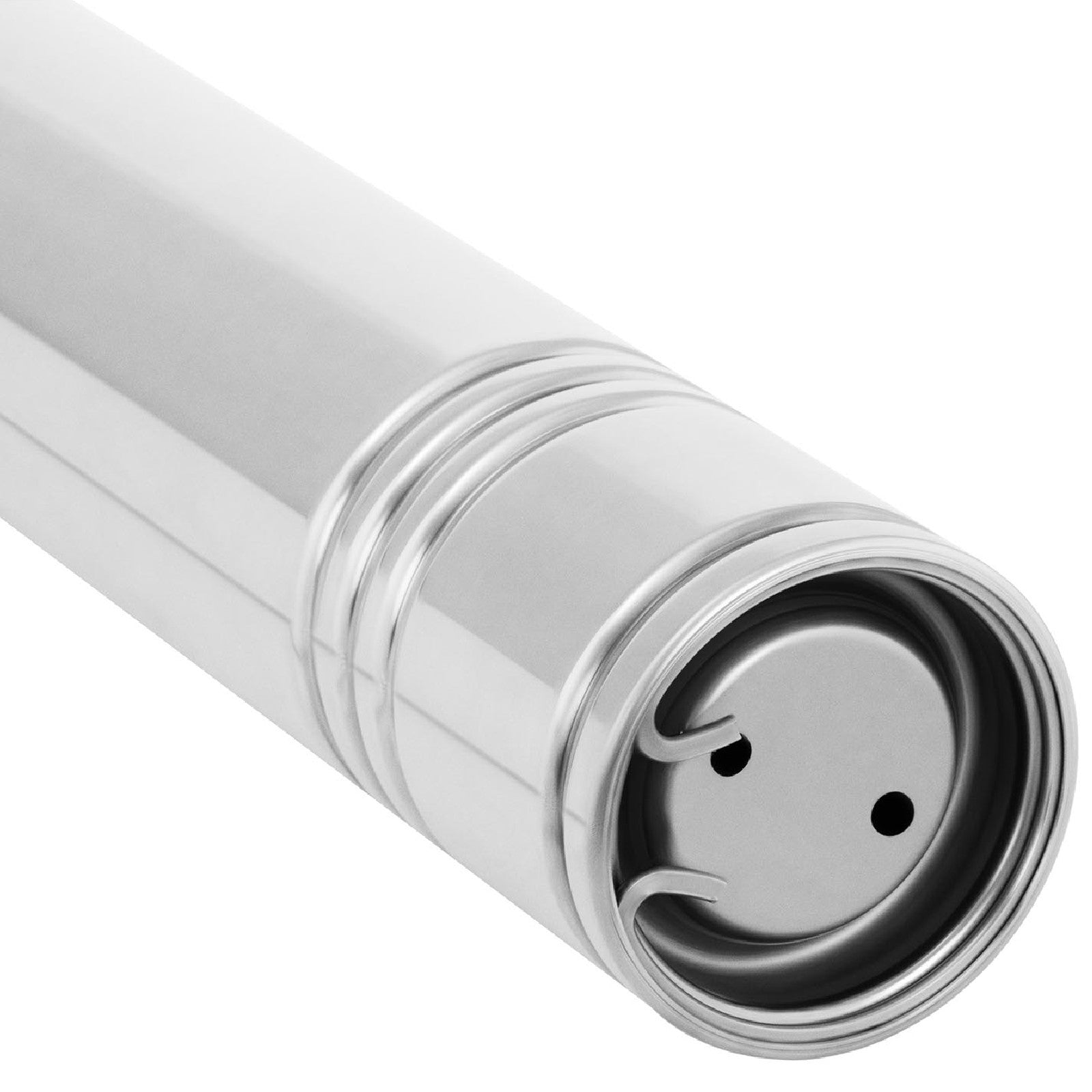

Hillvert submersible pumpeasily pumps water from deep and narrow shafts, wells, tanks or cisterns. The stainless steel housing has a diameter of only 95 mm and is ideal for narrow drilling. The 2200 W motor operates at a speed of 2,850 rpm and provides a high flow of up to 13,800 l/h. The device can be submerged to a depth of 20 m with a maximum lifting height of 76.4 m. The well pump is suitable for clean water with a temperature of up to 35 degrees Celsius.The submersible pump motor is hermetically sealed and protected against pressure and water.The stainless steel housing is resistant to corrosion and dirt. Moreover, it reliably withstands even the highest loads.

Key features

Capacity 13,800 l/h thanks to a 2200 W motor and a speed of 2850 rpm
Control via a control box with a protected on/off switch
Maximum lifting height 76.4 m
Stainless steel casing resistant to corrosion and dirt
Submersible pump
Technical specification
SpecificationDetail
BrandHillvert
Voltage [V]230
MaterialStainless steel
ColorSilver
Rated current14 A
Rated speed [rpm]2850
Water flow13,800 l/h
Total diameter95 mm / 3.75''
Insulation classB
IEC protection classI
Number of stages (pump impellers)12
Max. depth of immersion under water20 m
Max. sand content in water [%]0.25
Maximum input power3 kW
Maximum output power2.2 kW
Maximum water temperature35 deg C
Maximum lifting height76.4 m
Maximum working pressure7.64 Bar
Maximum water flow13.8 m³/h
Maximum particle size1.8 mm

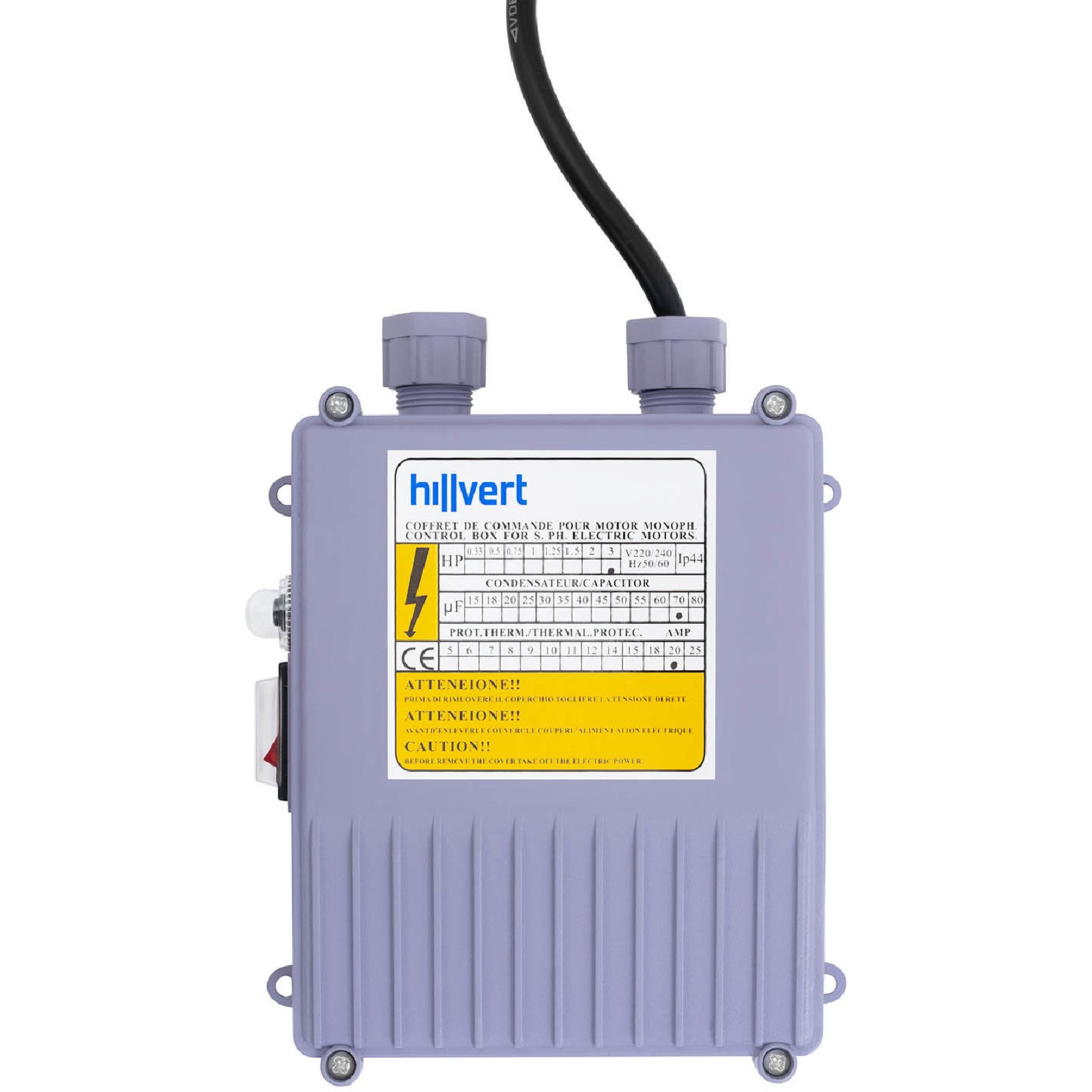

Control methodsExternal start box (2200 W)

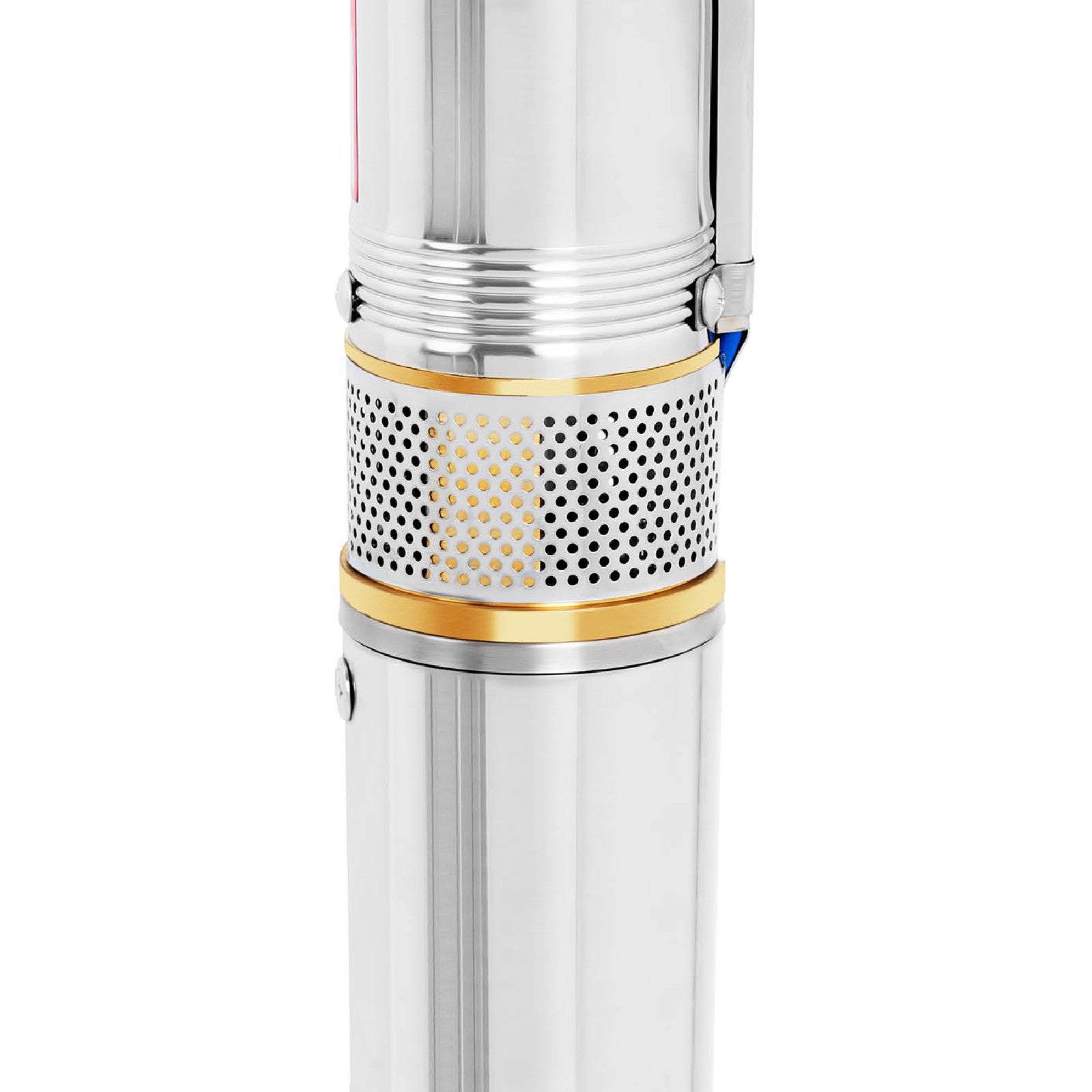

FilterYes
OvercurrentYes
Check valveYes
Power cable20 m
Cable specificationHO7RN-F3G2.5mm²
IP protection levelIP68
Mounting hole diameter100 mm

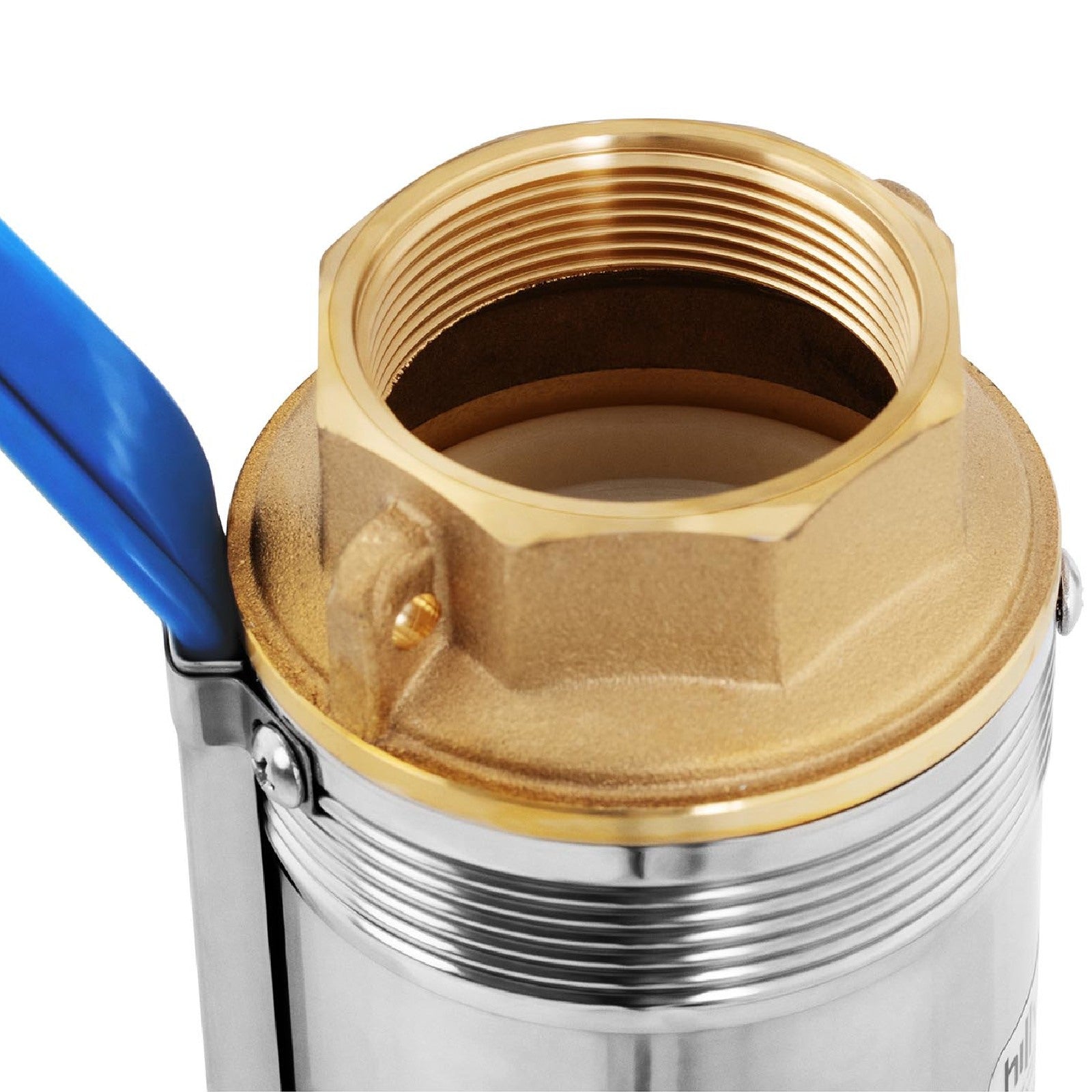

Water connection diameter2 in
Dimensions (LxWxH)124.5 x 9.5 x 9.5 cm
Weight25 kg
Shipping dimensions (LxWxH)162 x 24 x 12 cm
Shipping weight28 kg
